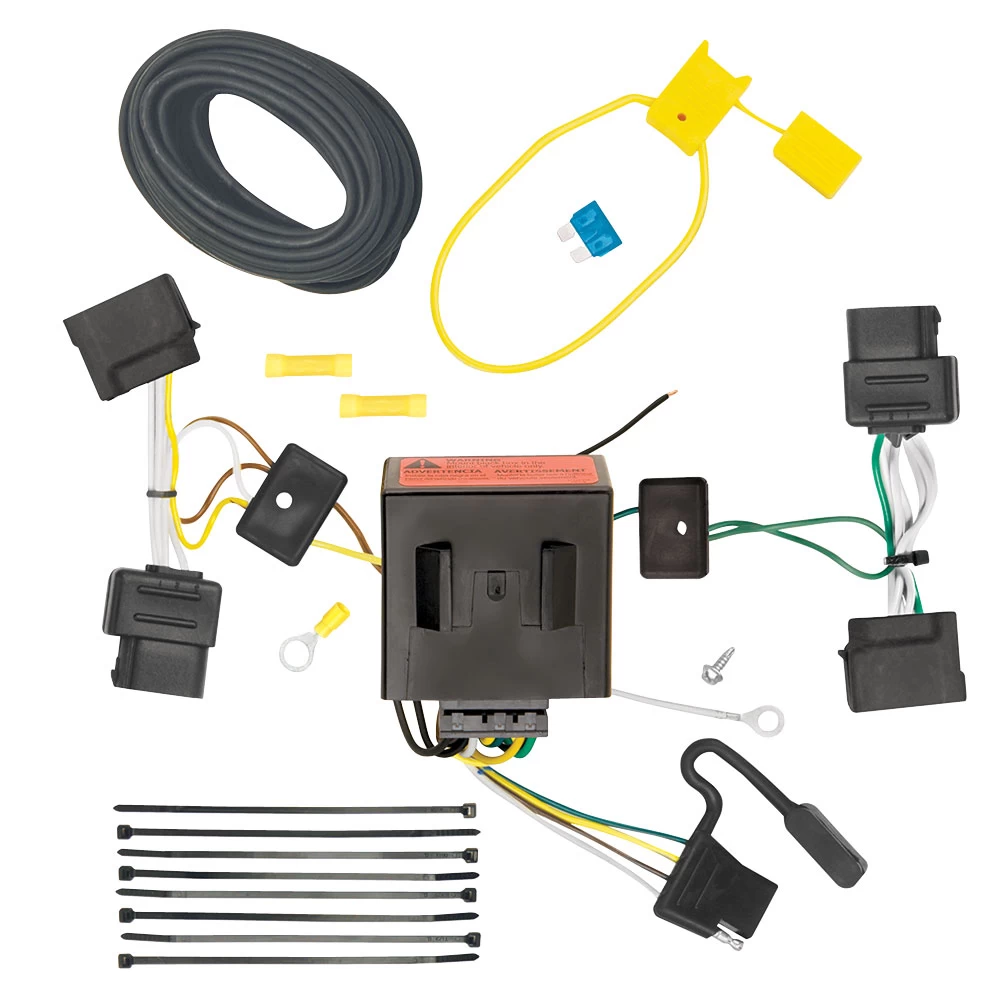

Installation Instructions for T-Connector Adapter for Ford (Edge, Escapte, Econoline), Lincoln MKX, Mercury Mariner and Mazda Tribute

Part Numbers:

• 118551

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

For Ford Edge and Lincoln MKX:

1. Remove Rear Taillight Assemblies:

   • Open the rear tailgate and remove two bolts securing each taillight.
   • Carefully pry the taillight housings rearward, ensuring the alignment tabs are not broken.

2. Access the Vehicle’s Wiring:

   • Pull the taillight wire harness out and unseat the grommet.
   • Temporarily remove the floor coverings, cargo trays, plastic threshold cover, and side trim panels inside the cargo area.

3. Install Driver-Side T-Connector:

   • Route the T-Connector with yellow and brown wires through the opening exposed in Step 2.
   • Separate the vehicle’s connectors on the driver’s side, ensuring the mating surfaces are clean.
   • Plug the T-Connector into the vehicle’s wiring harness.

4. Route the Passenger-Side Harness:

   • Route the T-Connector with the green wire under the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side.
   • Clean the area and secure the white wire using the provided eyelet and screw.

6. Connect the Power Wire:

   • Route the black 12-gauge power wire from the driver’s side taillight pocket to the T-Connector’s black box.
   • Use the supplied yellow butt connector to attach the power wire to the black wire from the black box.
   • Route the remaining power wire along the frame rail to the vehicle’s battery, avoiding hot or moving parts.

7. Battery Connection:

   • Disconnect the vehicle’s negative battery cable.
   • Cut the yellow fuse holder wire, attach the ring terminal, and secure it to the positive battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using a yellow butt connector.
   • Reconnect the negative battery cable and install the 15-amp fuse into the fuse holder.

8. Secure the Harness:

   • Use the provided cable ties to secure the T-Connector harness, ensuring wires do not pinch or rub.
   • Mount the T-Connector black box in a clean, flat area using the provided double-sided tape.

9. Reassemble the Vehicle:

   • Reinstall the taillight assemblies, wheel wells, and other components removed during installation.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer to verify functionality.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Verify connections before use.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Ford (Edge, Escape, Econoline), Lincoln MKX, Mercury Mariner, and Mazda Tribute

Part Numbers:

• 118551

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

For Ford Edge and Lincoln MKX:

1. Remove Rear Taillight Assemblies:

   • Open the rear tailgate and remove two bolts securing each taillight.
   • Carefully pry the taillight housings rearward, ensuring the alignment tabs are not broken.

2. Access the Vehicle’s Wiring:

   • Pull the taillight wire harness out and unseat the grommet.
   • Temporarily remove the floor coverings, cargo trays, plastic threshold cover, and side trim panels inside the cargo area.

3. Install Driver-Side T-Connector:

   • Route the T-Connector with yellow and brown wires through the opening exposed in Step 2.
   • Separate the vehicle’s connectors on the driver’s side, ensuring the mating surfaces are clean.
   • Plug the T-Connector into the vehicle’s wiring harness.

4. Route the Passenger-Side Harness:

   • Route the T-Connector with the green wire under the threshold cover to the passenger-side taillight housing.
   • Repeat Step 3 for the passenger side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point on the driver’s side.
   • Clean the area and secure the white wire using the provided eyelet and screw.

6. Connect the Power Wire:

   • Route the black 12-gauge power wire from the driver’s side taillight pocket to the T-Connector’s black box.
   • Use the supplied yellow butt connector to attach the power wire to the black wire from the black box.
   • Route the remaining power wire along the frame rail to the vehicle’s battery, avoiding hot or moving parts.

7. Battery Connection:

   • Disconnect the vehicle’s negative battery cable.
   • Cut the yellow fuse holder wire, attach the ring terminal, and secure it to the positive battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using a yellow butt connector.
   • Reconnect the negative battery cable and install the 15-amp fuse into the fuse holder.

8. Secure the Harness:

   • Use the provided cable ties to secure the T-Connector harness, ensuring wires do not pinch or rub.
   • Mount the T-Connector black box in a clean, flat area using the provided double-sided tape.

9. Reassemble the Vehicle:

   • Reinstall the taillight assemblies, wheel wells, and other components removed during installation.

10. Test the Installation:

    • Test the T-Connector with a test light or trailer to verify functionality.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Verify connections before use.

Manufacturer Notes:

• Store the 4-flat connector in the rear cargo area when not in use.
• Refer to the vehicle owner’s manual for additional guidance.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Caution: Improper installation or circuit overloads can cause electrical failures. Always follow instructions carefully and test the installation thoroughly before use.

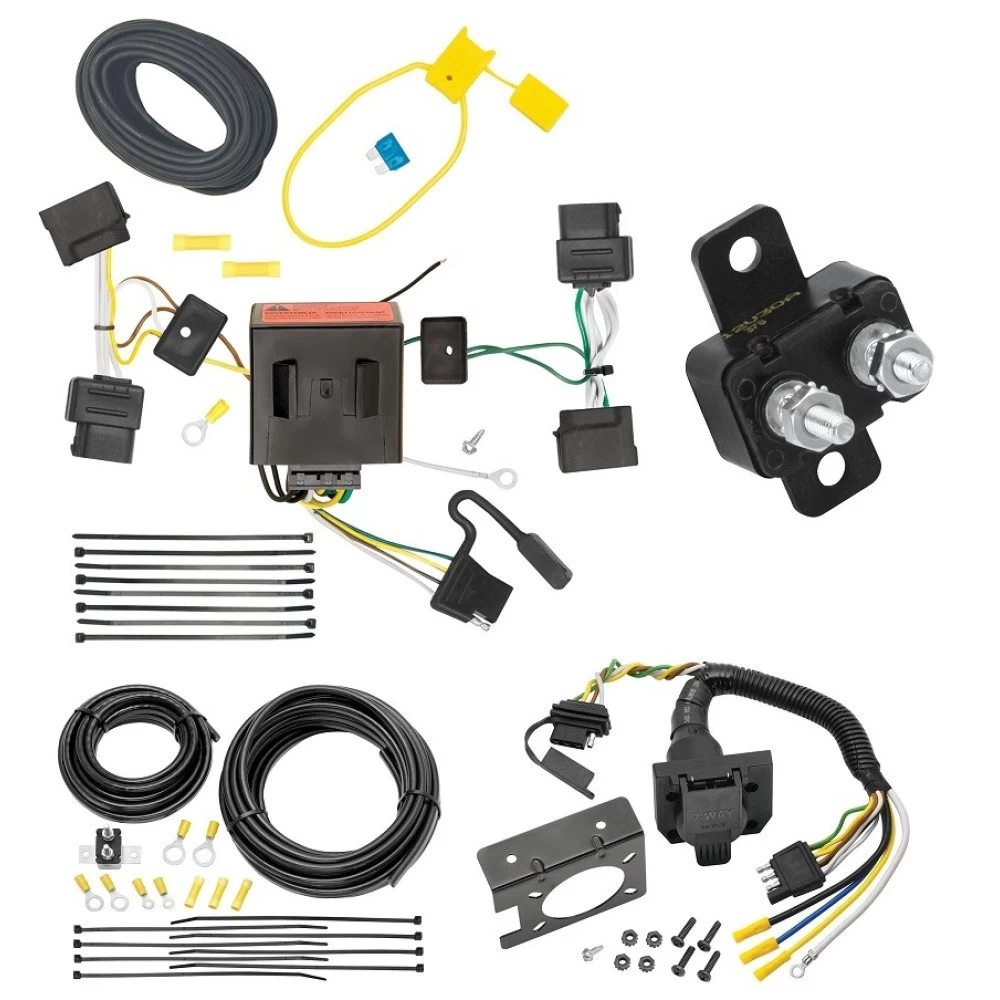

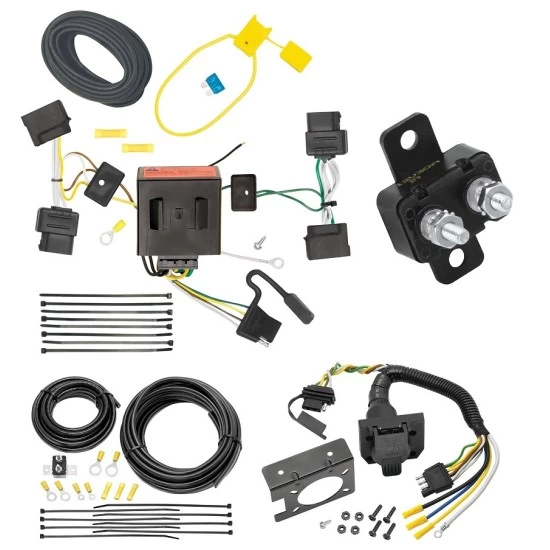

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
