For 1996‑2004 Nissan Pathfinder Trailer Wiring 4 Way Fits All Models Curt 55361
Model: 55361-CW3089This Wiring 4-Flat Fits The Following Vehicles:
1996 - 2004 Nissan Pathfinder All Models
This Wiring 4-Flat Includes the Following Parts:
- Custom Wiring, 4-Way Flat (Plug & Play)

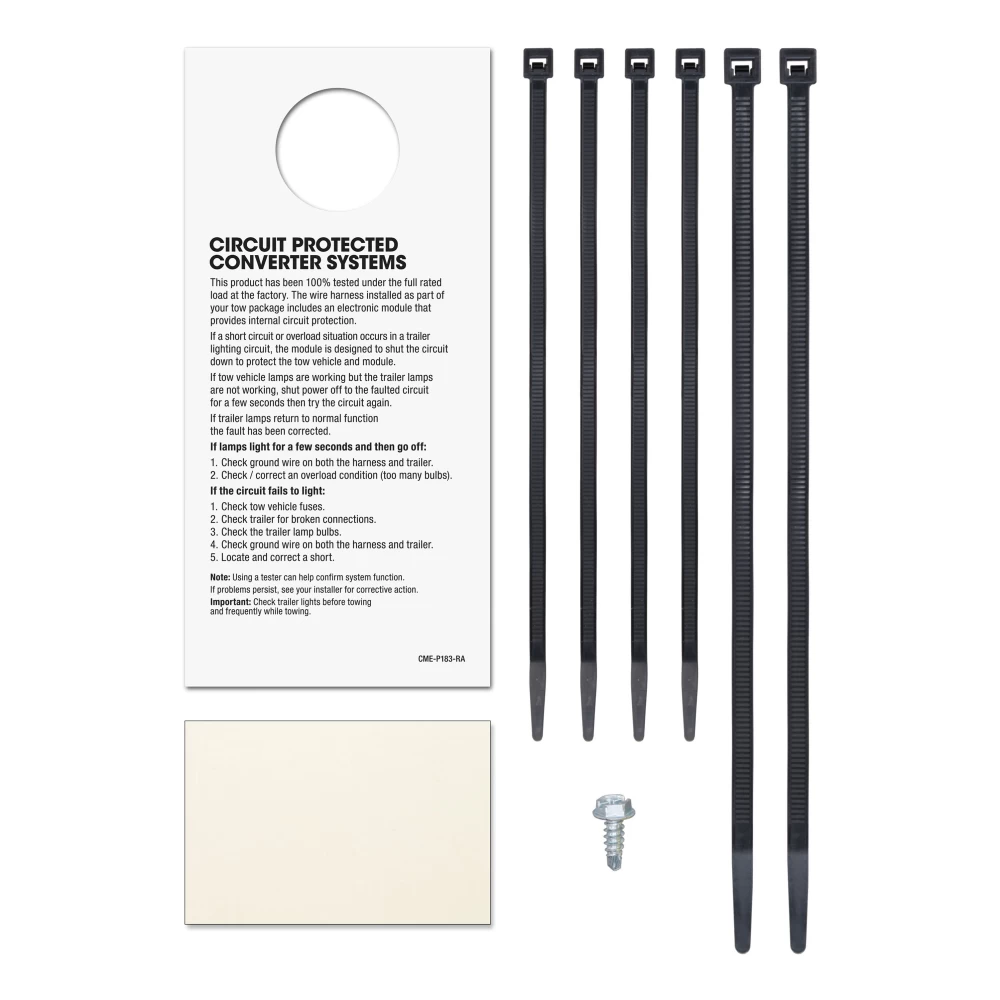

- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

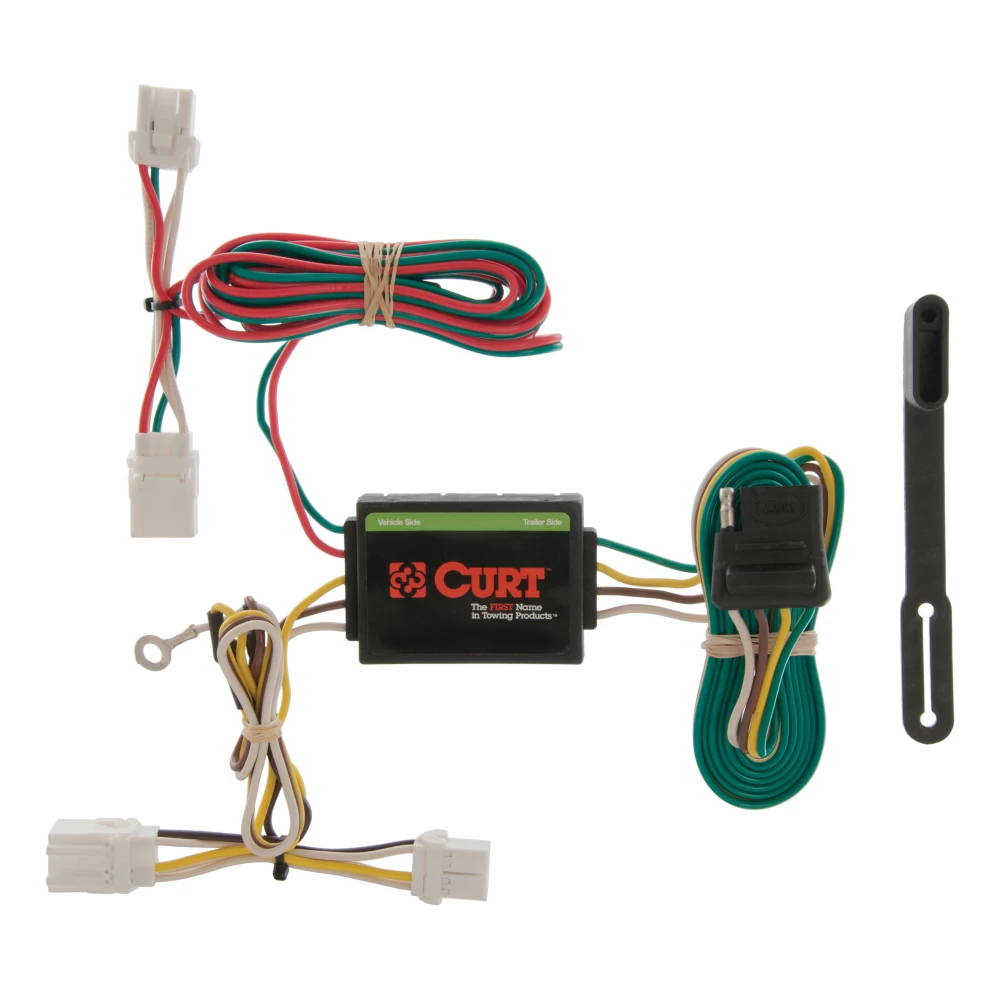

CURT 55361 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan Pathfinder, Nissan Altima sedan and Infiniti QX4 (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:

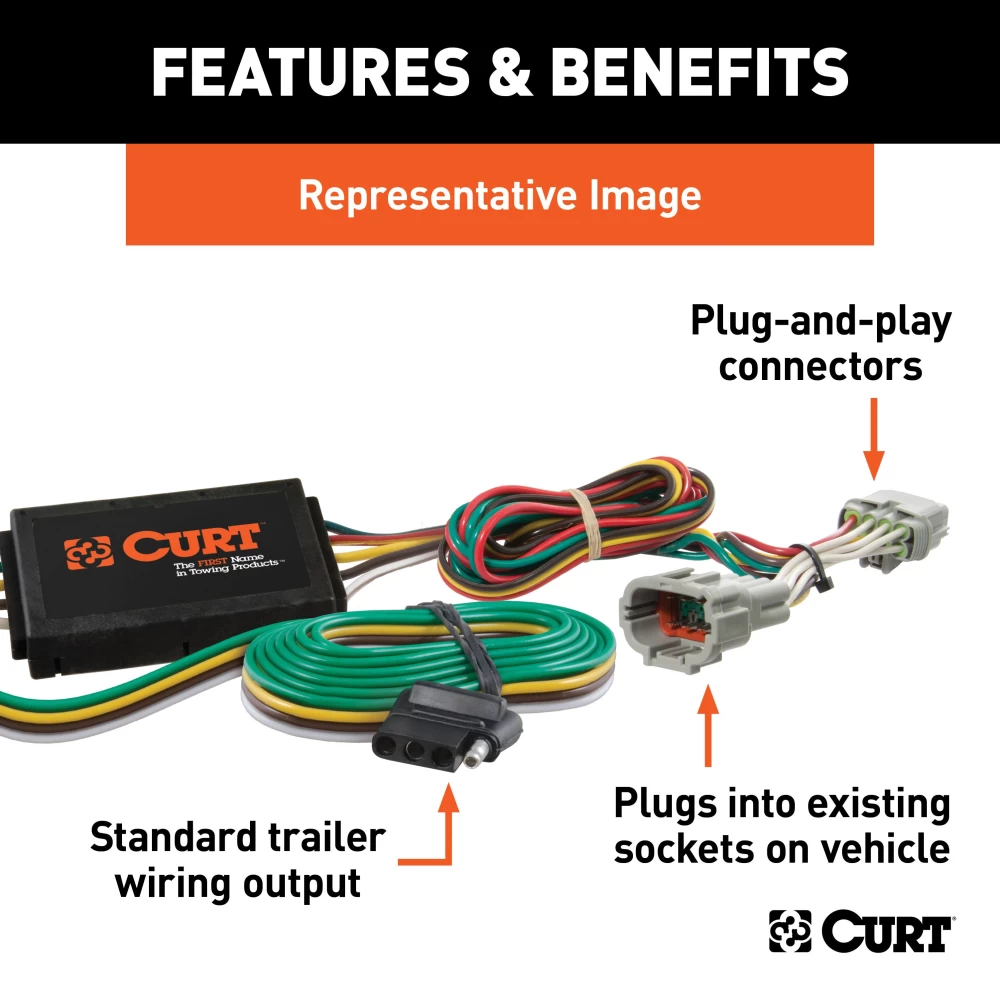

- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing

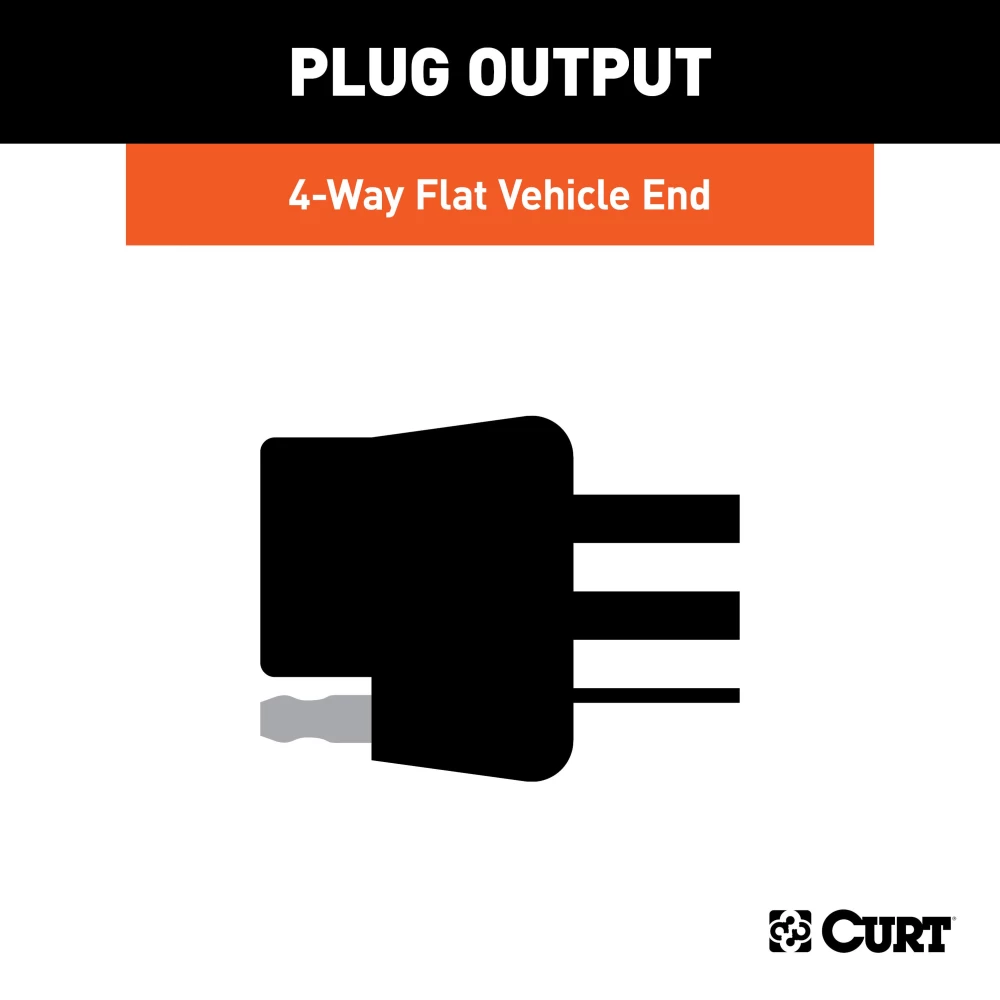

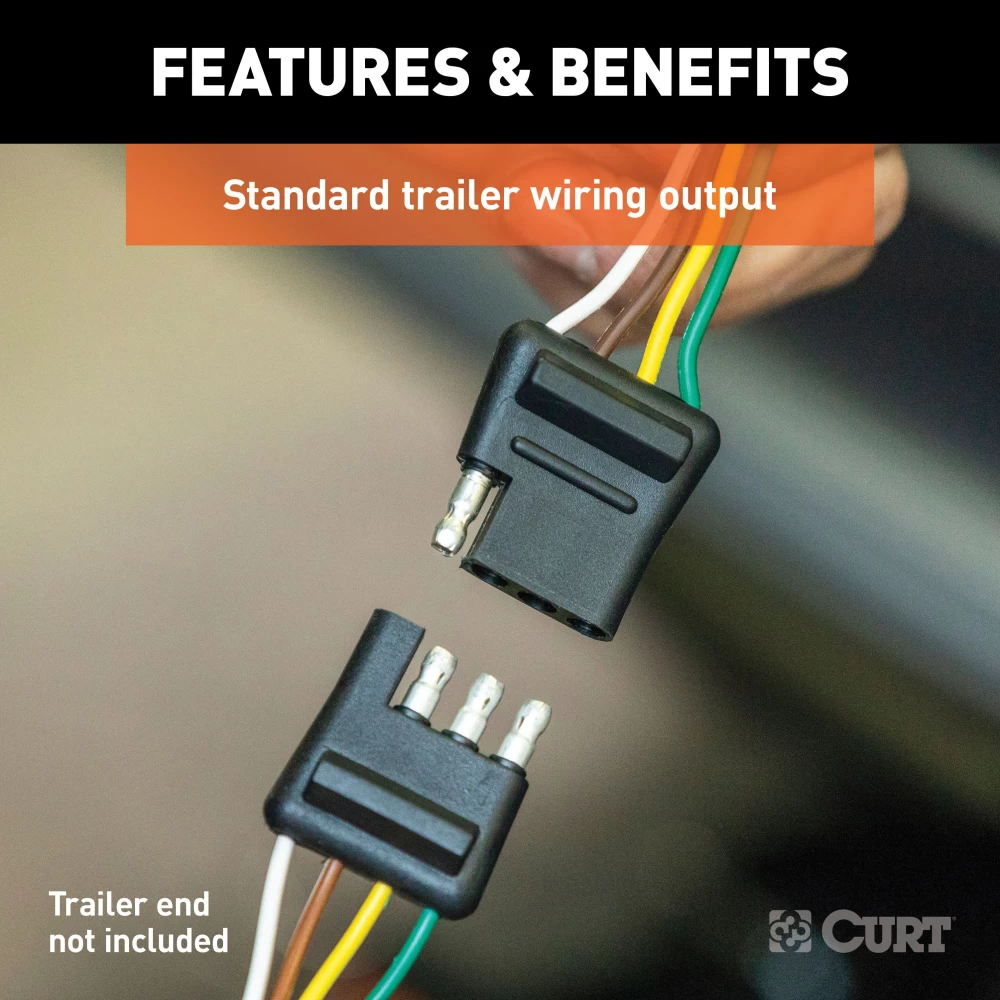

- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability

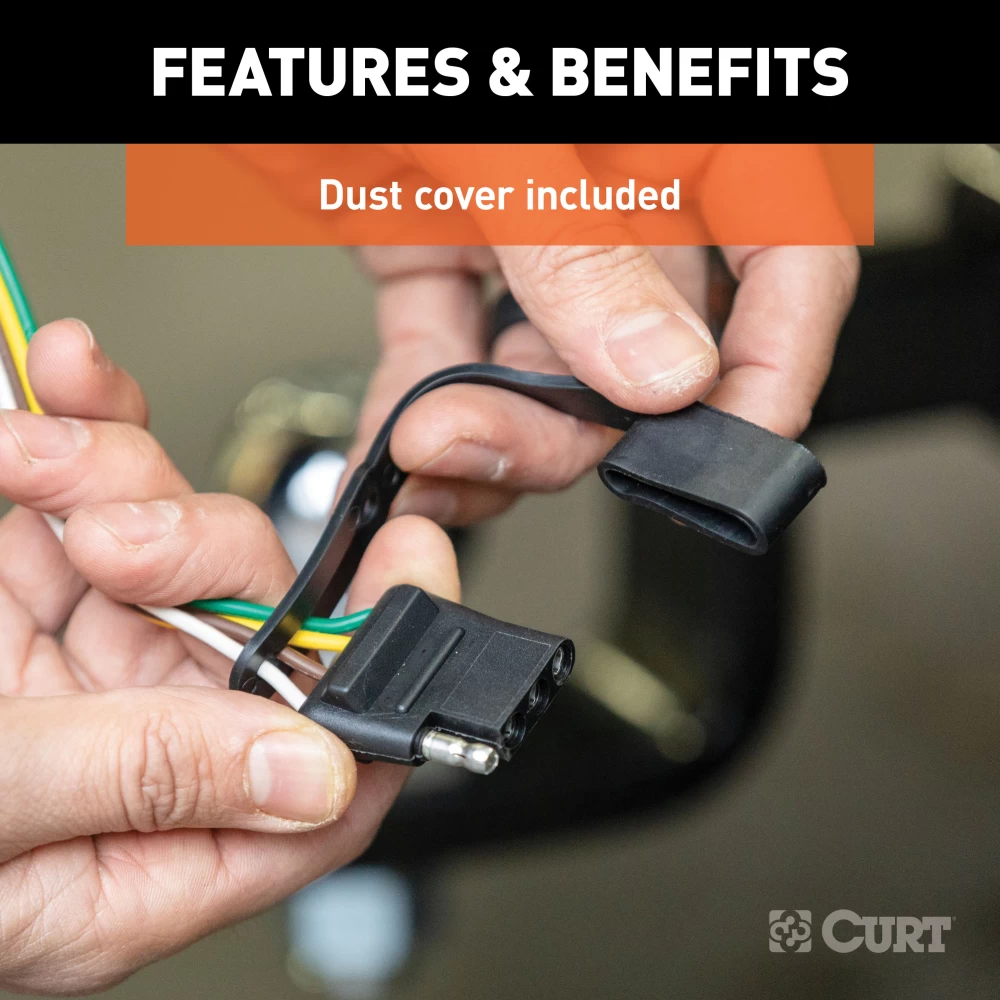

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$53 39 $66.95 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$66.95 $53 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $13.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 55361-CW3089
- Includes: Custom Wiring
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 1996-2004 Nissan Pathfinder Trailer Wiring 4 Way Fits All Models Curt 55361 Install Notes
Installation Instructions for Infiniti QX4, Nissan Altima, and Nissan Pathfinder
Part Number:
- 55361
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
For Nissan Altima:
-
Access the Trunk Area:
- Open the vehicle's trunk.
- Remove the three screws securing each plastic threshold on both sides of the vehicle.
-
Locate the Taillight Wiring Harness:
- Pull back the felt liner to reveal the vehicle's taillight wiring harness connectors.
- Note: The connectors may be wrapped in foam.
-
Disconnect the Taillight Connectors:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Install the Custom Wiring Harness:
- Starting on the driver side, insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Route the Wiring Harness to the Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed threshold.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
For Nissan Pathfinder and Infiniti QX4:
-
Access the Rear Taillight Assemblies:
- Open the rear door and remove the plastic threshold.
- Remove the screws securing the taillight.
- Carefully pull rearward to remove the taillight.
-
Locate the Taillight Wiring Harness:
- Partially remove the rear interior trim panel on both sides of the vehicle behind the taillights.
- Look for a square access hole behind the taillights leading to the taillight on the outside of the vehicle.
- Locate the vehicle's taillight wiring harness connectors.
- Note: The connectors may be wrapped in foam.
-
Disconnect the Taillight Connectors:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Install the Custom Wiring Harness:
- Starting on the driver side, route the connectors with the yellow wire from inside the vehicle, through the hole behind the taillight, to the outside taillight connectors.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Route the Wiring Harness to the Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed threshold.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Installation Instructions for Infiniti QX4, Nissan Altima, and Nissan Pathfinder
Part Number:
- 55361
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Step-by-Step Instructions:
For Nissan Altima:
-
Access the Trunk Area:
- Open the vehicle's trunk.
- Remove the three screws securing each plastic threshold on both sides of the vehicle.
-
Locate the Taillight Wiring Harness:
- Pull back the felt liner to reveal the vehicle's taillight wiring harness connectors.
- Note: The connectors may be wrapped in foam.
-
Disconnect the Taillight Connectors:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Install the Custom Wiring Harness:
- Starting on the driver side, insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Route the Wiring Harness to the Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed threshold.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
For Nissan Pathfinder and Infiniti QX4:
-
Access the Rear Taillight Assemblies:
- Open the rear door and remove the plastic threshold.
- Remove the screws securing the taillight.
- Carefully pull rearward to remove the taillight.
-
Locate the Taillight Wiring Harness:
- Partially remove the rear interior trim panel on both sides of the vehicle behind the taillights.
- Look for a square access hole behind the taillights leading to the taillight on the outside of the vehicle.
- Locate the vehicle's taillight wiring harness connectors.
- Note: The connectors may be wrapped in foam.
-
Disconnect the Taillight Connectors:
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Install the Custom Wiring Harness:
- Starting on the driver side, route the connectors with the yellow wire from inside the vehicle, through the hole behind the taillight, to the outside taillight connectors.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Route the Wiring Harness to the Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side behind the removed threshold.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
