For 1996‑1999 Acura SLX Trailer Hitch Fits All Models Curt 13098 2 inch Tow Receiver
Model: 13098-CH19This Trailer Tow Hitch Fits The Following Vehicles:
1996 - 1999 Acura SLX All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1996, 1997, 1998, 1999

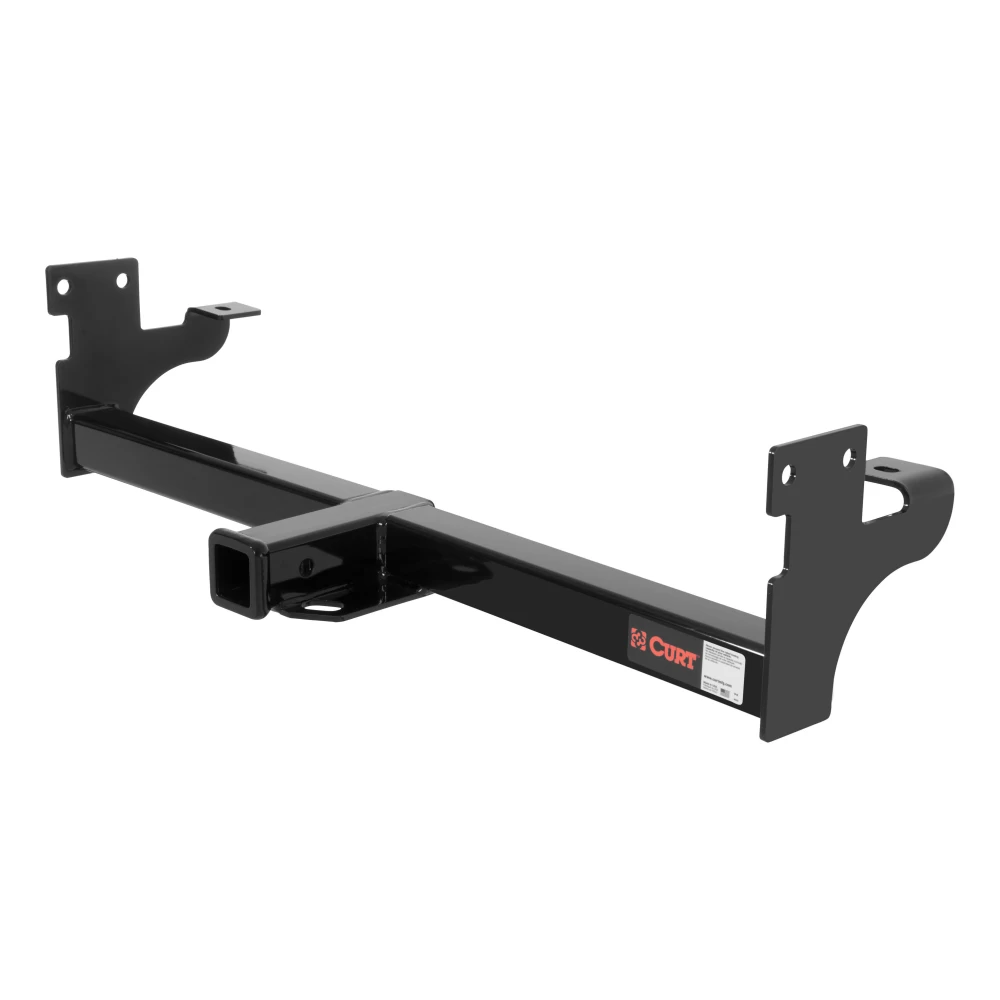

CURT 13098 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Acura SLX and Isuzu Trooper (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 500 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 600 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 600 lbs. WDTW)

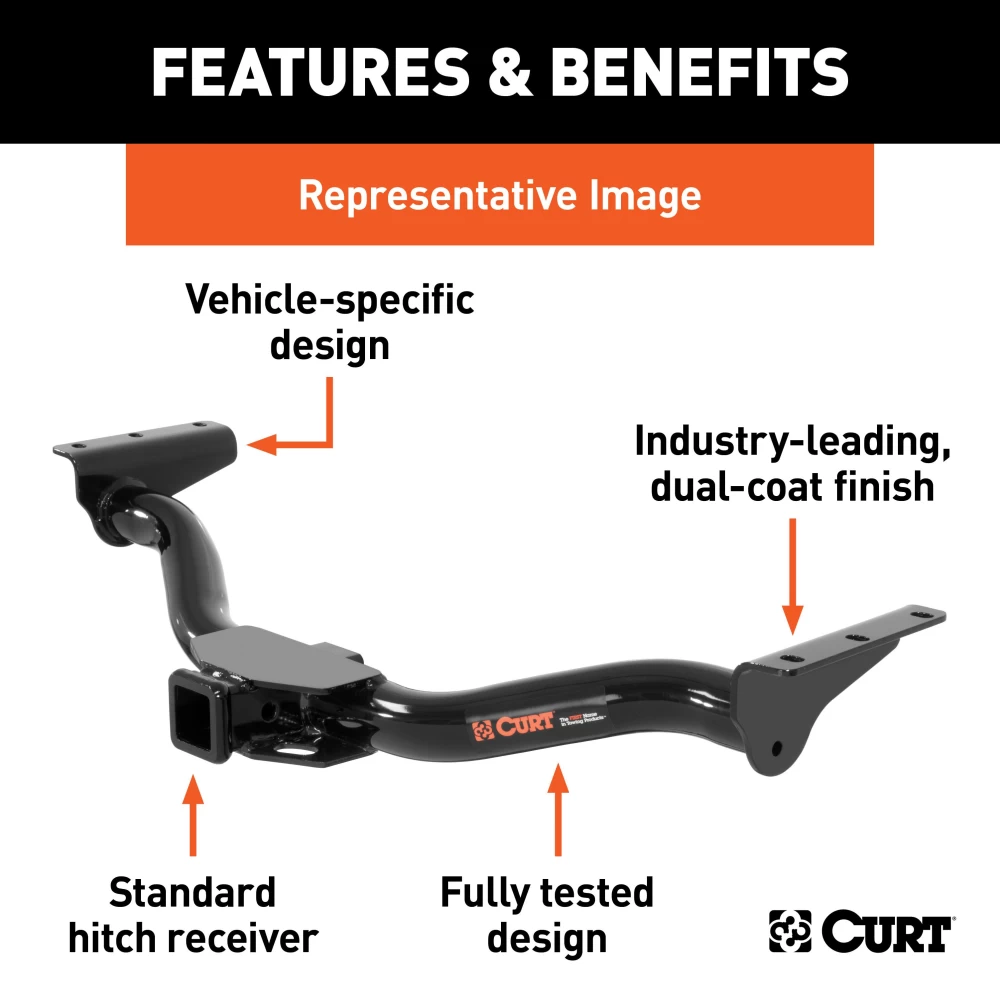

- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

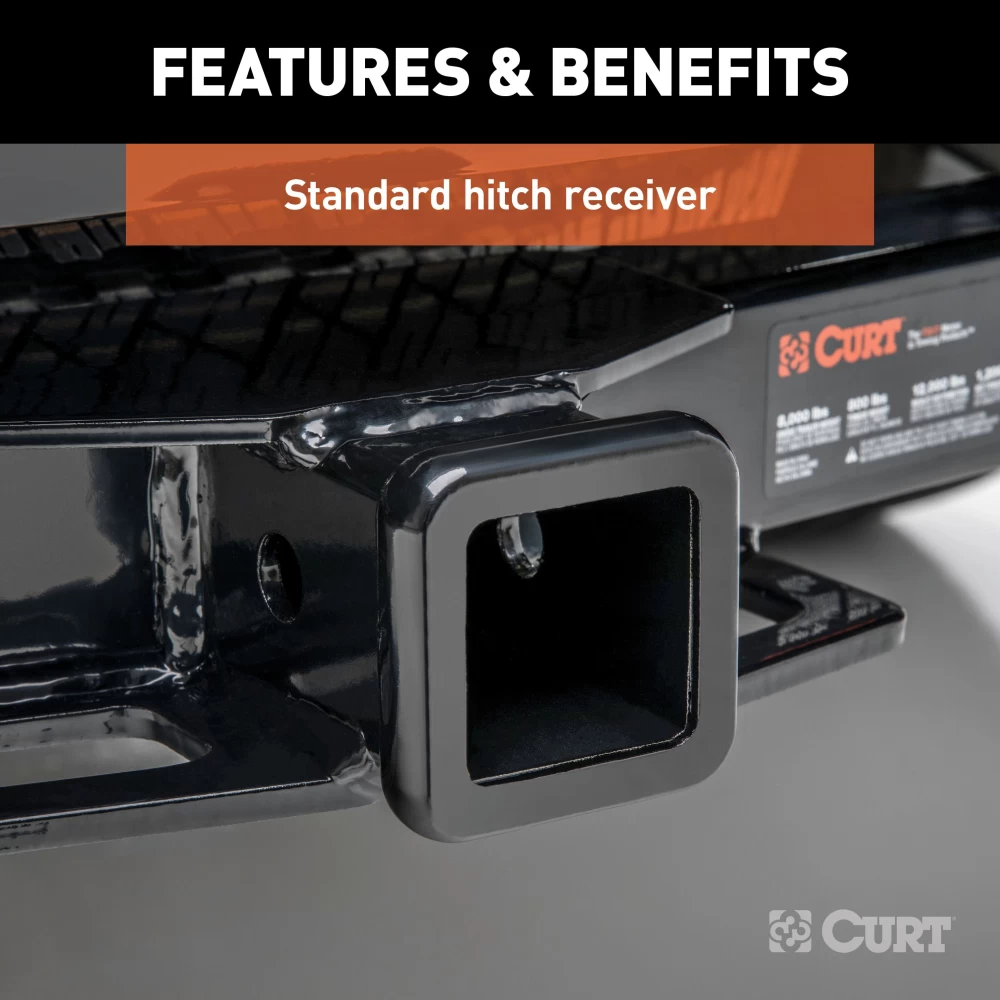

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$237 60 $371.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$371.95 $237 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13098-CH19
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 1996-1999 Acura SLX Trailer Hitch Fits All Models Curt 13098 2 inch Tow Receiver Install Notes
Installation Instructions for 1996-1999 Acura SLX SUV and 1992-2002 Isuzu Trooper & Trooper II SUV
Part Numbers:
- 13098 / 757200
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Passenger-Side Tow Hook:
- Remove the tow hook from the metal bracket welded to the bottom surface of the frame on the passenger side.
- Return the tow hook and bolts to the vehicle owner.
- Note: Do not remove the metal bracket.
-
Position the Hitch:
- Position the hitch on the vehicle so that the hitch mounting points align with the existing weld nuts on the vehicle frame.
-
Mount the Hitch to the Frame Rails:
- Secure the hitch to the frame rails using the provided M12 bolts, flat washers, and lock washers:
- Mount the hitch to the outside of the bumper brackets using the existing M12 holes where the bumper brackets attach to the frame.
- Mount the hitch to the bottom of the frame rail using the existing M12 holes.
- Secure the hitch to the frame rails using the provided M12 bolts, flat washers, and lock washers:
-
Torque All Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
-
Final Check:
- Periodically check the hitch to ensure all fasteners remain tight and structural components are sound.
Hardware List:
- HHCS, M12 x 1.25 x 30, CL10.9, YZ: Qty 6 (Part No. 10-10419)
- Washer, Flat, 1/2, YZ: Qty 6 (Part No. 30-00133)
- Washer, Lock, 1/2, YZ: Qty 6 (Part No. 30-00153)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 36 minutes
- Drilling Required: No
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1996-1999 Vehicle Models and 1992-2002 Vehicle Models
Part Numbers:
- 13098 / 757200
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Passenger-Side Tow Hook:
- Remove the tow hook from the metal bracket welded to the bottom surface of the frame on the passenger side.
- Return the tow hook and bolts to the vehicle owner.
- Note: Do not remove the metal bracket.
-
Position the Hitch:
- Position the hitch on the vehicle so that the hitch mounting points align with the existing weld nuts on the vehicle frame.
-
Mount the Hitch to the Frame Rails:
- Secure the hitch to the frame rails using the provided M12 bolts, flat washers, and lock washers:
- Mount the hitch to the outside of the bumper brackets using the existing M12 holes where the bumper brackets attach to the frame.
- Mount the hitch to the bottom of the frame rail using the existing M12 holes.
- Secure the hitch to the frame rails using the provided M12 bolts, flat washers, and lock washers:
-
Torque All Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
-
Final Check:
- Periodically check the hitch to ensure all fasteners remain tight and structural components are sound.
Hardware List:
- HHCS, M12 x 1.25 x 30, CL10.9, YZ: Qty 6
- Washer, Flat, 1/2, YZ: Qty 6
- Washer, Lock, 1/2, YZ: Qty 6
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 36 minutes
- Drilling Required: No
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
