For 1998‑2003 Ford Crown Victoria Trailer Hitch Fits All Models Curt 13707 2 inch Tow Receiver
Model: 13707-CH1127This Trailer Tow Hitch Fits The Following Vehicles:
1998 - 2003 Ford Crown Victoria All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1998, 1999, 2000, 2001, 2002, 2003

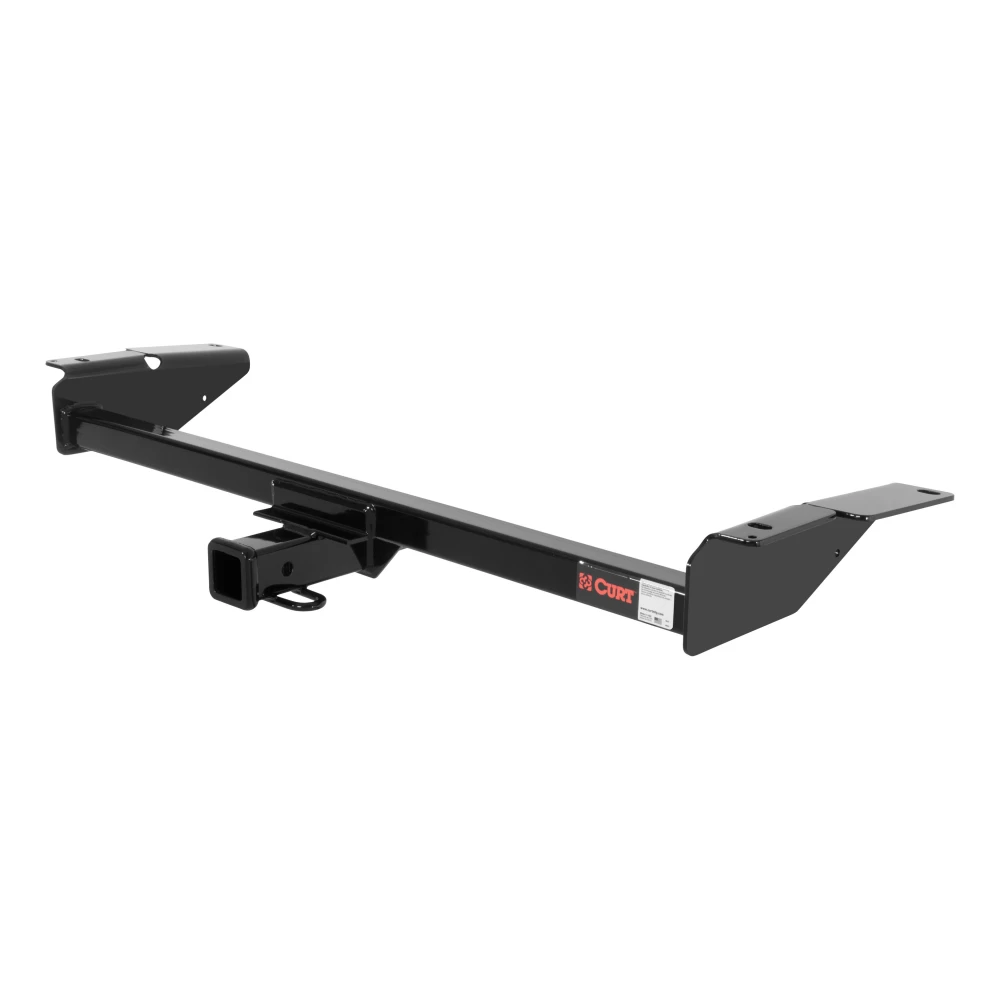

CURT 13707 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford Country Squire, Ford Crown Victoria, Lincoln Mark VI, Lincoln Town Car, Mercury Grand Marquis and Mercury Marauder (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 400 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 600 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

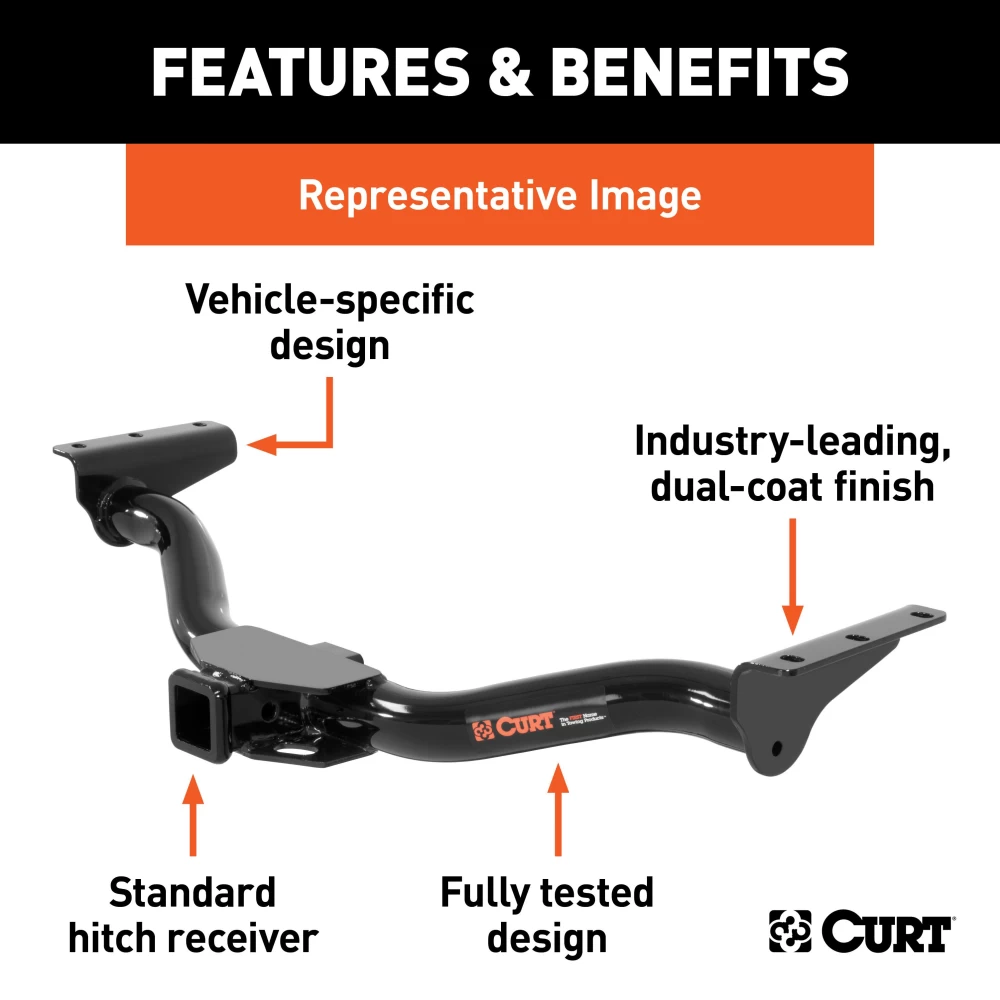

Features:
- Rated to 4,000 lbs. gross trailer weight and 400 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 600 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

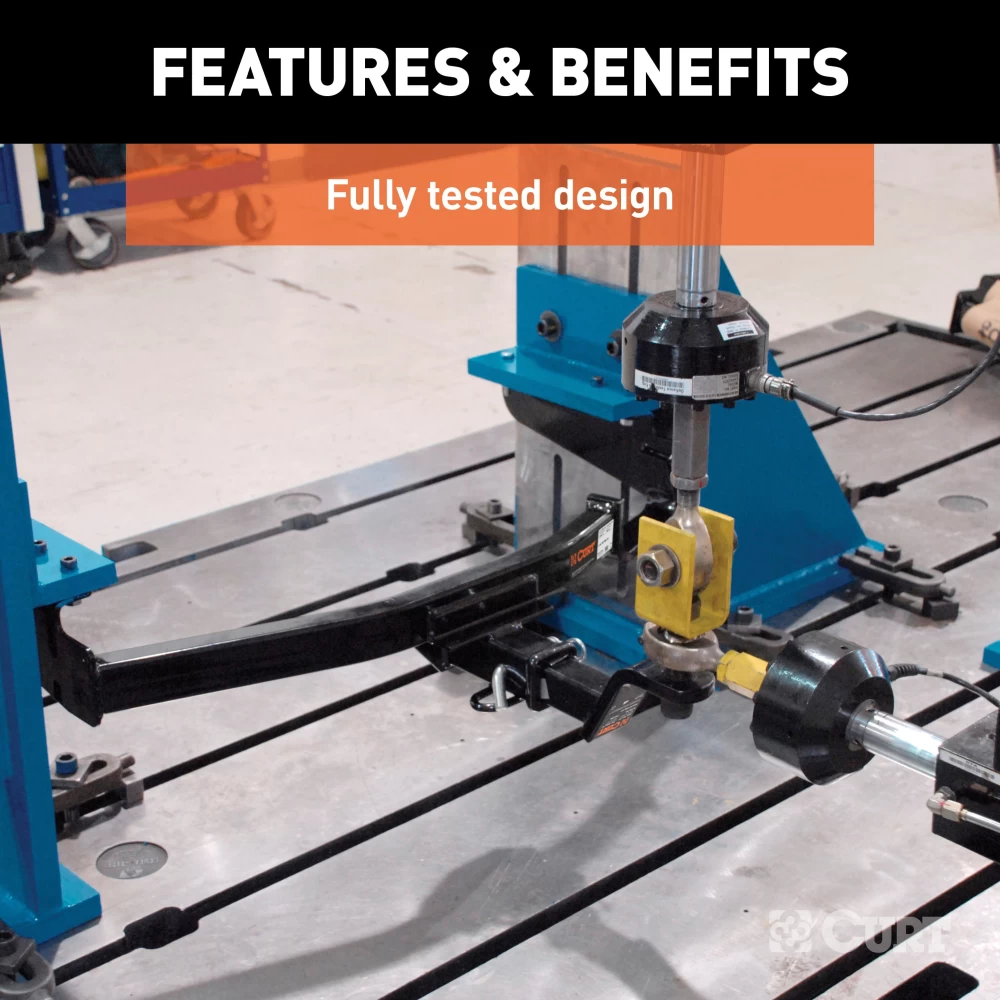

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

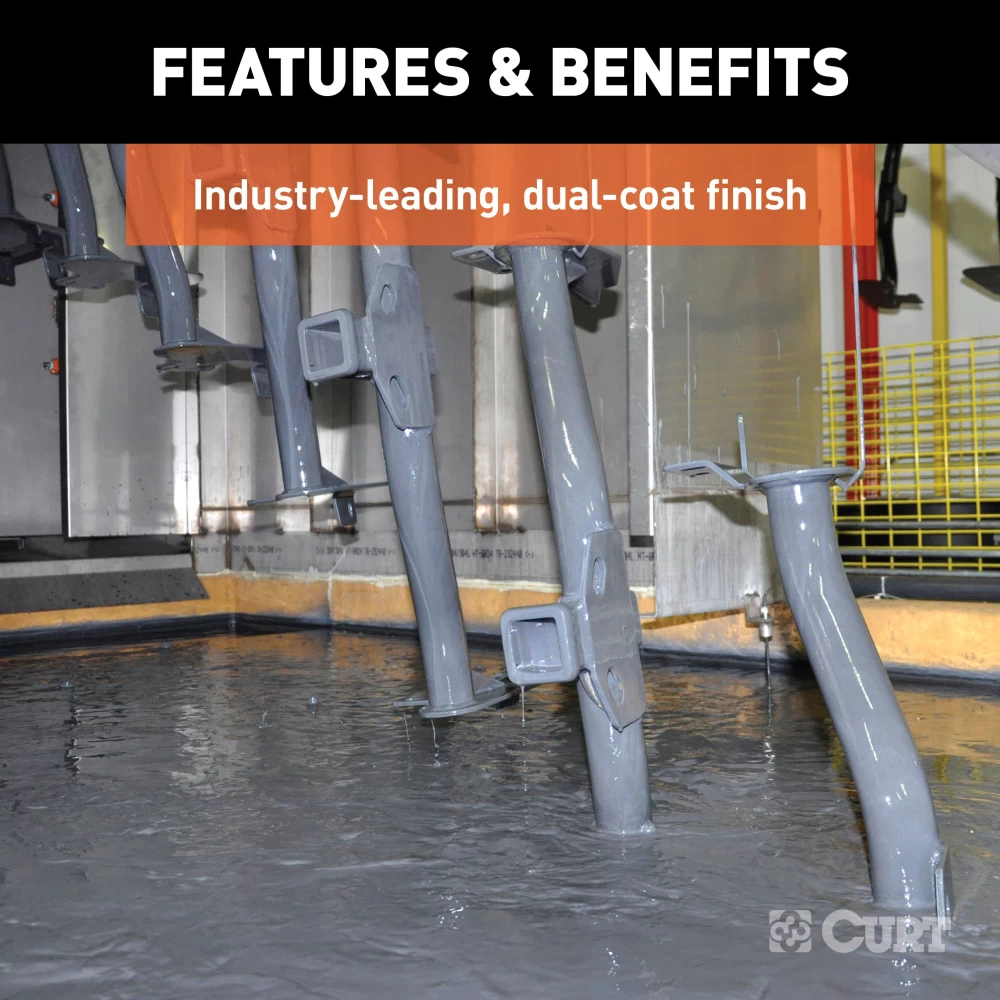

- Co-cured in a rust-resistant liquid A-coat, inside and out

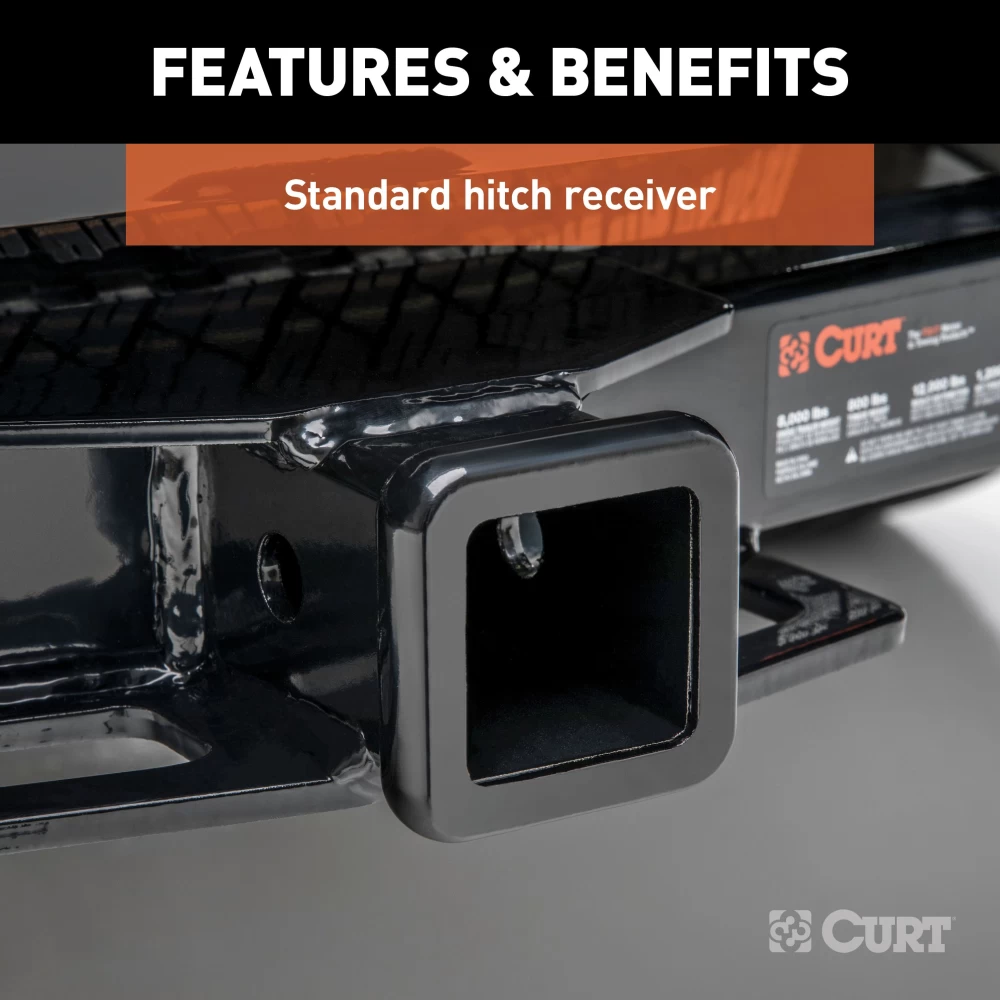

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$237 60 $371.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$371.95 $237 60
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $59.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13707-CH1127
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 1998-2003 Ford Crown Victoria Trailer Hitch Fits All Models Curt 13707 2 inch Tow Receiver Install Notes
Installation Instructions for 92-11 Ford Crown Victoria, 79-11 Mercury Grand Marquis Sedan, 87-91 Ford Country Squire, 79-82 Mercury Grand Marquis Wagon, 81-11 Lincoln Town Car, 03-04 Mercury Marauder, 80-83 Lincoln Mark VI, and 79-82 Mercury Monterey
Part Numbers:
- 13707
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Drill (to drill holes in the frame)
Step-by-Step Instructions:
- Remove all but a thin film of undercoating from the frame at the hitch mounting location. Ensure attaching surfaces are free of weld spatter and other obstructions.
- Raise the hitch into position on the frame rails, ensuring it is centered. Position the hitch so the mounting plates are approximately 1" from the end of the frame. Use the hitch as a template to drill four holes in the frame. Drill holes near the bumper as close to the vehicle center as possible.
- Fishwire carriage bolts and blocks into the mounting locations.
- Install spacers between the vehicle frame and hitch as needed to level the hitch assembly. For wagon applications, use the provided wedge block spacer.
- For 1984 and later Lincoln Town Car models, use two spacer blocks at the mounting locations near the bumper and one spacer block at the forward mounting locations.
- Attach flange nuts to all mounting bolts after placing proper spacers.
- If required, attach the exhaust hanger bracket to the passenger-side mounting plate using the provided hardware. Use washers to level the exhaust hanger on the mounting plate.
- Torque all 1/2" hardware to 110 lb-ft.
Additional Notes:
- For 1995, 2003, and later Lincoln Town Car models, remove the external dress panel beneath the vehicle for hitch installation. Return the panel to the vehicle owner.
- On 2003 and later Lincoln Town Car models, relocate the passenger-side exhaust hanger bracket. Rotate the bumper hanger and reattach it to the hanger bracket before attaching the assembly to the hitch mounting plate.
Important Notes:
- Drilling is required for installation.
- For models with dual exhaust, relocation of the exhaust pipe hanger is required to provide clearance.
Hardware List:
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 4 (Part No. 20-00062)
- 1/2" Wedge Spacer: Qty 2 (Part No. CM-SP382)
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2 (Part No. CM-SP110)
- Bolt, Carriage, 1/2-13 UNC, 2-1/4, Grade 8, YZ: Qty 4 (Part No. 10-10304)
- 1/2" Fishwire: Qty 1
- HHCS, 5/16-18 UNC, 1-1/4, Grade 8: Qty 6 (Part No. 10-10037)
- Washer, Flat, 5/16, YZ: Qty 4 (Part No. 30-00195)
- Nut, Ser-Flange, 5/16-18 UNC, Grade 8, YZ: Qty 4 (Part No. 20-00101)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 4,000 lbs (trailer weight), 400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 38 minutes
- Novice (DIY): 45 minutes
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions
Part Numbers:
- 13707
Wiring Access Location:
Not specified
Tools Required:
- Torque wrench
- Drill (to drill holes in the frame)
Step-by-Step Instructions:
-
Prepare the Frame:
- Remove all but a thin film of undercoating from the frame at the hitch mounting location.
- Ensure attaching surfaces are free of weld spatter and other obstructions.
-
Position the Hitch:
- Raise the hitch into position on the frame rails, ensuring it is centered.
- Position the hitch so the mounting plates are approximately 1" from the end of the frame.
- Use the hitch as a template to drill four holes in the frame. Drill holes near the bumper as close to the vehicle center as possible.
-
Fishwire Carriage Bolts:
- Fishwire carriage bolts and blocks into the mounting locations.
-
Install Spacers:
- Install spacers between the vehicle frame and hitch as needed to level the hitch assembly.
- For wagon applications, use the provided wedge block spacer.
- For 1984 and later Lincoln Town Car models: Use two spacer blocks at the mounting locations near the bumper and one spacer block at the forward mounting locations.
-
Secure Fasteners:
- Attach flange nuts to all mounting bolts after placing proper spacers.
-
Attach Exhaust Hanger Bracket (if required):
- Attach the exhaust hanger bracket to the passenger-side mounting plate using the provided hardware.
- Use washers to level the exhaust hanger on the mounting plate.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
Additional Notes:
-
For 1995, 2003, and later Lincoln Town Car models:
- Remove the external dress panel beneath the vehicle for hitch installation.
- Return the panel to the vehicle owner.
-
For 2003 and later Lincoln Town Car models:
- Relocate the passenger-side exhaust hanger bracket.
- Rotate the bumper hanger and reattach it to the hanger bracket before attaching the assembly to the hitch mounting plate.
Important Notes:
- Drilling is required for installation.
- For models with dual exhaust, relocation of the exhaust pipe hanger is required to provide clearance.
Hardware List:
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8: Qty 4
- 1/2" Wedge Spacer: Qty 2
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Bolt, Carriage, 1/2-13 UNC, 2-1/4, Grade 8: Qty 4
- 1/2" Fishwire: Qty 1
- HHCS, 5/16-18 UNC, 1-1/4, Grade 8: Qty 6
- Washer, Flat, 5/16: Qty 4
- Nut, Ser-Flange, 5/16-18 UNC, Grade 8: Qty 4
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs (trailer weight), 400 lbs (tongue weight)
- Gross Load Capacity (Weight Distribution Hitch):
- 6,000 lbs (trailer weight), 600 lbs (tongue weight)
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 38 minutes
- Novice (DIY): 45 minutes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Warning: Do not exceed the vehicle manufacturer's recommended towing capacity. Periodically inspect all components for structural integrity and proper torque.
