Product Details
- Brand: Curt
- Model: 55540 57672 51500 58361-CW387

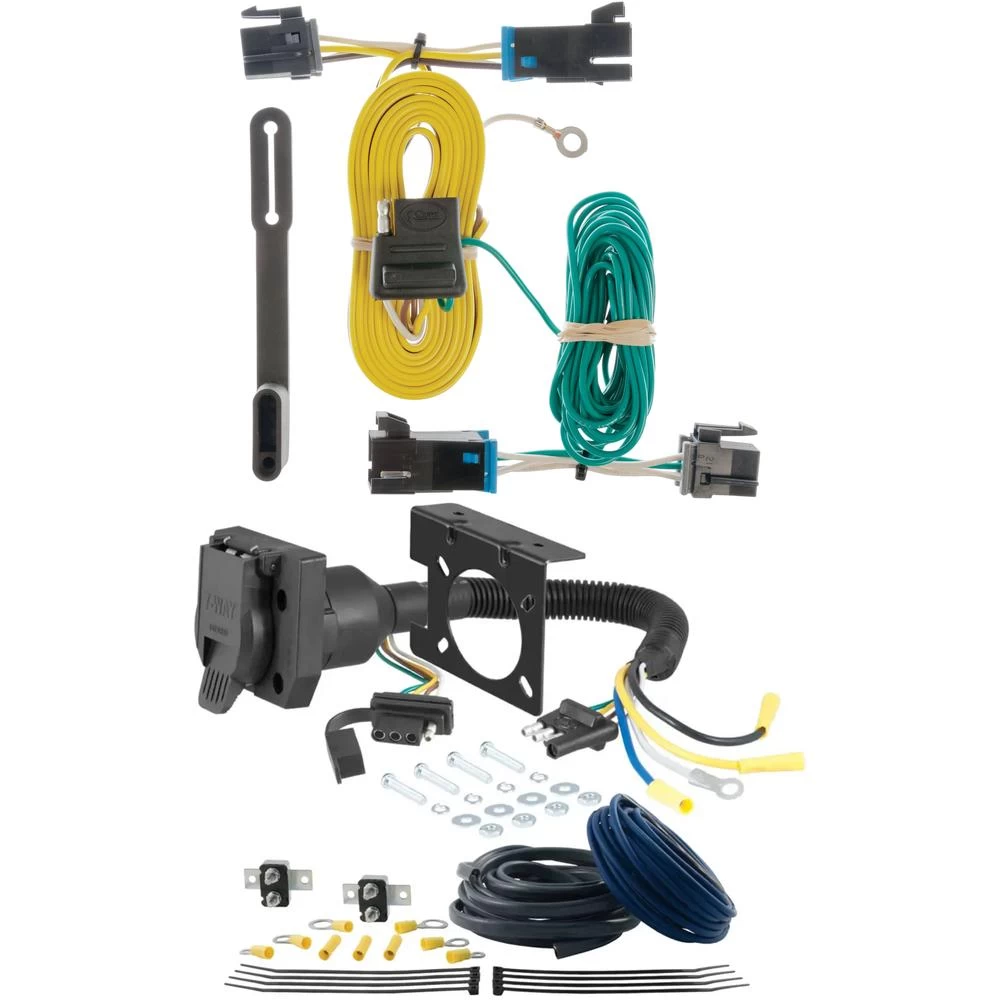

- Includes: Custom Wiring, Dual-Output Electrical Adapter, Trailer Brake Controller Wiring Kit, 30-Amp Universal Circuit Breaker
Compatibility Chart
Description
Get Expert Help
For 2003-2024 Chevy Express 3500 Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes

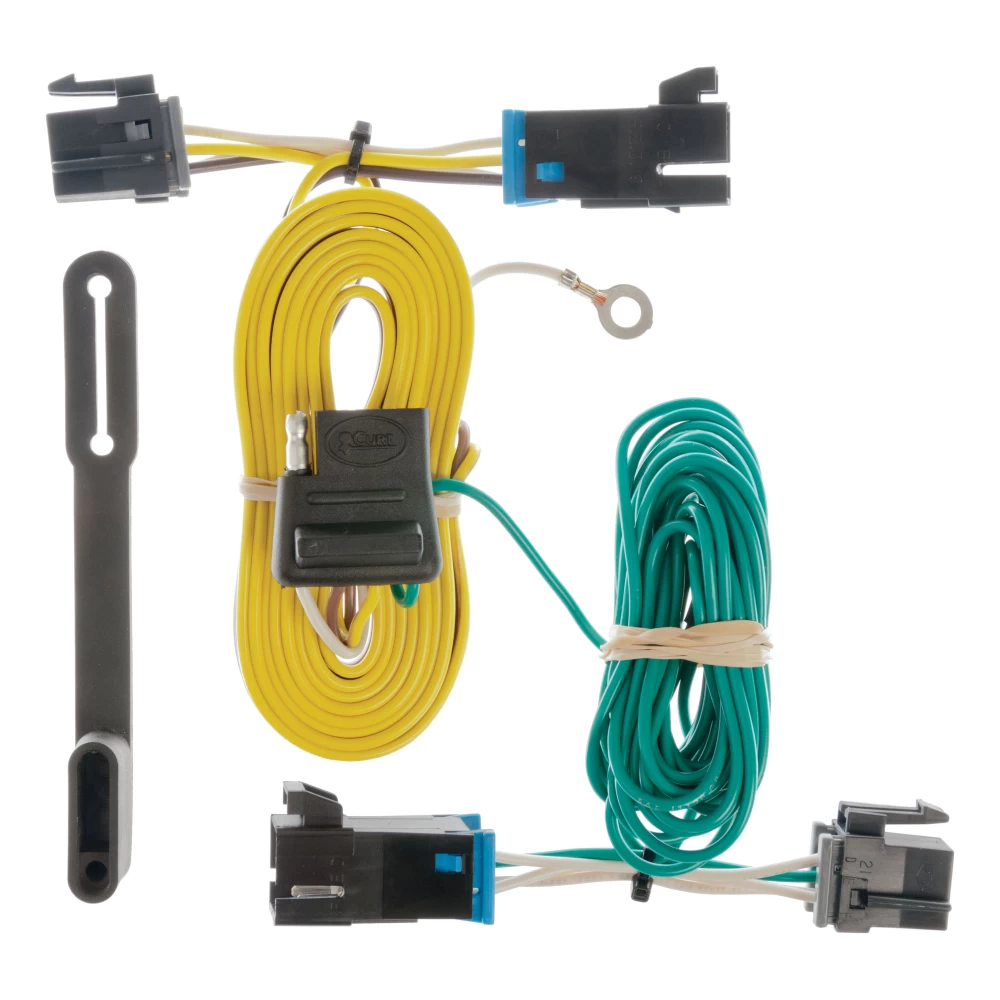

Installation Instructions for Chevrolet Express and GMC Savana
Part Number:
- 55540
Tools Required:
- Ratchet
- 10mm socket
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver's side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove Rear Trim Panels:
- At the rear entry doors, remove the rear trim fascia and any interior trim panels, if equipped, to access the taillight wiring harness.
-
Access Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the driver-side rear access panel (S3) and passenger-side rear access panel (S4).
- These connectors will resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install the Custom Wiring Harness (Driver's Side):
- Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver's side.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Install the Custom Wiring Harness (Passenger's Side):
- Route the custom wiring harness end with the green wire to the passenger side behind the removed trim panels.
- Sufficient wire length is provided to route under the threshold plate or above the rear cargo doors.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Secure Wiring and Reassemble Trim Panels:
- Tuck the green wire under the floor trim panel to keep it secure and out of sight.
- Reinstall all previously removed rear trim panels and ensure they are properly secured.
-
Reconnect the Battery:
- Reconnect the negative battery terminal to restore power to the vehicle's electrical system.
- Install the provided 4-flat dust cover to help prevent corrosion on the connectors.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Note: After installation, test the wiring harness for proper function by using a test light or connecting a properly wired trailer.
Installation Instructions for Chevrolet Express and GMC Savana
Part Number:
- 55540
Tools Required:
- Ratchet
- 10mm socket
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver's side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove Rear Trim Panels:
- At the rear entry doors, remove the rear trim fascia and any interior trim panels, if equipped, to access the taillight wiring harness.
-
Access Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the driver-side rear access panel (S3) and passenger-side rear access panel (S4).
- These connectors will resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install the Custom Wiring Harness (Driver's Side):
- Insert the custom wiring harness end with the yellow wire between the separated connectors on the driver's side.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the grounding area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Install the Custom Wiring Harness (Passenger's Side):
- Route the custom wiring harness end with the green wire to the passenger side behind the removed trim panels.
- Sufficient wire length is provided to route under the threshold plate or above the rear cargo doors.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Secure Wiring and Reassemble Trim Panels:
- Tuck the green wire under the floor trim panel to keep it secure and out of sight.
- Reinstall all previously removed rear trim panels and ensure they are properly secured.
-
Reconnect the Battery:
- Reconnect the negative battery terminal to restore power to the vehicle's electrical system.
- Install the provided 4-flat dust cover to help prevent corrosion on the connectors.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Note: After installation, test the wiring harness for proper function by using a test light or connecting a properly wired trailer.
Warranty:
For complete warranty information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
