For 2003‑2024 GMC Savana 2500 Trailer Hitch Fits All Models Curt 14090 2 inch Tow Receiver
Model: 14090-CH1988This Trailer Tow Hitch Fits The Following Vehicles:
2003 - 2024 GMC Savana 2500 All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 4 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

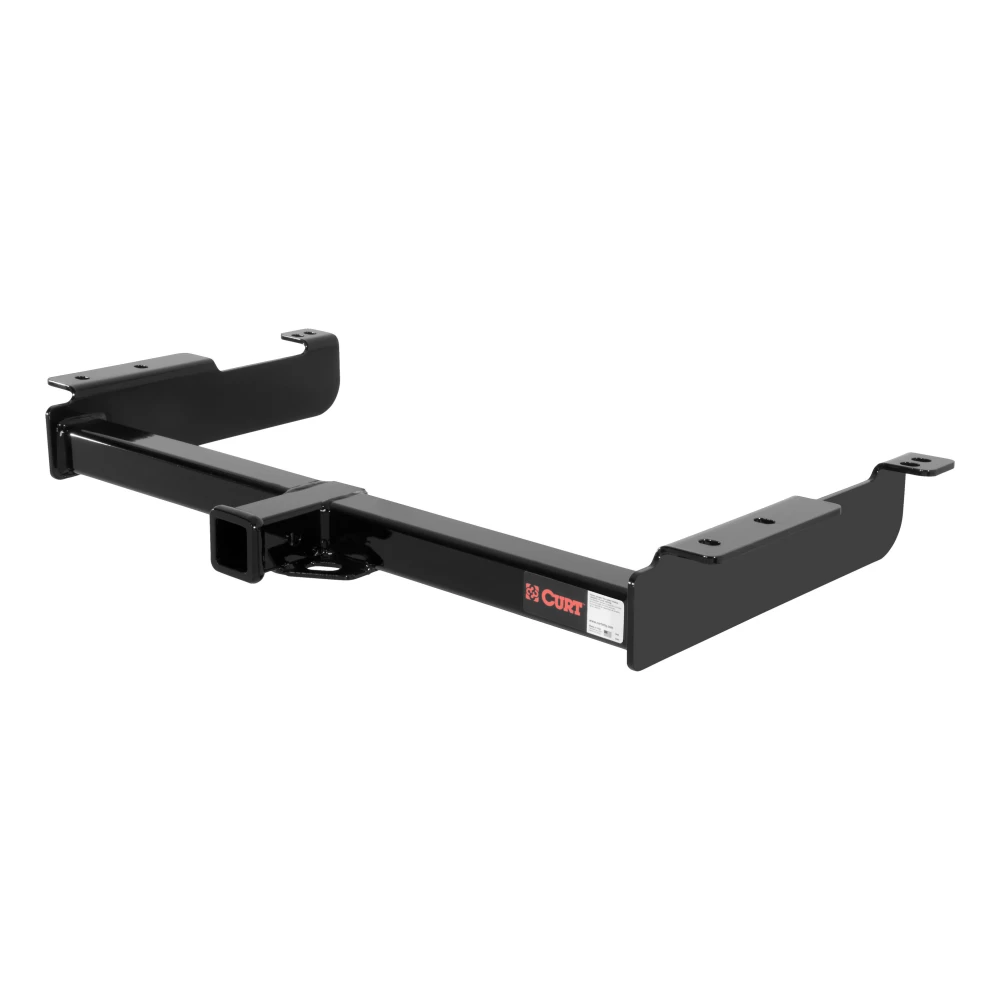

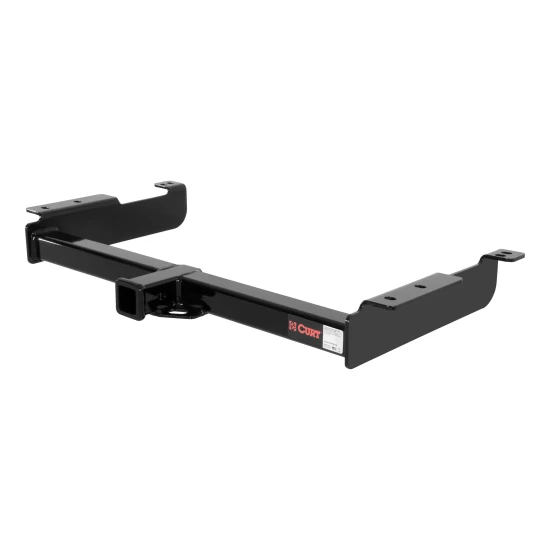

CURT 14090 Class 4 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans.
This particular class 4 hitch fits certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify vehicle compatibility, see application info) It provides a weight carrying capacity of 10,000 lbs GTW and 1,000 lbs.
TW It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs and a WDTW of 1,200 lbs.
CURT class 4 tow hitches are as much suited for work as they are for play With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component) All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation.
From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on To prove it, we test all our hitches in accordance with SAE J684 for safety..
Features:
- Rated to 10,000 lbs. gross trailer weight and 1,000 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$249 52 $390.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$390.95 $249 52
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 14090-CH1988
- Includes: Class 4 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2003-2024 GMC Savana 2500 Trailer Hitch Fits All Models Curt 14090 2 inch Tow Receiver Install Notes
Installation Instructions for Chevy/GMC Van Savana/Express (Full Size)
Part Numbers:
- 14090
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
Step-by-Step Instructions:
-
Raise the Hitch into Position:
- Position the hitch under the vehicle against the frame rails.
-
Install Carriage Bolts and Spacers:
- Insert 1/2-13 x 1-3/4" carriage bolts and square hole spacers through the existing frame holes and hitch slots.
-
Secure the Hitch:
- Fasten the carriage bolts using the provided 1/2-13 flange nuts. Hand tighten all fasteners at this stage.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
-
Final Inspection:
- Periodically check the hitch to ensure all fasteners are tight and structural components remain sound.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 6 (Part No. 10-10272)
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 6 (Part No. 20-00062)
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2 (Part No. CM-SP16)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 12,000 lbs (trailer weight), 1,200 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 20 minutes
- Novice (DIY): 49 minutes
- Drilling Required: No
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for Chevy/GMC Van Savana/Express (Full Size)
Part Numbers:
- 14090
Wiring Access Location:
- Not specified
Tools Required:
- Torque Wrench
- Ratchet
- 3/4" Socket
Step-by-Step Instructions:
-
Raise the Hitch into Position:
- Position the hitch under the vehicle against the frame rails.
-
Install Carriage Bolts and Spacers:
- Insert 1/2-13 x 1-3/4" carriage bolts and square hole spacers through the existing frame holes and hitch slots.
-
Secure the Hitch:
- Fasten the carriage bolts using the provided 1/2-13 flange nuts. Hand tighten all fasteners at this stage.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
-
Final Inspection:
- Periodically check the hitch to ensure all fasteners are tight and structural components remain sound.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8: Qty 6
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8: Qty 6
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 12,000 lbs (trailer weight), 1,200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the receiver hitch to ensure all fasteners remain tight and all structural components are sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 20 minutes
- Novice (DIY): 49 minutes
- Drilling Required: No
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
