For 2003‑2008 Honda Pilot Trailer Hitch Fits All Models Curt 13328 2 inch Tow Receiver
Model: 13328-CH2314This Trailer Tow Hitch Fits The Following Vehicles:
2003 - 2008 Honda Pilot All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2003, 2004, 2005, 2006, 2007, 2008

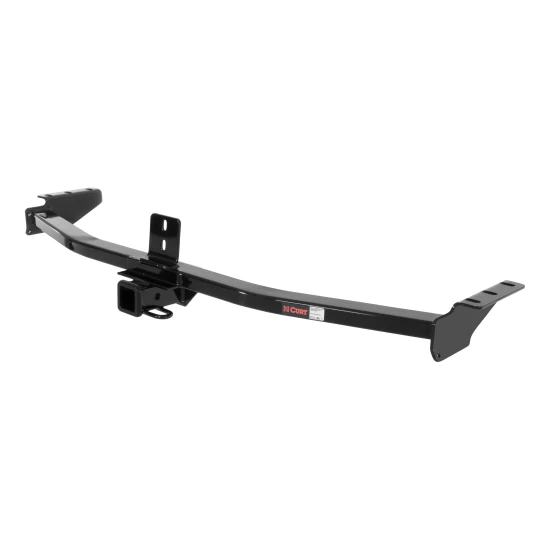

CURT 13328 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Acura MDX and Honda Pilot (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$231 99 $347.95 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$347.95 $231 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13328-CH2314
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2003-2008 Honda Pilot Trailer Hitch Fits All Models Curt 13328 2 inch Tow Receiver Install Notes
Installation Instructions for 2001-2006 Acura MDX / 2003-2006 Honda Pilot
Part Numbers:
- 13328
Tools Required:
- 17mm short socket
- 19mm socket
- 4" extension
- Ratchet
- Torque wrench
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Temporarily remove the spare tire, four rubber exhaust isolators, and the moon-shaped spoiler with center mounting bracket.
- Support the exhaust to avoid damage.
-
Remove Tow Hook:
- Remove the driver-side tow hook and return it to the vehicle owner.
-
Position the Hitch:
- Slide the passenger-side hitch plate between the exhaust pipe and the floor pan.
- Raise the hitch into position.
-
Install Fasteners:
- Secure the hitch using the provided M12 bolts and conical toothed washers into the existing weld nuts in the frame.
- Finger-tighten these bolts for alignment.
-
Install Additional Bolts:
- Attach the hitch using the provided M10 bolts and conical toothed washers in the remaining locations.
- Torque all M10 fasteners to 48 ft-lbs.
-
Tighten Fasteners:
- Torque all M12 fasteners to 86 ft-lbs.
-
Reinstall Removed Components:
- Reinstall the spare tire and rubber exhaust isolators that were removed earlier.
Hardware List:
- Hex Bolt, M12 x 1.25 x 40, Class 10.9, YZ: Qty 6 (Part No. 10-10277)
- Hex Bolt, M10 x 1.25 x 35, Class 10.9, YZ: Qty 2 (Part No. 10-10298)
- Conical Toothed Washer, 1/2, YZ: Qty 6 (Part No. 30-00149)
- Conical Toothed Washer, 7/16, YZ: Qty 2 (Part No. 30-00163)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: 36 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
- Drilling Required: No
- Trimming: Spare tire fascia trimming may be required on some models.
- Special Notes: Rubber isolator removal is required on some models.
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2001-2006 Acura MDX
- Fits 2003-2006 Honda Pilot
Revision History:
- 07/06/2020: Initial version released.
Installation Instructions for 2001-2006 Acura MDX / 2003-2006 Honda Pilot
Part Numbers:
- 13328
Tools Required:
- 17mm short socket
- 19mm socket
- 4" extension
- Ratchet
- Torque wrench
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Temporarily remove the spare tire, four rubber exhaust isolators, and the moon-shaped spoiler with center mounting bracket.
- Support the exhaust to avoid damage.
-
Remove Tow Hook:
- Remove the driver-side tow hook and return it to the vehicle owner.
-
Position the Hitch:
- Slide the passenger-side hitch plate between the exhaust pipe and the floor pan.
- Raise the hitch into position.
-
Install Fasteners:
- Secure the hitch using the provided M12 bolts and conical toothed washers into the existing weld nuts in the frame.
- Finger-tighten these bolts for alignment.
-
Install Additional Bolts:
- Attach the hitch using the provided M10 bolts and conical toothed washers in the remaining locations.
- Torque all M10 fasteners to 48 ft-lbs.
-
Tighten Fasteners:
- Torque all M12 fasteners to 86 ft-lbs.
-
Reinstall Removed Components:
- Reinstall the spare tire and rubber exhaust isolators that were removed earlier.
Hardware List:
- Hex Bolt, M12 x 1.25 x 40, Class 10.9, YZ: Qty 6
- Hex Bolt, M10 x 1.25 x 35, Class 10.9, YZ: Qty 2
- Conical Toothed Washer, 1/2, YZ: Qty 6
- Conical Toothed Washer, 7/16, YZ: Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: 36 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
- Drilling Required: No
- Trimming: Spare tire fascia trimming may be required on some models.
- Special Notes: Rubber isolator removal is required on some models.
Additional Notes:
- For complete installation instructions, including diagrams and detailed manufacturer recommendations, please download the full installation PDF.
- For technical support and assistance, visit TrailerJacks.com or call 877-869-6690.
