For 2005‑2024 Nissan Frontier Trailer Hitch Fits All Models Curt 13241 2 inch Tow Receiver
Model: 13241-CH3062This Trailer Tow Hitch Fits The Following Vehicles:
2005 - 2024 Nissan Frontier All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

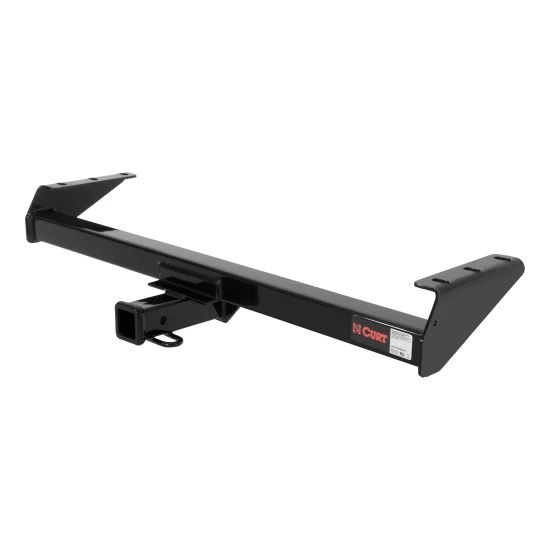

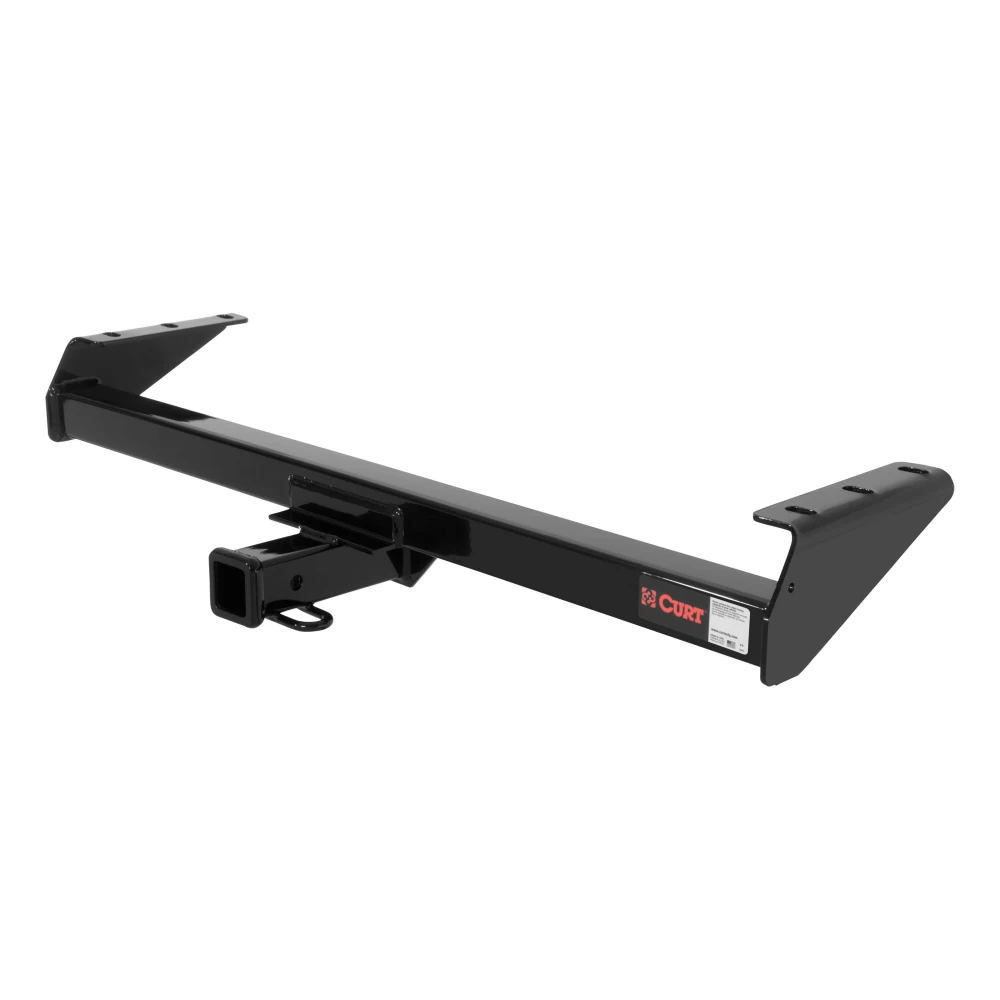

CURT 13241 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Nissan Frontier and Suzuki Equator (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 500 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs WD and 800 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

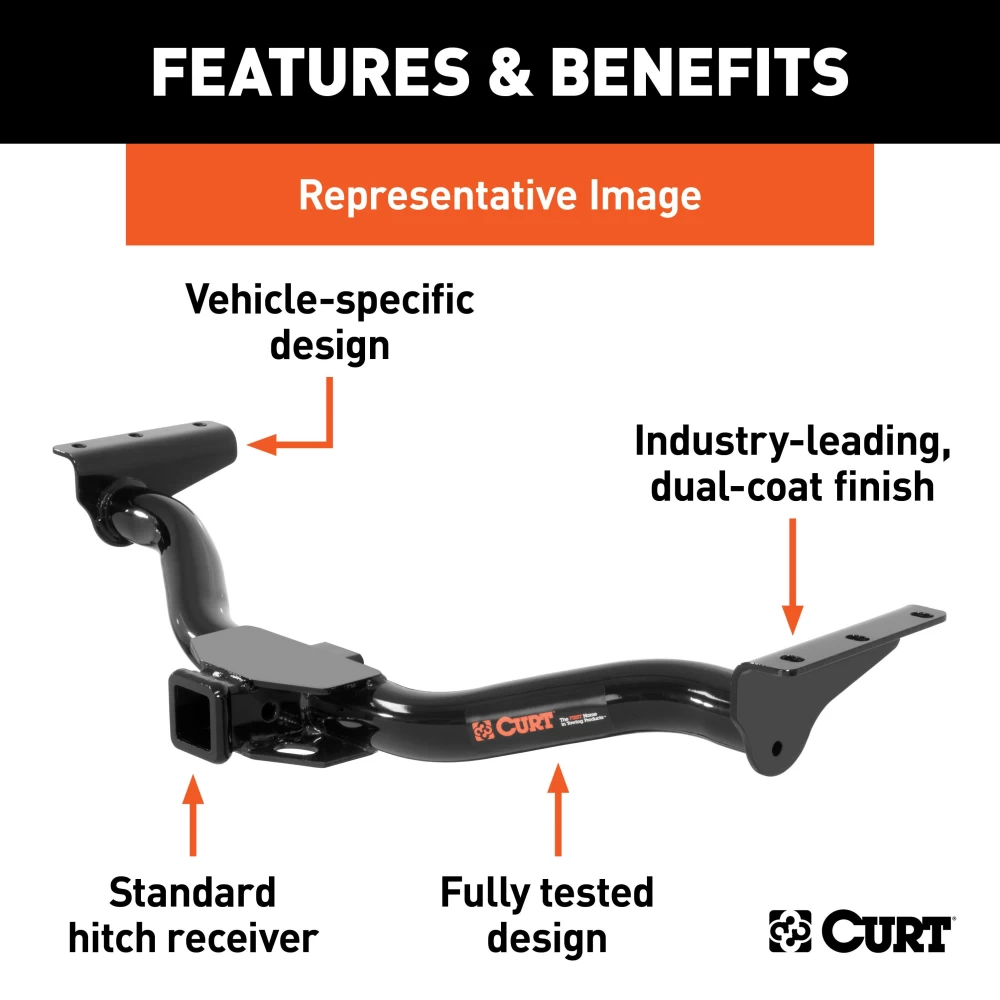

Features:
- Rated to 5,000 lbs. gross trailer weight and 500 lbs. tongue weight
- Compatible with weight distribution hitch (8,000 lbs. WD / 800 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

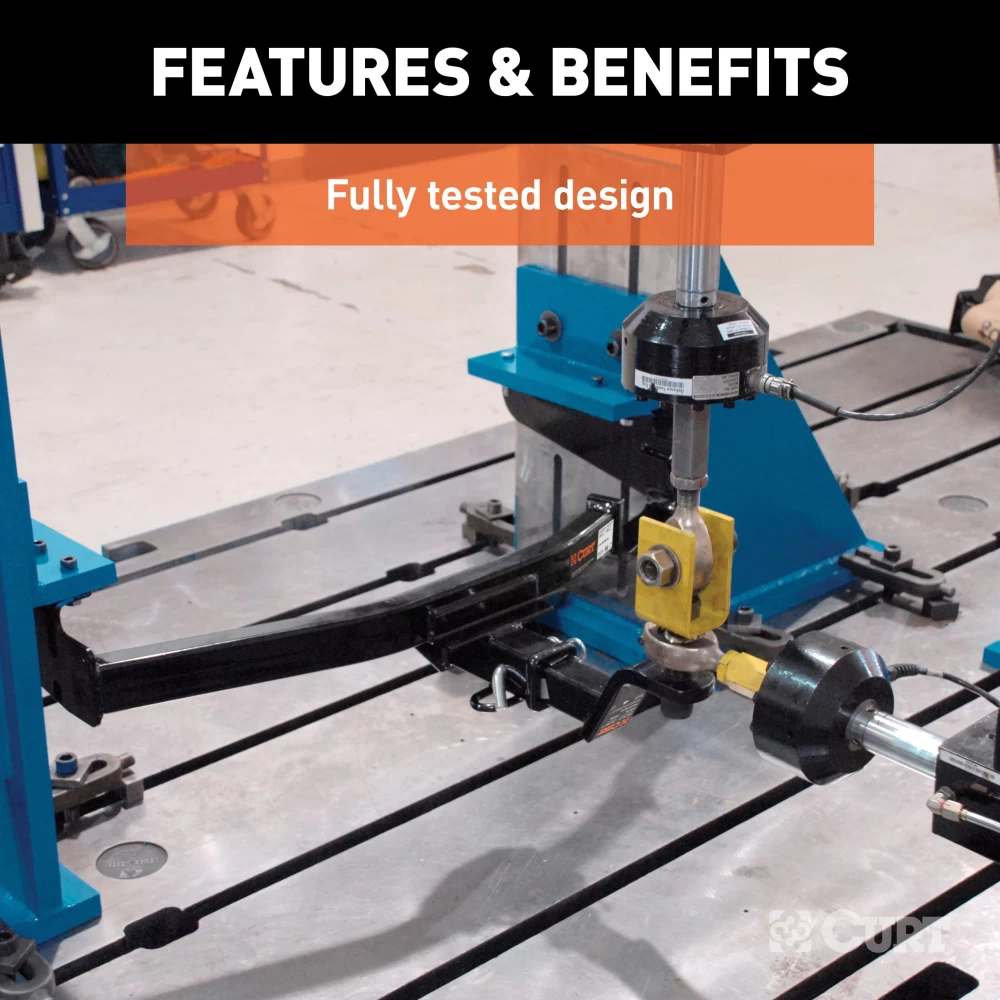

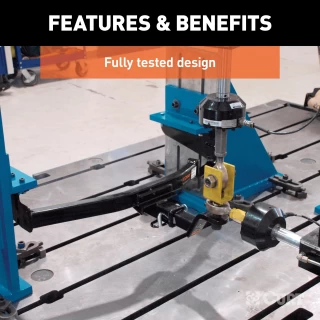

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

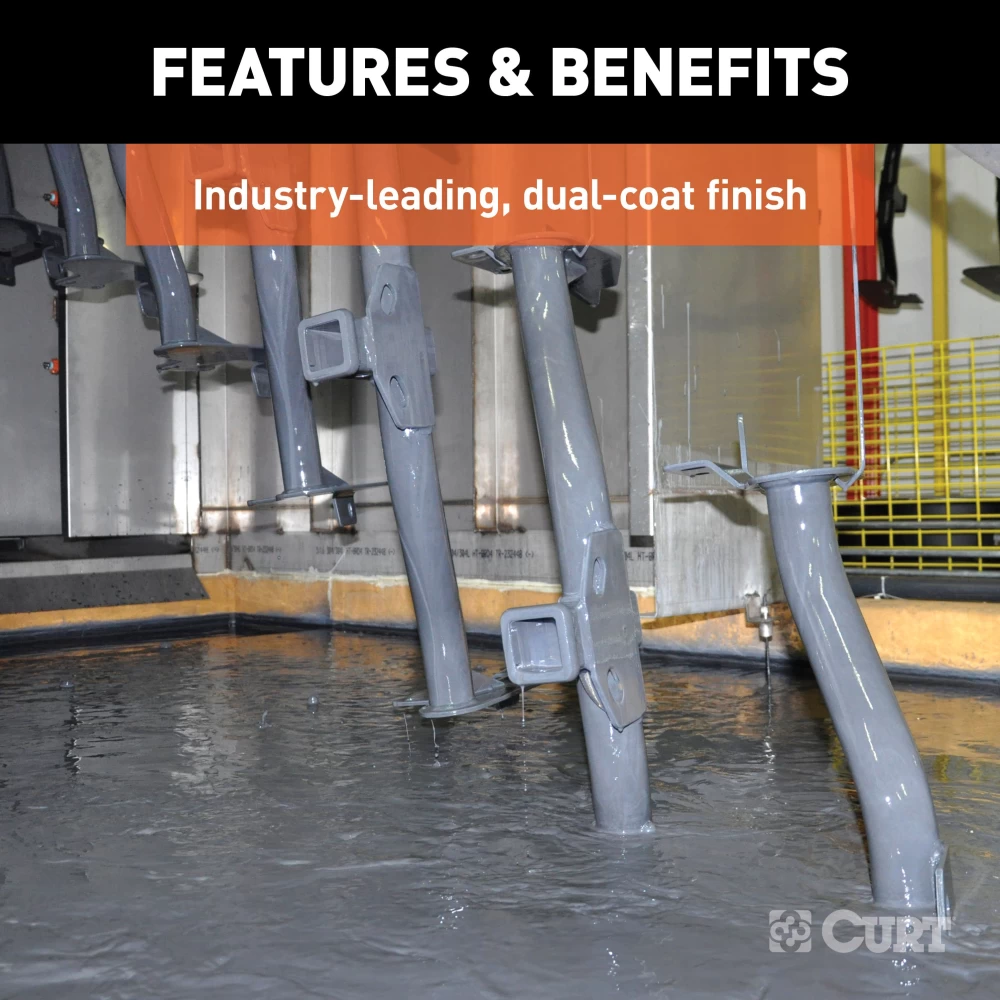

- Co-cured in a rust-resistant liquid A-coat, inside and out

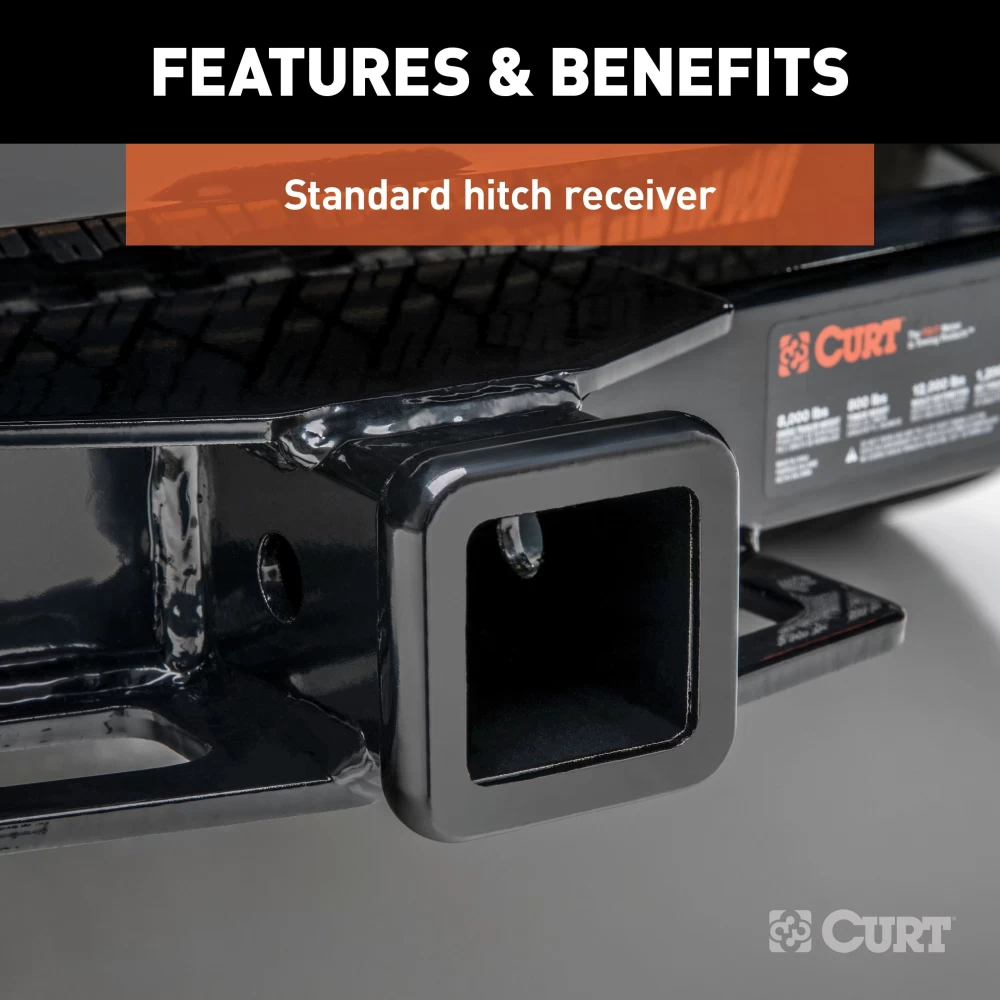

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$180 22 $279.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$279.95 $180 22
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13241-CH3062
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2005-2024 Nissan Frontier Trailer Hitch Fits All Models Curt 13241 2 inch Tow Receiver Install Notes
Installation Instructions for Nissan Frontier / Suzuki Equator
Part Numbers:
- 13241
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
Hardware List:
- Hex Bolt: M12x1.25, 35, Class 10.9, YZ (Qty: 6)
- Conical Washer: 1/2", YZ (Qty: 6)
Step-by-Step Instructions:
- Raise Hitch Into Position:
- Align the hitch with the existing weld nuts on the vehicle's frame rails.
- Install Fasteners:
- Secure the hitch using the M12 bolts and conical washers provided.
- Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
Safety Notes:
- No Drilling Required: Installation uses existing weld nuts.
- Verify all fasteners are torqued to the specified value to ensure secure installation.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
- Hitch Weight: 45 lbs
Installation Time:
- Professional: 15 minutes
- Novice (DIY): 45 minutes
Manufacturer Notes:
- For installation questions, contact Technical Support at 1-877-287-8634.
- Product Warranty: Curt Manufacturing Inc. guarantees this product to be free from defects in material and workmanship.
Installation Instructions for Nissan Frontier / Suzuki Equator
Part Numbers:
- 13241
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
Hardware List:
- Hex Bolt: M12x1.25, 35, Class 10.9, YZ (Qty: 6)
- Conical Washer: 1/2", YZ (Qty: 6)
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Align the hitch with the existing weld nuts on the vehicle's frame rails.
-
Install Fasteners:
- Secure the hitch using the M12 bolts and conical washers provided.
-
Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
Safety Notes:
- No Drilling Required: Installation uses existing weld nuts.
- Verify all fasteners are torqued to the specified value to ensure secure installation.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
- Hitch Weight: 45 lbs
Installation Time:
- Professional: 15 minutes
- Novice (DIY): 45 minutes
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
