Product Details
- Brand: Curt

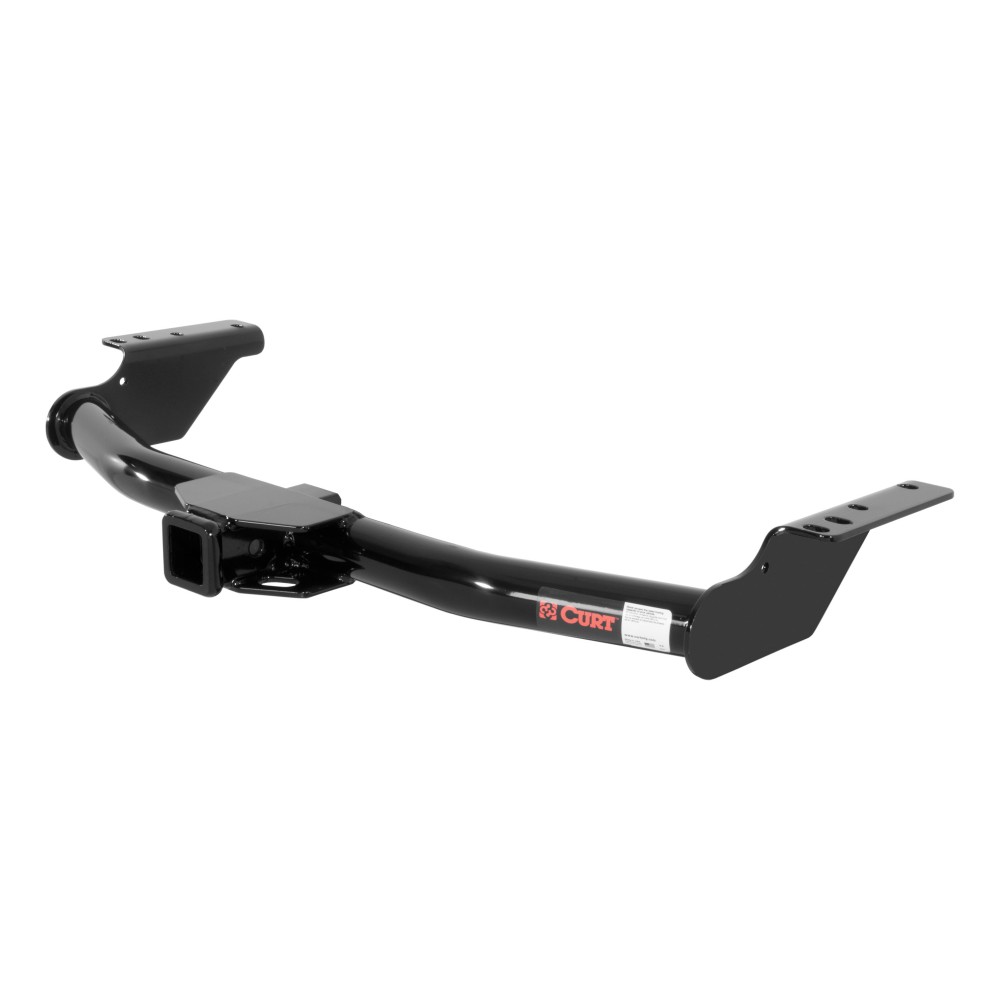

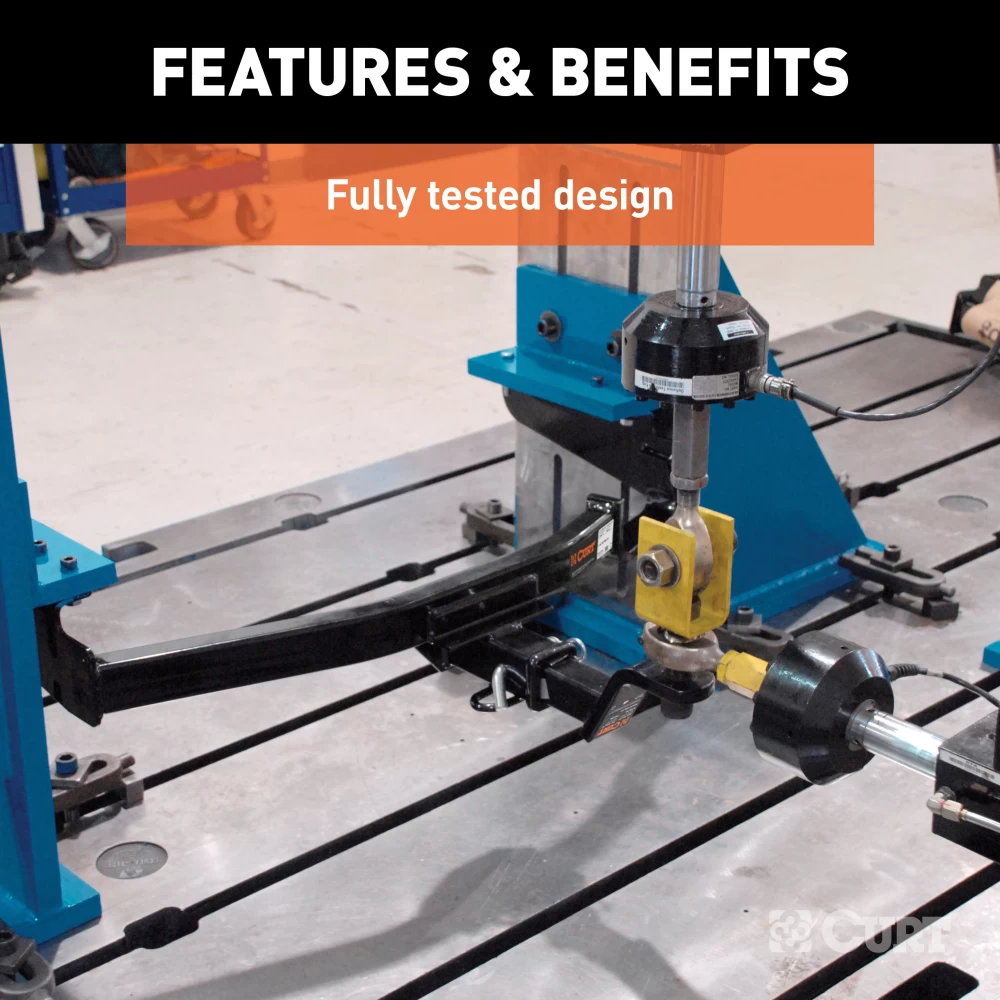

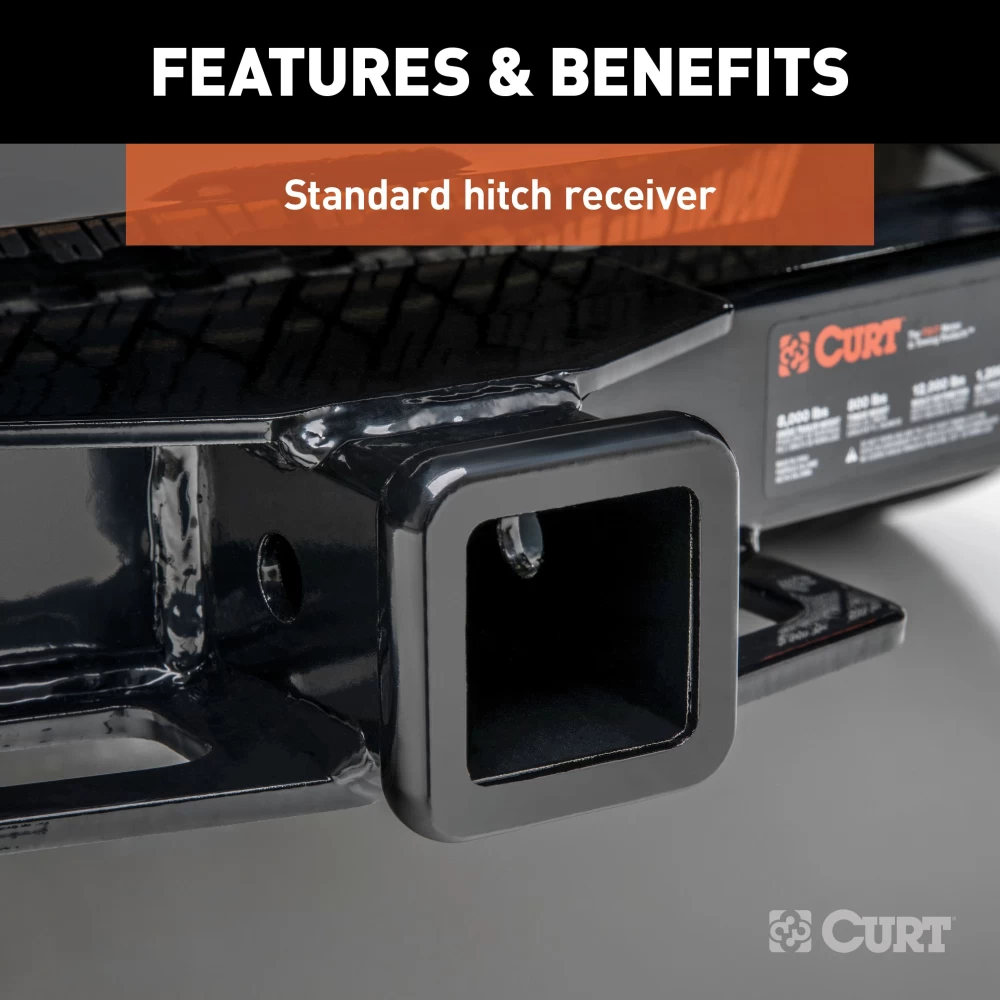

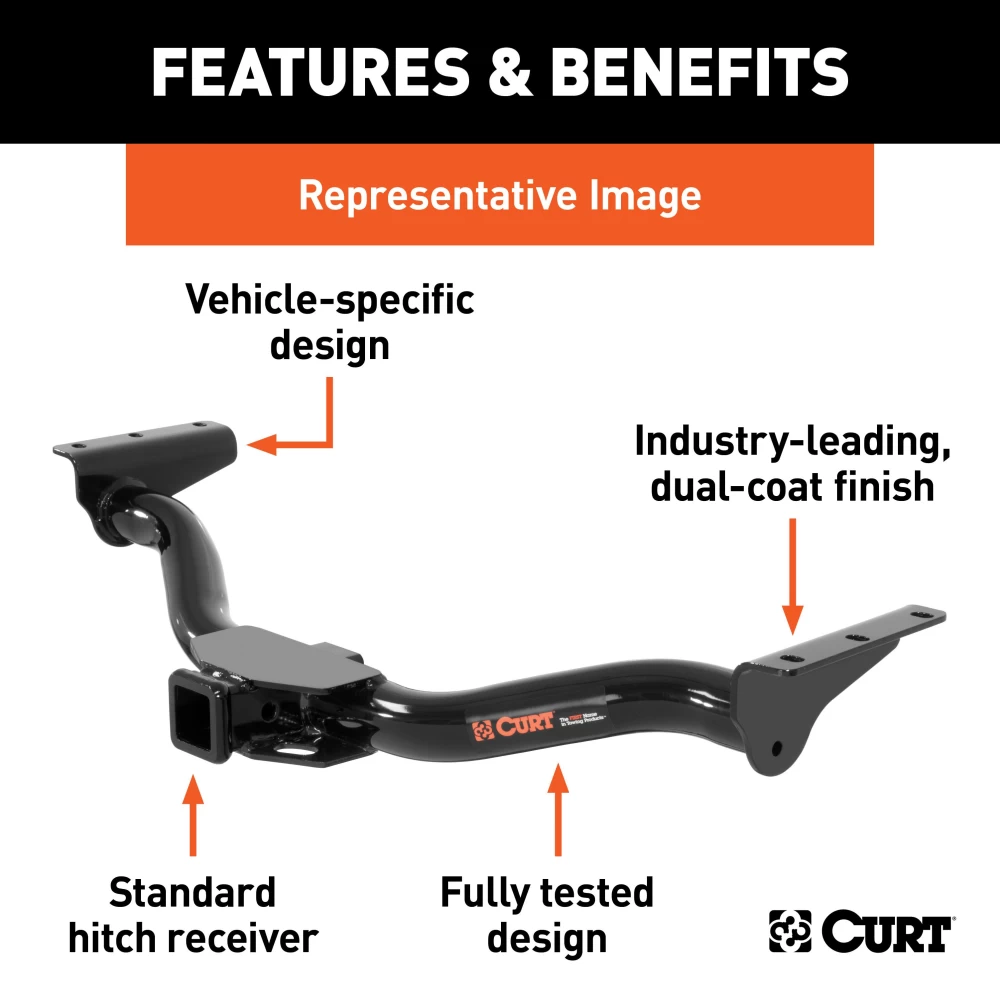

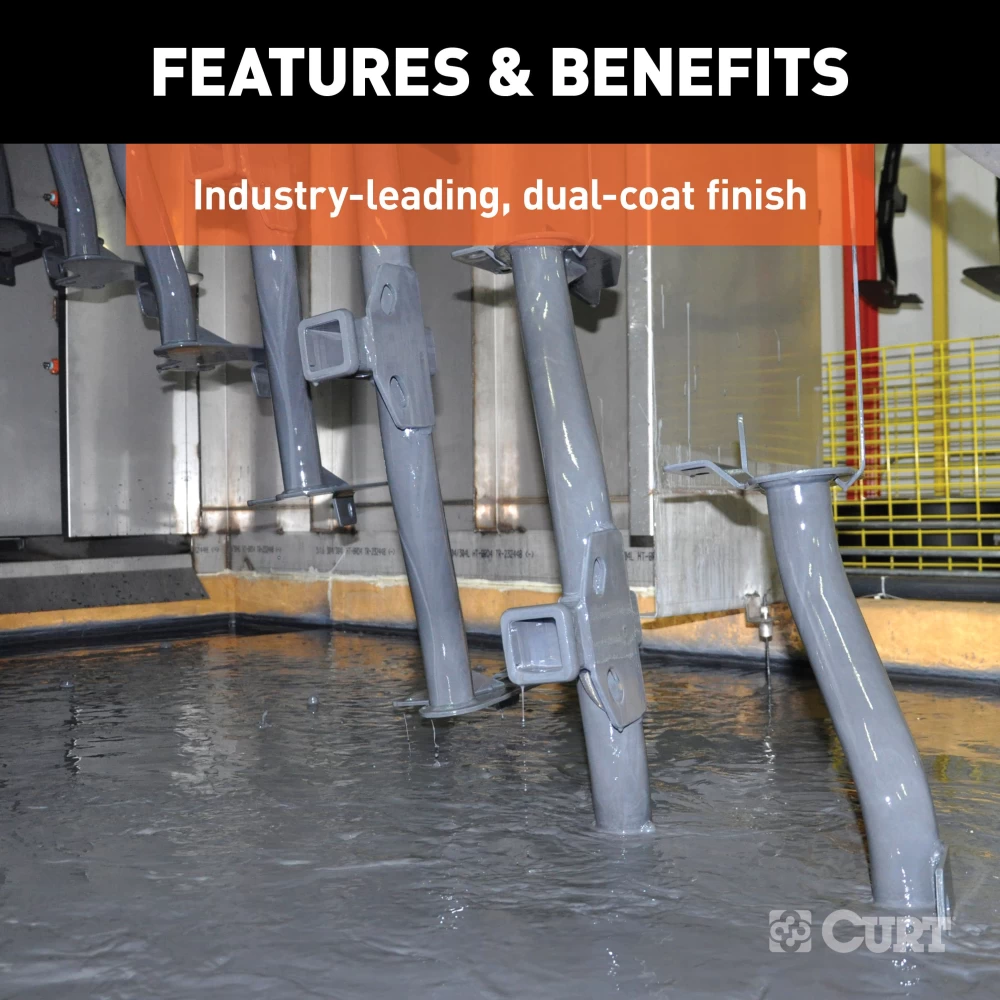

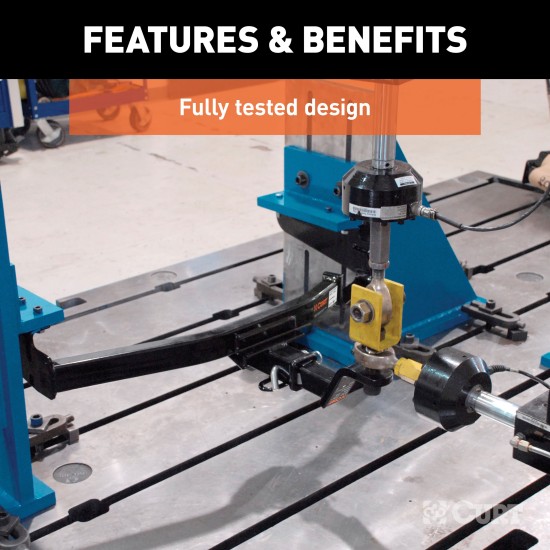

- Model: 13367-CH3559
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2007-2014 Toyota FJ Cruiser Trailer Hitch Fits All Models Curt 13367 2 inch Tow Receiver Install Notes
Installation Instructions for Toyota FJ Cruiser
Part Numbers:
- 13367
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
- 13mm Socket
- Fishwire Tool
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks if present and return them to the vehicle owner.
-
Lower the Exhaust:
- Temporarily lower the three rearmost exhaust hangers to provide enough clearance for bolt installation.
- Use a pry bar or lubricant if necessary to slide the hangers off.
-
Raise Hitch into Position:
- Position the hitch with the passenger-side plate above the exhaust pipe.
- Loosely install the M12 hex bolts and 1/2" conical toothed washers into the existing weld nuts on the frame rails.
-
Fishwire Hardware:
- Fishwire the 7/16" carriage bolts and square hole spacers into position using the existing access slots in the frame rails.
- Refer to the Fishwire Technique Diagram for guidance.
-
Install Remaining Fasteners:
- Install the remaining M8 hex bolts and washers into the appropriate positions as shown.
-
Torque Fasteners:
- Torque all M8 fasteners to 23 lb-ft.
- Torque all 7/16" fasteners to 59 lb-ft.
- Torque all M12 fasteners to 86 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers to their original position.
Hardware List:
- (2) M12 x 1.25 x 30 Hex Bolts
- (2) 1/2" Conical Toothed Washers
- (2) 7/16"-14 UNC Carriage Bolts, 1-1/2"
- (2) 7/16"-14 UNC Flange Nuts
- (2) CM-SP2 Square Hole Spacers (0.250 x 0.88 x 2.25")
- (1) 7/16" Fishwire Tool
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Gross Load Capacity (Weight Distribution Hitch):
- 6,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Hitch Weight: 35 lbs.
- Professional Install Time: 70 minutes
- Novice (DIY) Install Time: 90 minutes
Manufacturer Notes:
- No drilling is required for this installation.
- Fishwiring the hardware through the frame access slots is necessary.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Toyota FJ Cruiser
Part Numbers:
- 13367
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
- 13mm Socket
- Fishwire Tool
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks if present and return them to the vehicle owner.
-
Lower the Exhaust:
- Temporarily lower the three rearmost exhaust hangers to provide enough clearance for bolt installation.
- Use a pry bar or lubricant if necessary to slide the hangers off.
-
Raise Hitch into Position:
- Position the hitch with the passenger-side plate above the exhaust pipe.
- Loosely install the M12 hex bolts and 1/2" conical toothed washers into the existing weld nuts on the frame rails.
-
Fishwire Hardware:
- Fishwire the 7/16" carriage bolts and square hole spacers into position using the existing access slots in the frame rails.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
-
Install Remaining Fasteners:
- Install the remaining M8 hex bolts and washers into the appropriate positions as shown.
-
Torque Fasteners:
- Torque all M8 fasteners to 23 lb-ft.
- Torque all 7/16" fasteners to 59 lb-ft.
- Torque all M12 fasteners to 86 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers to their original position.
Hardware List:
- (2) M12 x 1.25 x 30 Hex Bolts
- (2) 1/2" Conical Toothed Washers
- (2) 7/16"-14 UNC Carriage Bolts, 1-1/2"
- (2) 7/16"-14 UNC Flange Nuts
- (2) CM-SP2 Square Hole Spacers (0.250 x 0.88 x 2.25")
- (1) 7/16" Fishwire Tool
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Gross Load Capacity (Weight Distribution Hitch):
- 6,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Hitch Weight: 35 lbs.
- Professional Install Time: 70 minutes
- Novice (DIY) Install Time: 90 minutes
Additional Information:
- No drilling is required for this installation.
- Fishwiring the hardware through the frame access slots is necessary.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- The warranty duration and coverage details are outlined in the full installation PDF.
- For complete warranty instructions, please download the full installation PDF.
End of Instructions
