For 2007‑2012 Lexus ES350 Trailer Hitch Fits Sedan Curt 12343 1‑1/4 Tow Receiver
Model: 12343-CH2638This Trailer Tow Hitch Fits The Following Vehicles:
2007 - 2012 Lexus ES350 Sedan
This Trailer Tow Hitch Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2007, 2008, 2009, 2010, 2011, 2012

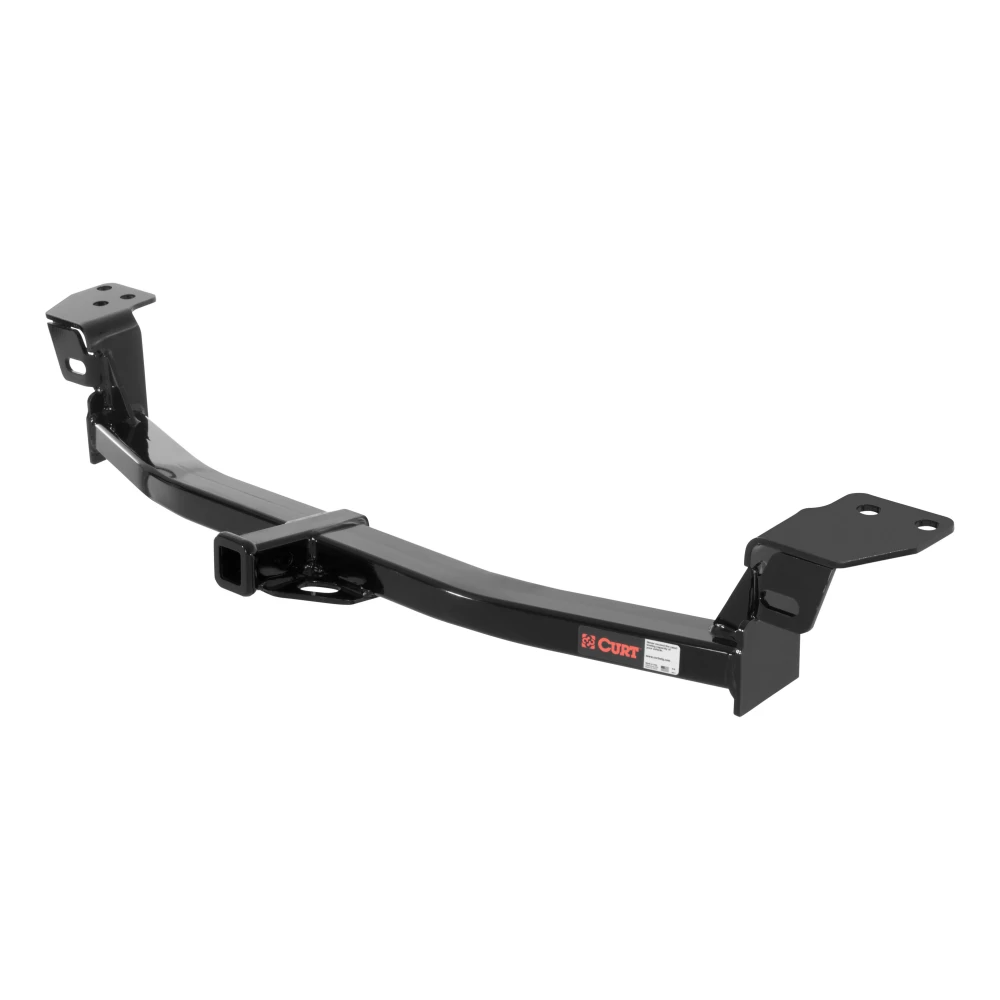

CURT 12343 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.
This particular class 2 hitch is made to be a custom hitch for certain years of the Lexus ES350 and Toyota Camry (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 350 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.

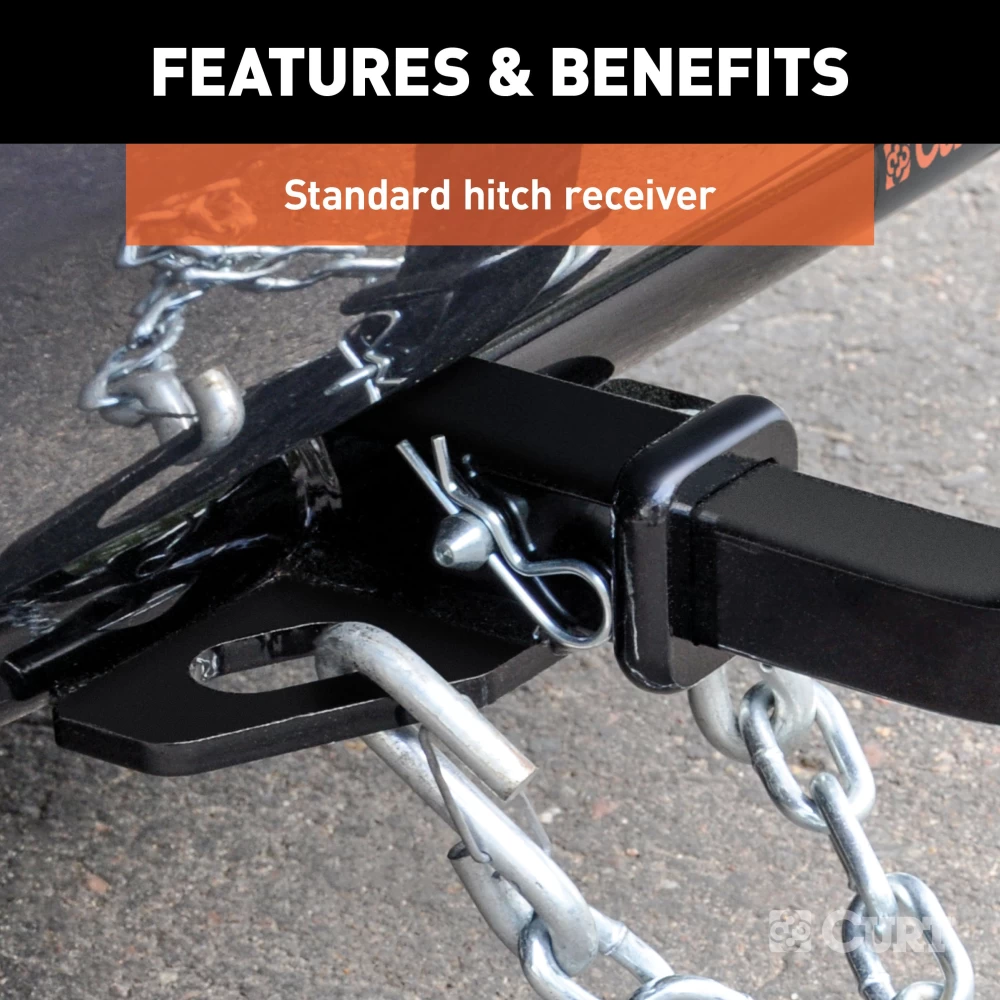

This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.
We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$210 86 $328.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$328.95 $210 86
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12343-CH2638
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2007-2012 Lexus ES350 Trailer Hitch Fits Sedan Curt 12343 1-1/4 Tow Receiver Install Notes
Installation Instructions for Toyota Camry, Camry Hybrid (Will Not Fit SE) and Lexus ES 350
Part Numbers:
- 12343
Tools Required:
- Ratchet
- Torque Wrench
- 10mm, 12mm, 14mm, and 17mm Sockets
- Swivel/Knuckle
- 10" Extension
- Flat Screwdriver
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the (3) bolts in the rearmost exhaust bracket.
- Remove the (2) rubber hangers forward of the muffler.
- Support the exhaust while installing the hitch.
-
Remove Plastic Fascia (if present):
- Remove the plastic fascia located under the trunk pan and passenger-side frame rail.
- The fascia can either be trimmed to fit around the hitch or returned to the owner.
- Refer to the Fascia Trim Detail diagram for guidance.
-
Remove Tow Brackets (if present):
- Remove the driver and/or passenger side tow brackets by unfastening the (3) bolts.
- Return the brackets and bolts to the owner.
-
Raise Hitch into Position:
- Position the hitch against the frame rail.
- Loosely install the hitch using the supplied M10 hex bolts and washers into the horizontal holes in the frame.
-
Reattach Exhaust Hanger:
- Raise the exhaust and sandwich the hitch between the frame rail and the exhaust hanger bracket.
- Install the remaining (6) M10 hex bolts and washers, securing both the hitch and exhaust to the frame rail.
-
Torque Fasteners:
- Torque all M10 fasteners to 48 lb-ft.
-
Reinstall or Trim Fascia (if present):
- Trim the fascia as needed following the Fascia Trim Detail diagram.
- Reinstall the fascia onto the vehicle.
Hardware List:
- (6) M10 x 1.25 x 30 Hex Bolts
- (6) 7/16" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 27 lbs.
- Professional Install Time: 45 minutes
- Novice (DIY) Install Time: Not Specified
Manufacturer Notes:
- Lowering the exhaust is required for installation.
- Some fascia trimming may be required for proper fitment.
- Designed for use with Ball Mount #45501 / 36071B.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Toyota Camry, Camry Hybrid (Will Not Fit SE) and Lexus ES 350
Part Numbers:
- 12343
Tools Required:
- Ratchet
- Torque Wrench
- 10mm, 12mm, 14mm, and 17mm Sockets
- Swivel/Knuckle
- 10" Extension
- Flat Screwdriver
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the (3) bolts in the rearmost exhaust bracket.
- Remove the (2) rubber hangers forward of the muffler.
- Support the exhaust while installing the hitch.
-
Remove Plastic Fascia (if present):
- Remove the plastic fascia located under the trunk pan and passenger-side frame rail.
- The fascia can either be trimmed to fit around the hitch or returned to the owner.
- Refer to the Fascia Trim Detail diagram for guidance.
-
Remove Tow Brackets (if present):
- Remove the driver and/or passenger side tow brackets by unfastening the (3) bolts.
- Return the brackets and bolts to the owner.
-
Raise Hitch into Position:
- Position the hitch against the frame rail.
- Loosely install the hitch using the supplied M10 hex bolts and washers into the horizontal holes in the frame.
-
Reattach Exhaust Hanger:
- Raise the exhaust and sandwich the hitch between the frame rail and the exhaust hanger bracket.
- Install the remaining (6) M10 hex bolts and washers, securing both the hitch and exhaust to the frame rail.
-
Torque Fasteners:
- Torque all M10 fasteners to 48 lb-ft.
-
Reinstall or Trim Fascia (if present):
- Trim the fascia as needed following the Fascia Trim Detail diagram.
- Reinstall the fascia onto the vehicle.
Hardware List:
- (6) M10 x 1.25 x 30 Hex Bolts
- (6) 7/16" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 27 lbs.
- Professional Install Time: 45 minutes
- Novice (DIY) Install Time: Not Specified
Manufacturer Notes:
-
Lowering the exhaust is required for installation.
-
Some fascia trimming may be required for proper fitment.
-
Designed for use with Ball Mount #45501 / 36071B.
-
Warranty:
- Warranty covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
-
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
