Product Details
- Brand: Curt
- Model: 15810-CH1499

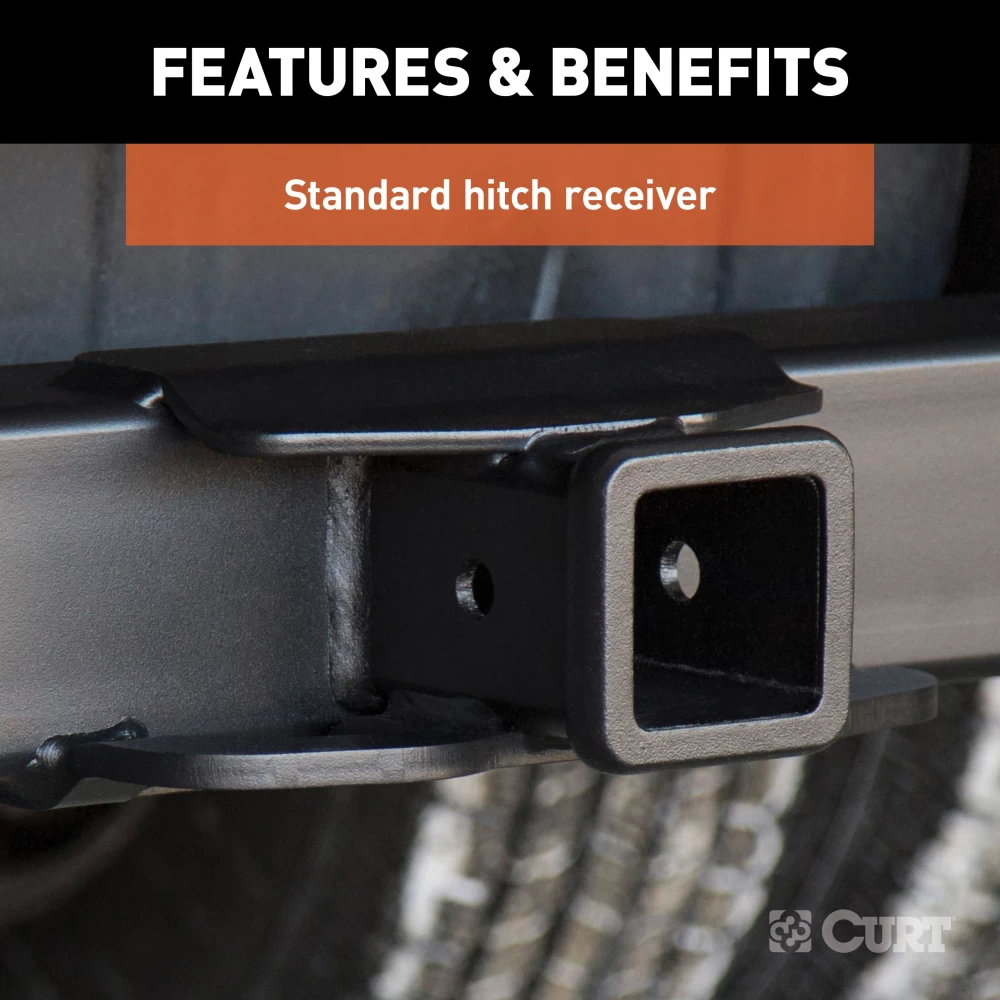

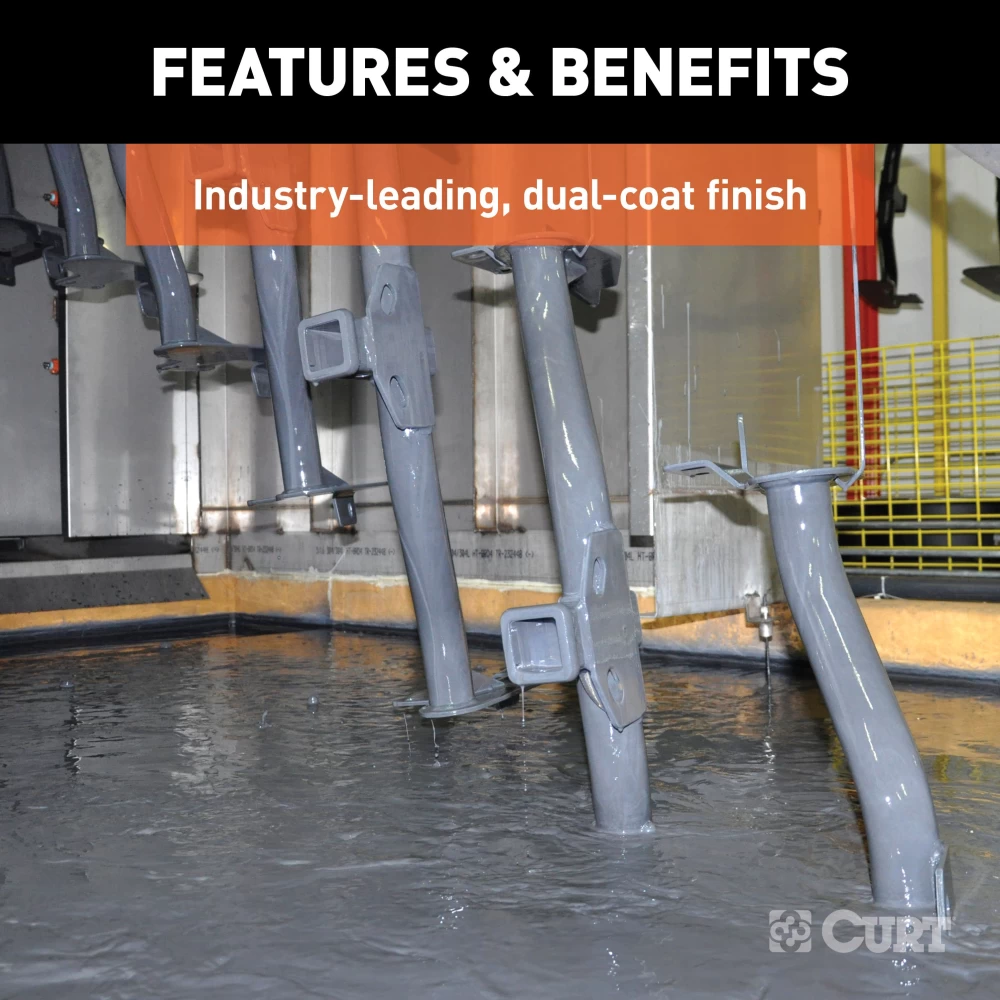

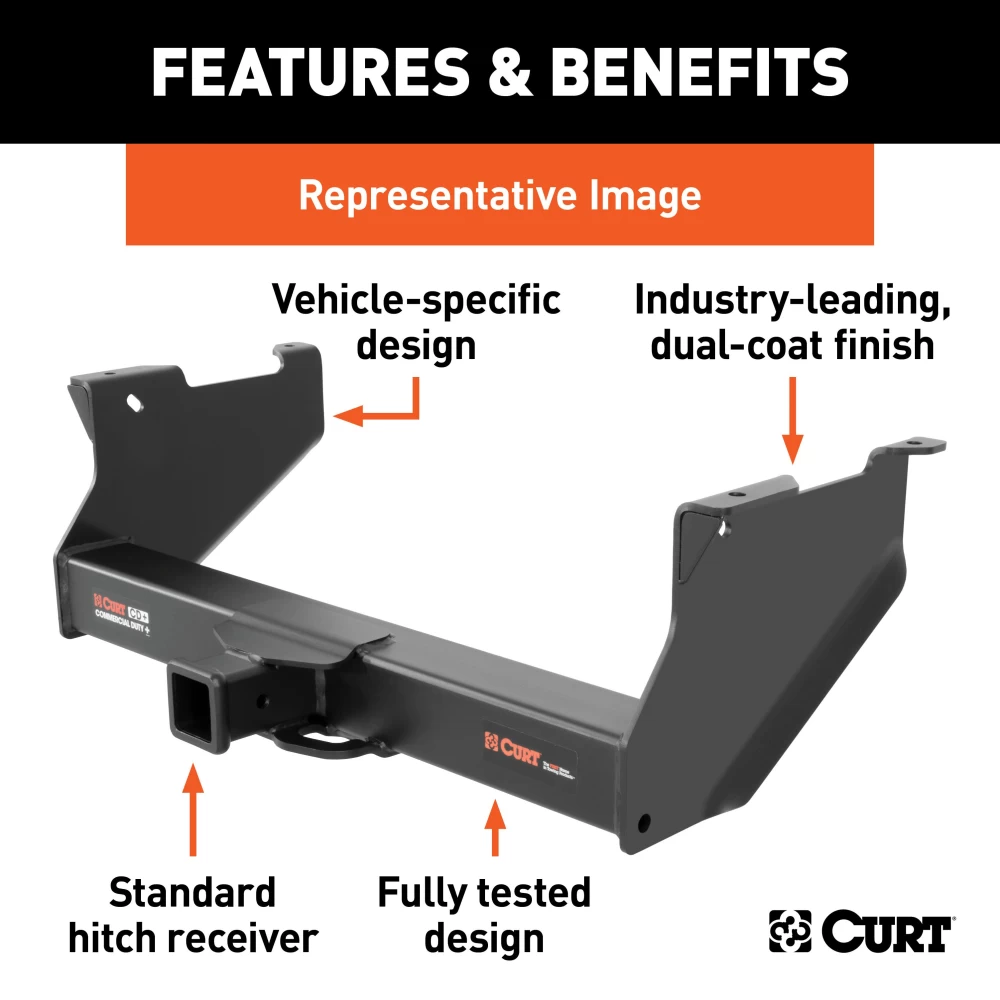

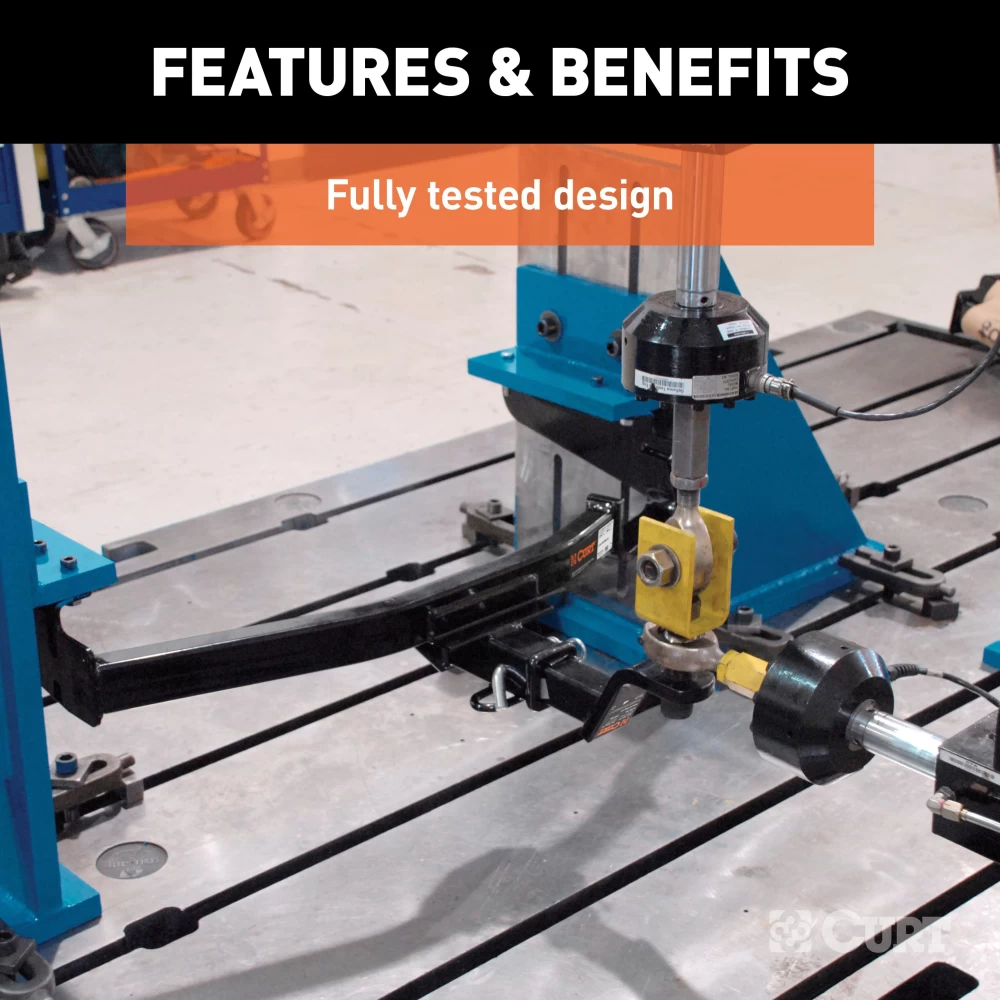

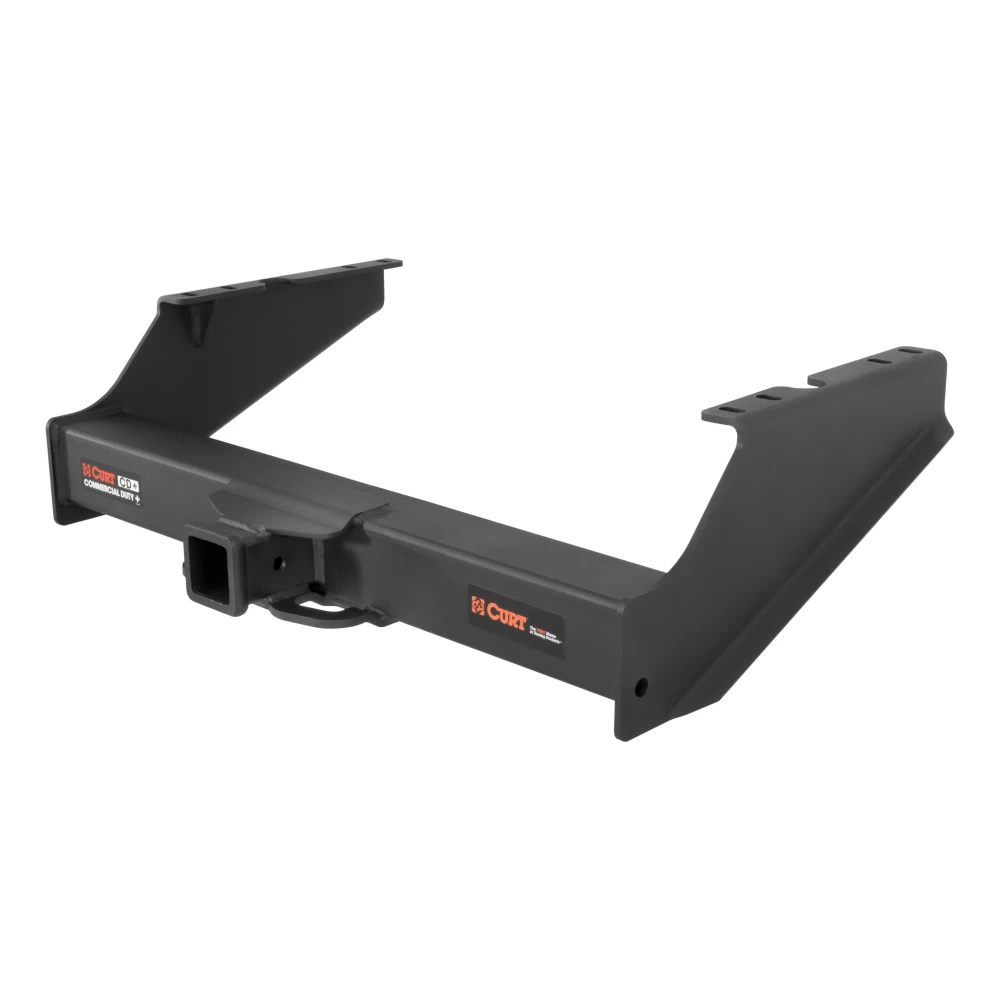

- Includes: Commercial Duty Class 5 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help

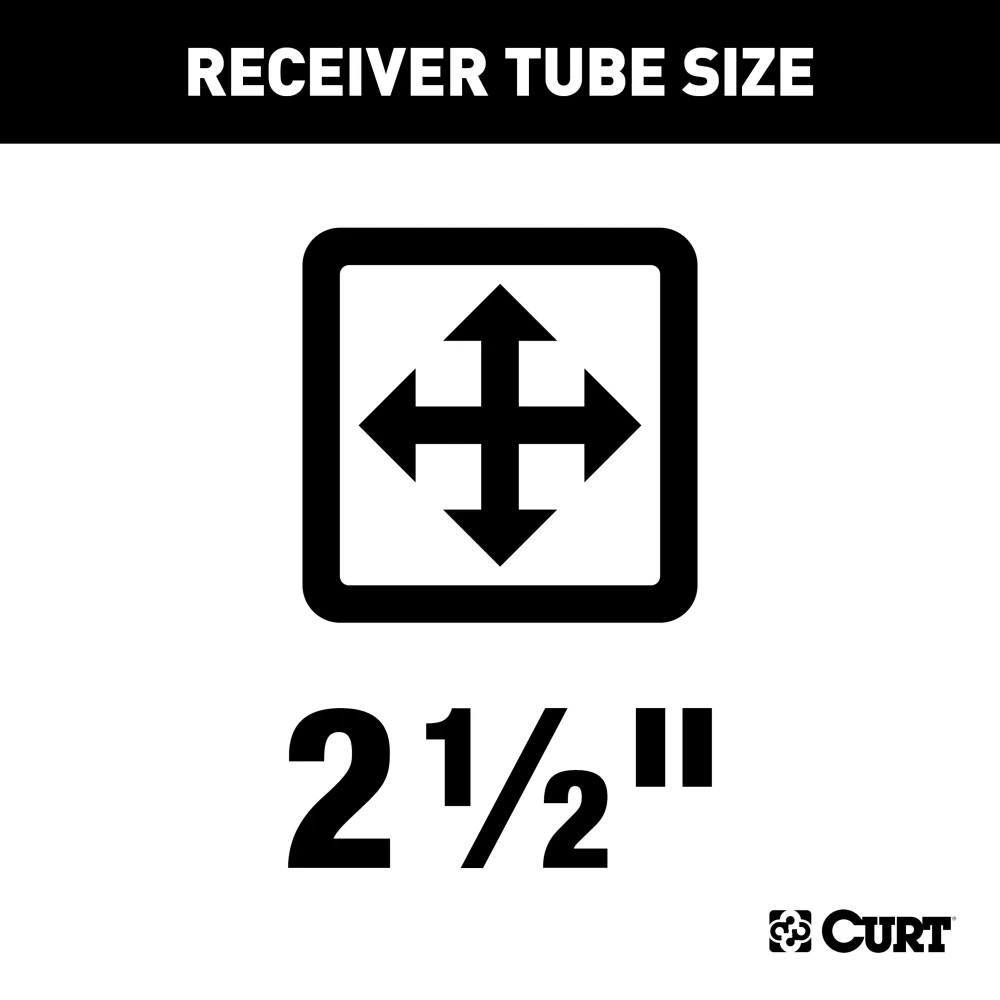

For 2008-2016 Ford F250 Super Duty Trailer Hitch Fits All Models Curt 15810 2.5 in Tow Receiver Install Notes
Installation Instructions for Ford F-250 / F-350 / F-450 Super Duty
Part Numbers:
- 15810
Tools Required:
- Torque wrench
- Ratchet
- 13/16" wrench
- 7/8" socket
- 12" extension
- Socket wrench
Step-by-Step Instructions:
-
Lower the Spare Tire:
- To ease installation, temporarily remove the spare tire for additional working space.
- Note: This hitch does not fit with a 20" spare tire.
-
Position the Hitch:
- Position the hitch against the frame, aligning the hitch holes with the pre-drilled holes in the frame.
-
Insert Carriage Bolts and Spacers:
- Insert a 9/16-12 x 1-3/4" carriage bolt and square hole spacer into each bolt location from inside the frame rail.
-
Raise the Hitch into Position:
- Raise the hitch back into position and secure it to the frame rails using the 9/16-12 hex flange nuts provided.
-
Torque Fasteners:
- Torque all 9/16" hardware to 150 lb-ft.
-
Reinstall the Spare Tire:
- Reinstall the spare tire once the hitch installation is complete.
Hardware List:
- Carriage Bolt, 9/16-12 x 1-3/4, Grade 8, YZ: Qty 2 (Part No. 10-10328)
- Square Hole Spacer, .313 x 1.25 x 2.00": Qty 2 (Part No. CM-SP738)
- Hex Flange Nut, 9/16-12, Grade 8, YZ: Qty 2 (Part No. 20-00104)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 20,000 lbs (trailer weight), 2,700 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 20,000 lbs (trailer weight), 2,700 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners are tight and all structural components remain sound.
Specifications:
- Hitch Weight: 60 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 76 minutes
- Drilling Required: No
- Spare Tire Removal: Temporary removal required for installation
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for Pickup Trucks (General Fitment)
Part Numbers:
- 15810
Tools Required:
- Torque wrench
- Ratchet
- 13/16" wrench
- 7/8" socket
- 12" extension
- Socket wrench
Step-by-Step Instructions:
-
Lower the Spare Tire:
- To ease installation, temporarily remove the spare tire for additional working space.
- Note: This hitch does not fit with a 20" spare tire.
-
Position the Hitch:
- Position the hitch against the frame, aligning the hitch holes with the pre-drilled holes in the frame.
-
Insert Carriage Bolts and Spacers:
- Insert a 9/16-12 x 1-3/4" carriage bolt and square hole spacer into each bolt location from inside the frame rail.
-
Raise the Hitch into Position:
- Raise the hitch back into position and secure it to the frame rails using the 9/16-12 hex flange nuts provided.
-
Torque Fasteners:
- Torque all 9/16" hardware to 150 lb-ft.
-
Reinstall the Spare Tire:
- Reinstall the spare tire once the hitch installation is complete.
Hardware List:
- Carriage Bolt, 9/16-12 x 1-3/4, Grade 8: Qty 2
- Square Hole Spacer, .313 x 1.25 x 2.00": Qty 2
- Hex Flange Nut, 9/16-12, Grade 8: Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 20,000 lbs (trailer weight), 2,700 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 20,000 lbs (trailer weight), 2,700 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners are tight and all structural components remain sound.
Specifications:
- Hitch Weight: 60 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 76 minutes
- Drilling Required: No
- Spare Tire Removal: Temporary removal required for installation
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
