For 2009‑2010 Mini Cooper Trailer Hitch Fits Convertible Except S Series Curt 11160 1‑1/4 Tow Receiver
Model: 11160-CH2995This Trailer Tow Hitch Fits The Following Vehicles:
2009 - 2010 Mini Cooper Convertible Except S Series
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2009, 2010

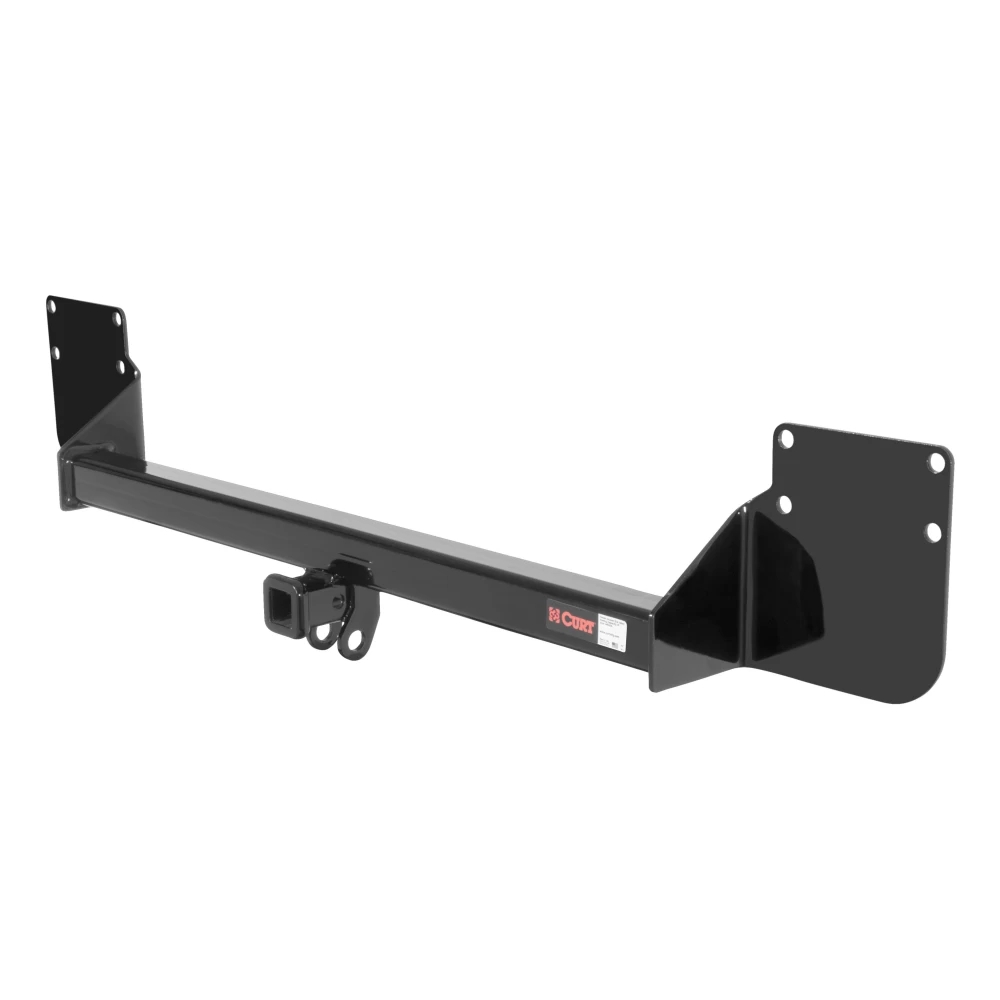

CURT 11160 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.

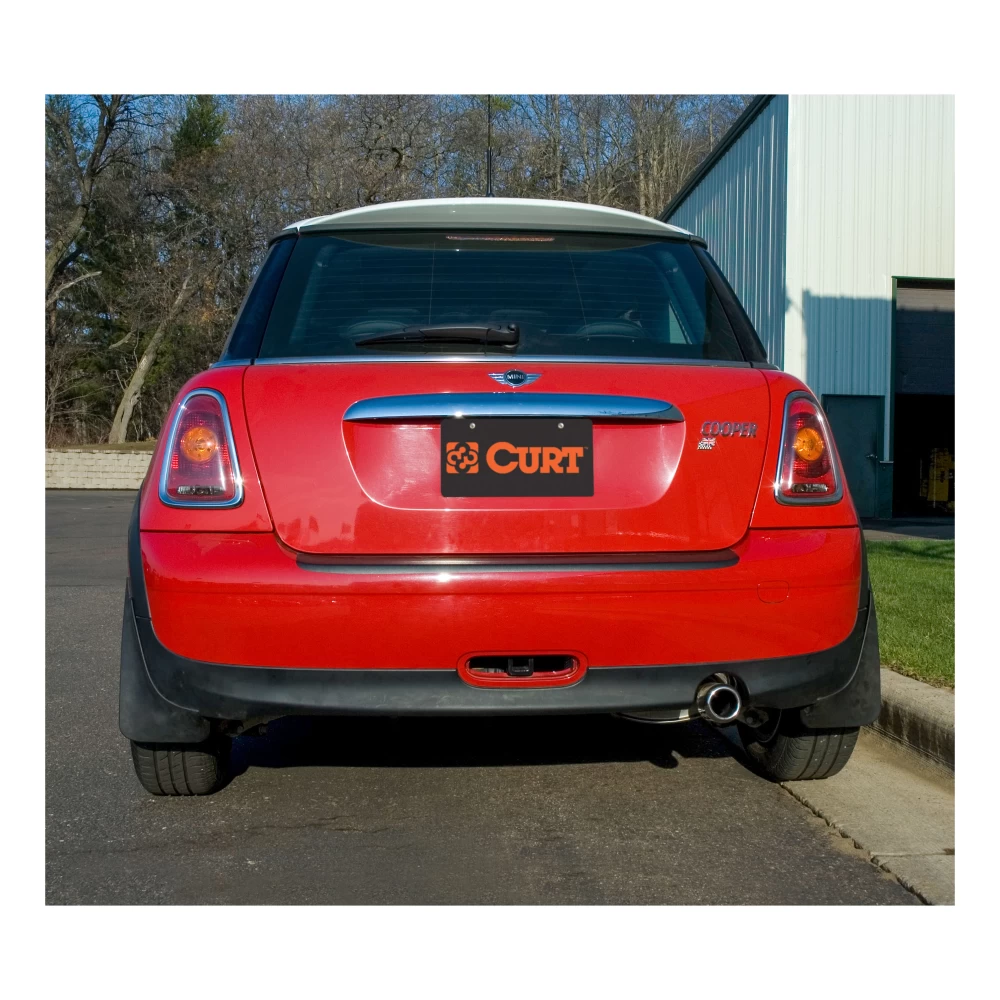

This particular class 1 hitch is designed to be a custom hitch for certain years of the Mini Cooper (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

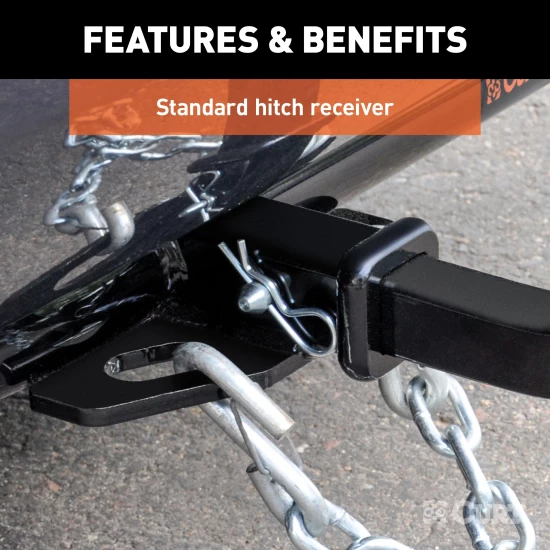

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).

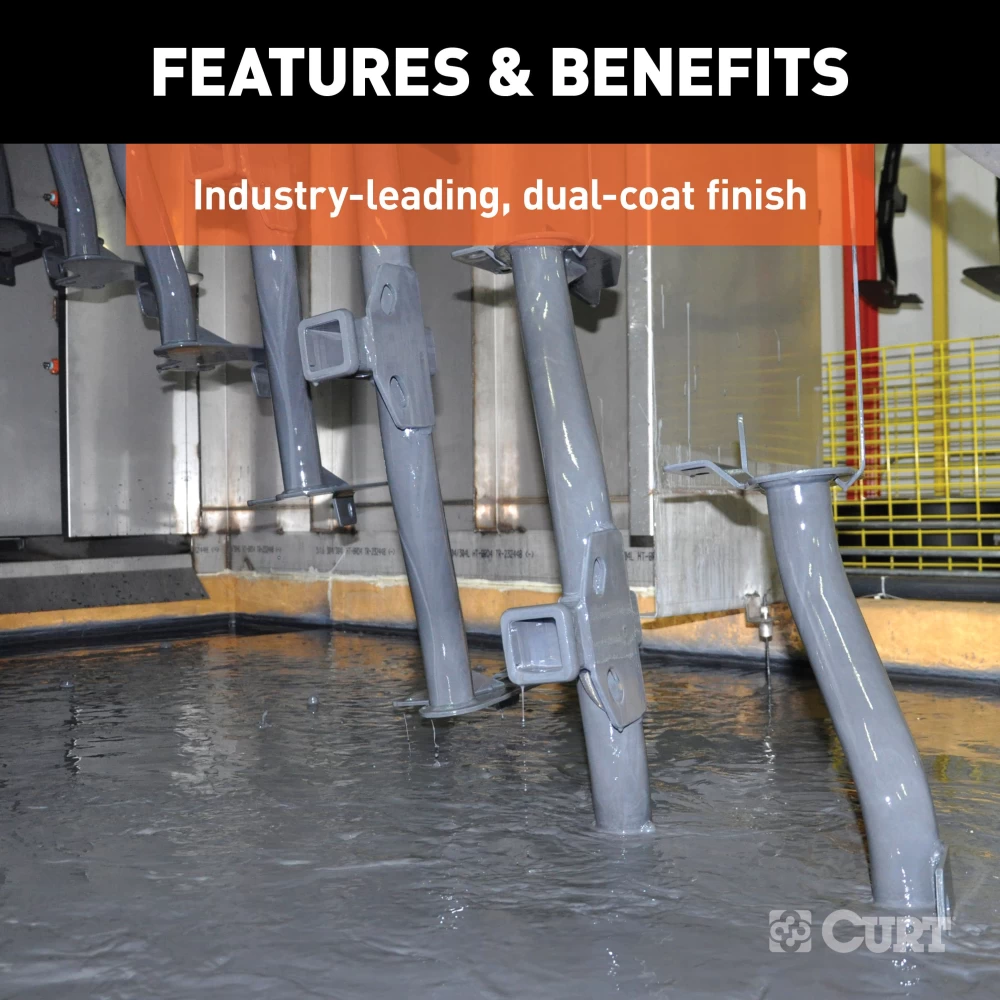

Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight

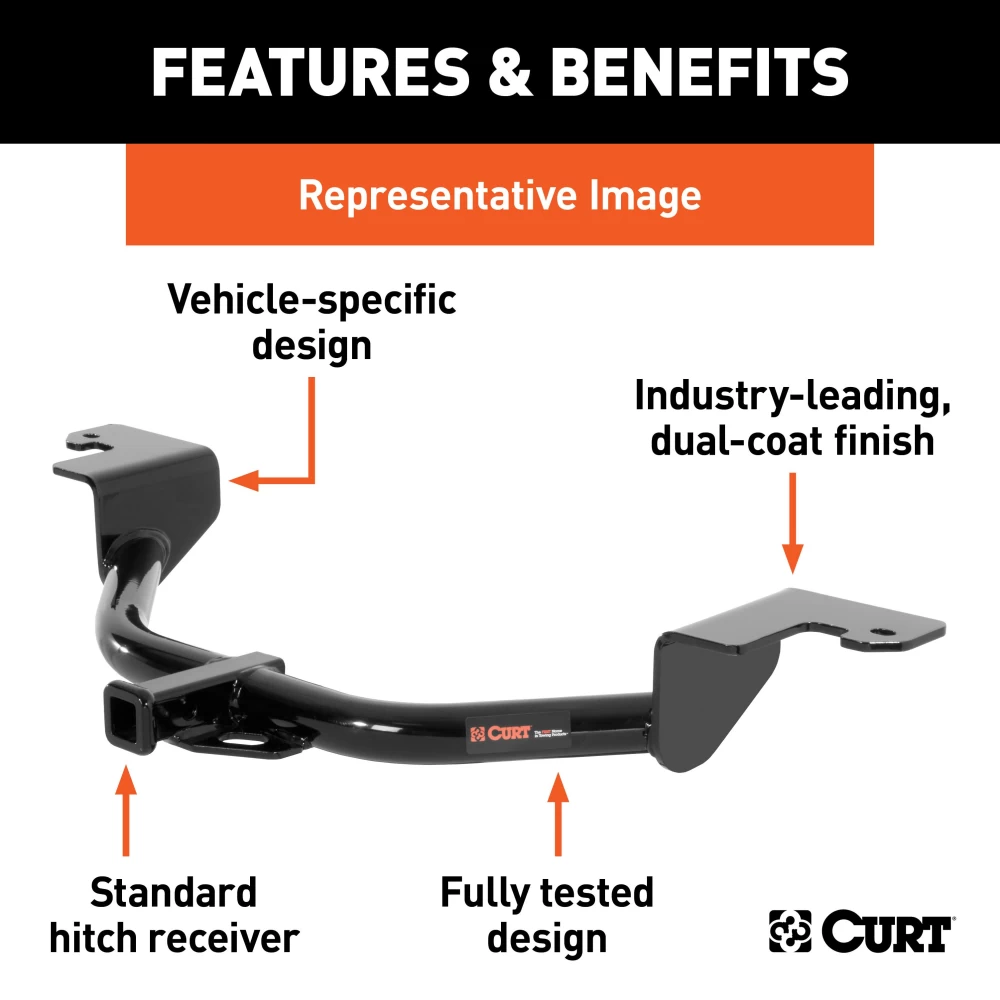

- Engineered with a vehicle-specific design for a custom fit

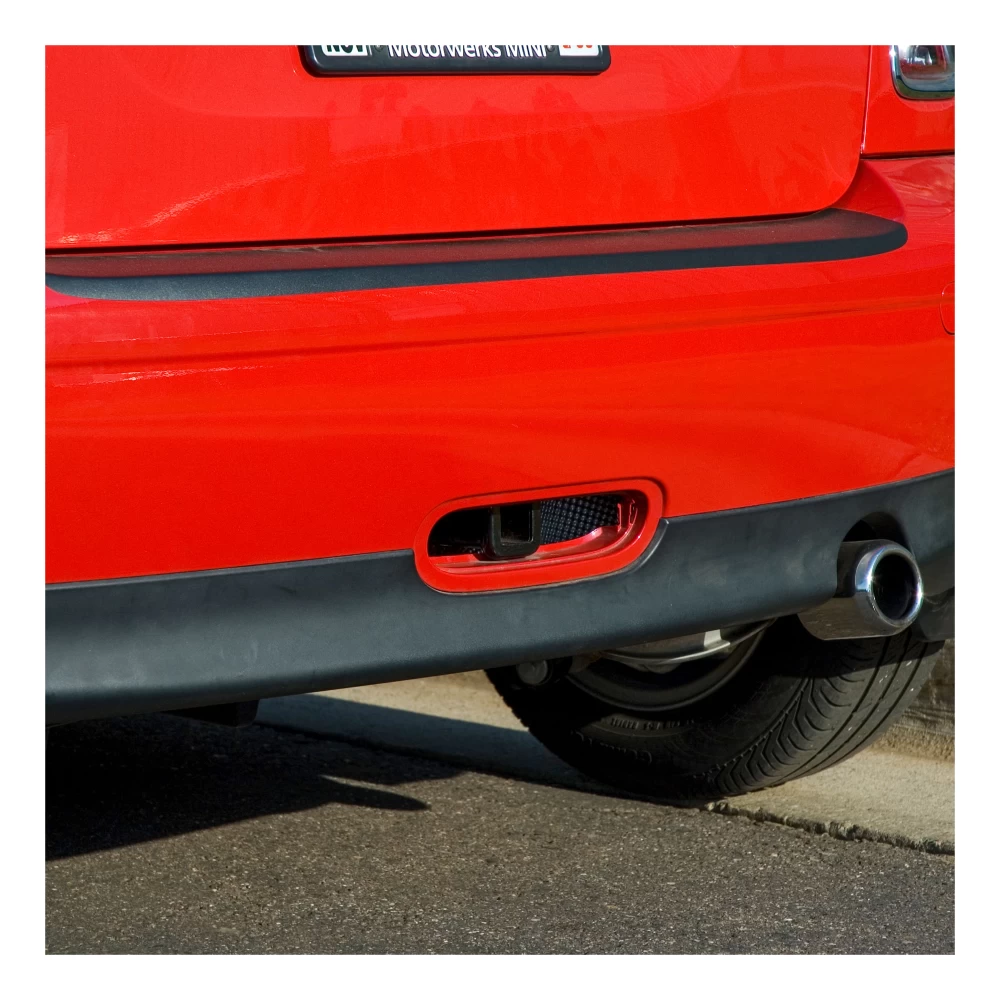

- Concealed main body for OE look and seamless integration with the vehicle

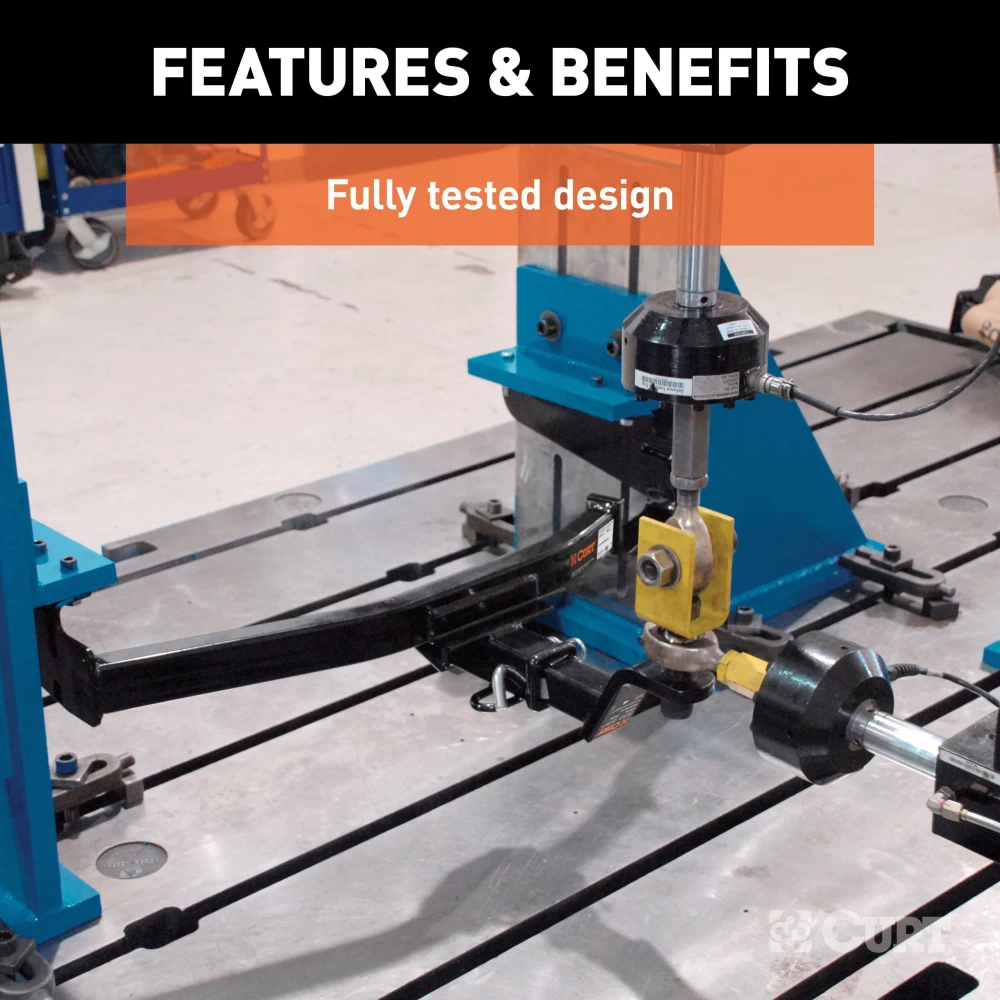

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$228 81 $357.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$357.95 $228 81
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11160-CH2995
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Get Expert Help
For 2009-2010 Mini Cooper Trailer Hitch Fits Convertible Except S Series Curt 11160 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2007-Present Mini Cooper Hard Top and 2009 Mini Cooper Convertible with Single Exhaust
Excludes Clubman, "S", and John Cooper Editions
Part Numbers:
- 11160
Tools Required:
- Ratchet
- Torque Wrench
- 12" Extension
- 13mm Socket
- 8mm Socket
- Offset Screwdriver
- Flat Blade Screwdriver
Step-by-Step Instructions:
Remove Bumper Cover
-
Remove Fasteners:
- Remove (11) fasteners securing the bumper cover.
- Use a Phillips screwdriver to remove (4) mud flap fasteners and (4) clips.
- Optional: Remove rear wheels for easier access.
-
Remove Hex Head Fasteners:
- Inside the wheel wells, remove (2) hex head fasteners (one on each side).
- Pull back the wheel well liner to access and remove (2) push fasteners.
-
Release Side Marker Bulbs:
- Pull the fender flares away from the bumper cover.
- Release the side marker bulbs and remove the hidden fasteners.
-
Remove Underbody Fasteners:
- Remove the (1) 10mm fastener under the bumper cover.
- Remove the final (2) fasteners located near the rear hatch.
-
Disconnect Electrical Components:
- Disconnect any rear sensors or rear lights, if present.
- Carefully remove the bumper cover and place it in a safe location.
Modify Components
-
Trim Hard Foam Energy Absorber (if present):
- Trim the foam energy absorber as required for hitch clearance. Refer to the Foam Trim Diagram for dimensions.
-
Remove Bumper Beam:
- Remove the (8) M8 bolts securing the bumper beam.
- Detach the wiring harness from the bumper beam and set it aside.
Install the Hitch
-
Raise Hitch into Position:
- Sandwich the hitch between the bumper beam and the rear of the car.
-
Secure Hitch and Bumper Beam:
- Reinstall the bumper beam using the (8) M8 bolts removed earlier.
- Use the supplied 3/8" conical toothed washers to secure the hitch.
-
Torque Fasteners:
- Torque all M8 fasteners to 23 lb-ft.
Reassemble Vehicle
-
Reconnect Wiring Harness:
- Secure the wiring harness back to the bumper beam and ensure it is clear of the exhaust and hitch.
-
Reinstall Bumper Cover:
- Align the bumper cover and reattach the side marker bulbs.
- Secure the bumper cover with the previously removed fasteners.
-
Reattach Fender Flares and Mud Flaps:
- Reinstall the mud flaps, wheel well liners, and all clips.
-
Final Check:
- Verify the hitch installation and ensure all components are reattached securely.
Hardware List:
- (8) M8 Bolts (existing hardware)
- (8) 3/8" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
- Use auxiliary stabilizing straps for all non-trailer loads.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 2,000 lbs. Trailer Weight
- 200 lbs. Tongue Weight
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: 120 minutes
Manufacturer Notes:
- Rear fascia trimming and heat shield modifications may be required.
- Longer safety chains may be required to reach the hitch chain loops.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for 2007-Present Mini Cooper Hard Top and 2009 Mini Cooper Convertible with Single Exhaust
Excludes Clubman, "S", and John Cooper Editions
Part Numbers:
- 11160
Tools Required:
- Ratchet
- Torque Wrench
- 12" Extension
- 13mm Socket
- 8mm Socket
- Offset Screwdriver
- Flat Blade Screwdriver
Step-by-Step Instructions:
Remove Bumper Cover
-
Remove Fasteners:
- Remove (11) fasteners securing the bumper cover.
- Use a Phillips screwdriver to remove (4) mud flap fasteners and (4) clips.
- Optional: Remove rear wheels for easier access.
-
Remove Hex Head Fasteners:
- Inside the wheel wells, remove (2) hex head fasteners (one on each side).
- Pull back the wheel well liner to access and remove (2) push fasteners.
-
Release Side Marker Bulbs:
- Pull the fender flares away from the bumper cover.
- Release the side marker bulbs and remove the hidden fasteners.
-
Remove Underbody Fasteners:
- Remove the (1) 10mm fastener under the bumper cover.
- Remove the final (2) fasteners located near the rear hatch.
-
Disconnect Electrical Components:
- Disconnect any rear sensors or rear lights, if present.
- Carefully remove the bumper cover and place it in a safe location.
Modify Components
-
Trim Hard Foam Energy Absorber (if present):
- Trim the foam energy absorber as required for hitch clearance. Refer to the Foam Trim Diagram for dimensions.
-
Remove Bumper Beam:
- Remove the (8) M8 bolts securing the bumper beam.
- Detach the wiring harness from the bumper beam and set it aside.
Install the Hitch
-
Raise Hitch into Position:
- Sandwich the hitch between the bumper beam and the rear of the car.
-
Secure Hitch and Bumper Beam:
- Reinstall the bumper beam using the (8) M8 bolts removed earlier.
- Use the supplied 3/8" conical toothed washers to secure the hitch.
-
Torque Fasteners:
- Torque all M8 fasteners to 23 lb-ft.
Reassemble Vehicle
-
Reconnect Wiring Harness:
- Secure the wiring harness back to the bumper beam and ensure it is clear of the exhaust and hitch.
-
Reinstall Bumper Cover:
- Align the bumper cover and reattach the side marker bulbs.
- Secure the bumper cover with the previously removed fasteners.
-
Reattach Fender Flares and Mud Flaps:
- Reinstall the mud flaps, wheel well liners, and all clips.
-
Final Check:
- Verify the hitch installation and ensure all components are reattached securely.
Hardware List:
- (8) M8 Bolts (existing hardware)
- (8) 3/8" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
- Use auxiliary stabilizing straps for all non-trailer loads.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 2,000 lbs. Trailer Weight
- 200 lbs. Tongue Weight
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: 120 minutes
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Coverage: Limited Lifetime Warranty
- For complete warranty instructions, please download the full installation PDF.
Warning: All non-trailer loads must be supported by auxiliary stabilizing straps to maintain warranty coverage.
