For 2011‑2020 Dodge Grand Caravan Trailer Hitch Fits All Models Curt 13364 2 inch Tow Receiver
Model: 13364-CH819This Trailer Tow Hitch Fits The Following Vehicles:
2011 - 2020 Dodge Grand Caravan All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020

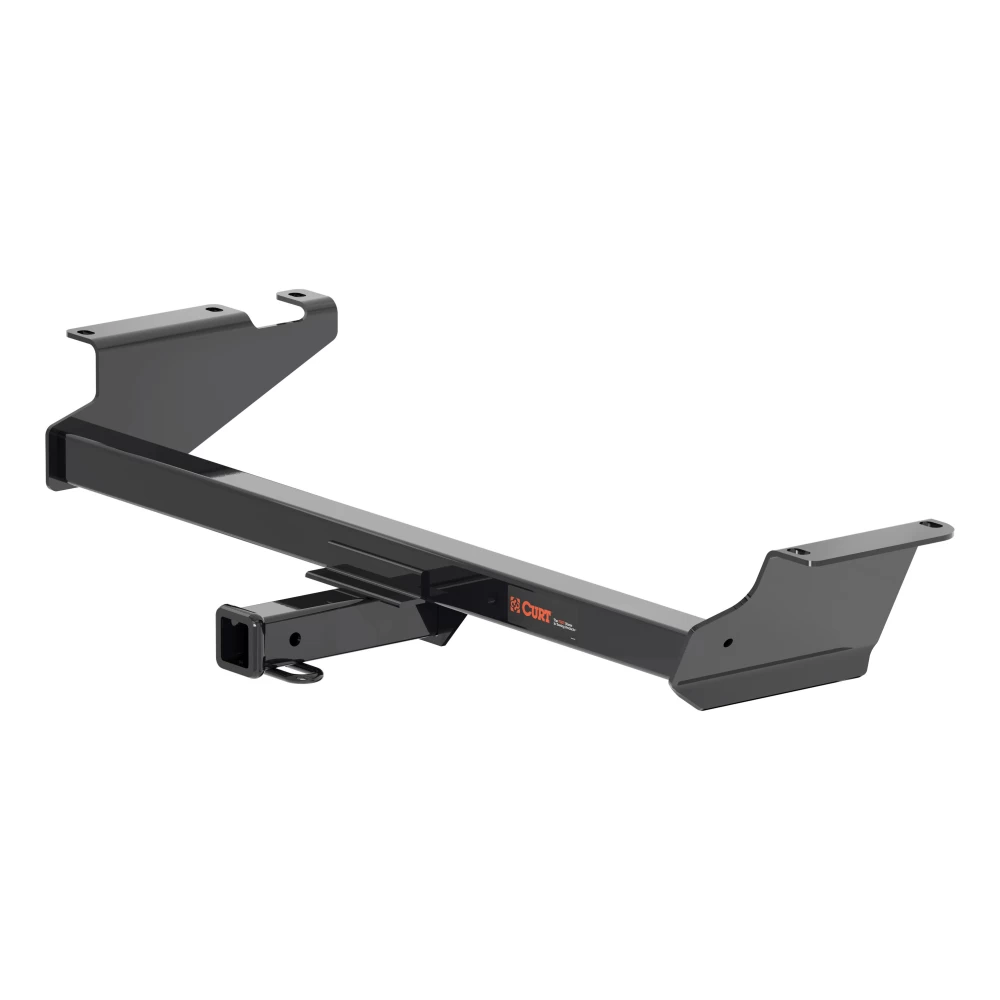

CURT 13364 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Chrysler Town & Country, Dodge Grand Caravan, Ram C/V and Volkswagen Routan (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 400 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 400 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$169 99 $260.95 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$260.95 $169 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $42.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 13364-CH819
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2011-2020 Dodge Grand Caravan Trailer Hitch Fits All Models Curt 13364 2 inch Tow Receiver Install Notes
Installation Instructions for Dodge Grand Caravan / Chrysler Town & Country / Volkswagen Routan / Ram Cargo Van
Part Numbers:
- 13364
Tools Required:
- Ratchet
- Torque Wrench
- 15mm Socket
- 18mm Socket
- Screwdriver
- Utility Knife
- Punch
Step-by-Step Instructions:
-
Remove Existing Hardware and Lower Exhaust:
- Locate and remove the (2) bolts from the frame using a 15mm socket.
- Remove the (3) bolts from the frame using an 18mm socket.
- Important: Leave one M12 bolt on the passenger side to hold the bumper bracket in position.
- Remove the bolt(s) securing the exhaust and muffler hanger(s).
- Lower the exhaust to allow for hitch installation.
-
Raise Hitch into Position:
- Raise the hitch into position against the bottom of the frame.
- Align the holes in the hitch frame brackets with the existing holes in the vehicle frame rails.
- Ensure no air conditioning lines are pinched between the hitch and the frame rail.
- Some fascia trimming may be required; refer to the Fascia Trim Diagram.
-
Install Fasteners:
- Use the existing M10 and M12 bolts to secure the hitch.
- A punch or screwdriver may be needed to align the holes during installation.
-
Torque Fasteners:
- Torque all M10 fasteners to 48 lb-ft.
- Torque all M12 fasteners to 86 lb-ft.
-
Reinstall Exhaust:
- Raise the muffler back into position and reinstall the exhaust hangers.
- Tip: Rotating the exhaust hanger bracket before tightening may add clearance between the hitch side bracket and the exhaust.
Hardware List:
- Use Existing Vehicle Hardware
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 400 lbs. Tongue Weight
- Weight Distribution Capacity:
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Manufacturer Notes:
- No drilling is required for this installation.
- Some fascia trimming may be required for clearance.
- Use existing vehicle hardware for installation.
- Lowering the exhaust is necessary for proper fitment.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Dodge Grand Caravan / Chrysler Town & Country / Volkswagen Routan / Ram Cargo Van
Part Numbers:
- 13364
Tools Required:
- Ratchet
- Torque Wrench
- 15mm Socket
- 18mm Socket
- Screwdriver
- Utility Knife
- Punch
Step-by-Step Instructions:
-
Remove Existing Hardware and Lower Exhaust:
- Locate and remove the (2) bolts from the frame using a 15mm socket.
- Remove the (3) bolts from the frame using an 18mm socket.
- Important: Leave one M12 bolt on the passenger side to hold the bumper bracket in position.
- Remove the bolt(s) securing the exhaust and muffler hanger(s).
- Lower the exhaust to allow for hitch installation.
-
Raise Hitch into Position:
- Raise the hitch into position against the bottom of the frame.
- Align the holes in the hitch frame brackets with the existing holes in the vehicle frame rails.
- Ensure no air conditioning lines are pinched between the hitch and the frame rail.
- Some fascia trimming may be required; refer to the Fascia Trim Diagram.
-
Install Fasteners:
- Use the existing M10 and M12 bolts to secure the hitch.
- A punch or screwdriver may be needed to align the holes during installation.
-
Torque Fasteners:
- Torque all M10 fasteners to 48 lb-ft.
- Torque all M12 fasteners to 86 lb-ft.
-
Reinstall Exhaust:
- Raise the muffler back into position and reinstall the exhaust hangers.
- Tip: Rotating the exhaust hanger bracket before tightening may add clearance between the hitch side bracket and the exhaust.
Hardware List:
- Use Existing Vehicle Hardware
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 400 lbs. Tongue Weight
- Weight Distribution Capacity:
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Warranty:
- Limited Warranty: Covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
