Product Details
- Brand: Curt
- Model: 56331 57672 51500 58361-CW741

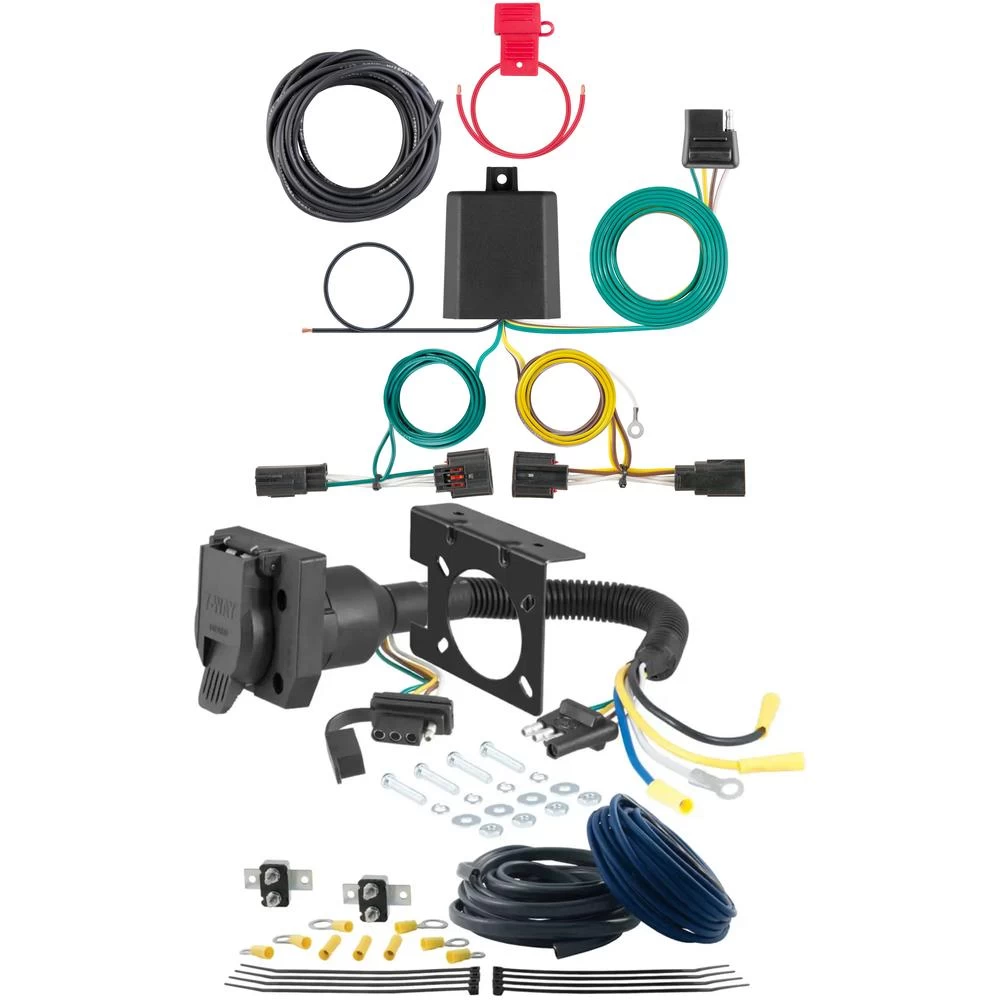

- Includes: Custom Wiring, Dual-Output Electrical Adapter, Trailer Brake Controller Wiring Kit, 30-Amp Universal Circuit Breaker
Compatibility Chart
Description
Get Expert Help
For 2011-2016 Chrysler Town & Country Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes

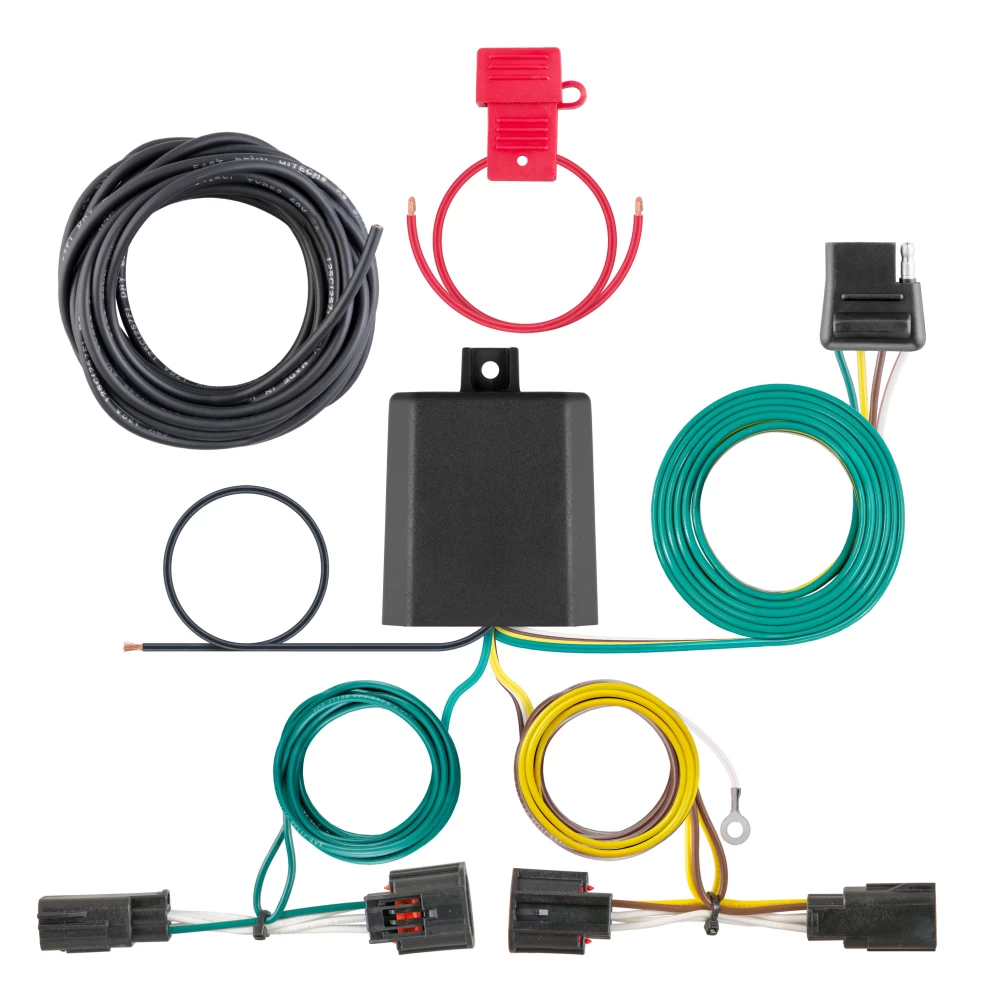

Installation Instructions for Chrysler Town & Country and Dodge Caravan/Grand Caravan
Part Numbers:
- 56331
Wiring Access Location:
For SUVs and vans, refer to the locations outlined below:
- S1: Behind the driver-side taillight housing.
- S2: Behind the passenger-side taillight housing.
Tools Required:
- Ratchet
- T-30 Torx bit
- Fishwire
Step-by-Step Instructions:
-
Locate the Vehicle Battery
- The battery is on the driver side under the hood. Disconnect the negative battery terminal.
-
Access Taillight Assemblies
- Open the vehicle tailgate to access the taillight assemblies.
-
Remove the Taillight Assemblies
- Remove the two T-30 Torx screws securing each taillight assembly.
- Gently pull out on the taillight, taking care not to damage the alignment tabs on the back.
-
Disconnect Taillight Wiring
- On the driver side, locate the vehicle's taillight wiring harness connectors.
- Separate the connectors from the taillight housing, ensuring the locking tabs remain intact.
-
Connect the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut or drill a 3/32" pilot hole.
- Secure the white ground wire with the provided ring terminal and screw.
Warning: Check for hidden items behind or under any surface before drilling to avoid damage or injury.
-
Mount the Converter Box
- Locate a flat, clean surface out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Failure to mount the box in a protected area can cause product failure, overheating, and potential fire.
-
Route the Black Power Wire
- Route the black power wire from the vehicle battery as shown in the included CME-PCL-INS sheet.
-
Install the Wiring Harness (Passenger Side)
- Route the custom wiring harness end with the green wire under the vehicle and up through the opening under the passenger-side taillight using fishwire.
- Repeat steps 3-5 on the passenger side using the harness end with the green wire.
-
Secure and Store the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it securely in a convenient location.
- Secure loose wires with the provided cable ties.
-
Reinstall Components
- Reinstall all items removed during the installation process.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- CURT wiring harness
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating.
- Inspect all wiring periodically to ensure there are no damages or loose connections.
- Fuse protection is required for the battery connection (10-amp max).
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Installation Instructions for Vehicle
Part Numbers:
- 56331
Wiring Access Location:
For SUVs and vans, refer to the locations outlined below:
- S1: Behind the driver-side taillight housing.
- S2: Behind the passenger-side taillight housing.
Tools Required:
- Ratchet
- T-30 Torx bit
- Fishwire
Step-by-Step Instructions:
-
Locate the Vehicle Battery
- The battery is on the driver side under the hood. Disconnect the negative battery terminal.
-
Access Taillight Assemblies
- Open the vehicle tailgate to access the taillight assemblies.
-
Remove the Taillight Assemblies
- Remove the two T-30 Torx screws securing each taillight assembly.
- Gently pull out on the taillight, taking care not to damage the alignment tabs on the back.
-
Disconnect Taillight Wiring
- On the driver side, locate the vehicle's taillight wiring harness connectors.
- Separate the connectors from the taillight housing, ensuring the locking tabs remain intact.
-
Connect the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are secure.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut or drill a 3/32" pilot hole.
- Secure the white ground wire with the provided ring terminal and screw.
Warning: Check for hidden items behind or under any surface before drilling to avoid damage or injury.
-
Mount the Converter Box
- Locate a flat, clean surface out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Failure to mount the box in a protected area can cause product failure, overheating, and potential fire.
-
Route the Black Power Wire
- Route the black power wire from the vehicle battery as shown in the included CME-PCL-INS sheet.
-
Install the Wiring Harness (Passenger Side)
- Route the custom wiring harness end with the green wire under the vehicle and up through the opening under the passenger-side taillight using fishwire.
- Repeat steps 3-5 on the passenger side using the harness end with the green wire.
-
Secure and Store the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it securely in a convenient location.
- Secure loose wires with the provided cable ties.
-
Reinstall Components
- Reinstall all items removed during the installation process.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom wiring harness
- Ring terminal
- Ground screw
- Cable ties
- Double-sided tape
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating.
- Inspect all wiring periodically to ensure there are no damages or loose connections.
- Fuse protection is required for the battery connection (10-amp max).
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty information, please download the full installation PDF.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
