Product Details
- Brand: Curt
- Model: 13067 56120-CH1194

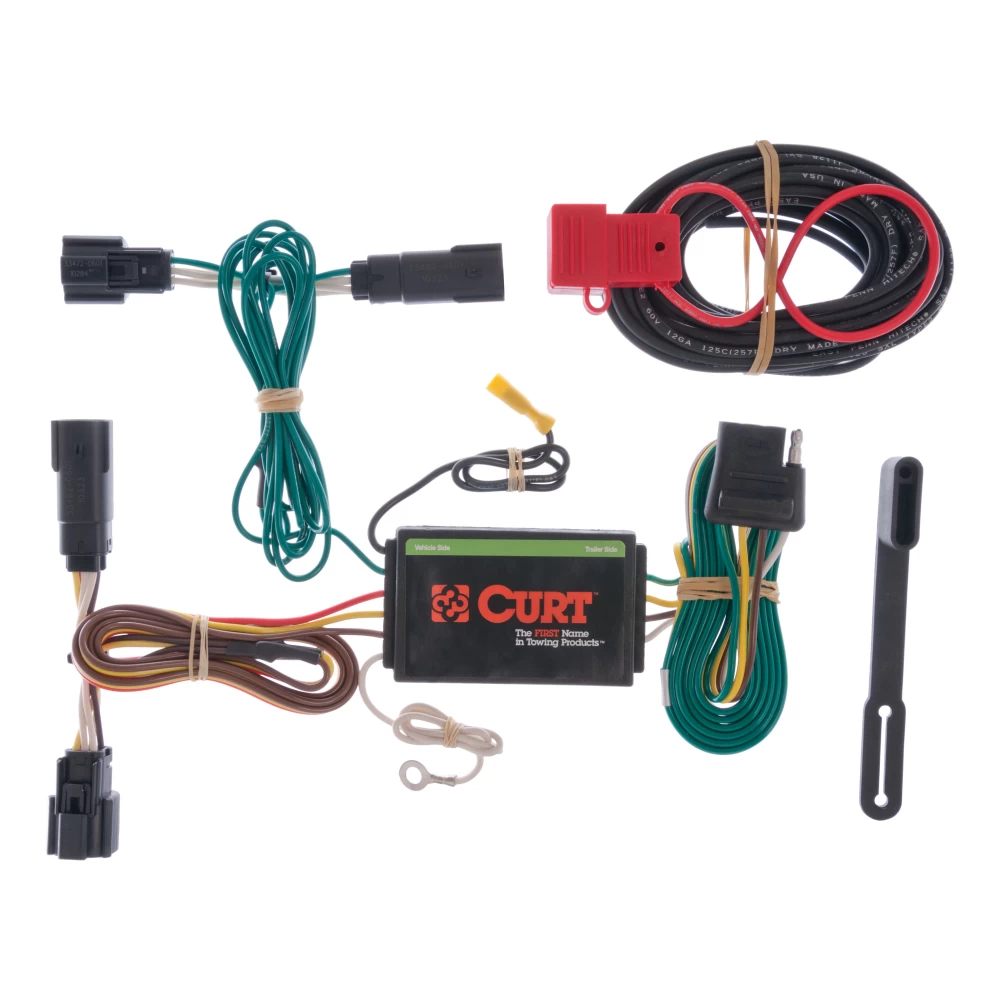

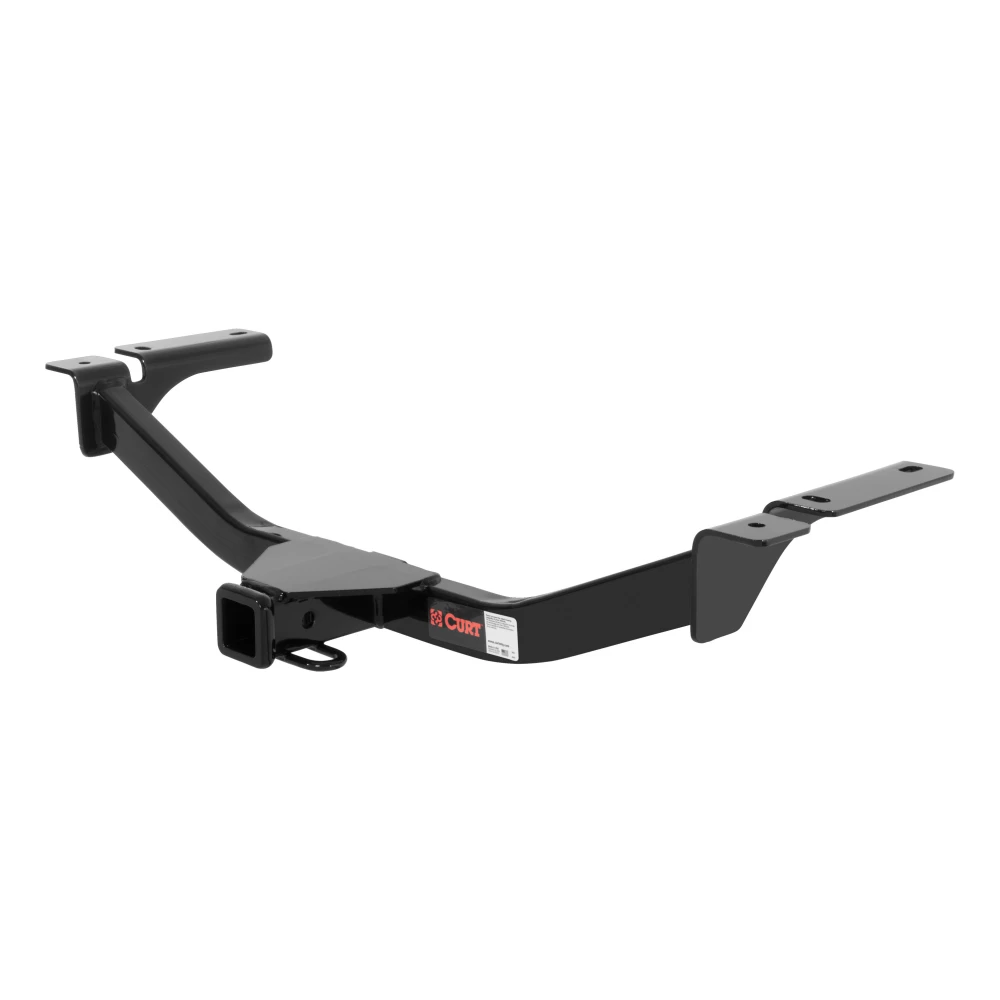

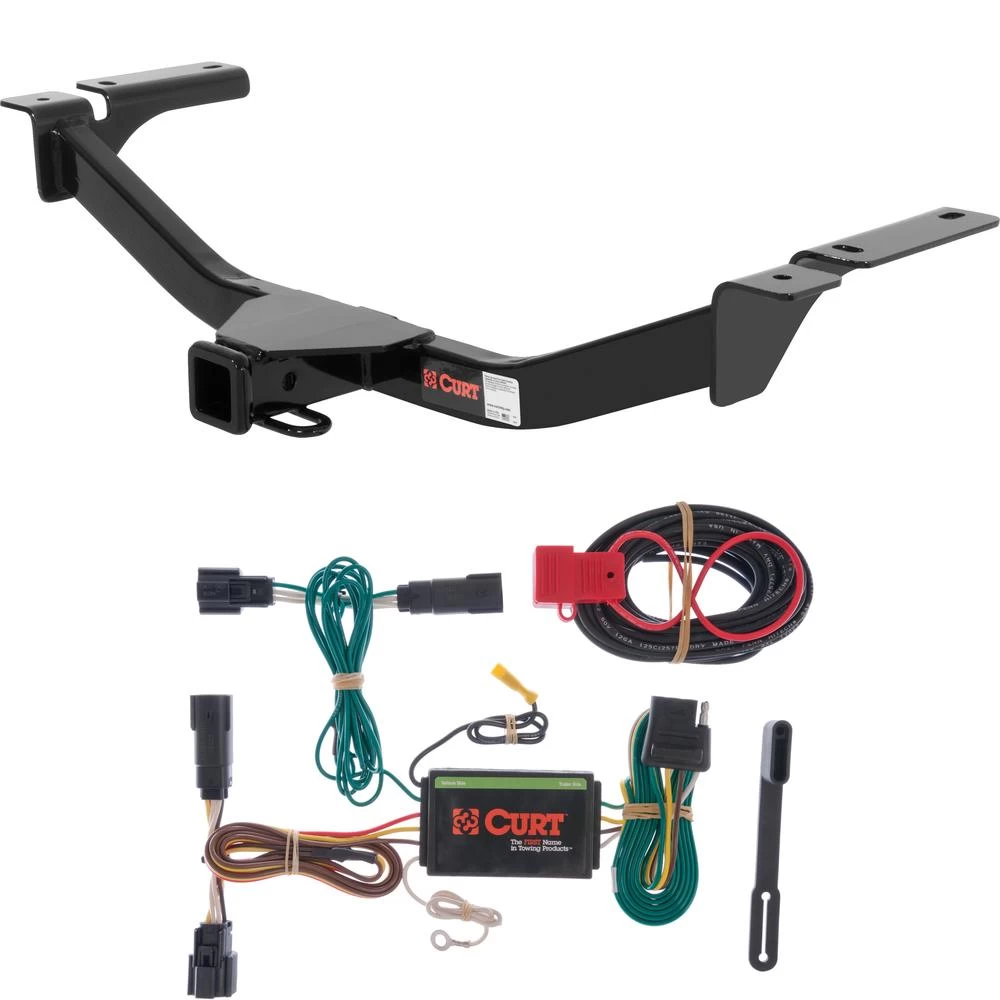

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Description
Get Expert Help
For 2011-2014 Ford Edge Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13067 56120 2 inch Tow Receiver Install Notes
Installation Instructions for Ford Edge / Lincoln MKX (Fits Edge Sport with Fascia Trimming)
Part Numbers:
- 13067
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 3/4" Socket
- 8mm Socket
- Drill
- 17/32" Drill Bit
- Tin Snips
- Flat Head Screwdriver
- Wire
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the rear (3) exhaust hangers to lower the exhaust.
- Use wire to temporarily hold the exhaust up high enough to prevent damage.
- Refer to the Rubber Isolator Removal Diagram.
-
Remove and Modify Heat Shield:
- Remove the heat shield on both sides by removing the (3) 6mm bolts and (1) black plastic plug.
- Trim off the heat shield tab as shown in the Heat Shield Tab Removal Diagram.
- Reattach the heat shield without the screws in the frame rails.
- The heat shield will be sandwiched between the frame rails and the hitch during installation.
-
Fishwire Hardware into Position:
- Fishwire the 1/2"-13 x 1-1/2" carriage bolts and CM-SP19 square hole spacers through the rear bumper mounts and into the holes in the frame rails.
- Refer to the Fishwire Technique Diagram for guidance.
-
Raise Hitch into Position:
- Lift the hitch into place.
- Secure it with 1/2" flange nuts on the fishwired bolts.
- Note: Bumper fascia trimming is required for Edge Sport models. Refer to the Fascia Trim Diagram.
-
Drill Rear Holes:
- Using the hitch as a template, drill the rear holes on both sides using a 17/32" drill bit.
-
Fishwire Additional Hardware:
- Fishwire the 1/2"-13 x 1-3/4" carriage bolts and spacers through the rear bumper mounts and attach with 1/2" flange nuts.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers removed in Step 1.
Hardware List:
- (2) 1/2"-13 UNC Carriage Bolts, 1-3/4"
- (2) 1/2"-13 UNC Carriage Bolts, 1-1/2"
- (4) 1/2"-13 UNC Flange Nuts
- (2) CM-SP19 Square Hole Spacers (0.250 x 1.25 x 3.00")
- (1) 1/2" Fishwire Tool
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 400 lbs. Tongue Weight
- Hitch Weight: 32 lbs.
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: Not Specified
Manufacturer Notes:
- Fishwiring is required for proper installation.
- Heat shield trimming and fascia trimming may be necessary.
- Drilling is required.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Ford Edge / Lincoln MKX (Fits Edge Sport with Fascia Trimming)
Part Numbers:
- 13067
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 3/4" Socket
- 8mm Socket
- Drill
- 17/32" Drill Bit
- Tin Snips
- Flat Head Screwdriver
- Wire
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the rear (3) exhaust hangers to lower the exhaust.
- Use wire to temporarily hold the exhaust up high enough to prevent damage.
- Refer to the Rubber Isolator Removal Diagram.
-
Remove and Modify Heat Shield:
- Remove the heat shield on both sides by removing the (3) 6mm bolts and (1) black plastic plug.
- Trim off the heat shield tab as shown in the Heat Shield Tab Removal Diagram.
- Reattach the heat shield without the screws in the frame rails.
- The heat shield will be sandwiched between the frame rails and the hitch during installation.
-
Fishwire Hardware into Position:
- Fishwire the 1/2"-13 x 1-1/2" carriage bolts and square hole spacers through the rear bumper mounts and into the holes in the frame rails.
- Refer to the Fishwire Technique Diagram for guidance.
-
Raise Hitch into Position:
- Lift the hitch into place.
- Secure it with 1/2" flange nuts on the fishwired bolts.
- Note: Bumper fascia trimming is required for Edge Sport models. Refer to the Fascia Trim Diagram.
-
Drill Rear Holes:
- Using the hitch as a template, drill the rear holes on both sides using a 17/32" drill bit.
-
Fishwire Additional Hardware:
- Fishwire the 1/2"-13 x 1-3/4" carriage bolts and spacers through the rear bumper mounts and attach with 1/2" flange nuts.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
-
Reinstall Exhaust:
- Reattach the exhaust hangers removed in Step 1.
Hardware List:
- (2) 1/2"-13 UNC Carriage Bolts, 1-3/4"
- (2) 1/2"-13 UNC Carriage Bolts, 1-1/2"
- (4) 1/2"-13 UNC Flange Nuts
- (2) Square Hole Spacers (0.250 x 1.25 x 3.00")
- (1) 1/2" Fishwire Tool
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 400 lbs. Tongue Weight
- Hitch Weight: 32 lbs.
- Professional Install Time: 60 minutes
- Novice (DIY) Install Time: Not Specified
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Coverage: Limited Lifetime Warranty
- For complete warranty instructions, please download the full installation PDF.
Warning: All non-trailer loads must be supported by auxiliary stabilizing straps to maintain warranty coverage.
Installation Instructions for Ford Edge
Part Numbers:
- 56120
Tools Required:
- Ratchet
- 10 mm Socket
- Cutting Tool
Wiring Location:
- Driver Side: Behind the driver-side taillight housing (S1).
- Passenger Side: Behind the passenger-side taillight housing (S2).
Step-by-Step Instructions:
-
Access the Taillights
- Open the vehicle tailgate to access the taillight assemblies.
-
Remove the Taillights
- Remove the two 10 mm bolts securing each taillight in place.
- Gently pull the taillight outward to remove it.
-
Locate the Wiring Harness Connectors
- Behind the taillights, locate the vehicle’s taillight wiring harness connectors.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Prepare the Grommets
- Remove the rubber grommets located on both sides of the vehicle between the taillight and the interior.
- Use a utility knife to make a small slit in each grommet from the center to the outside.
-
Prepare the Vehicle Interior
- Remove all floor coverings, the rear scuff panel, and the spare tire compartment cover.
- Remove all plastic storage trays surrounding the spare tire.
-
Connect the Driver-Side Wiring Harness
- On the driver side, route the custom wiring harness end with the yellow wire out to the taillight by going under the rear trim panel and up through the removed grommet.
- Insert the wiring harness between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire
- Route the black power wire from the vehicle battery as described in the included CME-PCL-INS sheet.
-
Connect the Passenger-Side Wiring Harness
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat Steps 4–6 on the passenger side using the harness end with the green wire.
-
Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max).
- Exceeding the product rating can cause overheating, loss of warranty, and potential fire.
- Signal Circuits: 3.0 amps per side.
- Tail / Running Circuits: 6.0 amps total.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Installation Instructions for Vehicle Model
Part Numbers:
- 56120
Tools Required:
- Ratchet
- 10 mm Socket
- Cutting Tool
Wiring Location:
- Driver Side: Behind the driver-side taillight housing (S1).
- Passenger Side: Behind the passenger-side taillight housing (S2).
Step-by-Step Instructions:
-
Access the Taillights
- Open the vehicle tailgate to access the taillight assemblies.
-
Remove the Taillights
- Remove the two 10 mm bolts securing each taillight in place.
- Gently pull the taillight outward to remove it.
-
Locate the Wiring Harness Connectors
- Behind the taillights, locate the vehicle’s taillight wiring harness connectors.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Prepare the Grommets
- Remove the rubber grommets located on both sides of the vehicle between the taillight and the interior.
- Use a utility knife to make a small slit in each grommet from the center to the outside.
-
Prepare the Vehicle Interior
- Remove all floor coverings, the rear scuff panel, and the spare tire compartment cover.
- Remove all plastic storage trays surrounding the spare tire.
-
Connect the Driver-Side Wiring Harness
- On the driver side, route the custom wiring harness end with the yellow wire out to the taillight by going under the rear trim panel and up through the removed grommet.
- Insert the wiring harness between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire
- Route the black power wire from the vehicle battery as described in the included CME-PCL-INS sheet.
-
Connect the Passenger-Side Wiring Harness
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat Steps 4–6 on the passenger side using the harness end with the green wire.
-
Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max).
- Exceeding the product rating can cause overheating, loss of warranty, and potential fire.
- Signal Circuits: 3.0 amps per side.
- Tail / Running Circuits: 6.0 amps total.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
For Technical Support: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
