For 2013‑2018 Acura RDX Trailer Hitch Fits All Models Curt 13130 2 inch Tow Receiver
Model: 13130-CH14This Trailer Tow Hitch Fits The Following Vehicles:
2013 - 2018 Acura RDX All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2013, 2014, 2015, 2016, 2017, 2018
CURT 13130 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Acura RDX (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 600 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

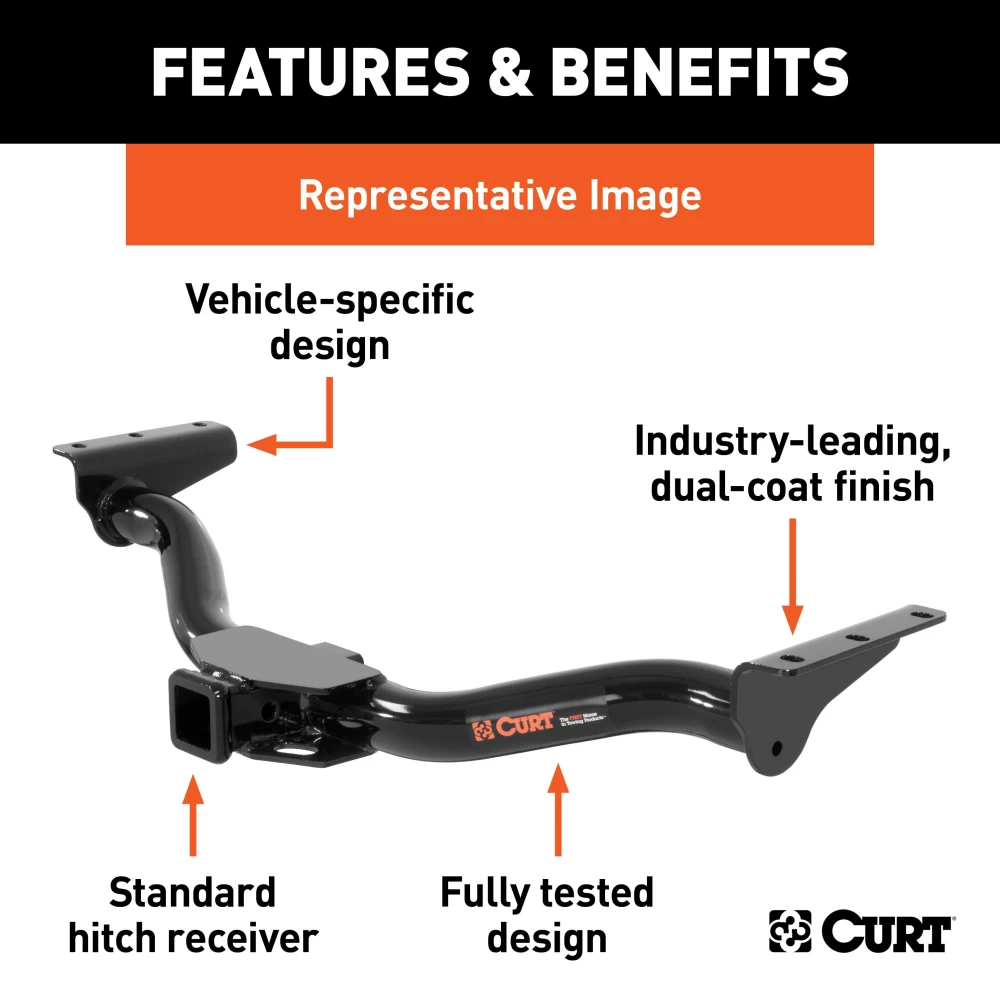

Features:
- Rated to 4,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

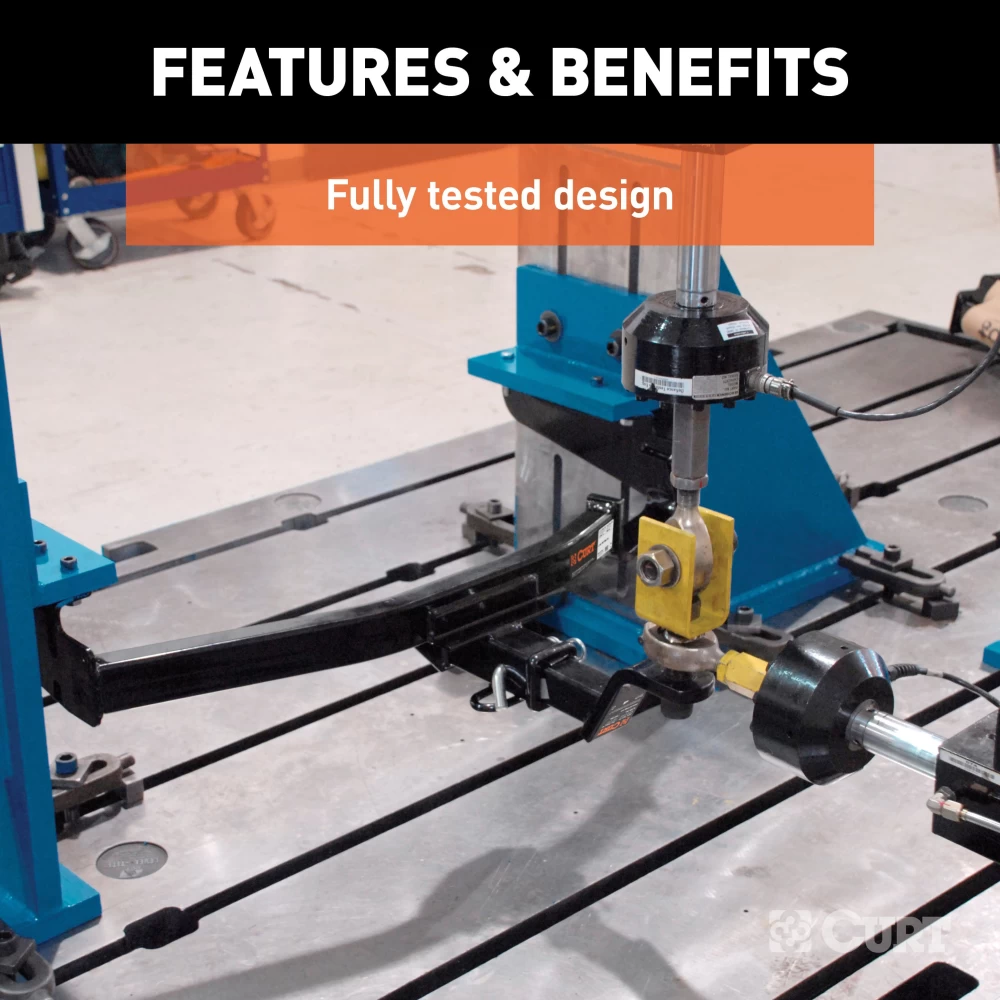

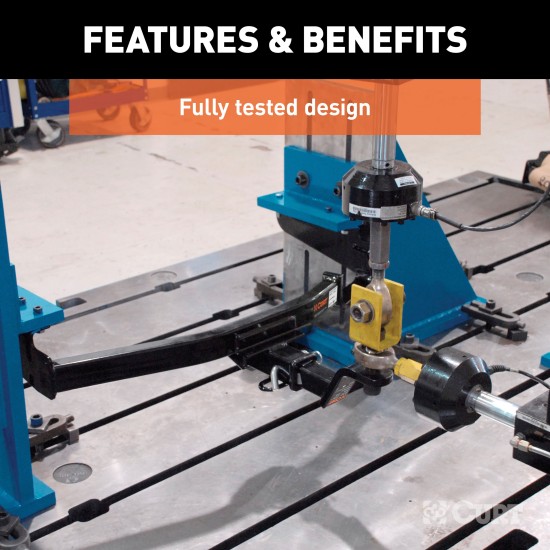

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

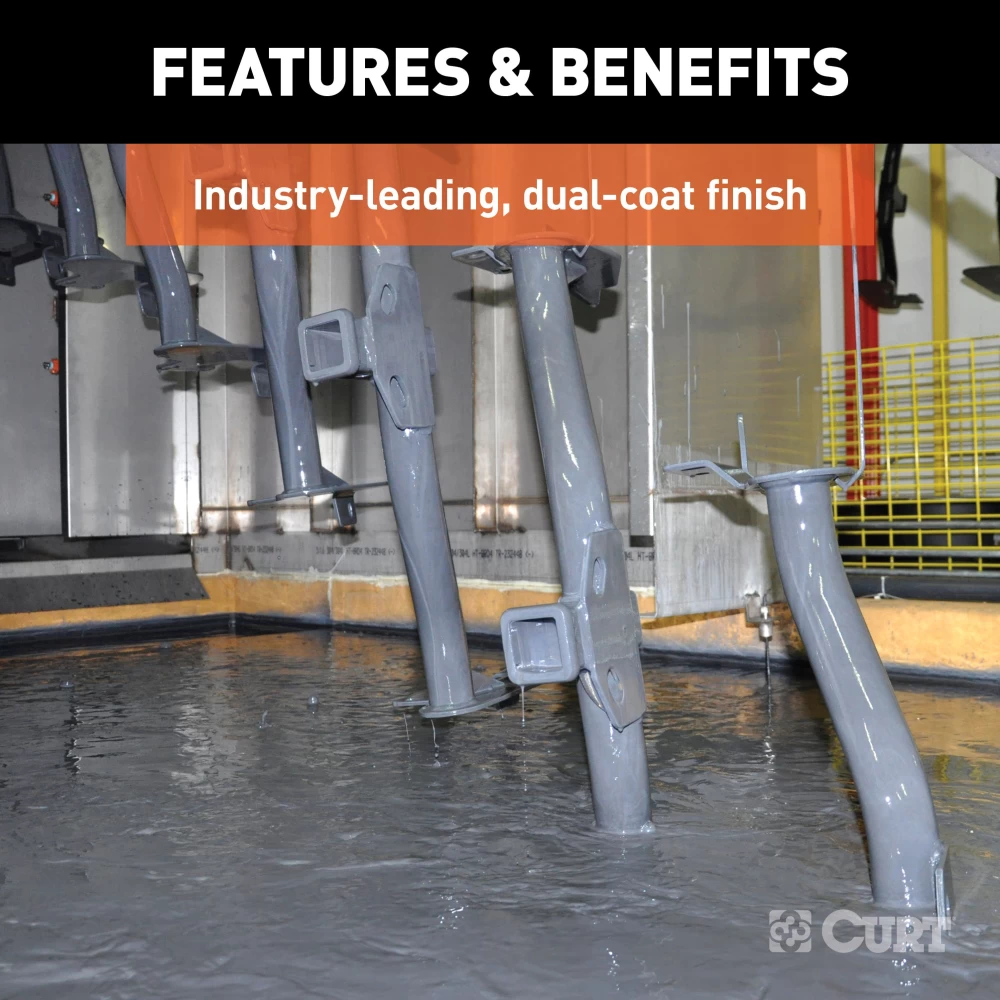

- Co-cured in a rust-resistant liquid A-coat, inside and out

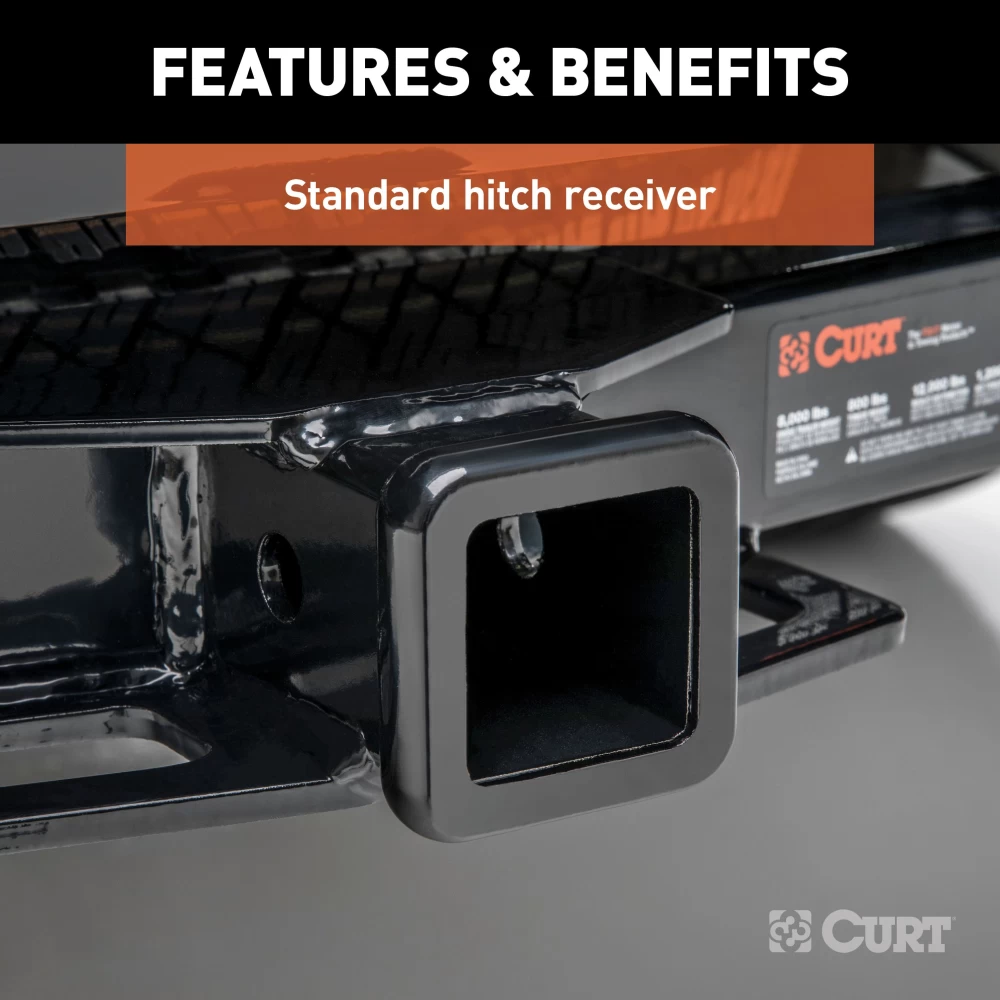

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$174 80 $270.95 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$270.95 $174 80
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $43.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13130-CH14
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2013-2018 Acura RDX Trailer Hitch Fits All Models Curt 13130 2 inch Tow Receiver Install Notes
Installation Instructions for 2013 Acura RDX Crossover
Part Numbers:
- 13130
Tools Required:
- Ratchet
- 6" Socket Extension
- 3/4" Socket
- 19mm Socket
- Torque Wrench
- Spray Lubricant
- Wire Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Prepare Weldnuts
- Locate (2) existing weldnuts in the rear of the vehicle frame.
- Clean weldnuts using spray lubricant or compressed air. Use a small wire brush for heavy debris, being careful not to damage threads.
Step 2: Position the Hitch
- Raise the hitch into position, aligning the slots in the hitch with the weldnuts in the frame.
- Loosely secure the hitch with M12 bolts and 1/2" conical toothed washers.
Step 3: Insert Handle Nut
- Bend the tab on the 1/2-13 handle nut and insert it into the access hole in the vehicle frame.
- Center the handle nut over the open bolt hole in the frame.
Step 4: Secure with Additional Hardware
- Use 1/2-13 hex bolts and 1/2" conical toothed washers. Insert the hardware through the hitch plate and vehicle frame into the handle nut and tighten.
Step 5: Torque Fasteners
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all M12 hardware to 86 ft-lbs.
Step 6: Complete Installation
- Verify all fasteners are properly tightened and structural components are secure.
Hardware List:
- (2) M12 x 1.25 x 40mm Hex Bolts (Part Number: 10-102772)
- (1) 1/2-13 UNC x 1-1/2" Hex Bolt (Part Number: 10-103342)
- (3) 1/2" Conical Toothed Washers (Part Number: 30-001494)
- (1) 1/2-13 Handle Nut (Part Number: 20-001742)
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Maximum Trailer Weight: 4,000 lbs
- Maximum Tongue Weight: 600 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- No drilling required.
- Utilize existing weldnuts for installation.
Warning:
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Installation Instructions for 2013 Acura RDX Crossover
Part Numbers:
- 13130
Tools Required:
- Ratchet
- 6" Socket Extension
- 3/4" Socket
- 19mm Socket
- Torque Wrench
- Spray Lubricant
- Wire Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Prepare Weldnuts
- Locate (2) existing weldnuts in the rear of the vehicle frame.
- Clean weldnuts using spray lubricant or compressed air. Use a small wire brush for heavy debris, being careful not to damage threads.
Step 2: Position the Hitch
- Raise the hitch into position, aligning the slots in the hitch with the weldnuts in the frame.
- Loosely secure the hitch with M12 bolts and 1/2" conical toothed washers.
Step 3: Insert Handle Nut
- Bend the tab on the 1/2-13 handle nut and insert it into the access hole in the vehicle frame.
- Center the handle nut over the open bolt hole in the frame.
Step 4: Secure with Additional Hardware
- Use 1/2-13 hex bolts and 1/2" conical toothed washers. Insert the hardware through the hitch plate and vehicle frame into the handle nut and tighten.
Step 5: Torque Fasteners
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all M12 hardware to 86 ft-lbs.
Step 6: Complete Installation
- Verify all fasteners are properly tightened and structural components are secure.
Hardware List:
- (2) M12 x 1.25 x 40mm Hex Bolts
- (1) 1/2-13 UNC x 1-1/2" Hex Bolt
- (3) 1/2" Conical Toothed Washers
- (1) 1/2-13 Handle Nut
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Maximum Trailer Weight: 4,000 lbs
- Maximum Tongue Weight: 600 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- No drilling required.
- Utilize existing weldnuts for installation.
Warning:
All non-trailer loads must be supported by stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
General Information:
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
