Product Details
- Brand: Curt
- Model: 13152 56332-CH2371

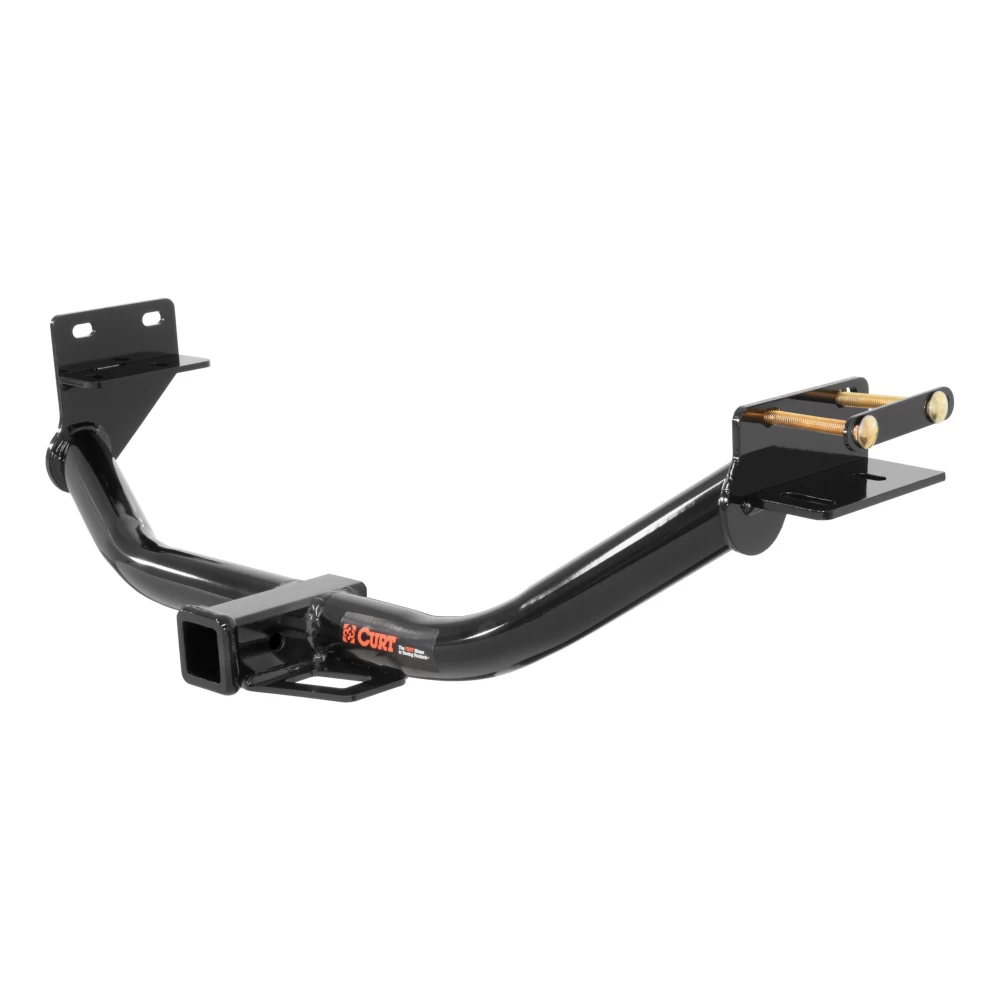

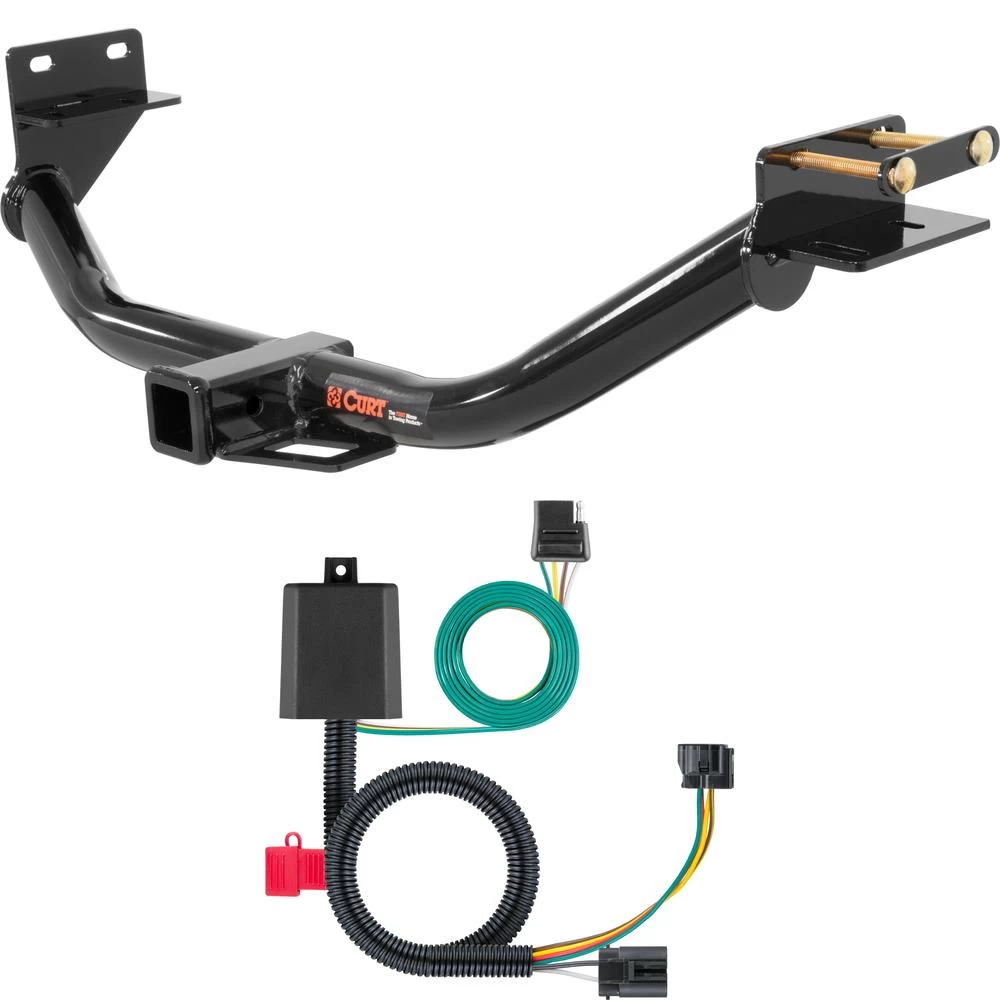

- Includes: Class 3 Trailer Tow Hitch, Custom 4-Flat
Compatibility Chart
Description
Get Expert Help
For 2013-2018 Hyundai Santa Fe Sport Trailer Hitch + Wiring 4 Pin Fits 5 Passenger models only w/ Factory Tow Prep Plug Curt 13152 56332 2 inch Tow Receiver Install Notes
Installation Instructions for 2013-2018 Hyundai Santa Fe (2.0L / 2.4L 4-Cyl Only) and 2014-2015 Kia Sorento
Part Numbers:
- 13152
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 7/16", 3/4", 17mm Sockets
- Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower and Remove Spare Tire
- Lower the spare tire to provide access to the installation area.
Step 2: Lower the Exhaust
- Remove (3) rubber isolators to lower the exhaust.
Step 3: Remove Underbody Panels
- Remove the plastic underbody panel from both the passenger and driver side frame rails.
- Remove (3) fascia screws on the passenger side and (4) on the driver side.
- Carefully pull down the panels and set them aside.
Step 4: Position the Hitch
- Raise the hitch into position.
- Secure the hitch to the existing weldnuts using M10-1.25 x 25mm bolts and 3/8" conical toothed washers.
Step 5: Install Carriage Bolts
- Insert 1/2-13 x 4-1/2" carriage bolts through the driver side plate and frame rail. Secure using 1/2-13 flange nuts.
- Insert 1/2-13 x 4-1/2" carriage bolts through the 13152-SP spacer in the passenger side frame rail and out the passenger side plate. Secure using 1/2-13 flange nuts.
Note: The bumper locator pin may interfere with hitch hardware. Bend or trim the pin for clearance if needed.
Step 6: Torque Hardware
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all 10mm hardware to 48 ft-lbs.
Step 7: Reattach Components
- Raise the exhaust and spare tire back into position.
- Reinstall the passenger and driver side underbody panels removed in Step 3.
Hardware List:
- (1) 1/2-13 x 4-1/2" Carriage Bolt (Part Number: 10-102974)
- (2) 1/2-13 Hex Flange Nuts (Part Number: 20-000624)
- (2) M10 x 1.25 x 25mm Bolts (Part Number: 10-103734)
- (2) 3/8" Conical Toothed Washers (Part Number: 30-001484)
- (1) .188" Spacer Plate (Part Number: 13152-SP)
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 6,000 lbs
- Maximum Tongue Weight: 900 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 8,000 lbs
- Maximum Tongue Weight: 900 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- No drilling is required.
- Lowering the spare tire, exhaust, and underbody panels is required.
Warning:
Do not exceed the vehicle manufacturer's recommended towing capacity.
Installation Instructions for 2013-2018 Hyundai Santa Fe (2.0L / 2.4L 4-Cyl Only) and 2014-2015 Kia Sorento
Part Numbers:
- 13152
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 7/16", 3/4", 17mm Sockets
- Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower and Remove Spare Tire
- Lower the spare tire to provide access to the installation area.
Step 2: Lower the Exhaust
- Remove (3) rubber isolators to lower the exhaust.
Step 3: Remove Underbody Panels
- Remove the plastic underbody panel from both the passenger and driver side frame rails.
- Remove (3) fascia screws on the passenger side and (4) on the driver side.
- Carefully pull down the panels and set them aside.
Step 4: Position the Hitch
- Raise the hitch into position.
- Secure the hitch to the existing weldnuts using M10-1.25 x 25mm bolts and 3/8" conical toothed washers.
Step 5: Install Carriage Bolts
- Insert 1/2-13 x 4-1/2" carriage bolts through the driver side plate and frame rail. Secure using 1/2-13 flange nuts.
- Insert 1/2-13 x 4-1/2" carriage bolts through the 13152-SP spacer in the passenger side frame rail and out the passenger side plate. Secure using 1/2-13 flange nuts.
Note: The bumper locator pin may interfere with hitch hardware. Bend or trim the pin for clearance if needed.
Step 6: Torque Hardware
- Torque all 1/2" hardware to 110 ft-lbs.
- Torque all 10mm hardware to 48 ft-lbs.
Step 7: Reattach Components
- Raise the exhaust and spare tire back into position.
- Reinstall the passenger and driver side underbody panels removed in Step 3.
Hardware List:
- (1) 1/2-13 x 4-1/2" Carriage Bolt
- (2) 1/2-13 Hex Flange Nuts
- (2) M10 x 1.25 x 25mm Bolts
- (2) 3/8" Conical Toothed Washers
- (1) .188" Spacer Plate
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 6,000 lbs
- Maximum Tongue Weight: 900 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 8,000 lbs
- Maximum Tongue Weight: 900 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- No drilling is required.
- Lowering the spare tire, exhaust, and underbody panels is required.
Warning:
Do not exceed the vehicle manufacturer's recommended towing capacity.
General Information:
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Vehicles
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
