Product Details
- Brand: Curt
- Model: 13207 55384-CH3376

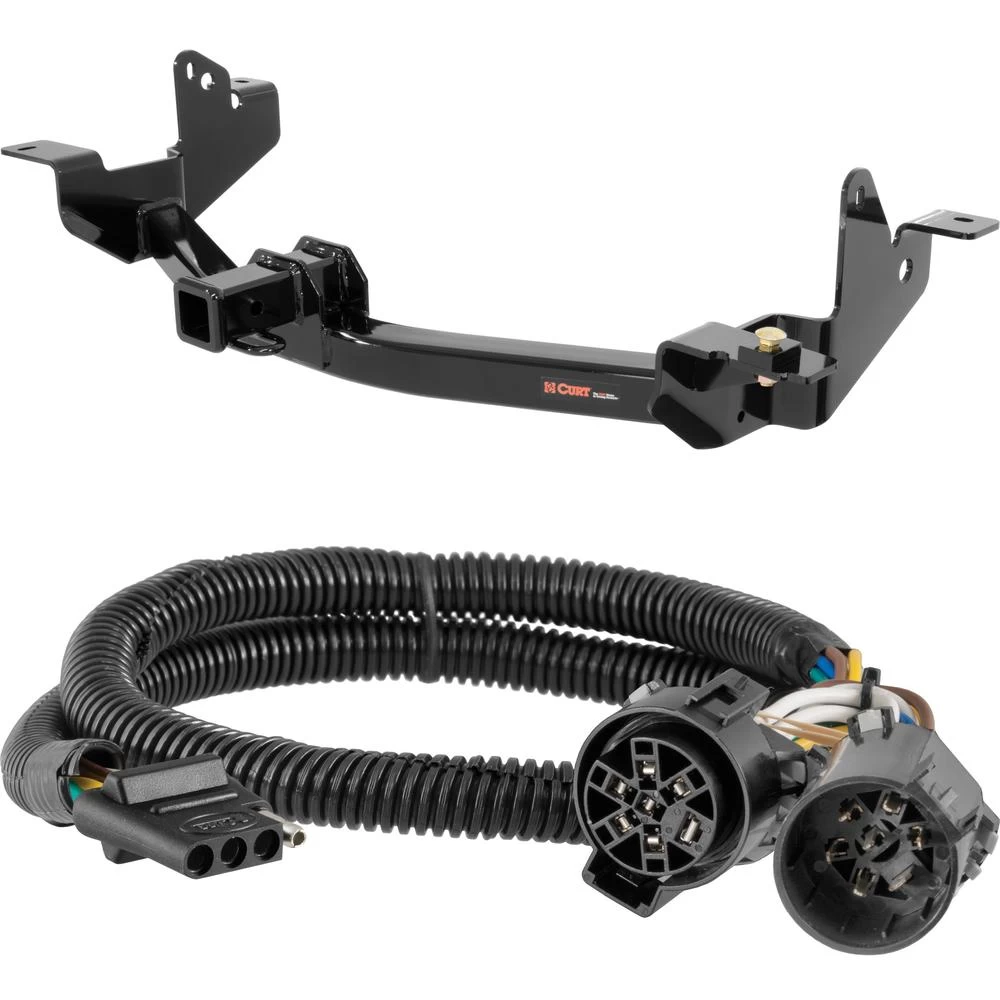

- Includes: Class 3 Trailer Tow Hitch, Replacement OE 4-Way Flat Socket T's into USCAR)
Compatibility Chart
Description
Get Expert Help

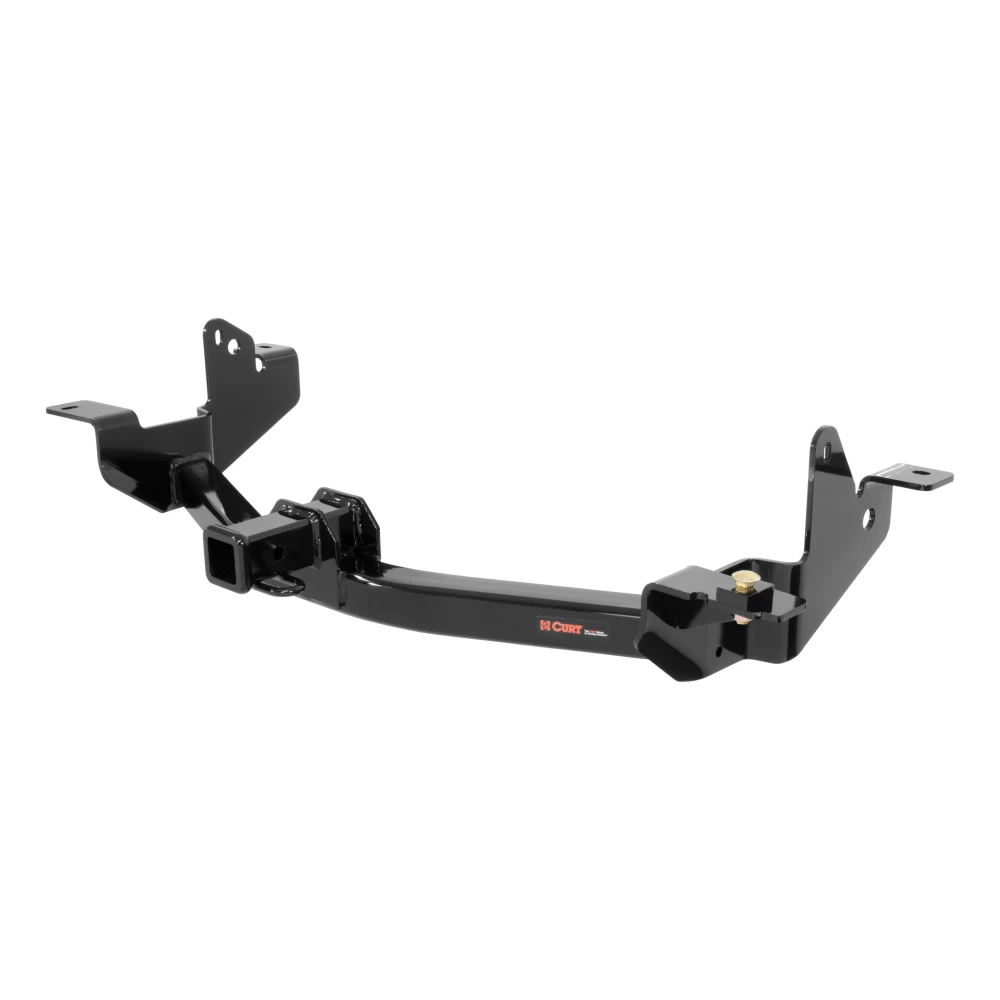

For 2014-2024 Ram ProMaster 1500 Trailer Hitch + Wiring 4 Pin Fits Models w/ Existing USCAR 7-way Curt 13207 55384 2 inch Tow Receiver Install Notes
Installation Instructions for RAM ProMaster Van (2014-Present)
Part Numbers:
- 13207
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 7/8" Socket
- Small Screwdriver
Step-by-Step Instructions:
Step 1: Prepare the frame
- Remove the rearward-most rubber plugs in the frame rails and foil (if present) covering the mounting holes. Return these items to the owner.
- Fishwire the 9/16" x 2 1/2" carriage bolt and CM-SP70 spacer on the side with the recovery loop.
- Fishwire the 9/16" x 2" carriage bolt and CM-SP70 spacer into the holes that previously contained the rubber plugs.
Step 2: Position the hitch
- Raise the hitch on the driver side with the forward-most tab over the leaf spring.
- Angle the hitch to get the forward-most tab on the passenger side over the leaf spring.
- Once in position, lift the driver side bracket up to the frame rail and slide the hitch over the rear bumper stud and inner frame stud.
- Loosely secure the driver side bracket with a 9/16" hex flange nut.
- Push the hitch toward the driver side and raise the passenger side bracket up to the frame.
- Slide the 13207-SP spacer between the hitch and frame, ensuring the bolt passes through, and loosely secure with a 9/16" hex flange nut.
Step 3: Secure the hardware
- Slide (2) 1/2" handle nuts into the grooved section of the frame over the forward-most tabs.
- Secure with 1/2" x 1 1/2" hex bolts and conical tooth washers.
- Slide the 1/2" x 5 1/2" hex bolts with washers through the frame and hitch brackets.
- Secure with 1/2" hex flange nuts.
Step 4: Torque the hardware
- Torque all 9/16" fasteners to 150 ft-lbs.
- Torque all 1/2" fasteners to 110 ft-lbs.
Hardware List:
- (1) 9/16-12 UNC Carriage Bolt, 2 1/2" Grade 8 (#10-10455)
- (1) 9/16-12 UNC Carriage Bolt, 2" Grade 8 (#10-10329)
- (2) .313 x 1.00 x 2.50" 9/16" Square Hole Spacer (#CM-SP70)
- (2) 9/16-12 UNC Flange Nut, Grade 8 (#20-00104)
- (2) 9/16" Fishwire (#9_16 FISHWIRE)
- (2) 1/2-13 UNC Handle Nut, Grade 8 (#20-00174)
- (2) 1/2-13 UNC Hex Bolt, 5 1/2" Grade 8 (#10-10295)
- (2) 1/2" Flat Washer (#30-00133)
- (2) 1/2-13 UNC Hex Bolt, 1 1/2" Grade 8 (#10-10334)
- (2) 1/2" S-Con Washer (#30-00149)
- (2) 1/2-13 UNC Flange Nut, Grade 8 (#20-00062)
- (1) .625 x 2.00 Spacer (#13207-SP)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Weight Carrying: 6,000 lbs trailer weight, 750 lbs tongue weight
- Weight Distribution: 7,500 lbs trailer weight, 750 lbs tongue weight
- Installation Time: 40 minutes (Professional), 60 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- No drilling required.
- Reverse fishwire is necessary for specific fasteners.
- Rubber plugs must be removed from the frame rails for installation.
- Torque specifications must be followed strictly.
- For installation questions, contact technical support at 1-877-287-8634.
Installation Instructions for RAM ProMaster Van (2014-Present)
Part Numbers:
- 13207
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 7/8" Socket
- Small Screwdriver
Step-by-Step Instructions:
Step 1: Prepare the frame
- Remove the rearward-most rubber plugs in the frame rails and any foil covering the mounting holes. Return these items to the owner.
- Fishwire the 9/16" x 2 1/2" carriage bolt and CM-SP70 spacer on the side with the recovery loop.
- Fishwire the 9/16" x 2" carriage bolt and CM-SP70 spacer into the holes that previously contained the rubber plugs.
Step 2: Position the hitch
- Raise the hitch on the driver side with the forward-most tab over the leaf spring.
- Angle the hitch to get the forward-most tab on the passenger side over the leaf spring.
- Once in position, lift the driver side bracket up to the frame rail and slide the hitch over the rear bumper stud and inner frame stud.
- Loosely secure the driver side bracket with a 9/16" hex flange nut.
- Push the hitch toward the driver side and raise the passenger side bracket up to the frame.
- Slide the 13207-SP spacer between the hitch and frame, ensuring the bolt passes through, and loosely secure with a 9/16" hex flange nut.
Step 3: Secure the hardware
- Slide (2) 1/2" handle nuts into the grooved section of the frame over the forward-most tabs.
- Secure with 1/2" x 1 1/2" hex bolts and conical tooth washers.
- Slide the 1/2" x 5 1/2" hex bolts with washers through the frame and hitch brackets.
- Secure with 1/2" hex flange nuts.
Step 4: Torque the hardware
- Torque all 9/16" fasteners to 150 ft-lbs.
- Torque all 1/2" fasteners to 110 ft-lbs.
Hardware List:
- (1) 9/16-12 UNC Carriage Bolt, 2 1/2" Grade 8 (#10-10455)
- (1) 9/16-12 UNC Carriage Bolt, 2" Grade 8 (#10-10329)
- (2) .313 x 1.00 x 2.50" 9/16" Square Hole Spacer (#CM-SP70)
- (2) 9/16-12 UNC Flange Nut, Grade 8 (#20-00104)
- (2) 9/16" Fishwire (#9_16 FISHWIRE)
- (2) 1/2-13 UNC Handle Nut, Grade 8 (#20-00174)
- (2) 1/2-13 UNC Hex Bolt, 5 1/2" Grade 8 (#10-10295)
- (2) 1/2" Flat Washer (#30-00133)
- (2) 1/2-13 UNC Hex Bolt, 1 1/2" Grade 8 (#10-10334)
- (2) 1/2" S-Con Washer (#30-00149)
- (2) 1/2-13 UNC Flange Nut, Grade 8 (#20-00062)
- (1) .625 x 2.00 Spacer (#13207-SP)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Weight Carrying: 6,000 lbs trailer weight, 750 lbs tongue weight
- Weight Distribution: 7,500 lbs trailer weight, 750 lbs tongue weight
- Installation Time: 40 minutes (Professional), 60 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- No drilling required.
- Reverse fishwire is necessary for specific fasteners.
- Rubber plugs must be removed from the frame rails for installation.
- Torque specifications must be followed strictly.
Need Assistance?
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
