For 2014‑2020 Acura MDX Trailer Wiring 4 Way Fits All Models Curt 56192
Model: 56192-CW8This Wiring 4-Flat Fits The Following Vehicles:
2014 - 2020 Acura MDX All Models
This Wiring 4-Flat Includes the Following Parts:
- Custom Wiring Connector, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2014, 2015, 2016, 2017, 2018, 2019, 2020

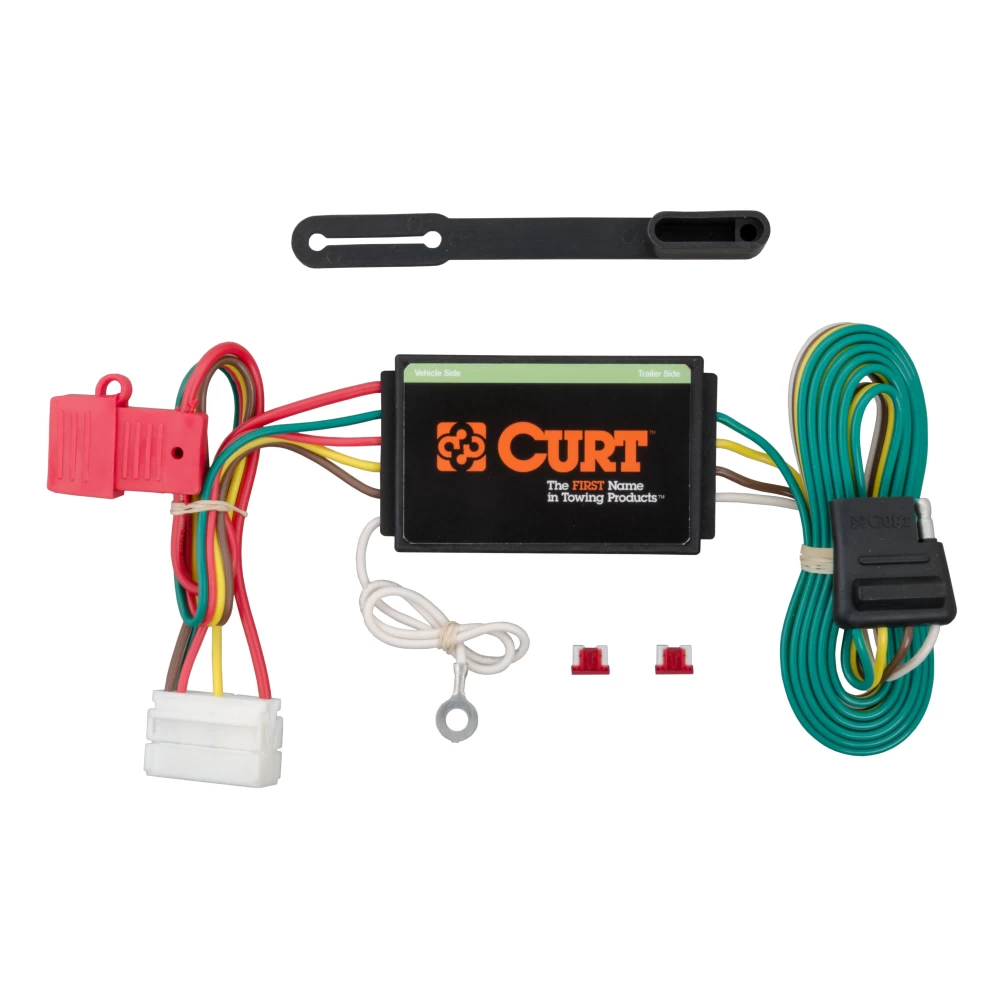

CURT 56192 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.

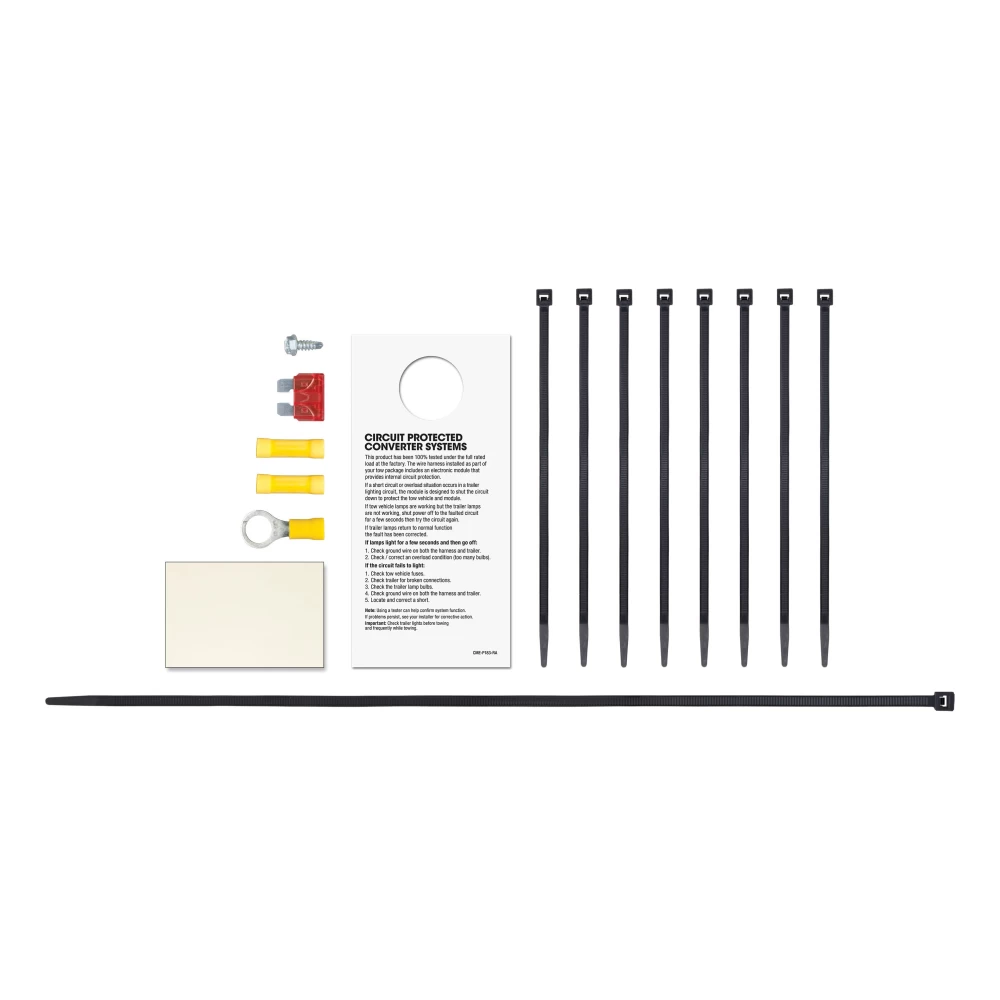

This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Acura MDX (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:

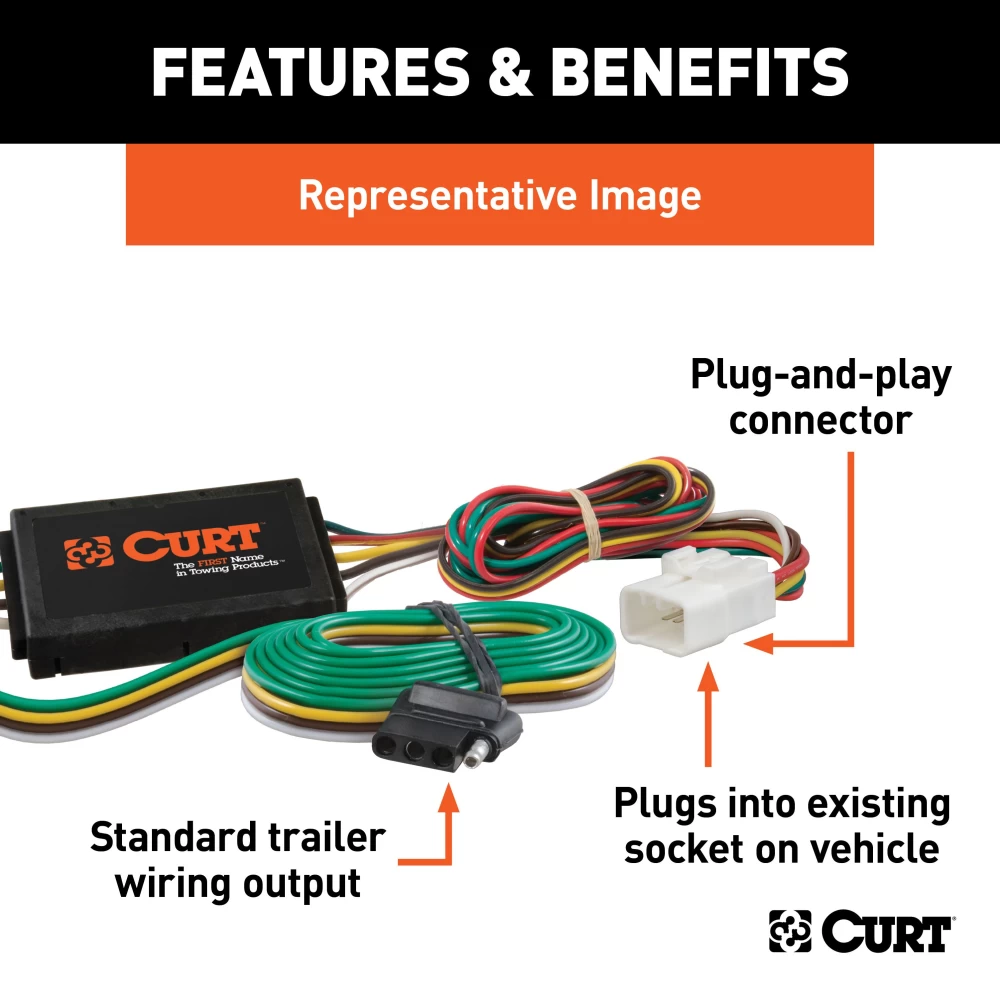

- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing

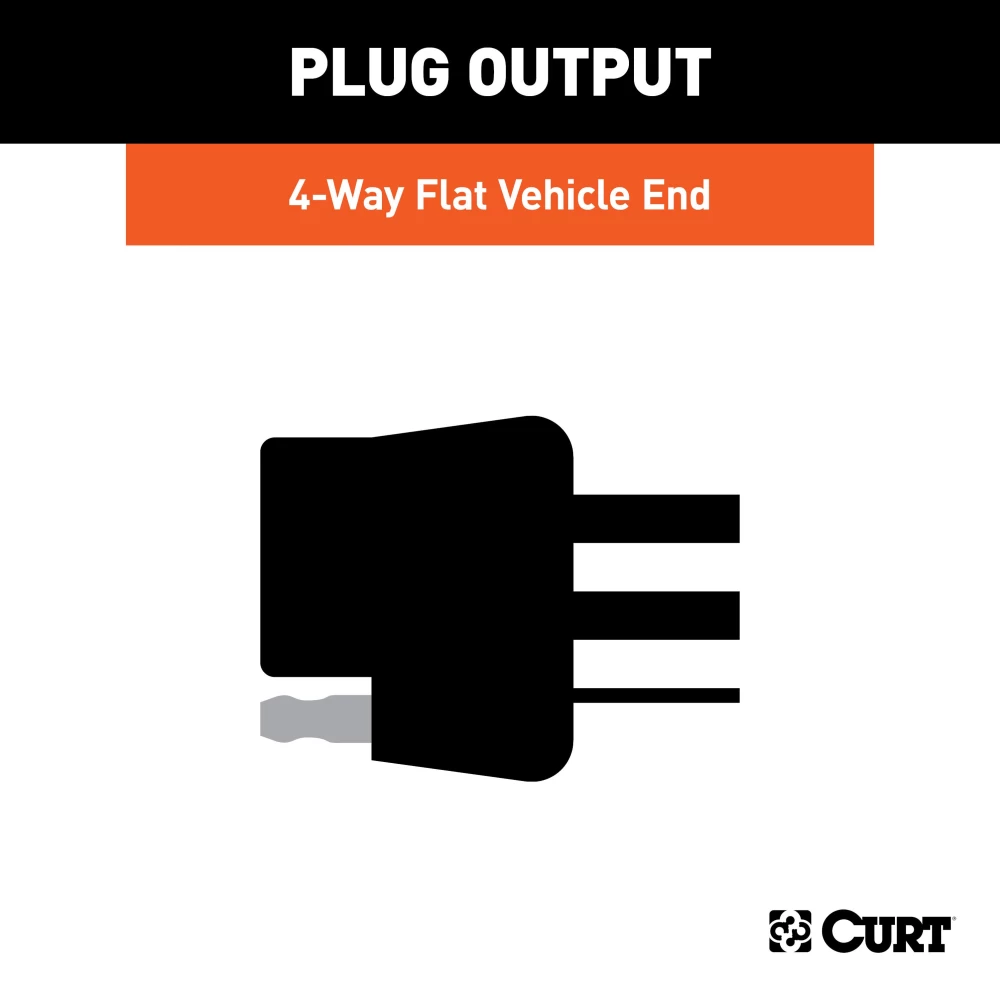

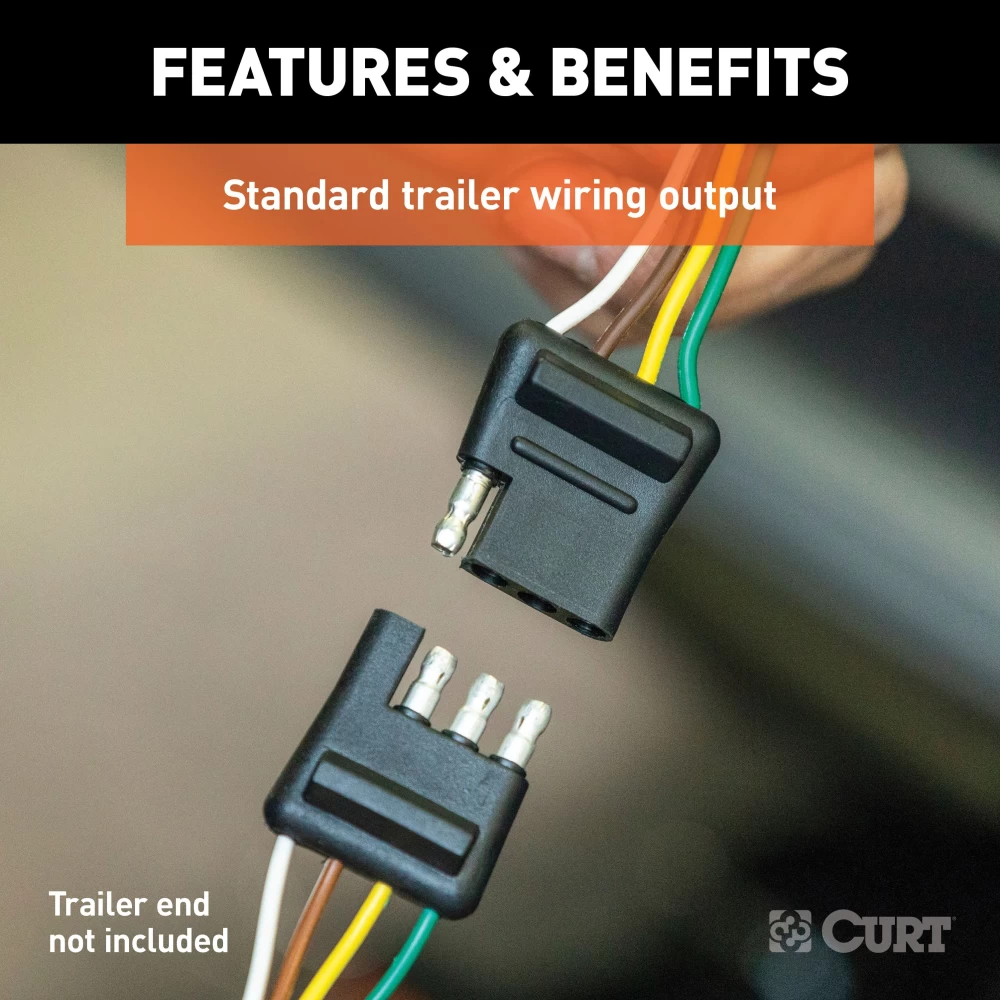

- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability

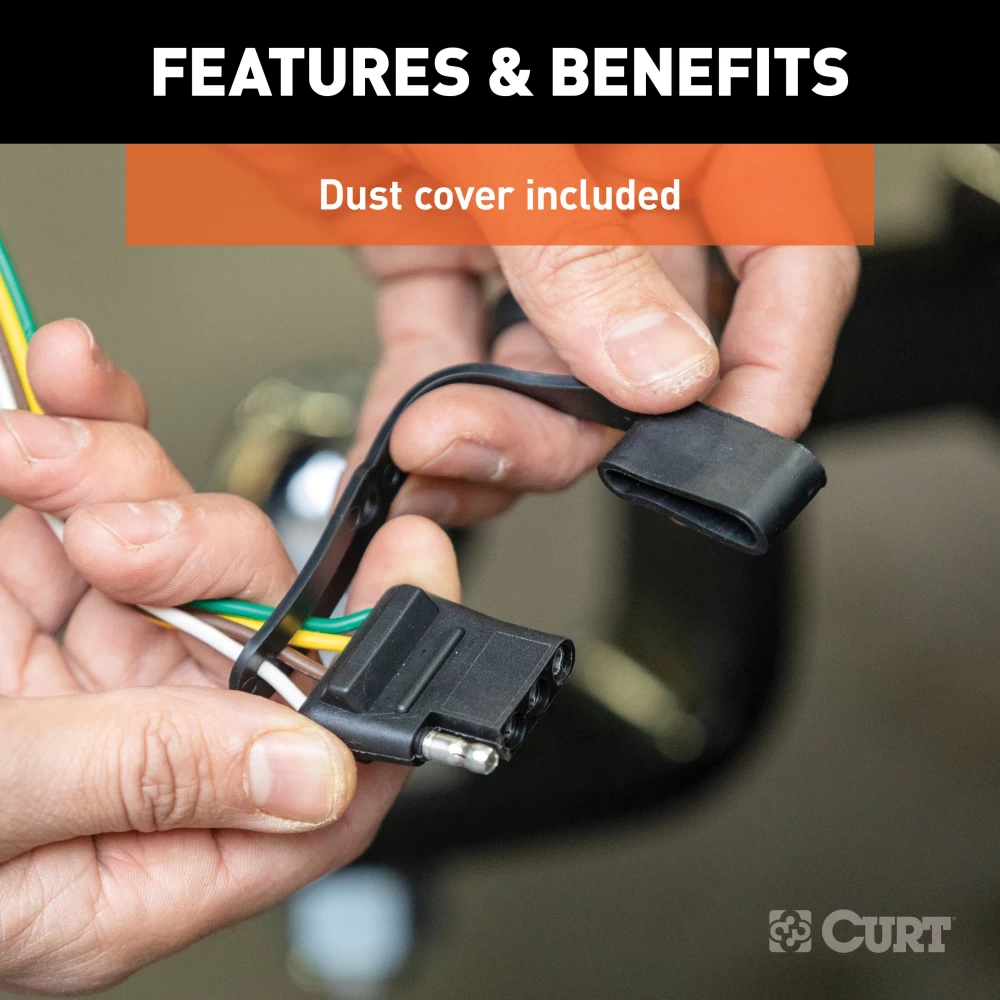

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$51 73 $63.95 19% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$63.95 $51 73
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $12.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56192-CW8
- Includes: Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 2014-2020 Acura MDX Trailer Wiring 4 Way Fits All Models Curt 56192 Install Notes
Installation Instructions for Acura MDX
Part Numbers:
- 56192
Wiring Access Location:
- S3: Behind driver-side rear access panel
Tools Required:
- Flat blade screwdriver
Step-by-Step Process:
Step 1: Open the Hatch
- Open the vehicle's hatch and lift the storage lid (A, B).
- Locate the access panel on the driver's side rear trim panel (C).
Step 2: Remove the Access Panel
- Remove the access panel to reveal the vehicle's electrical junction box (D).
Step 3: Route the Harness
- Starting in the cargo area on the driver's side, route the white housing end of the harness under the trim panel and up to the junction box.
- Insert the white housing of the wiring harness into the receptacle in the junction box (E).
Step 4: Install Fuses
- In the electrical junction box, locate the two fuse placements.
- Insert the 10-amp low profile fuse into position 2.
- Insert the 7.5-amp low profile fuse into position 11 (E).
Step 5: Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole for the provided screw.
- Clean the grounding area of rust, dirt, or paint, and secure the white ground wire using the ring terminal and provided screw (F).
Step 6: Mount the Converter Box
- Locate a flat spot inside the vehicle.
- Adhere the black converter box using the provided double-sided tape (G).
Step 7: Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it in a convenient, out-of-the-way location (H).
- Secure loose wires with the provided cable ties.
Step 8: Install the Fuse
- Install the 10-amp fuse provided into the red fuse holder located on the product wiring harness.
Step 9: Reassemble and Test
- Reinstall all items removed during the installation process.
- Install the provided 4-flat dust cover to help prevent corrosion.
- Test the wiring harness by using a test light or connecting a properly wired trailer.
Safety Notes:
- Ensure the battery connection is fuse-protected (10-amp max).
- Verify proper function after installation to avoid overheating or fire.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Check for hidden items behind or under surfaces before drilling to avoid damage or injury.
Specifications:
- Signal circuits: 3.0 amps per side
- Tail/running circuits: 6.0 amps total
- Compatible with 12-volt negative ground systems
Installation Instructions for Acura MDX
Part Numbers:
- 56192
Wiring Access Location:
- S3: Behind driver-side rear access panel
Tools Required:
- Flat blade screwdriver
Step-by-Step Process:
Step 1: Open the Hatch
- Open the vehicle's hatch and lift the storage lid.
- Locate the access panel on the driver's side rear trim panel.
Step 2: Remove the Access Panel
- Remove the access panel to reveal the vehicle's electrical junction box.
Step 3: Route the Harness
- Starting in the cargo area on the driver's side, route the white housing end of the harness under the trim panel and up to the junction box.
- Insert the white housing of the wiring harness into the receptacle in the junction box.
Step 4: Install Fuses
- In the electrical junction box, locate the two fuse placements.
- Insert the 10-amp low profile fuse into position 2.
- Insert the 7.5-amp low profile fuse into position 11.
Step 5: Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole for the provided screw.
- Clean the grounding area of rust, dirt, or paint, and secure the white ground wire using the ring terminal and provided screw.
Step 6: Mount the Converter Box
- Locate a flat spot inside the vehicle.
- Adhere the black converter box using the provided double-sided tape.
Step 7: Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it in a convenient, out-of-the-way location.
- Secure loose wires with the provided cable ties.
Step 8: Install the Fuse
- Install the 10-amp fuse provided into the red fuse holder located on the product wiring harness.
Step 9: Reassemble and Test
- Reinstall all items removed during the installation process.
- Install the provided 4-flat dust cover to help prevent corrosion.
- Test the wiring harness by using a test light or connecting a properly wired trailer.
Safety Notes:
- Ensure the battery connection is fuse-protected (10-amp max).
- Verify proper function after installation to avoid overheating or fire.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Check for hidden items behind or under surfaces before drilling to avoid damage or injury.
Specifications:
- Signal circuits: 3.0 amps per side
- Tail/running circuits: 6.0 amps total
- Compatible with 12-volt negative ground systems
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
