For 2014‑2016 BMW 228i Trailer Hitch Fits All Models Curt 11367 1‑1/4 Tow Receiver
Model: 11367-CH79This Trailer Tow Hitch Fits The Following Vehicles:
2014 - 2016 BMW 228i All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2014, 2015, 2016

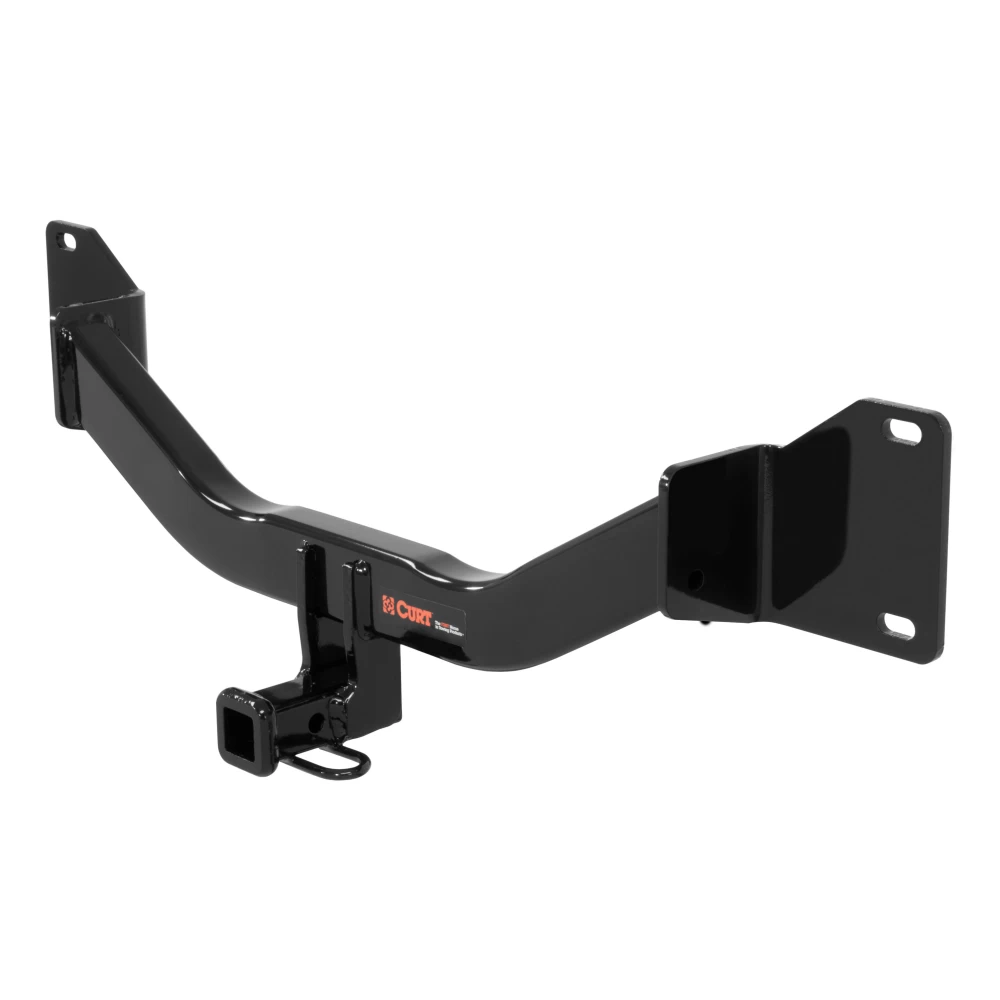

CURT 11367 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the BMW 228i, 320i, 325i, 328d, 328i, 335i xDrive, 340i, 428i and 435i (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.

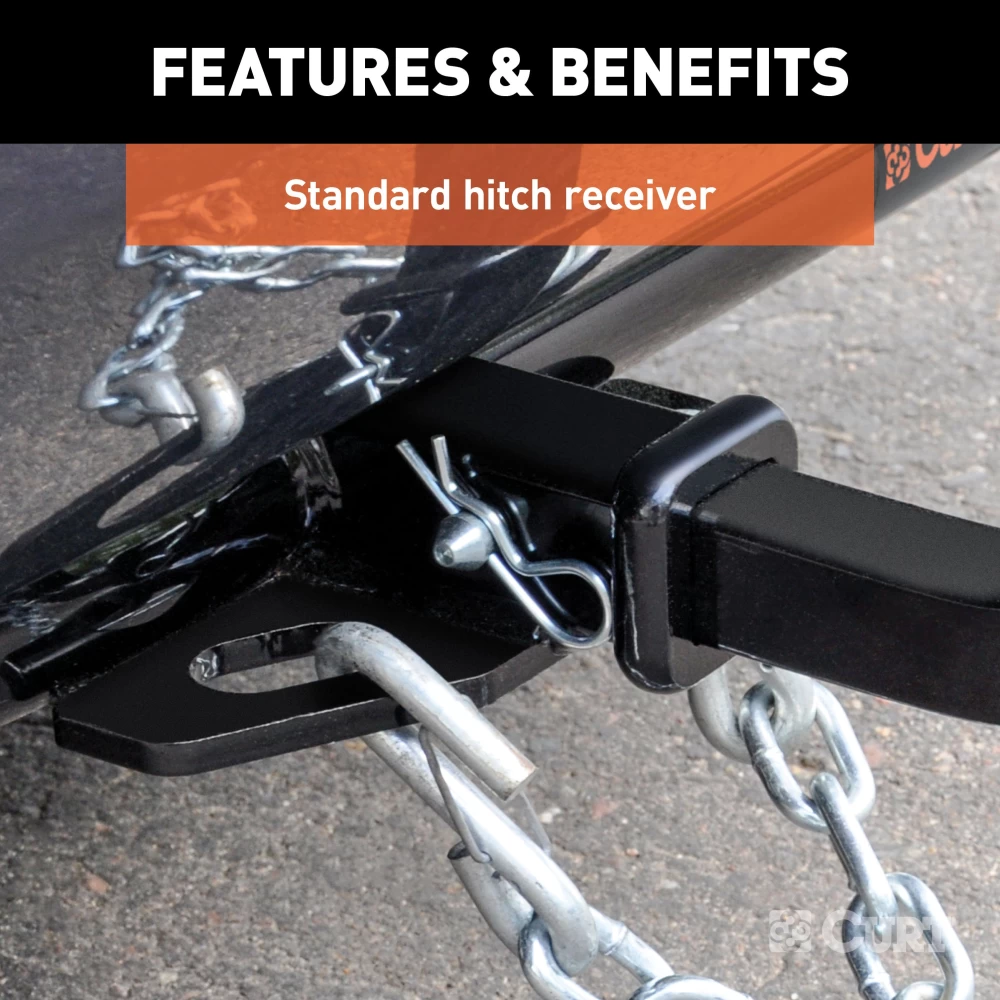

TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).

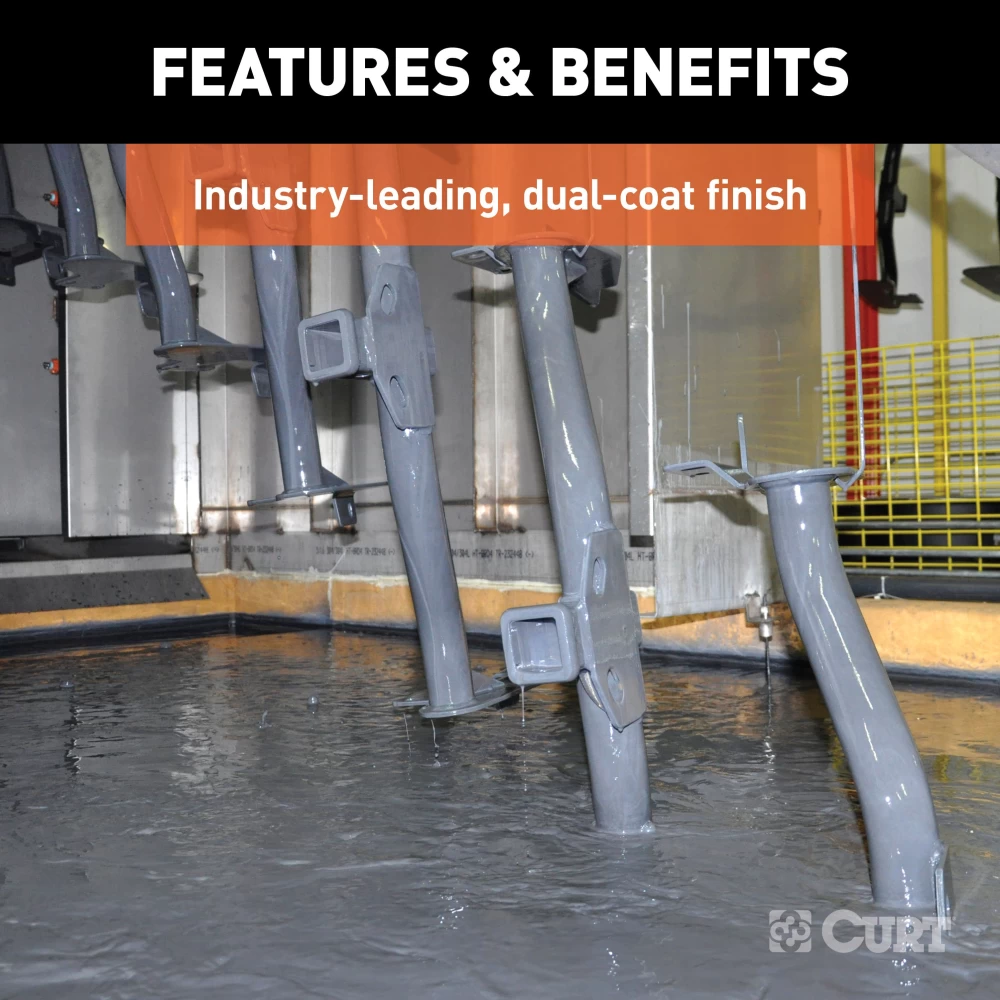

Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight

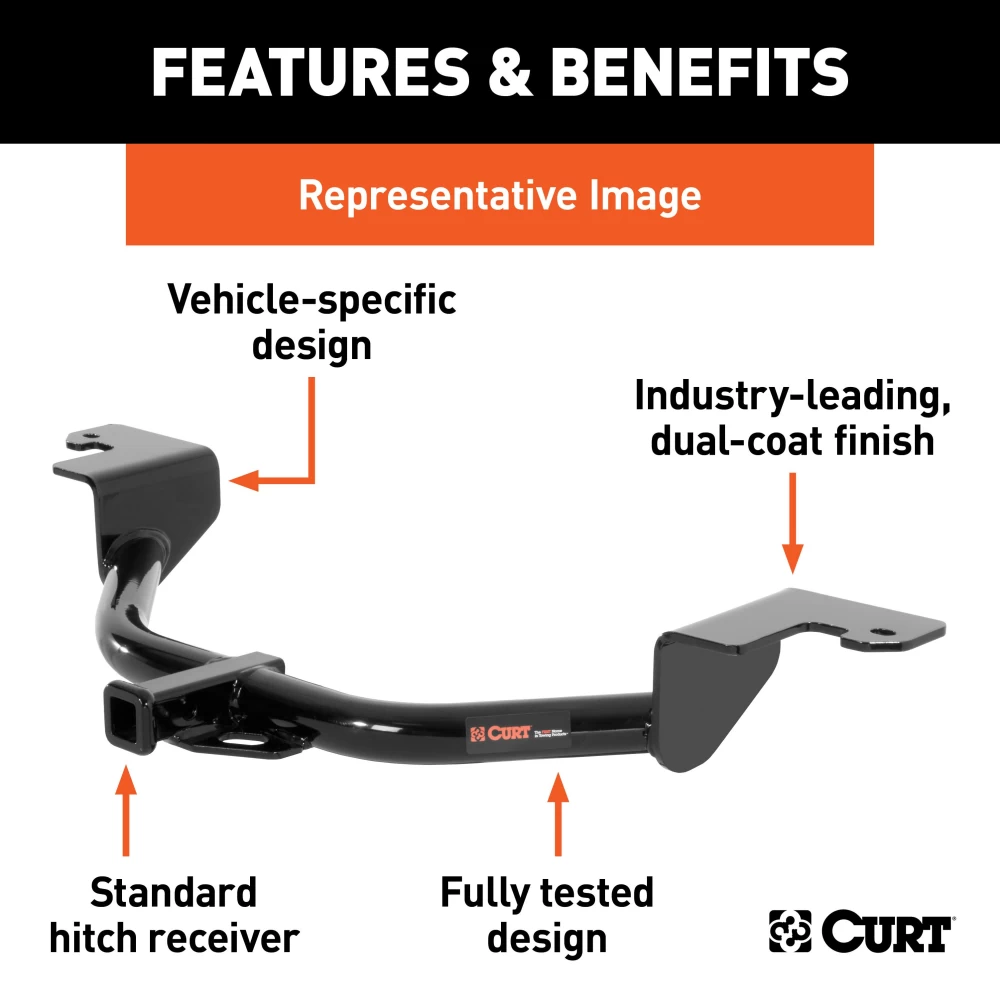

- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

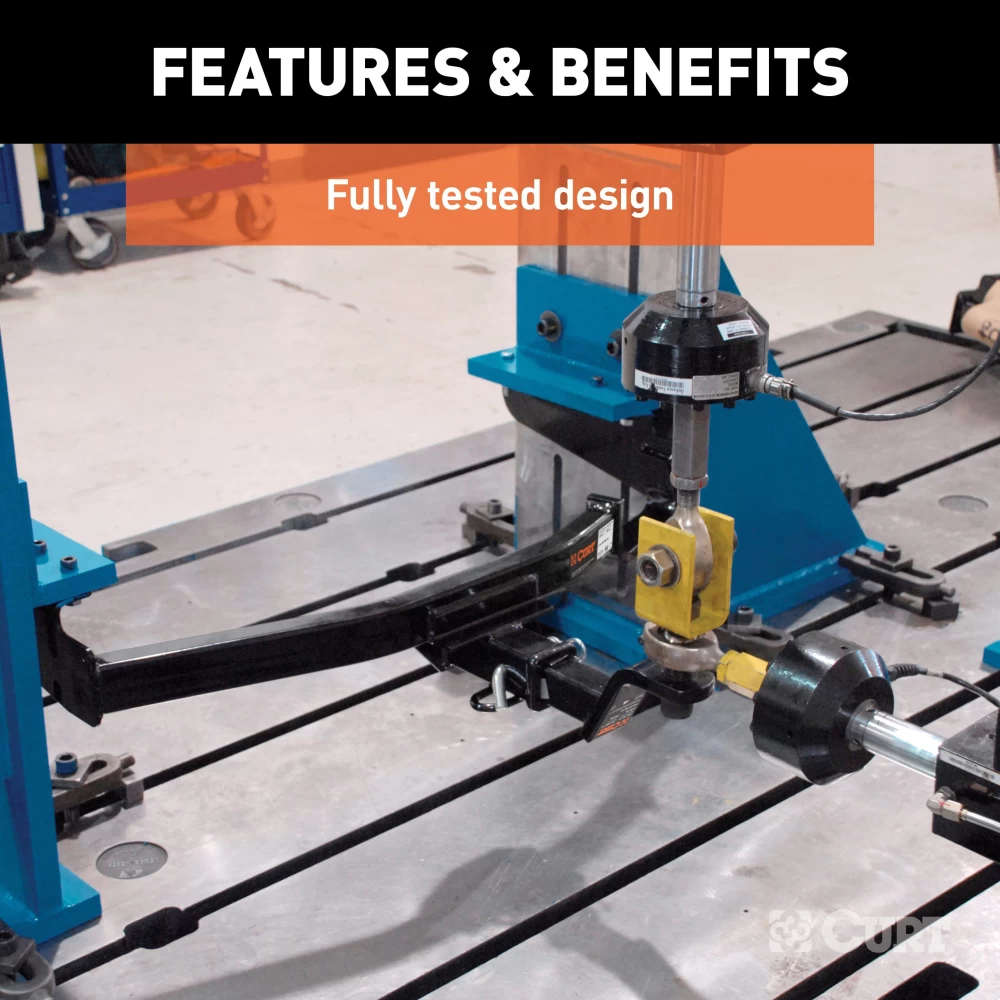

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$192 90 $299.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$299.95 $192 90
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $48.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11367-CH79
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2014-2016 BMW 228i Trailer Hitch Fits All Models Curt 11367 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2011-Present BMW 2-Series, 3-Series, and 4-Series Sedan
Part Numbers:
- 11367
Tools Required:
- Ratchet
- Torque Wrench
- 8mm, 10mm, and 18mm Sockets
- T20 Torx Bit Socket
- Socket Extension
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the tail lights
- Open the trunk and remove the tail lights.
- Use an 8mm socket to remove (2) screws located behind the plastic covers in the trunk well.
Step 2: Remove the heat shield
- Use an 8mm socket to remove (4) bolts located below the bumper cover.
- Use a 10mm socket to remove (3) bolts above the exhaust.
- Return the heat shield and fasteners to the vehicle owner.
Step 3: Remove the splash guards
- Use an 8mm socket to remove (4) bolts on each side of the vehicle to detach the splash guards.
Step 4: Access hidden screws in the wheel wells
- Unscrew the rearmost end of both wheel wells using 8mm and 10mm sockets.
- Pull back the wheel well lining to reveal a T20 Torx screw. Remove the screw from both sides.
Step 5: Remove the bumper cover
- Use a 10mm socket to remove (5) bolts along the bottom edge of the cover and the top edge near the tail light openings.
- Gently pull off the bumper cover.
Step 6: Remove the bumper beam
- Use an 18mm socket to remove (4) nuts, with (2) nuts on each side, securing the bumper beam.
- Disconnect any wiring before completely removing the bumper beam, especially for optional vehicle features.
Step 7: Install the hitch
- Slide the hitch onto the rear panel studs.
- Reinstall the bumper beam onto the studs and secure it using the existing fasteners.
- Torque all M10 nuts to 89 ft-lbs.
Step 8: Reinstall components
- Reinstall the bumper cover, splash guards, and tail lights by reversing Steps 1-5.
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
- Stabilizing straps (#18050) are required for all non-trailer (wheel-less) loads.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Specifications:
- Gross Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
For additional support, contact Technical Support at 877-287-8634.
Installation Instructions for 2011-Present BMW 2-Series, 3-Series, and 4-Series Sedan
Part Numbers:
- 11367
Tools Required:
- Ratchet
- Torque Wrench
- 8mm, 10mm, and 18mm Sockets
- T20 Torx Bit Socket
- Socket Extension
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the tail lights
- Open the trunk and remove the tail lights.
- Use an 8mm socket to remove (2) screws located behind the plastic covers in the trunk well.
Step 2: Remove the heat shield
- Use an 8mm socket to remove (4) bolts located below the bumper cover.
- Use a 10mm socket to remove (3) bolts above the exhaust.
- Return the heat shield and fasteners to the vehicle owner.
Step 3: Remove the splash guards
- Use an 8mm socket to remove (4) bolts on each side of the vehicle to detach the splash guards.
Step 4: Access hidden screws in the wheel wells
- Unscrew the rearmost end of both wheel wells using 8mm and 10mm sockets.
- Pull back the wheel well lining to reveal a T20 Torx screw. Remove the screw from both sides.
Step 5: Remove the bumper cover
- Use a 10mm socket to remove (5) bolts along the bottom edge of the cover and the top edge near the tail light openings.
- Gently pull off the bumper cover.
Step 6: Remove the bumper beam
- Use an 18mm socket to remove (4) nuts, with (2) nuts on each side, securing the bumper beam.
- Disconnect any wiring before completely removing the bumper beam, especially for optional vehicle features.
Step 7: Install the hitch
- Slide the hitch onto the rear panel studs.
- Reinstall the bumper beam onto the studs and secure it using the existing fasteners.
- Torque all M10 nuts to 89 ft-lbs.
Step 8: Reinstall components
- Reinstall the bumper cover, splash guards, and tail lights by reversing Steps 1-5.
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
- Stabilizing straps (#18050) are required for all non-trailer (wheel-less) loads.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Specifications:
- Gross Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, refer to the manufacturer’s guidelines. For complete warranty instructions, please download the full installation PDF.
