Product Details
- Brand: Curt
- Model: 56274 57672 51500 58361-CW2528

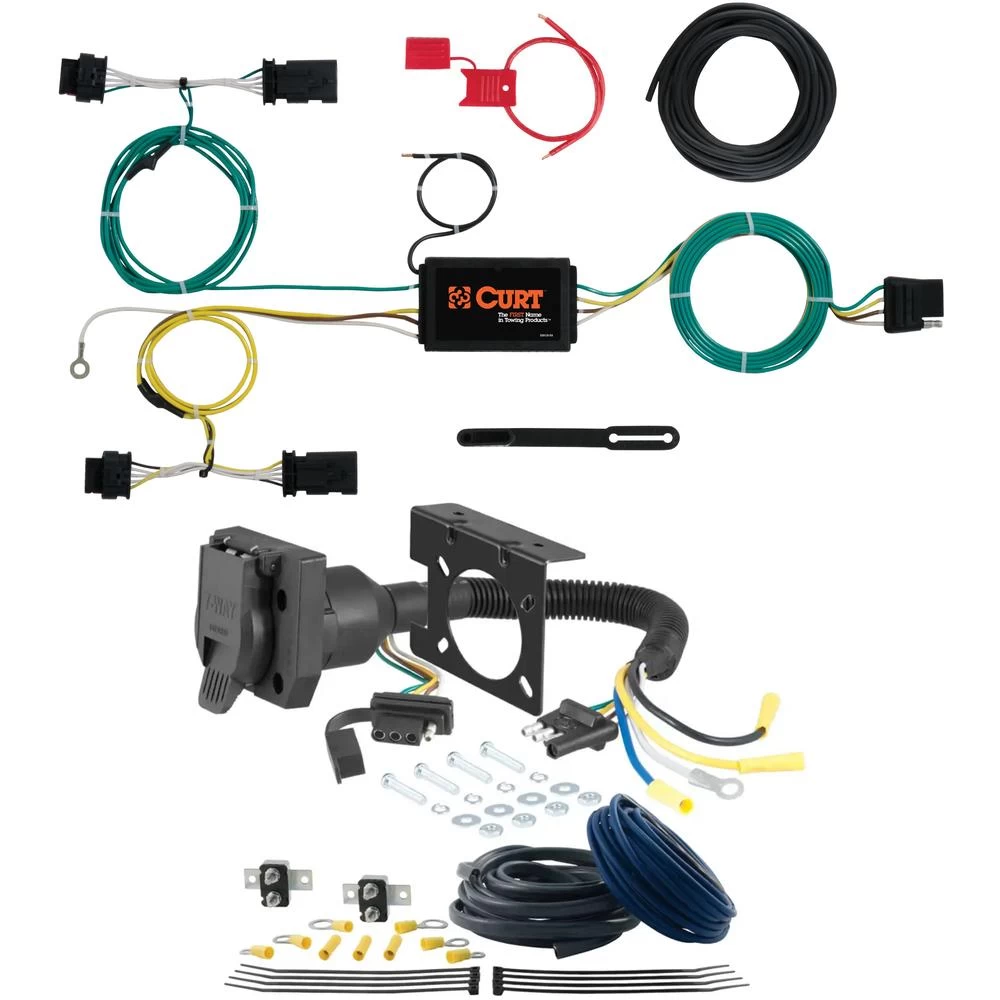

- Includes: Custom Wiring Harness, Dual-Output Electrical Adapter, Trailer Brake Controller Wiring Kit, 30-Amp Universal Circuit Breaker
Compatibility Chart
Description
Get Expert Help
For 2015-2023 Jeep Renegade Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes
Installation Instructions for Jeep Renegade
Part Numbers:
- 56274
Wiring Access Location:
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 1/4" socket
- 10mm socket
- T-25 Torx bit
- T-30 Torx bit
- T-40 Torx bit
- Panel trim removal tool
- Wire stripper
- Crimping tool
- Cutting tool
Electrical Ratings:
- Signal Circuits: 7.5 amps per side
- Tail/Running Circuits: 7.5 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during the installation.
Step 2: Remove the Rear Cargo Components
- Open the tailgate and remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the two cargo tie-downs and three fasteners securing the scuff panel.
- Pull out on the bottom of the panel, then lift it upward to remove it, being careful not to damage the alignment tabs.
Step 4: Remove the Trim Panels
- On the driver side, remove the push fastener from the upper trim panel.
- Pull back the upper trim panel to locate the fastener holding the lower trim panel in place.
- Remove the fastener for the lower trim panel and pull back the lower trim panel to locate the taillight wiring harness.
Step 5: Disconnect the Driver-Side Wiring Harness
- Locate the taillight wiring harness connectors behind the driver-side access panel.
- Carefully disconnect the connectors from the taillight housing, ensuring the locking tabs are not damaged.
Step 6: Install the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 7: Secure the Ground Wire
- Locate a suitable grounding point near the wiring harness connection, such as an existing screw with a nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Inspect for hidden components before drilling to avoid damage or injury.
Step 8: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
Step 9: Install the Passenger-Side Wiring Harness
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat Steps 4–6 to connect the passenger-side wiring harness.
Step 10: Route the Power Wire
- Route the black power wire from the converter box to the vehicle battery as shown in the included CME-PCL-INS sheet.
- Secure the wire along its route using the provided cable ties, avoiding pinch points, sharp edges, and hot or moving components.
Step 11: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a convenient location inside the trunk.
- Secure any loose wires with the provided cable ties.
Step 12: Finalize Installation
- Reinstall all components, including panels, trim, and coverings, removed during installation.
- Reconnect the negative battery terminal to restore the vehicle’s electrical system.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.

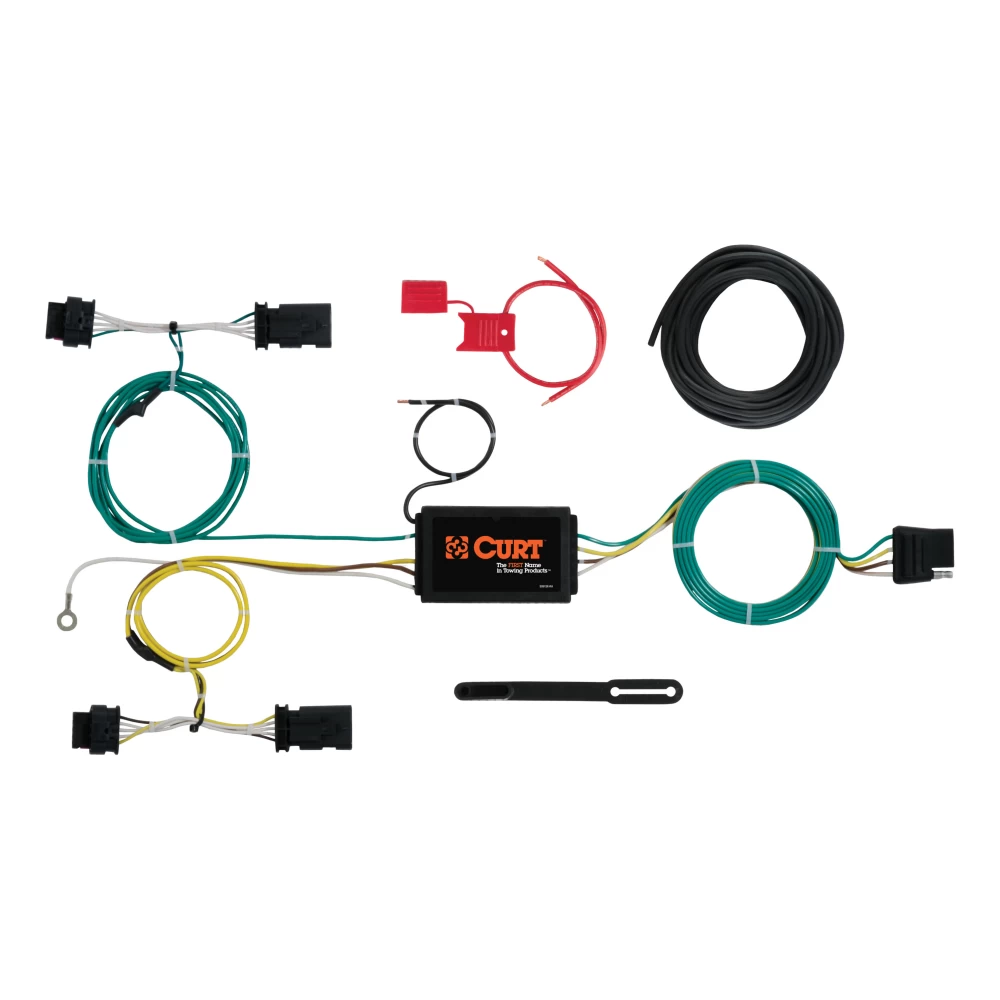

Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to avoid damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 10 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
Installation Instructions for Jeep Renegade
Part Numbers:
- 56274
Wiring Access Location:
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 1/4" socket
- 10mm socket
- T-25 Torx bit
- T-30 Torx bit
- T-40 Torx bit
- Panel trim removal tool
- Wire stripper
- Crimping tool
- Cutting tool
Electrical Ratings:
- Signal Circuits: 7.5 amps per side
- Tail/Running Circuits: 7.5 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during the installation.
Step 2: Remove the Rear Cargo Components
- Open the tailgate and remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the two cargo tie-downs and three fasteners securing the scuff panel.
- Pull out on the bottom of the panel, then lift it upward to remove it, being careful not to damage the alignment tabs.
Step 4: Remove the Trim Panels
- On the driver side, remove the push fastener from the upper trim panel.
- Pull back the upper trim panel to locate the fastener holding the lower trim panel in place.
- Remove the fastener for the lower trim panel and pull back the lower trim panel to locate the taillight wiring harness.
Step 5: Disconnect the Driver-Side Wiring Harness
- Locate the taillight wiring harness connectors behind the driver-side access panel.
- Carefully disconnect the connectors from the taillight housing, ensuring the locking tabs are not damaged.
Step 6: Install the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 7: Secure the Ground Wire
- Locate a suitable grounding point near the wiring harness connection, such as an existing screw with a nut in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Inspect for hidden components before drilling to avoid damage or injury.
Step 8: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
Step 9: Install the Passenger-Side Wiring Harness
- Route the custom wiring harness end with the green wire to the passenger side behind the removed scuff panel.
- Repeat Steps 4–6 to connect the passenger-side wiring harness.
Step 10: Route the Power Wire
- Route the black power wire from the converter box to the vehicle battery as shown in the included CME-PCL-INS sheet.
- Secure the wire along its route using the provided cable ties, avoiding pinch points, sharp edges, and hot or moving components.
Step 11: Position the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle for trailer connection.
- When not in use, roll up the connector and store it in a convenient location inside the trunk.
- Secure any loose wires with the provided cable ties.
Step 12: Finalize Installation
- Reinstall all components, including panels, trim, and coverings, removed during installation.
- Reconnect the negative battery terminal to restore the vehicle’s electrical system.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to avoid damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 10 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For warranty information, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
