For 2015-2017 VW Golf R Trailer Wiring 4 Way Fits All Models Curt 56374 Install Notes
Installation Instructions for Volkswagen Golf R
Part Numbers:
- 56374
Wiring Access Location:
- P3: Behind driver side taillight housing, inside the trunk
- P4: Behind passenger side taillight housing, inside the trunk
Tools Required:
- Ratchet
- Ratchet extension
- 10mm socket
- Torx bit (T-30)
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
- Wire stripper
- Wire crimper
- Cutting tool
Electrical Ratings:
- Signal Circuits: 5.0 amps per side
- Tail/Running Circuits: 7.5 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery, typically in the rear of the vehicle. Refer to the owner’s manual if necessary.
- Disconnect the negative battery terminal to ensure safety during installation. Secure the cable away from the battery.
Step 2: Remove Trunk Floor Coverings
- Open the vehicle's tailgate to access the work area.
- Remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the fasteners securing the scuff panel.
- Pull out on the bottom of the scuff panel, then lift it upward to remove it. Be cautious not to damage the alignment tabs.
Step 4: Remove the Driver-Side Trim Panel
- Remove the fasteners securing the interior side trim panel on the driver side.
- Carefully remove the panel to access the taillight wiring connectors.
Step 5: Access the Driver-Side Wiring Harness
- Locate the vehicle's taillight wiring harness connectors behind the removed trim panel.
- Carefully disconnect the connectors from the taillight housing, ensuring the locking tabs are not damaged.

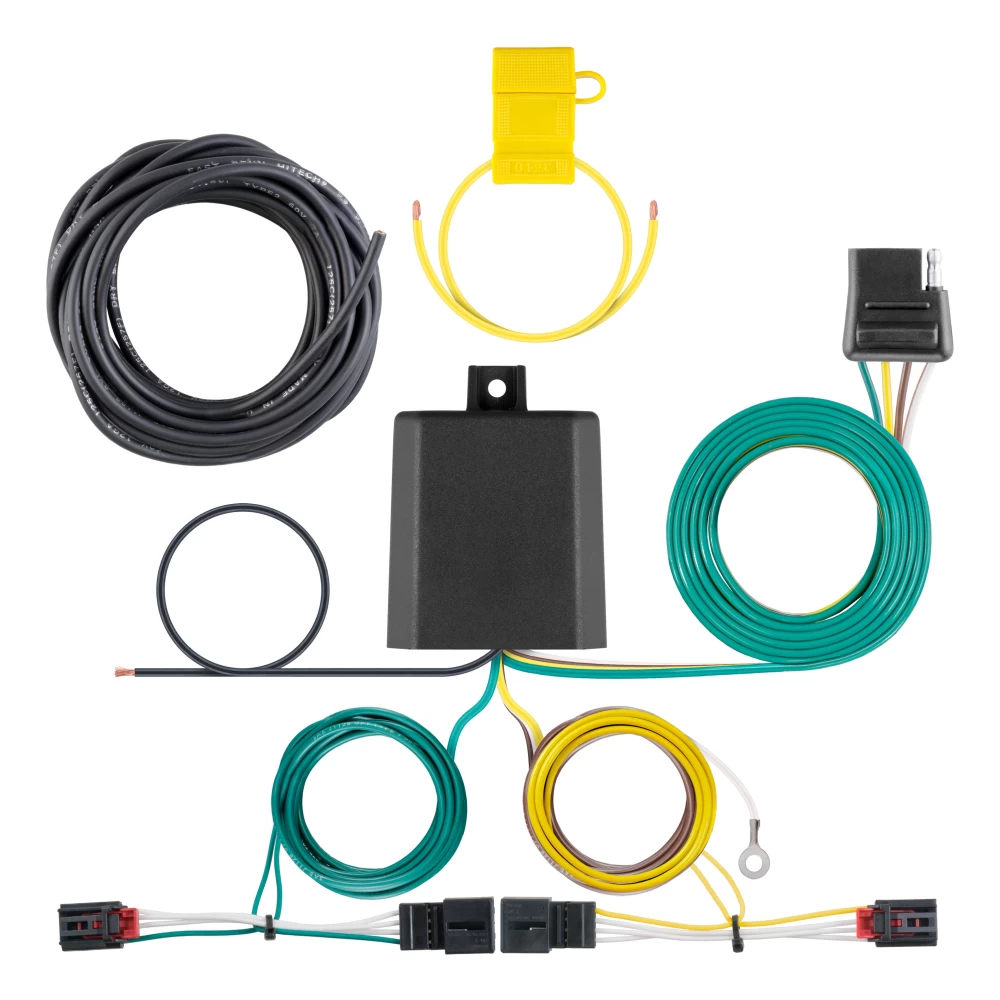

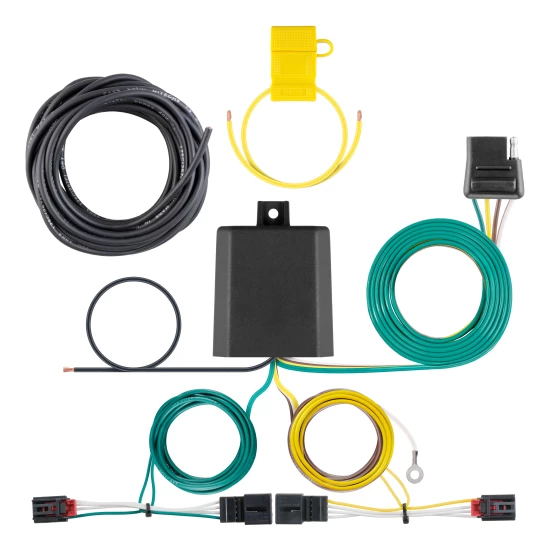

Step 6: Install the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated vehicle connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 7: Install the Passenger-Side Wiring Harness
- Route the T-connector end with the green wire over to the passenger side, past the battery compartment.
- Repeat Steps 4–6 to connect the green wire to the taillight wiring on the passenger side.

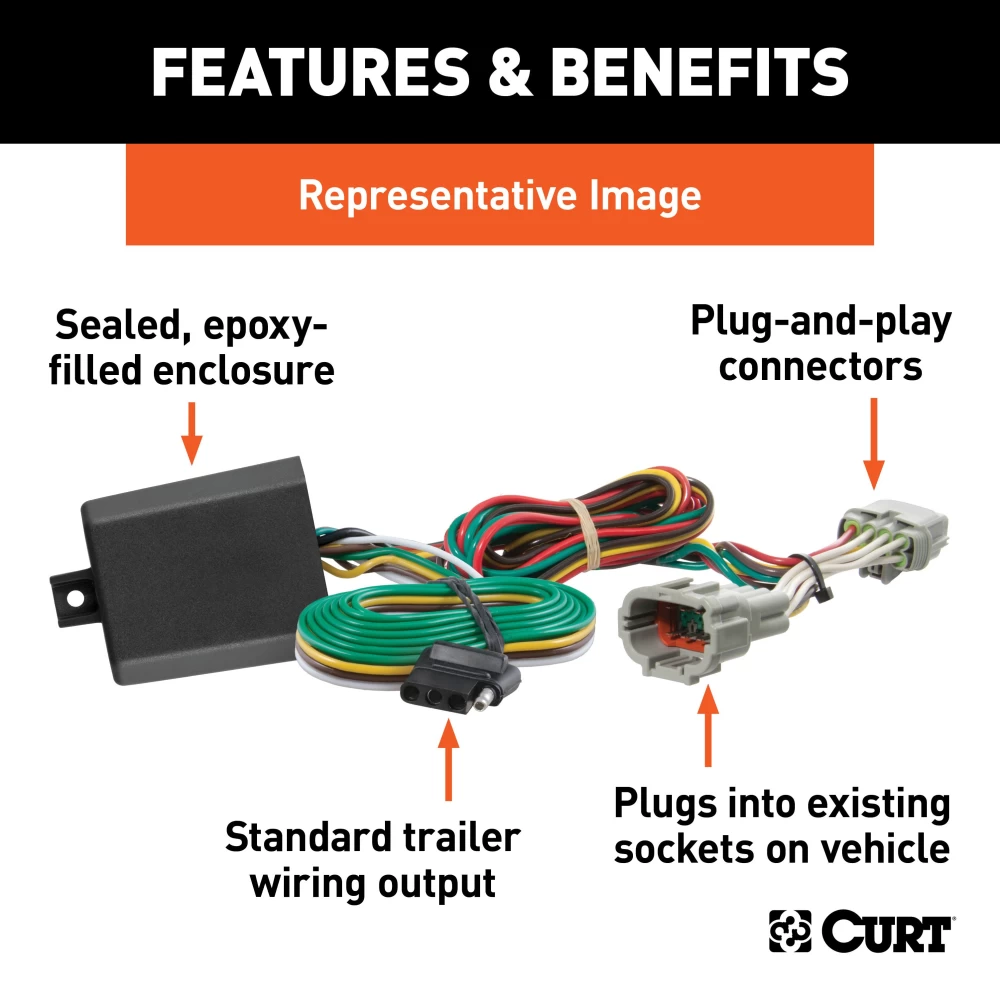

Step 8: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Use the provided double-sided tape to securely adhere the black converter box to this location.
Step 9: Route and Connect the Power Wire
- Route the black power wire from the converter box to the vehicle battery.
- Refer to the included "Powered Converter Lead Instruction Sheet" for detailed routing guidance.
- Use cable ties to secure the wire along its route, avoiding sharp edges, pinch points, and moving parts.
Step 10: Secure the Ground Wire
- Locate a suitable grounding point near the wiring connection, such as an existing screw or bolt in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Before drilling, inspect the area to ensure no hidden components are present to avoid damage or injury.

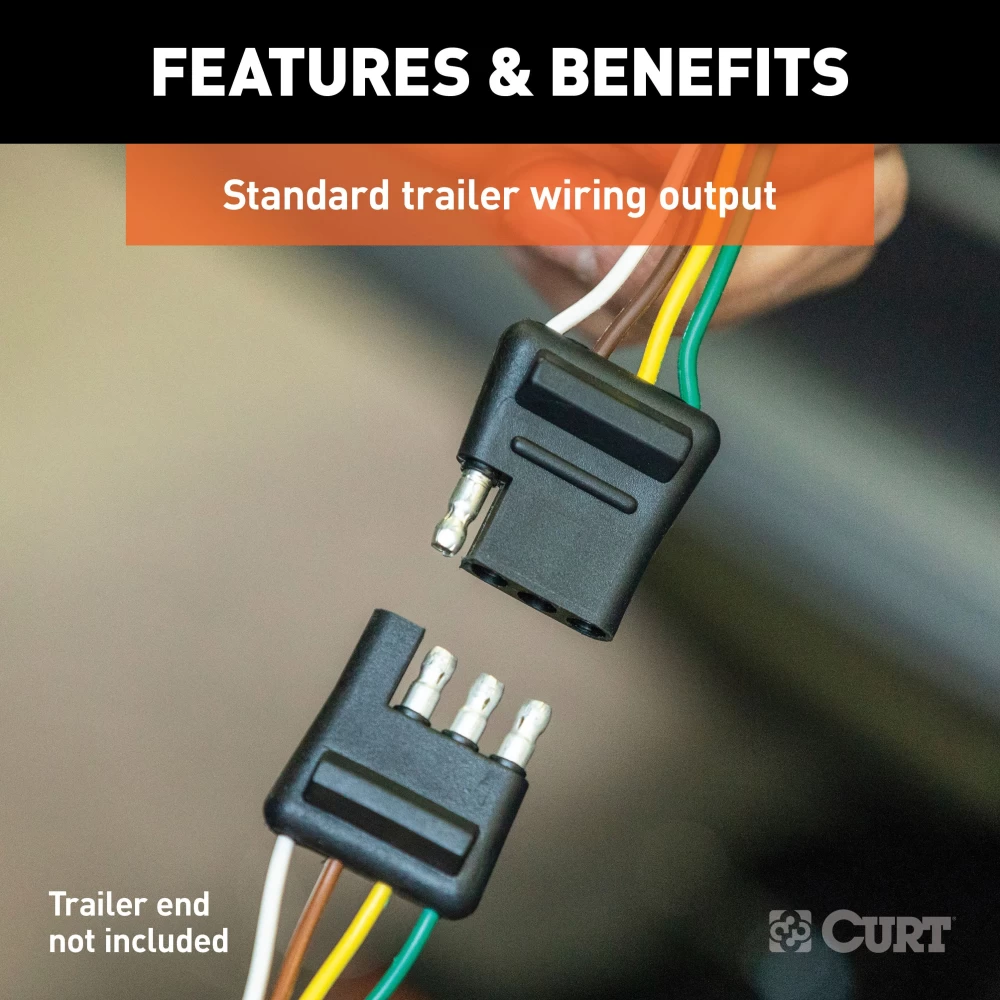

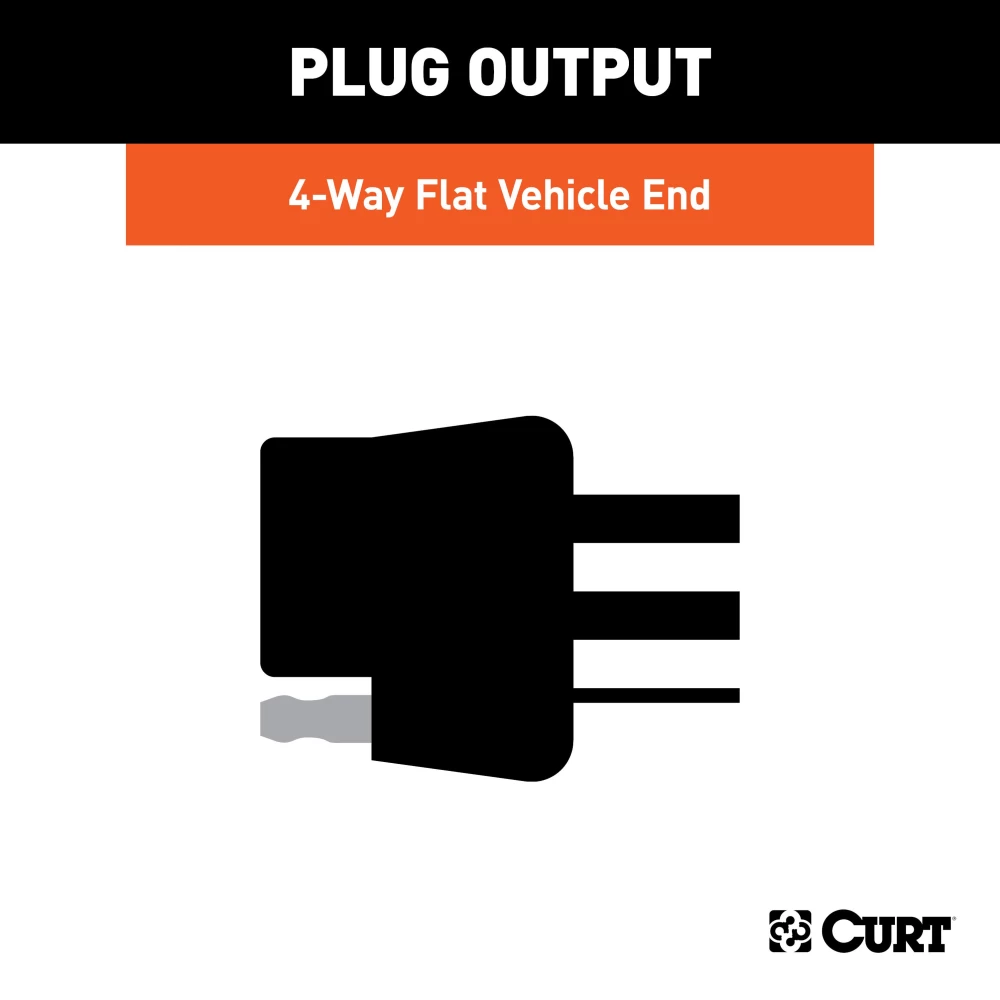

Step 11: Position the 4-Flat Connector
- Route the 4-flat connector to the center of the vehicle for trailer connection when in use.
- When not in use, roll up the connector and store it in a secure, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 12: Finalize Installation
- Reinstall all panels, trim, and covers removed during the installation process.
- Reconnect the negative battery terminal.

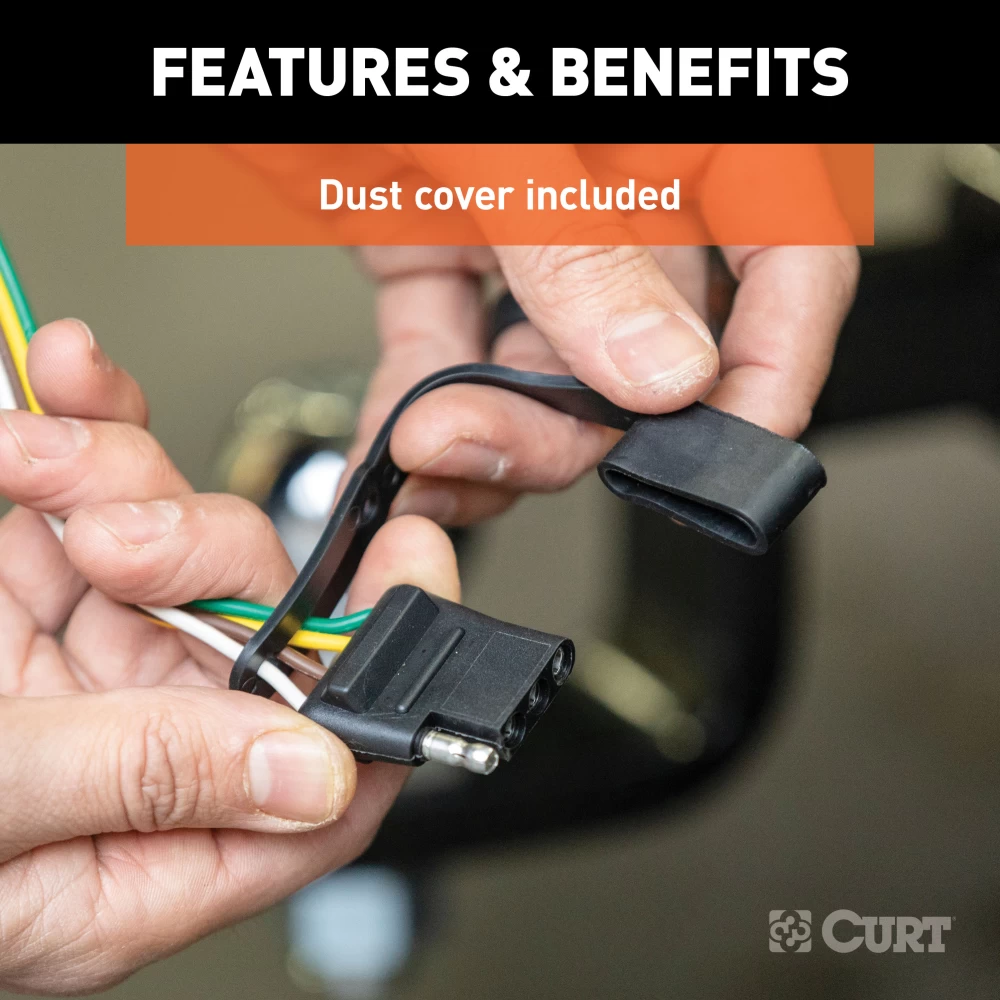

- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.

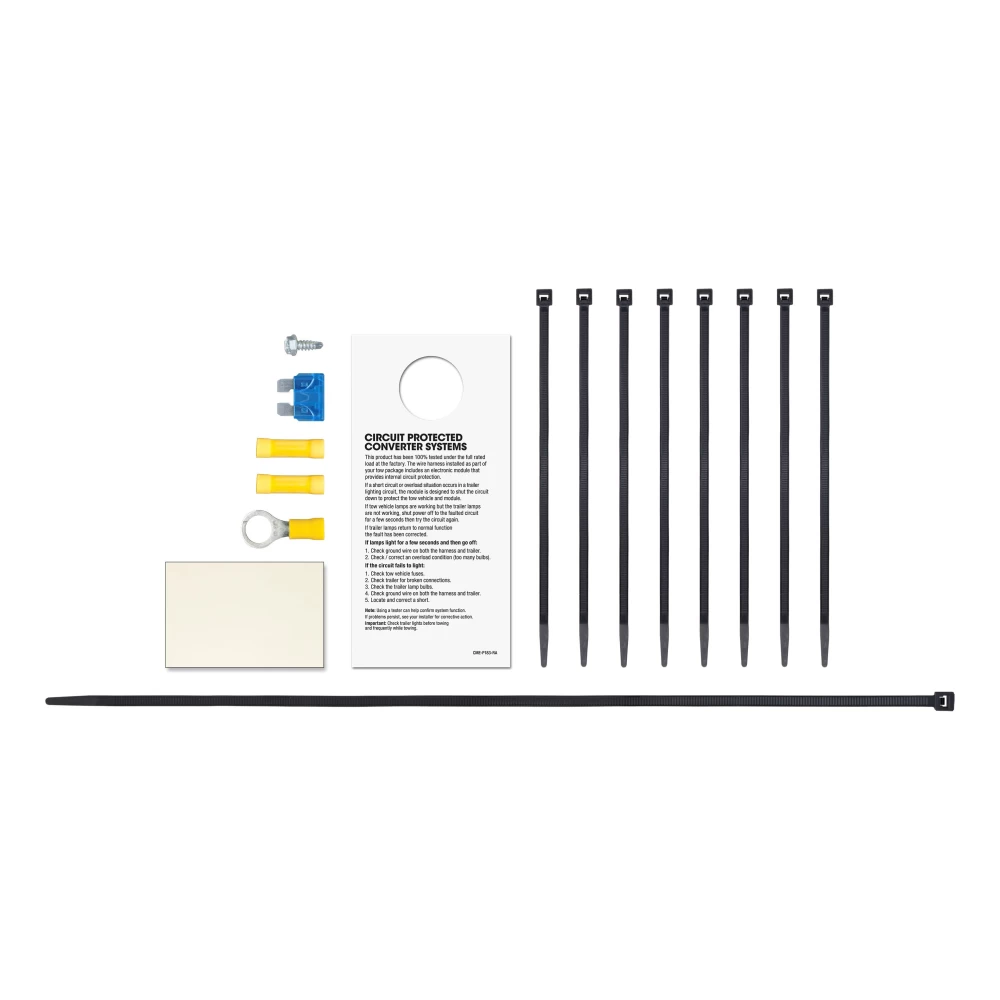

Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 15 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
Installation Instructions
Part Number:
- 56374
Wiring Access Location:
- P3: Behind driver side taillight housing, inside the trunk
- P4: Behind passenger side taillight housing, inside the trunk
Tools Required:
- Ratchet
- Ratchet extension
- 10mm socket
- Torx bit (T-30)
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
- Wire stripper
- Wire crimper
- Cutting tool
Electrical Ratings:
- Signal Circuits: 5.0 amps per side
- Tail/Running Circuits: 7.5 amps total
Step-by-Step Instructions:
Step 1: Disconnect the Battery
- Locate the vehicle battery, typically in the rear of the vehicle. Refer to the owner’s manual if necessary.
- Disconnect the negative battery terminal to ensure safety during installation. Secure the cable away from the battery.
Step 2: Remove Trunk Floor Coverings
- Open the vehicle's tailgate to access the work area.
- Remove all trunk floor coverings and storage trays.
Step 3: Remove the Rear Scuff Panel
- Remove the fasteners securing the scuff panel.
- Pull out on the bottom of the scuff panel, then lift it upward to remove it. Be cautious not to damage the alignment tabs.
Step 4: Remove the Driver-Side Trim Panel
- Remove the fasteners securing the interior side trim panel on the driver side.
- Carefully remove the panel to access the taillight wiring connectors.
Step 5: Access the Driver-Side Wiring Harness
- Locate the vehicle's taillight wiring harness connectors behind the removed trim panel.
- Carefully disconnect the connectors from the taillight housing, ensuring the locking tabs are not damaged.
Step 6: Install the Custom Wiring Harness (Driver Side)
- Insert the custom wiring harness end with the yellow wire between the separated vehicle connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
Step 7: Install the Passenger-Side Wiring Harness
- Route the T-connector end with the green wire over to the passenger side, past the battery compartment.
- Repeat Steps 4–6 to connect the green wire to the taillight wiring on the passenger side.
Step 8: Mount the Converter Box
- Locate a flat, clean spot inside the vehicle near the taillight.
- Use the provided double-sided tape to securely adhere the black converter box to this location.
Step 9: Route and Connect the Power Wire
- Route the black power wire from the converter box to the vehicle battery.
- Refer to the included "Powered Converter Lead Instruction Sheet" for detailed routing guidance.
- Use cable ties to secure the wire along its route, avoiding sharp edges, pinch points, and moving parts.
Step 10: Secure the Ground Wire
- Locate a suitable grounding point near the wiring connection, such as an existing screw or bolt in the vehicle frame.
- If no suitable point exists, drill a 3/32" pilot hole in a clean, rust-free, and paint-free area.
- Attach the white ground wire using the provided ring terminal and screw.
Safety Note: Before drilling, inspect the area to ensure no hidden components are present to avoid damage or injury.
Step 11: Position the 4-Flat Connector
- Route the 4-flat connector to the center of the vehicle for trailer connection when in use.
- When not in use, roll up the connector and store it in a secure, out-of-the-way location inside the trunk.
- Use the provided cable ties to secure any loose wires.
Step 12: Finalize Installation
- Reinstall all panels, trim, and covers removed during the installation process.
- Reconnect the negative battery terminal.
- Attach the provided 4-flat dust cover to protect the connector from dirt and corrosion.
Hardware List:
- White ground wire with ring terminal
- Black converter box with double-sided tape
- 4-flat wiring harness
- Cable ties (provided)
Safety Notes:
- Always inspect for hidden components before drilling to prevent damage or injury.
- Disconnect the negative battery cable before working on the electrical system.
- Ensure the battery connection is fuse-protected (maximum 15 amps). Exceeding this rating can lead to overheating, fire, or voided warranty.
Specifications:
- System Compatibility: This converter system is to be used only on 12-volt negative ground systems.
