Product Details
- Brand: Curt
- Model: 13284 56338-CH2827

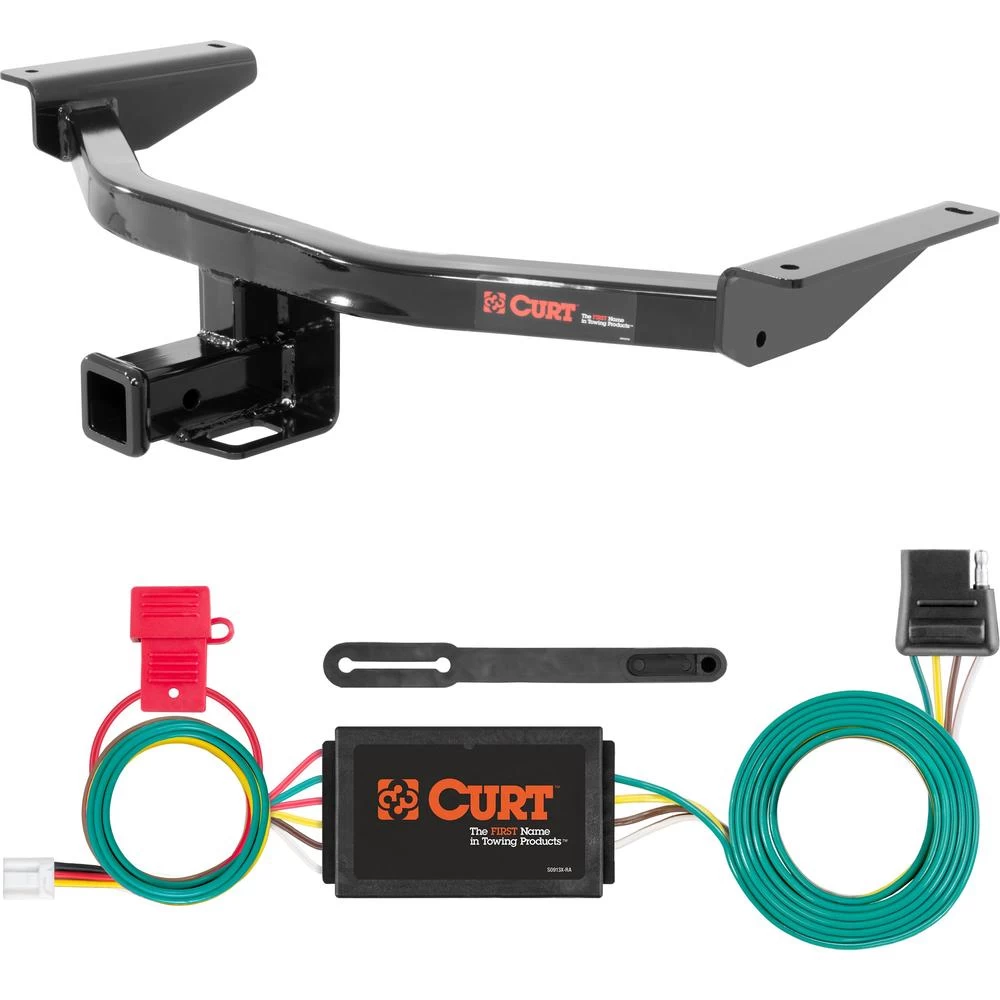

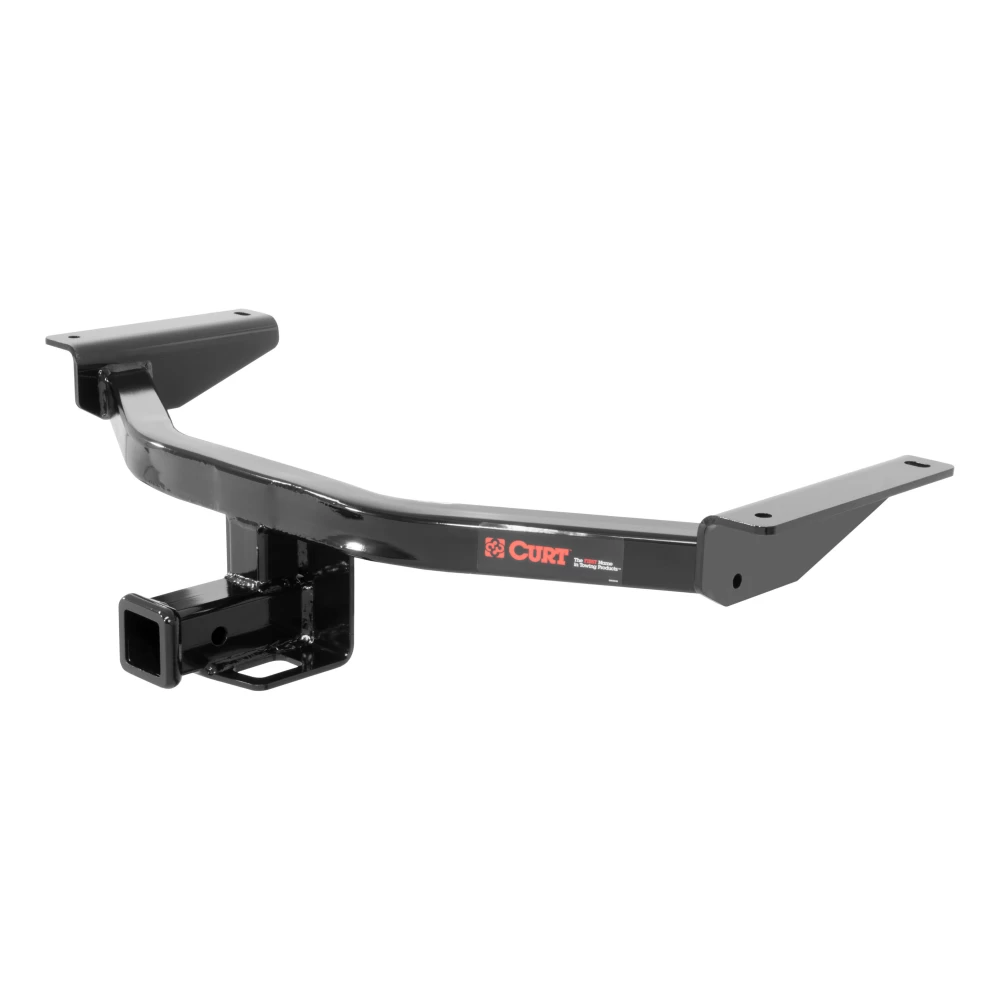

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 2016-2023 Mazda CX-9 Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13284 56338 2 inch Tow Receiver Install Notes
Installation Instructions for Mazda CX-9 SUV (2016-Present)
Part Numbers:
- 13284
Tools Required:
- Ratchet
- 10mm Socket
- 3/4" Socket
- 6" Socket Extension
- Flathead Screwdriver
- Torque Wrench
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the Lower Trim Panel
- Use a flathead screwdriver to remove two plastic fasteners securing the lower trim panel.
- Use a 10mm socket to remove two hex nuts.
- Return the trim panel to the owner.
Step 2: Lower the Exhaust
- Remove four rubber exhaust hangers using exhaust removal pliers or a similar method.
- Ensure the exhaust is properly supported during this step.
Step 3: Fishwire Forward-Most Bolts
- Fishwire one 1/2" carriage bolt and one square hole spacer through the access hole into the forward-most hole in each frame rail.
- Leave the fishwires attached.
Step 4: Reverse Fishwire Rearward Bolts
- Reverse fishwire one 1/2" carriage bolt and one square hole spacer through the access hole into each frame rail.
- Leave the fishwires attached.
Step 5: Install the Hitch
- Raise the hitch into position, guiding the fishwire ends through the attachment holes.
- Remove the fishwires and secure the hitch using 1/2" hex flange nuts.
Step 6: Torque the Hardware
- Torque all 1/2" fasteners to 110 ft-lbs.
- Raise the exhaust back into position and reinstall the exhaust hangers.
Hardware List:
- (2) 1/2-13 UNC Carriage Bolts, 1-1/2"
- (2) 1/2-13 UNC Hex Flange Nuts
- (2) .250 x 1.00 x 3.00" Square Hole Spacers
- (4) 1/2" Fishwire
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically check the hitch to ensure all fasteners remain tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Ensure all non-trailer loads are supported by stabilizing straps to prevent damage and maintain safety.
Specifications:
- Gross Trailer Weight (Weight Carrying or Distribution): 4,000 lbs
- Tongue Weight: 600 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
Installation Instructions for Mazda CX-9
Part Number:
- 56338
Wiring Access Location:
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 10mm socket
- Panel trim removal tool
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Prepare Cargo Area:
- Open the rear hatch.
- Remove the floor coverings and storage trays on the passenger side.
-
Remove Rear Scuff Panel:
- Use a panel trim removal tool to carefully pry and remove the rear scuff panel.
- Take care not to damage the alignment tabs on the back.
-
Remove Tire Jack and Cargo Loops:
- Unscrew and remove the tire jack.
- Using a 10mm socket, remove the cargo loops from the rear trim panel.
-
Access Vehicle Connector:
- Use a pry tool to gently pull back on the rear trim panel, ensuring not to damage the locking tabs.
- Locate the vehicle's taillight wiring harness connector behind the panel.
- The connector will be similar to the one on the custom wiring connector.
-
Connect Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount Converter Box:
- Find a flat spot behind the side trim panel.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose parts of the wiring connector with the provided cable ties.
-
Position 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble Vehicle Components:
- Reinstall all items removed during the installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:

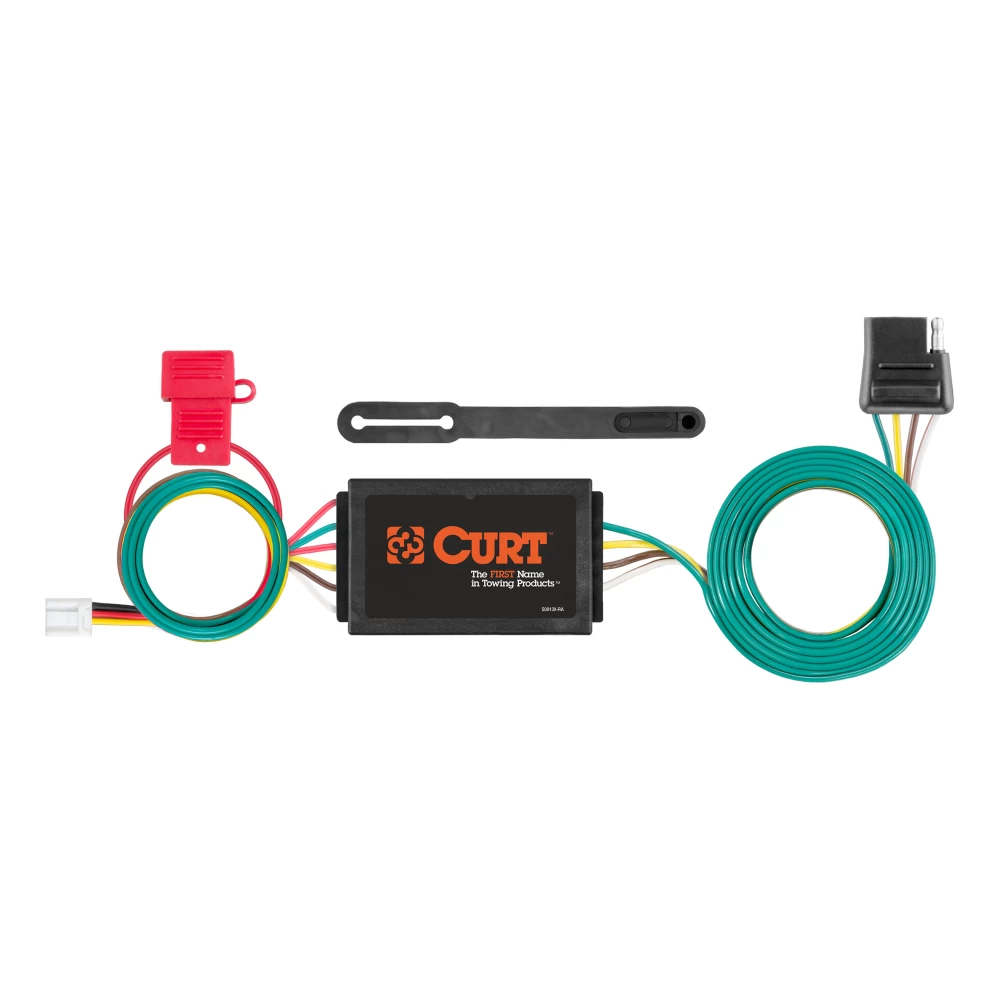

- Custom wiring connector with 4-flat output
- Black converter box
- Double-sided tape
- Cable ties
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Installation Verification: All steps must be followed to ensure the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Installation Instructions for Mazda CX-9
Part Number:
- 56338
Wiring Access Location:
- S4: Behind passenger side rear access panel
Tools Required:
- Ratchet
- 10mm socket
- Panel trim removal tool
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Prepare Cargo Area:
- Open the rear hatch.
- Remove the floor coverings and storage trays on the passenger side.
-
Remove Rear Scuff Panel:
- Use a panel trim removal tool to carefully pry and remove the rear scuff panel.
- Take care not to damage the alignment tabs on the back.
-
Remove Tire Jack and Cargo Loops:
- Unscrew and remove the tire jack.
- Using a 10mm socket, remove the cargo loops from the rear trim panel.
-
Access Vehicle Connector:
- Use a pry tool to gently pull back on the rear trim panel, ensuring not to damage the locking tabs.
- Locate the vehicle's taillight wiring harness connector behind the panel.
- The connector will be similar to the one on the custom wiring connector.
-
Connect Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount Converter Box:
- Find a flat spot behind the side trim panel.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose parts of the wiring connector with the provided cable ties.
-
Position 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble Vehicle Components:
- Reinstall all items removed during the installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom wiring connector with 4-flat output
- Black converter box
- Double-sided tape
- Cable ties
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Installation Verification: All steps must be followed to ensure the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For warranty information, please download the full installation PDF.
