For 2016 Chevy Cruze Trailer Hitch Fits New Body Style (Same as 2017 design) Curt 11439 1‑1/4 Tow Receiver
Model: 11439-CH334This Trailer Tow Hitch Fits The Following Vehicles:
2016 - 2016 Chevrolet Cruze New Body Style (Same as 2017 design)
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2016

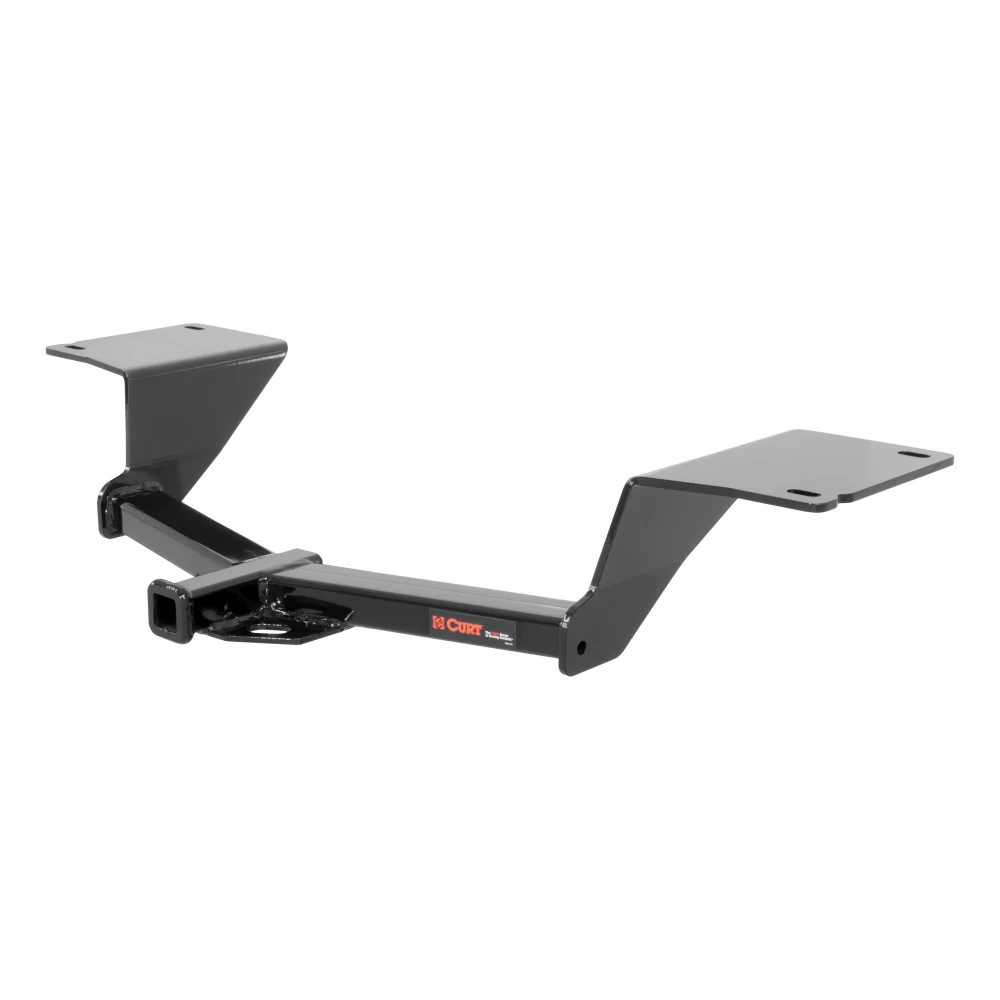

CURT 11439 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Cruze (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).

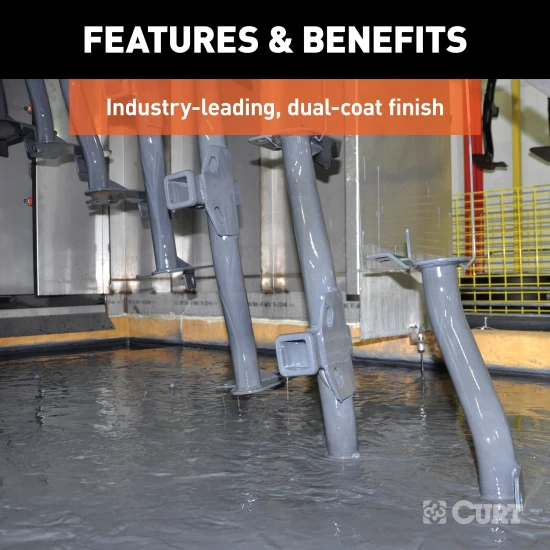

Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

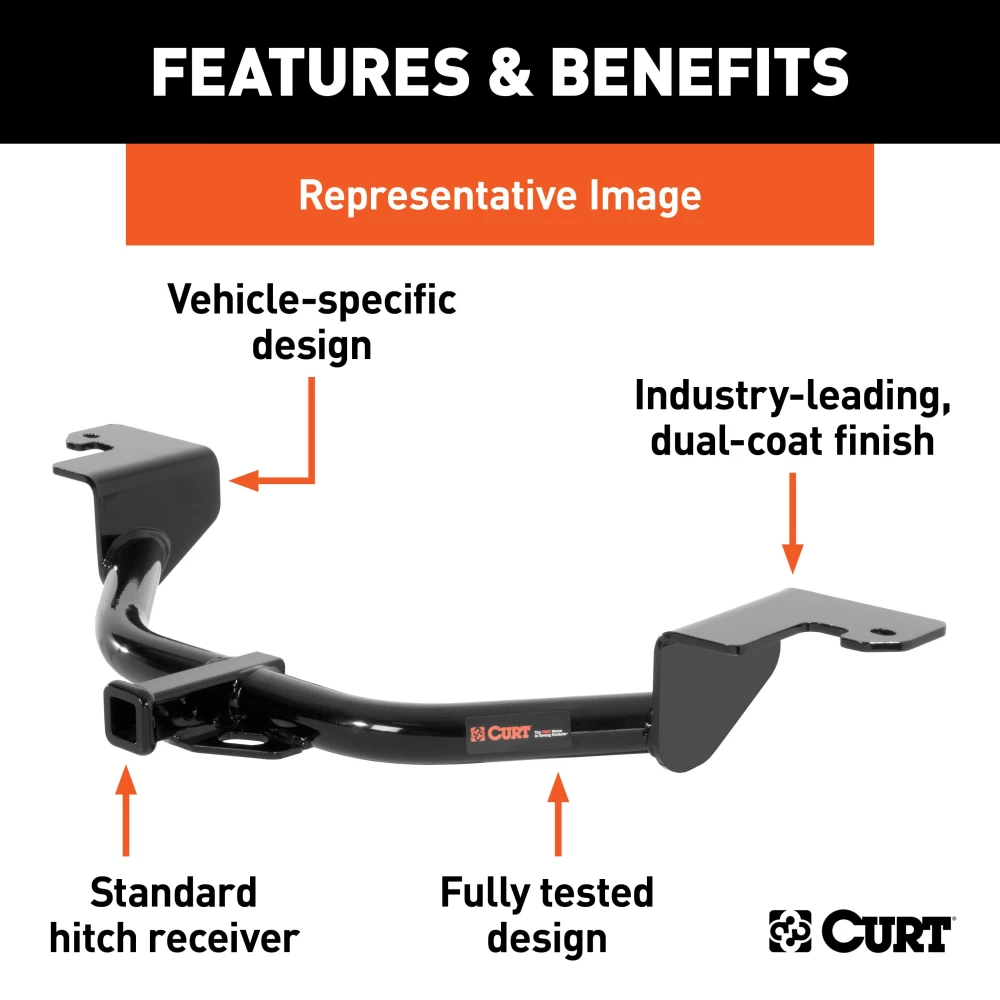

Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

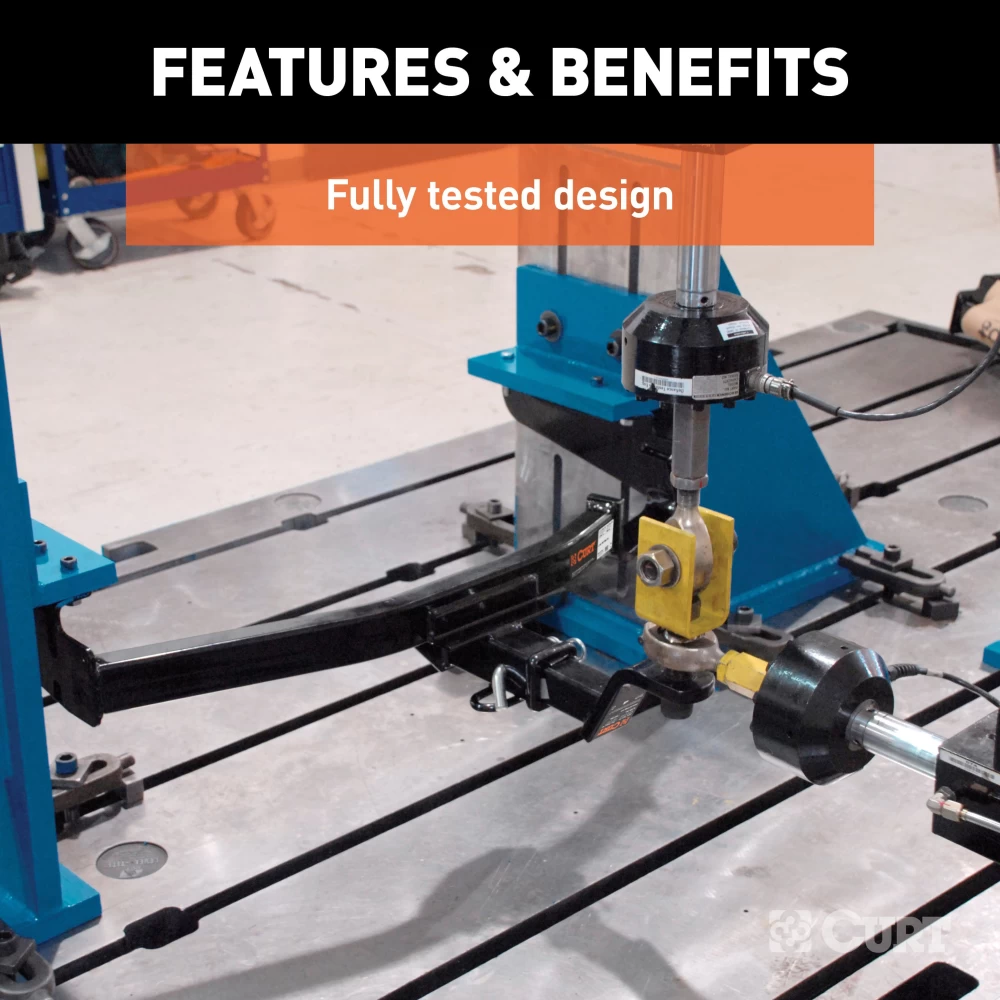

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

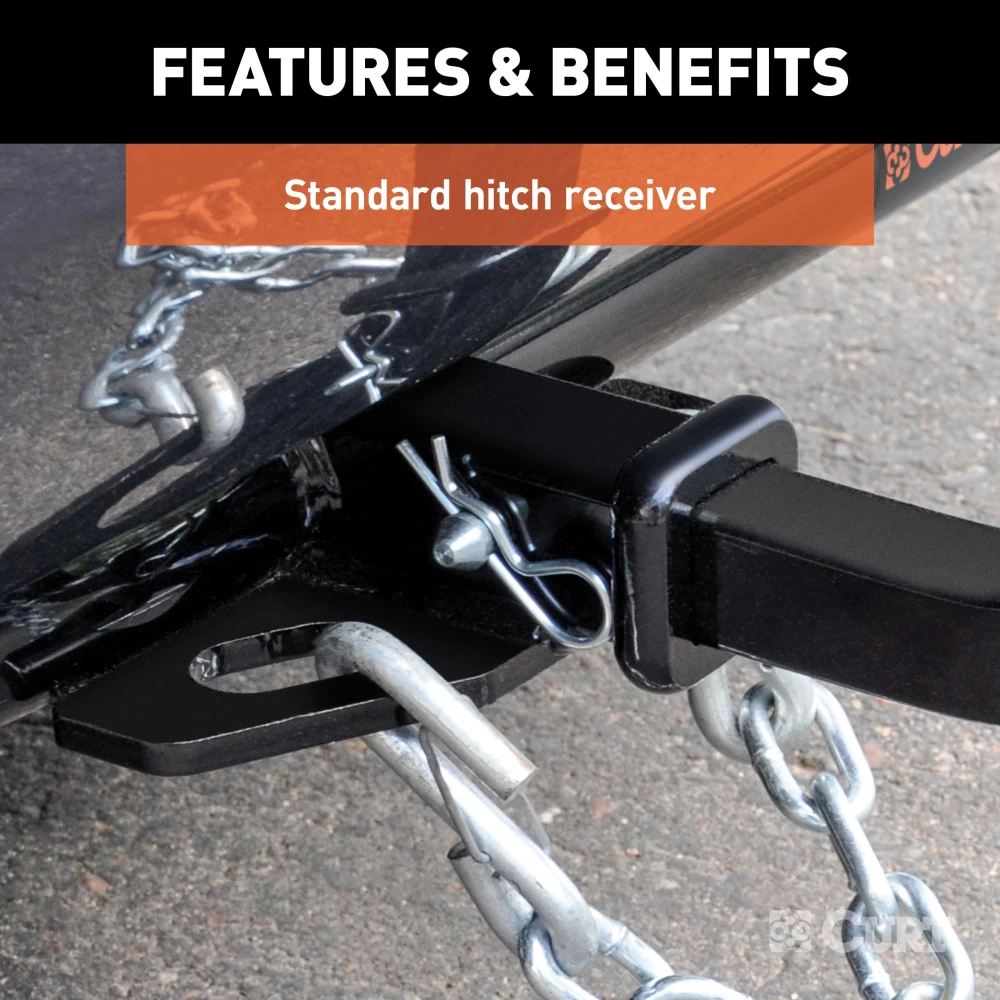

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$192 90 $299.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$299.95 $192 90
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $48.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11439-CH334
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2016 Chevy Cruze Trailer Hitch Fits New Body Style (Same as 2017 design) Curt 11439 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2016-Present Chevrolet Cruze Sedan
Part Number:
- 11439
Tools Required:
- Safety glasses
- Ratchet
- Torque wrench
- Sockets: 7mm, 10mm, 13mm, 7/16", 3/4"
- Aviation shears
- Tape measure
- Marker
- Pliers
Hardware List:
- 4 × 7/16"-14 x 1-1/4" grade 8 carriage bolts
- 4 × 7/16"-14 grade 8 hex flange nuts
- 4 × 7/16" fishwires
- 4 × CM-SP2 spacers (0.250" x 0.88" x 2.25")
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the two rubber isolators from the muffler towards the center of the vehicle.
- Remove the 13mm nut securing the rearmost hanger to the frame.
- Unclip the additional plastic exhaust bracket from the vehicle before lowering the exhaust.
- Note: Exhaust configurations may vary depending on the model.
-
Trim Heat Shield (if present):
- Unscrew the three speed nuts using needle-nose pliers to remove the heat shield.
- Trim the heat shield using aviation shears according to the specified dimensions.
- Reinstall the trimmed heat shield onto the vehicle.
- Note: All dimensions are approximate; confirm fit prior to trimming.
-
Remove Underbody Panel:
- On the passenger side, remove the underbody panel by taking out four screws using a 7mm socket.
- Remove three plastic nuts using a 10mm socket.
- Trim the underbody panel as per the provided diagram and set it aside for reinstallation.
- Note: All dimensions are approximate; confirm fit prior to trimming.
-
Fishwire Hardware:
- Fishwire two CM-SP2 spacers and two 7/16" carriage bolts through the access holes and out the mounting holes on each side.
- Refer to the Fishwire Technique Diagram for guidance.
-
Install Hitch:
- Raise the hitch into position, aligning it with the frame rails.
- Secure the hitch with four 7/16" flange nuts (two on each side).
-
Torque Fasteners:
- Torque all 7/16" hardware to 70 ft-lbs.
-
Reinstall Components:
- Reinstall the trimmed underbody panel removed in Step 3.
- Raise the exhaust back into position and reinstall the rubber isolators as removed in Step 1.
Safety Notes:
- Load Capacities:
- Weight Carrying: 2,000 lbs. trailer weight, 200 lbs. tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Non-Trailer Loads:
- All non-trailer (wheel-less) loads applied to this product must be supported by CURT 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
- Warranty:
- CURT Manufacturing LLC. warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. Alteration, misuse, or improper installation voids the warranty. Liability is limited to repair or replacement of defective products and excludes incidental or consequential damages.
For installation questions, contact Technical Support at 1-877-287-8634.
Installation Instructions for 2016-Present Chevrolet Cruze Sedan
Part Number:
- 11439
Tools Required:
- Safety glasses
- Ratchet
- Torque wrench
- Sockets: 7mm, 10mm, 13mm, 7/16", 3/4"
- Aviation shears
- Tape measure
- Marker
- Pliers
Hardware List:
- 4 × 7/16"-14 x 1-1/4" grade 8 carriage bolts
- 4 × 7/16"-14 grade 8 hex flange nuts
- 4 × 7/16" fishwires
- 4 × CM-SP2 spacers (0.250" x 0.88" x 2.25")
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the two rubber isolators from the muffler towards the center of the vehicle.
- Remove the 13mm nut securing the rearmost hanger to the frame.
- Unclip the additional plastic exhaust bracket from the vehicle before lowering the exhaust.
- Note: Exhaust configurations may vary depending on the model.
-
Trim Heat Shield (if present):
- Unscrew the three speed nuts using needle-nose pliers to remove the heat shield.
- Trim the heat shield using aviation shears according to the specified dimensions.
- Reinstall the trimmed heat shield onto the vehicle.
- Note: All dimensions are approximate; confirm fit prior to trimming.
-
Remove Underbody Panel:
- On the passenger side, remove the underbody panel by taking out four screws using a 7mm socket.
- Remove three plastic nuts using a 10mm socket.
- Trim the underbody panel as per the provided diagram and set it aside for reinstallation.
- Note: All dimensions are approximate; confirm fit prior to trimming.
-
Fishwire Hardware:
- Fishwire two CM-SP2 spacers and two 7/16" carriage bolts through the access holes and out the mounting holes on each side.
- Refer to the Fishwire Technique Diagram for guidance.
-
Install Hitch:
- Raise the hitch into position, aligning it with the frame rails.
- Secure the hitch with four 7/16" flange nuts (two on each side).
-
Torque Fasteners:
- Torque all 7/16" hardware to 70 ft-lbs.
-
Reinstall Components:
- Reinstall the trimmed underbody panel removed in Step 3.
- Raise the exhaust back into position and reinstall the rubber isolators as removed in Step 1.
Safety Notes:
- Load Capacities:
- Weight Carrying: 2,000 lbs. trailer weight, 200 lbs. tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Non-Trailer Loads:
- All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty covers defects in material and workmanship at the time of purchase. For complete warranty instructions, please download the full installation PDF.
End of Instructions
