For 2017‑2025 Audi Q7 Trailer Hitch Fits Models w/ Existing USCAR 7‑way Curt 13277 2 inch Tow Receiver
Model: 13277-CH69This Trailer Tow Hitch Fits The Following Vehicles:
2017 - 2025 Audi Q7 w/ Existing USCAR 7-way
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

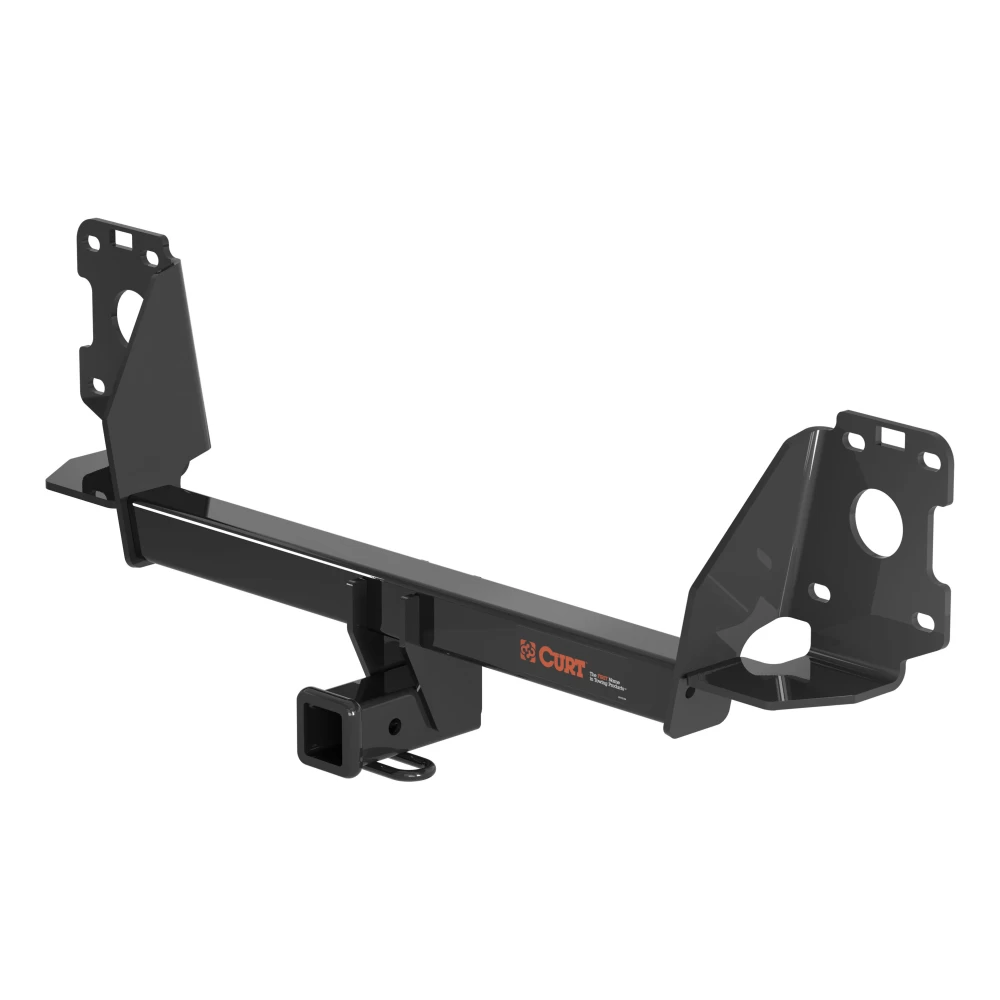

CURT 13277 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Audi Q7 (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 7,000 lbs GTW and 700 lbs TW.

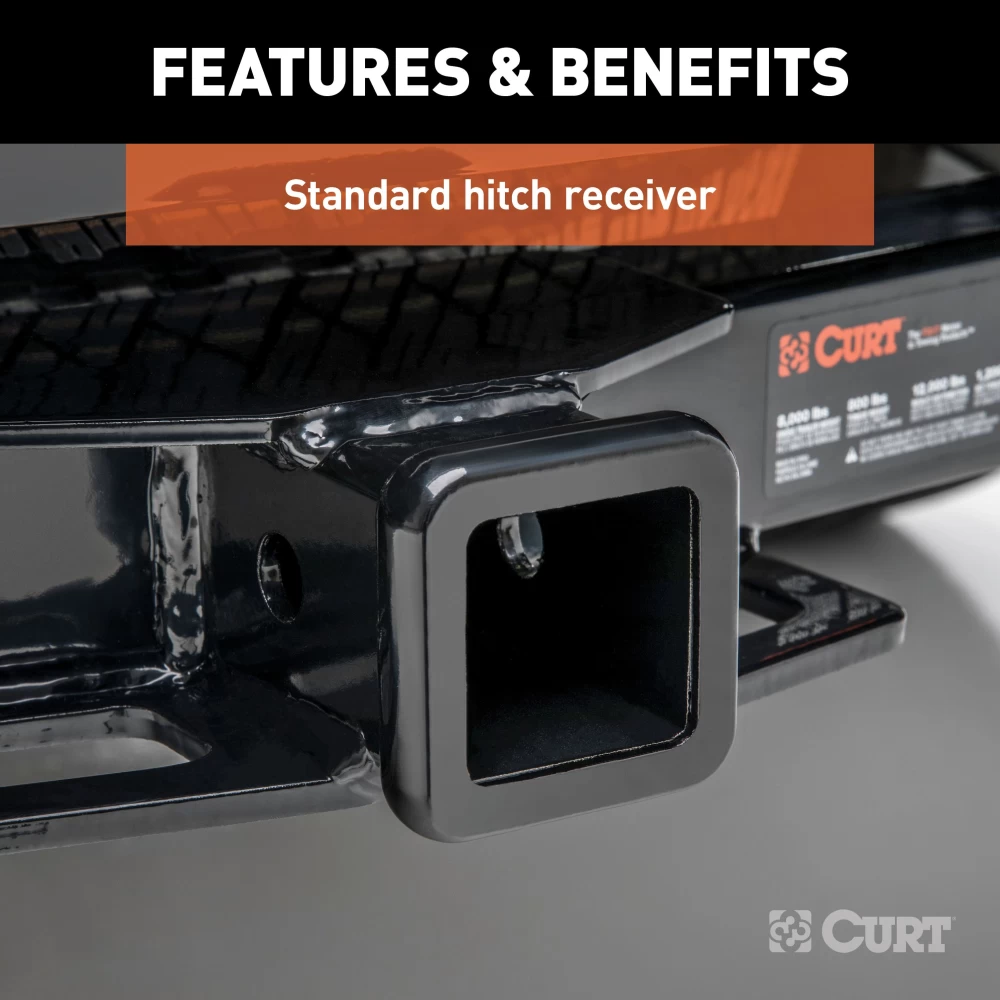

CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

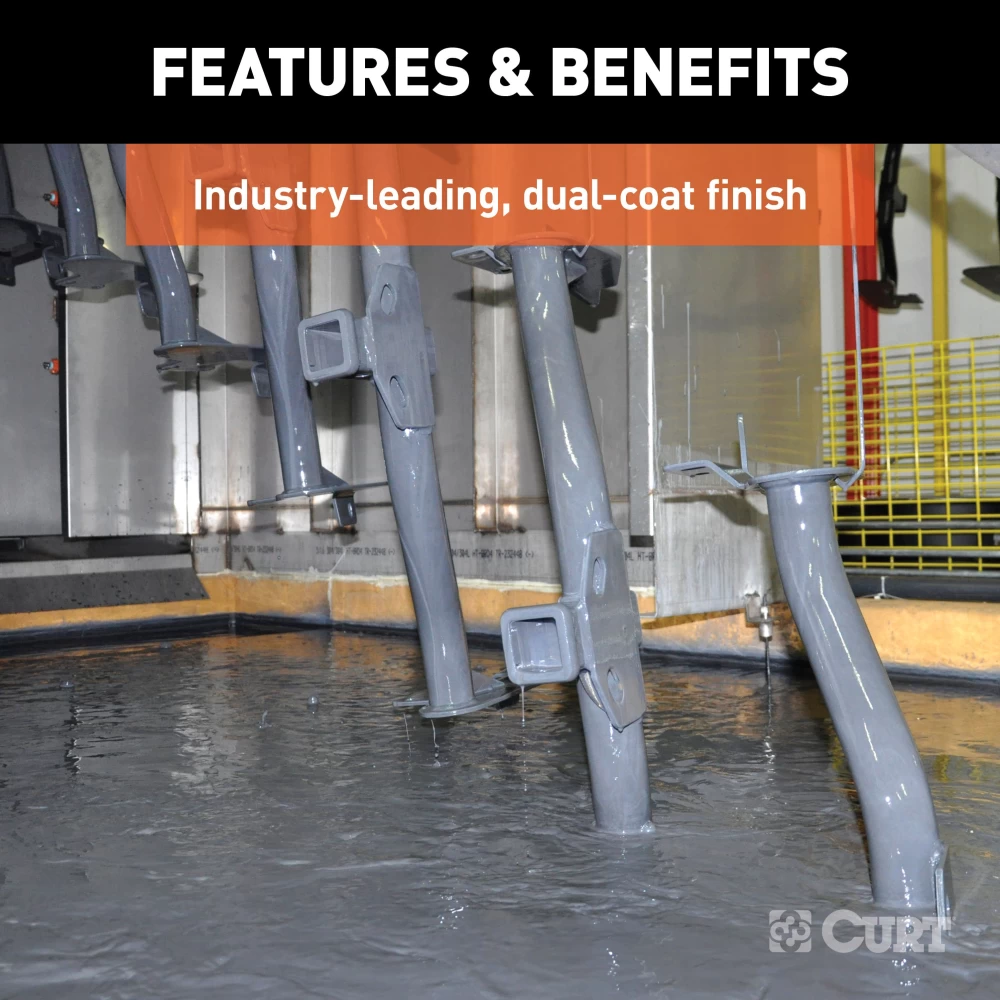

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 7,000 lbs. gross trailer weight and 700 lbs. tongue weight

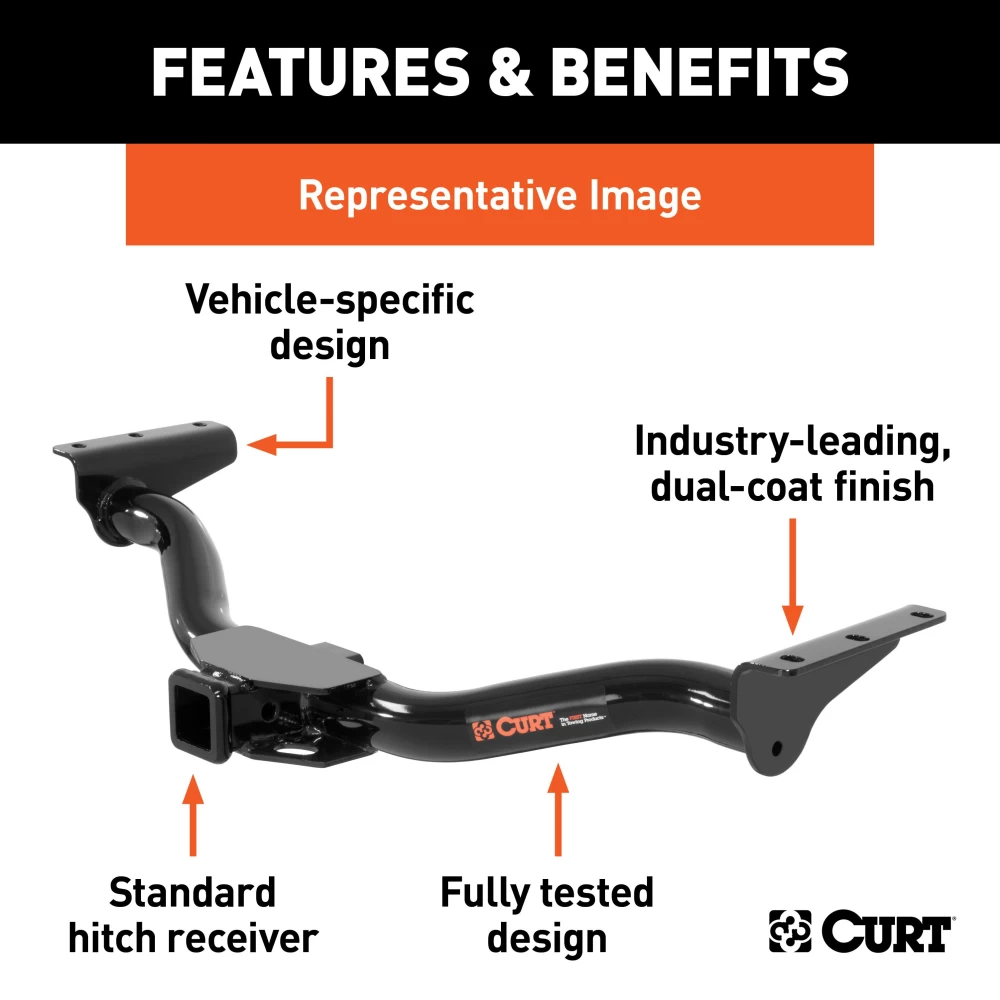

- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

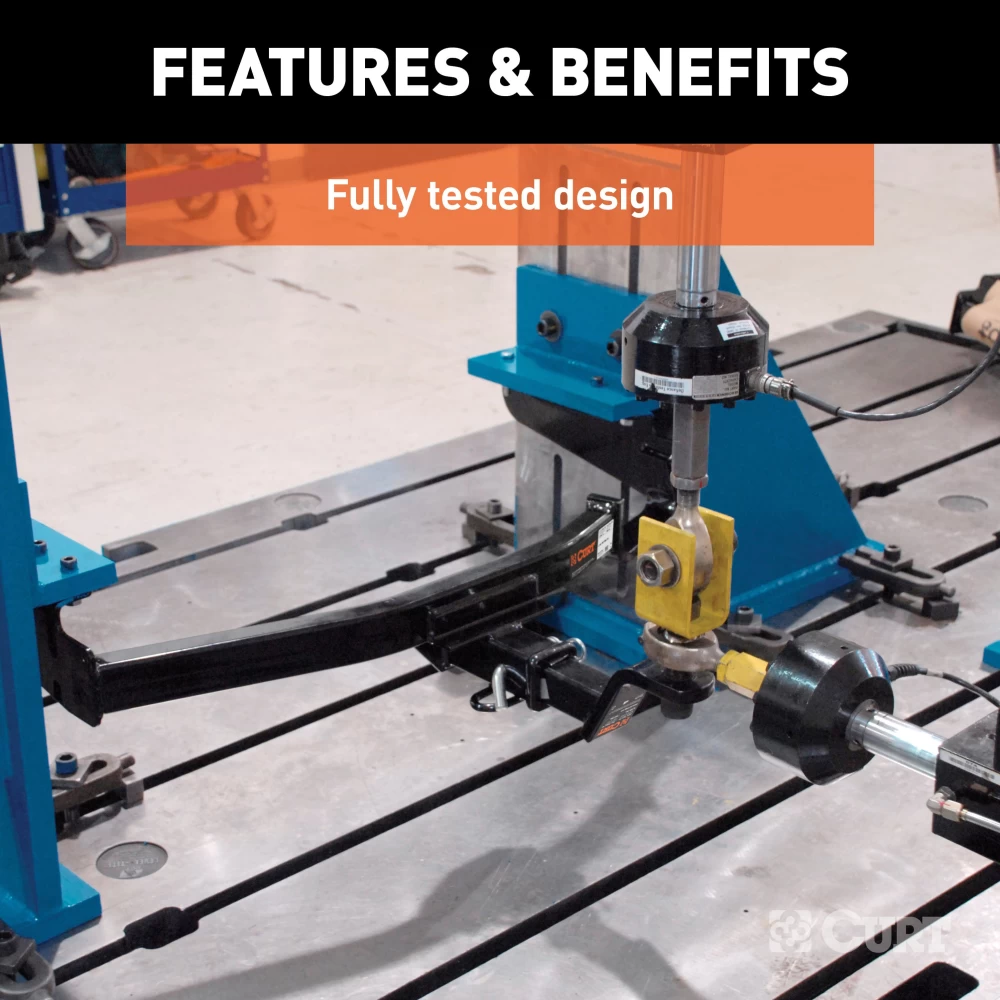

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$227 24 $354.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$354.95 $227 24
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $56.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13277-CH69
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Get Expert Help
For 2017-2025 Audi Q7 Trailer Hitch Fits Models w/ Existing USCAR 7-way Curt 13277 2 inch Tow Receiver Install Notes
Installation Instructions for Audi Q7 SUV (2017-Present)
Part Numbers:
- 13277
Tools Required:
- Ratchet
- 18mm Socket
- Torque Wrench
- 6" Socket Extension
- T25 Torx Bit
- Rotary Tool
- Masking Tape
- Tape Measure
- Plastic Panel Removal Tools
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Screws from Wheel Wells
- Use a T25 Torx bit screwdriver to remove four screws from each wheel well.
- Pull back the wheel liner to expose and remove one additional screw.
Step 2: Remove Underside Screws
- Use a T25 Torx bit to remove four screws from the bottom of each wheel well liner.
- Remove four screws from the middle underside area of the fascia.
Step 3: Remove Upper Trim and Expose Additional Screws
- Carefully remove the body trim piece at the upper wheel well.
- Remove two screws exposed using a T25 Torx bit.
- Use plastic body panel tools for ease of removal if necessary.
Step 4: Disconnect Electrical Connectors and Remove Bumper Fascia
- Disconnect all electrical connectors from lights and sensors along the bumper fascia.
- Gently pull off the bumper fascia, starting near the wheels and moving towards the trunk.
Step 5: Remove Bumper Beam
- Use an 18mm socket to remove four bolts on each side of the bumper beam.
- Remove the bumper beam and place the hitch on the end panel.
- Place the bumper beam on top of the hitch.
Step 6: Install the Hitch
- Raise the hitch and bumper beam into position, aligning the holes with the weldnuts.
- Loosely secure the hitch and bumper beam using the bolts removed in Step 5.
- Torque all bolts to 58 lb-ft.
Step 7: Trim the Fascia
- Unclip the kick sensor wire from inside the bumper fascia and move it away from the trim area.
- Measure the trim area on the fascia using the provided dimensions: 7.25" width, 3.50" height, and 1.75" depth.
- Mark the area with masking tape and trim the section using a rotary tool.
Step 8: Reinstall the Fascia
- Reinstall the fascia removed in Step 4.
- Reattach the kick sensor wire after the fascia is reinstalled.
Step 9: Recalibrate Sensors
- Note: Sensors may require additional dealer recalibration.
Hardware List:
- No additional hardware required; existing vehicle hardware is reused.
Safety Notes:
- Wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads must be supported by stabilizing straps (Part #18050) to prevent damage and voiding the warranty.
Specifications:
- Gross Trailer Weight: 7,000 lbs
- Tongue Weight: 700 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
Manufacturer Notes:
- For installation questions, contact CURT Technical Support at 877-287-8634.
- Visit www.curtmfg.com for additional information and helpful towing tips. Installation Instructions for Audi Q7 SUV (2017-Present)
Part Numbers:
- 13277
Tools Required:
- Ratchet
- 18mm Socket
- Torque Wrench
- 6" Socket Extension
- T25 Torx Bit
- Rotary Tool
- Masking Tape
- Tape Measure
- Plastic Panel Removal Tools
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Screws from Wheel Wells
- Use a T25 Torx bit screwdriver to remove four screws from each wheel well.
- Pull back the wheel liner to expose and remove one additional screw.
Step 2: Remove Underside Screws
- Use a T25 Torx bit to remove four screws from the bottom of each wheel well liner.
- Remove four screws from the middle underside area of the fascia.
Step 3: Remove Upper Trim and Expose Additional Screws
- Carefully remove the body trim piece at the upper wheel well.
- Remove two screws exposed using a T25 Torx bit.
- Use plastic body panel tools for ease of removal if necessary.
Step 4: Disconnect Electrical Connectors and Remove Bumper Fascia
- Disconnect all electrical connectors from lights and sensors along the bumper fascia.
- Gently pull off the bumper fascia, starting near the wheels and moving towards the trunk.
Step 5: Remove Bumper Beam
- Use an 18mm socket to remove four bolts on each side of the bumper beam.
- Remove the bumper beam and place the hitch on the end panel.
- Place the bumper beam on top of the hitch.
Step 6: Install the Hitch
- Raise the hitch and bumper beam into position, aligning the holes with the weldnuts.
- Loosely secure the hitch and bumper beam using the bolts removed in Step 5.
- Torque all bolts to 58 lb-ft.
Step 7: Trim the Fascia
- Unclip the kick sensor wire from inside the bumper fascia and move it away from the trim area.
- Measure the trim area on the fascia using the provided dimensions: 7.25" width, 3.50" height, and 1.75" depth.
- Mark the area with masking tape and trim the section using a rotary tool.
Step 8: Reinstall the Fascia
- Reinstall the fascia removed in Step 4.
- Reattach the kick sensor wire after the fascia is reinstalled.
Step 9: Recalibrate Sensors
- Note: Sensors may require additional dealer recalibration.
Hardware List:
- No additional hardware required; existing vehicle hardware is reused.
Safety Notes:
- Wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads must be supported by stabilizing straps to prevent damage and ensure safety.
Specifications:
- Gross Trailer Weight: 7,000 lbs
- Tongue Weight: 700 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
