Product Details
- Brand: Curt
- Model: 13397 56370-CH2279

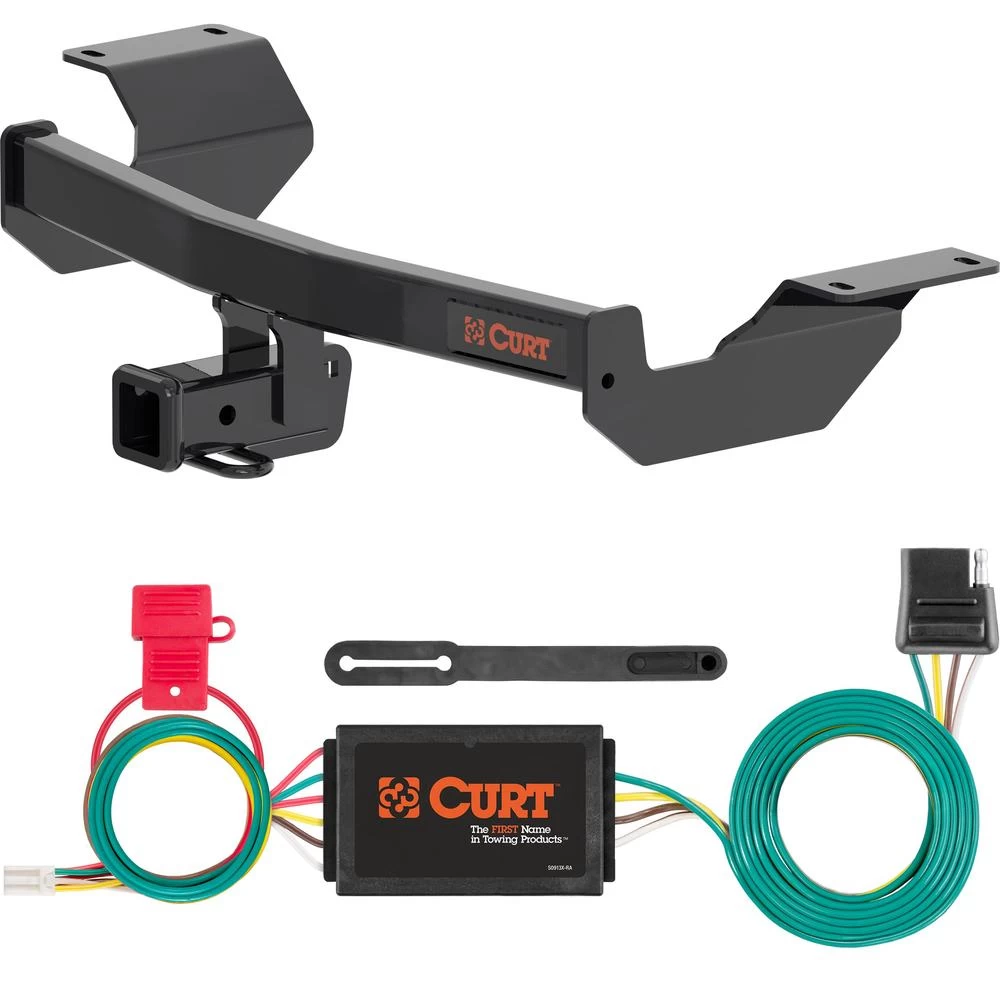

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 2017-2024 Honda CRV Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13397 56370 2 inch Tow Receiver Install Notes

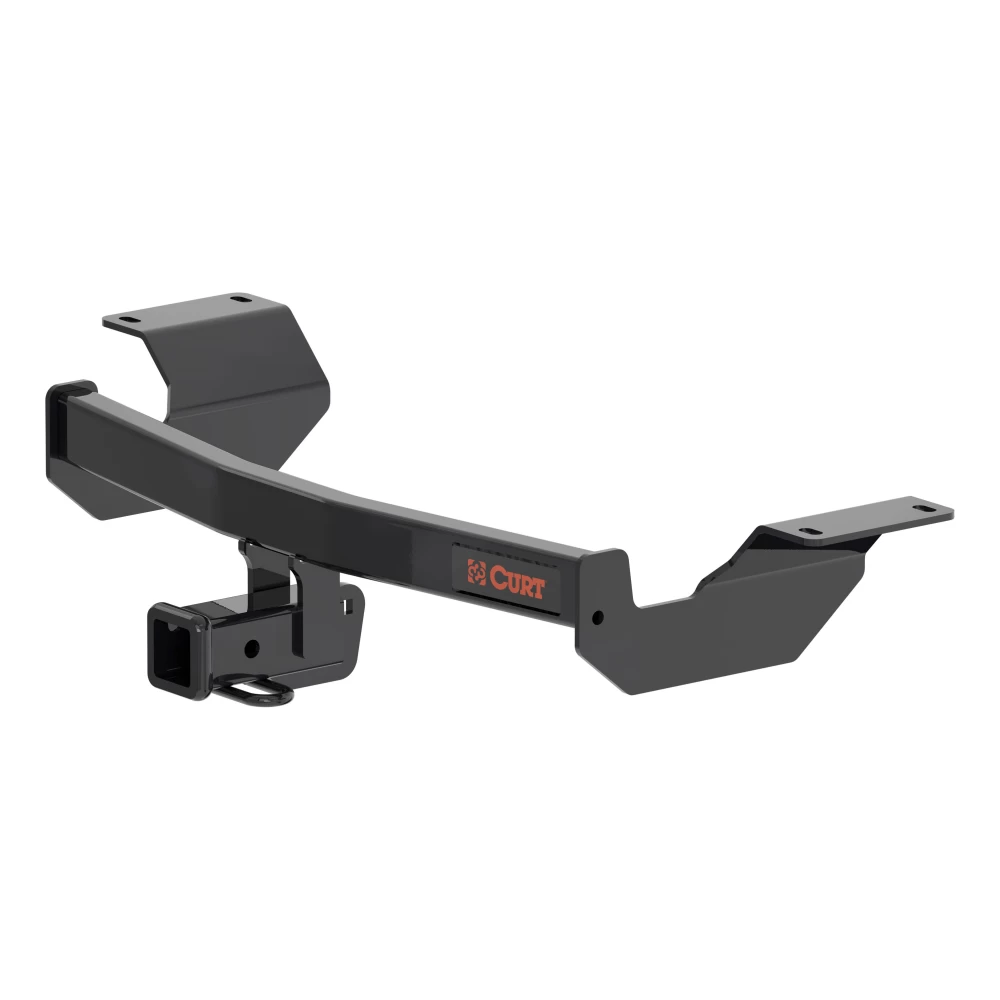

Installation Instructions for Honda CR-V SUV (2017-Present)
Part Numbers:
- 13397
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 11/16", 3/4"
- 6" Socket Extension
- Aviation Shears
- Masking Tape
- Screwdriver
- Electrical Tape
- Pry Bar
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Remove (3) rubber isolators from the exhaust near the rear of the vehicle.
- Remove (5) fasteners securing the lower fascia.
Step 2: Fishwire Hardware
- Fishwire (2) 7/16" carriage bolts and (2) CM-SP2 spacers through the vehicle access holes to the attachment holes on each side.
- Tip: Refer to the Fishwire Diagram for guidance.
Step 3: Trim the Lower Fascia
- Trim the lower fascia according to the Fascia Trim Diagram.
- CAUTION: Be mindful of electrical components while trimming.
- Trimming of the underbody panel may ease installation.
Step 4: Position and Secure the Hitch
- Raise the hitch into position and feed the fishwires through the corresponding holes in the hitch.
- Once the hitch is in place, remove the fishwires and loosely secure it with (2) 7/16" hex flange nuts on each side.
- Attach the Tow Loop Plate to the recovery loop using (1) 1/2" bolt, (1) CM-SP16 spacer, and (1) 1/2" hex flange nut.
Step 5: Torque Fasteners
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all 1/2" hardware to 110 ft-lbs.
Step 6: Reinstall Components
- Reinstall all items removed in Step 1, ensuring everything is secured properly.
Installation Complete
Hardware List:
- (2) 7/16"-14 x 1-1/4" Carriage Bolts
- (2) .250 x .88 x 2.25" Square Hole Spacers
- (2) 7/16"-14 Hex Flange Nuts
- (2) 7/16" Fishwires
- (1) 1/2"-13 x 2" Carriage Bolt
- (1) .250 x 1.50 x 2.00" Round Hole Spacer
- (1) 1/2"-13 Hex Flange Nut
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- WARNING: All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps (#18050). Failure to properly support such loads may void the product warranty.
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners remain tight and all components are secure.
Specifications:
- Trailer Weight (GTW): 3,500 lbs
- Tongue Weight (TW): 525 lbs
Need Assistance? Contact CURT Technical Support at 1-877-287-8634.
Installation Instructions for Honda CR-V SUV (2017-Present)
Part Numbers:
- 13397
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 11/16", 3/4"
- 6" Socket Extension
- Aviation Shears
- Masking Tape
- Screwdriver
- Electrical Tape
- Pry Bar
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Remove (3) rubber isolators from the exhaust near the rear of the vehicle.
- Remove (5) fasteners securing the lower fascia.
Step 2: Fishwire Hardware
- Fishwire (2) 7/16" carriage bolts and (2) CM-SP2 spacers through the vehicle access holes to the attachment holes on each side.
- Tip: Refer to the Fishwire Diagram for guidance.
Step 3: Trim the Lower Fascia
- Trim the lower fascia according to the Fascia Trim Diagram.
- CAUTION: Be mindful of electrical components while trimming.
- Trimming of the underbody panel may ease installation.
Step 4: Position and Secure the Hitch
- Raise the hitch into position and feed the fishwires through the corresponding holes in the hitch.
- Once the hitch is in place, remove the fishwires and loosely secure it with (2) 7/16" hex flange nuts on each side.
- Attach the Tow Loop Plate to the recovery loop using (1) 1/2" bolt, (1) CM-SP16 spacer, and (1) 1/2" hex flange nut.
Step 5: Torque Fasteners
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all 1/2" hardware to 110 ft-lbs.
Step 6: Reinstall Components
- Reinstall all items removed in Step 1, ensuring everything is secured properly.
Installation Complete
Hardware List:
- (2) 7/16"-14 x 1-1/4" Carriage Bolts
- (2) .250 x .88 x 2.25" Square Hole Spacers
- (2) 7/16"-14 Hex Flange Nuts
- (2) 7/16" Fishwires
- (1) 1/2"-13 x 2" Carriage Bolt
- (1) .250 x 1.50 x 2.00" Round Hole Spacer
- (1) 1/2"-13 Hex Flange Nut
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- WARNING: All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps. Failure to properly support such loads may void the product warranty.
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners remain tight and all components are secure.
Specifications:
- Trailer Weight (GTW): 3,500 lbs
- Tongue Weight (TW): 525 lbs
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions

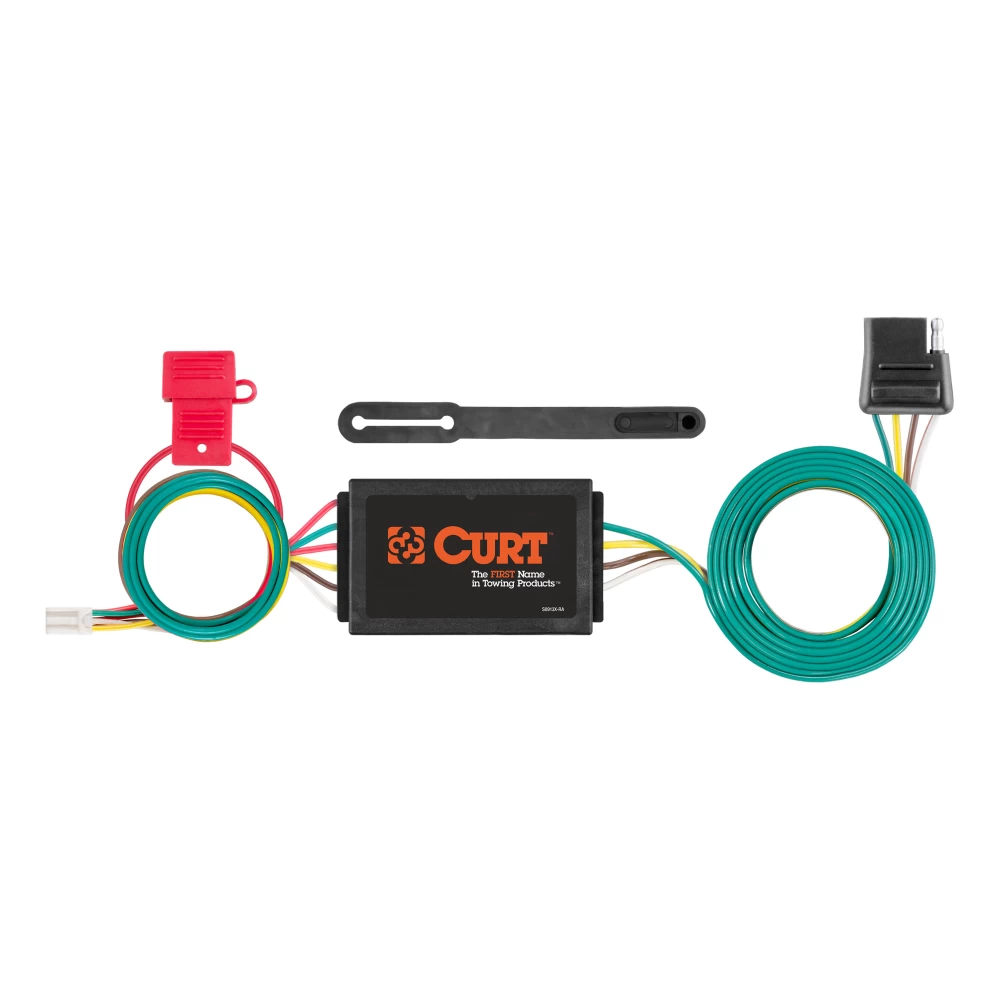

Installation Instructions for Honda CR-V
Part Number:
- 56370
Wiring Access Location:
- S3: Behind driver side rear access panel
Tools Required:
- Flat blade screwdriver
- Panel trim removal tool
- Phillips screwdriver
Step-by-Step Instructions:
-
Prepare the Cargo Area
- Open the vehicle tailgate.
- Remove all trunk floor coverings.
-
Remove the Rear Scuff Panel
- Remove the fasteners securing the rear scuff panel.
- Carefully pull out on the bottom of the scuff panel, then lift up to remove it, taking care not to damage the alignment tabs on the back.
-
Fold Rear Seats and Remove Cargo Tie Downs
- Fold both rear seats down.
- Locate and remove the two cargo tie downs from the rear seat floor panel.
- Remove the screw located under each cargo tie down cover.
-
Remove Storage Trim Panel
- Lift upwards to remove the storage trim panel located behind the rear seats.
-
Remove Center Ceiling Trim Panel
- Pull straight down to remove the center ceiling trim panel, ensuring not to damage any alignment tabs on the back.
-
Detach Side Trim Panel Fasteners
- Starting on the driver side, remove the push fasteners securing the side trim panel.
-
Access Rear Seat Fold Down Lever Screws
- Remove the small cover behind the rear seat fold down lever.
- Remove the two screws securing the side trim panel in place.
-
Locate Vehicle Trailer Connector
- Gently pull out on the interior side panels to locate the vehicle trailer connector behind the upper side-trim panel. Be cautious not to damage the alignment tabs on the back.
-
Connect the Custom Wiring Connector
- Locate the vehicle taillight wiring connector, which will be similar to the custom wiring connector.
- Insert the custom wiring connector into the vehicle connector, ensuring they are fully inserted with locking tabs in place.
-
Mount the Converter Box
- Find a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Insert the Fuse
- Insert the provided 10-amp fuse into the in-line fuse holder to complete the installation.
-
Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle Components
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom Wiring Connector
- Black Converter Box
- Double-Sided Tape
- 10-Amp Fuse
- Cable Ties
- 4-Flat Dust Cover
Safety Notes:
- The battery connection must be fuse-protected, 10-amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Manufacturer Notes:
- All steps must be followed to ensure the wiring connector functions properly.
- Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Installation Instructions for Vehicle Models
Part Number:
- 56370
Wiring Access Location:
- S3: Behind driver side rear access panel
Tools Required:
- Flat blade screwdriver
- Panel trim removal tool
- Phillips screwdriver
Step-by-Step Instructions:
-
Prepare the Cargo Area
- Open the vehicle tailgate.
- Remove all trunk floor coverings.
-
Remove the Rear Scuff Panel
- Remove the fasteners securing the rear scuff panel.
- Carefully pull out on the bottom of the scuff panel, then lift up to remove it, taking care not to damage the alignment tabs on the back.
-
Fold Rear Seats and Remove Cargo Tie Downs
- Fold both rear seats down.
- Locate and remove the two cargo tie downs from the rear seat floor panel.
- Remove the screw located under each cargo tie down cover.
-
Remove Storage Trim Panel
- Lift upwards to remove the storage trim panel located behind the rear seats.
-
Remove Center Ceiling Trim Panel
- Pull straight down to remove the center ceiling trim panel, ensuring not to damage any alignment tabs on the back.
-
Detach Side Trim Panel Fasteners
- Starting on the driver side, remove the push fasteners securing the side trim panel.
-
Access Rear Seat Fold Down Lever Screws
- Remove the small cover behind the rear seat fold down lever.
- Remove the two screws securing the side trim panel in place.
-
Locate Vehicle Trailer Connector
- Gently pull out on the interior side panels to locate the vehicle trailer connector behind the upper side-trim panel. Be cautious not to damage the alignment tabs on the back.
-
Connect the Custom Wiring Connector
- Locate the vehicle taillight wiring connector, which will be similar to the custom wiring connector.
- Insert the custom wiring connector into the vehicle connector, ensuring they are fully inserted with locking tabs in place.
-
Mount the Converter Box
- Find a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Insert the Fuse
- Insert the provided 10-amp fuse into the in-line fuse holder to complete the installation.
-
Route the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle Components
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom Wiring Connector
- Black Converter Box
- Double-Sided Tape
- 10-Amp Fuse
- Cable Ties
- 4-Flat Dust Cover
Safety Notes:
- The battery connection must be fuse-protected, 10-amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Manufacturer Notes:
- All steps must be followed to ensure the wiring connector functions properly.
- Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
