For 2017‑2024 Nissan TITAN Trailer Hitch Fits All Models Curt 13304 2 inch Tow Receiver
Model: 13304-CH3120This Trailer Tow Hitch Fits The Following Vehicles:
2017 - 2024 Nissan TITAN All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024

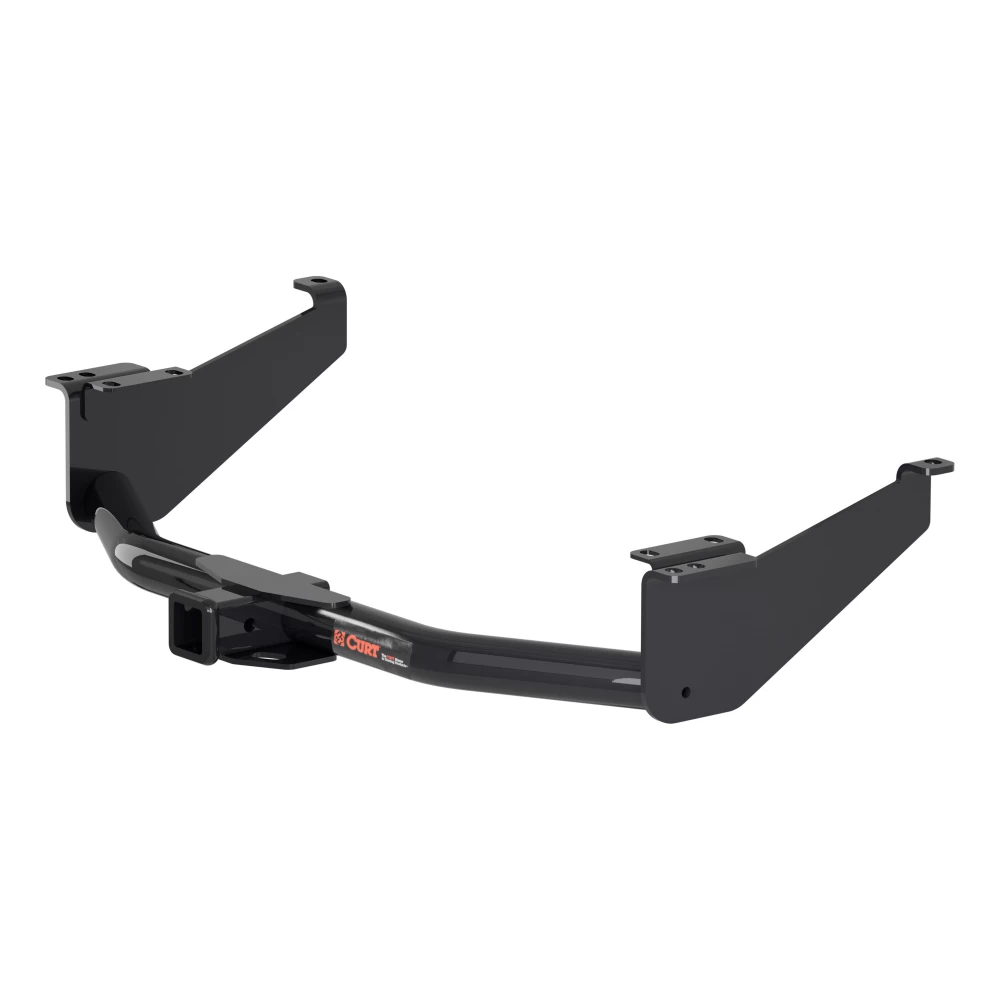

CURT 13304 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Nissan Titan (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 8,000 lbs GTW and 800 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 12,000 lbs WD and 1,200 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 8,000 lbs. gross trailer weight and 800 lbs. tongue weight
- Compatible with weight distribution hitch (12,000 lbs. WD / 1,200 lbs. WDTW)

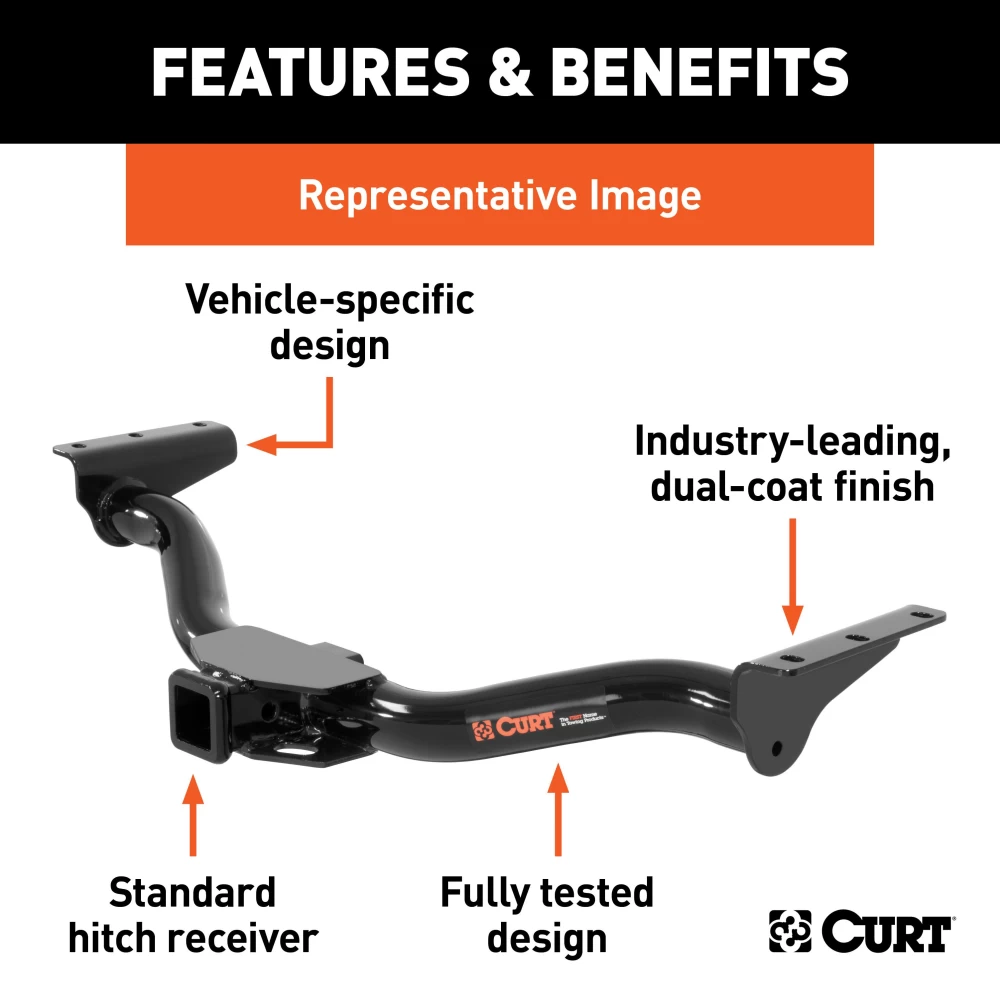

- Engineered with a vehicle-specific design for a custom fit

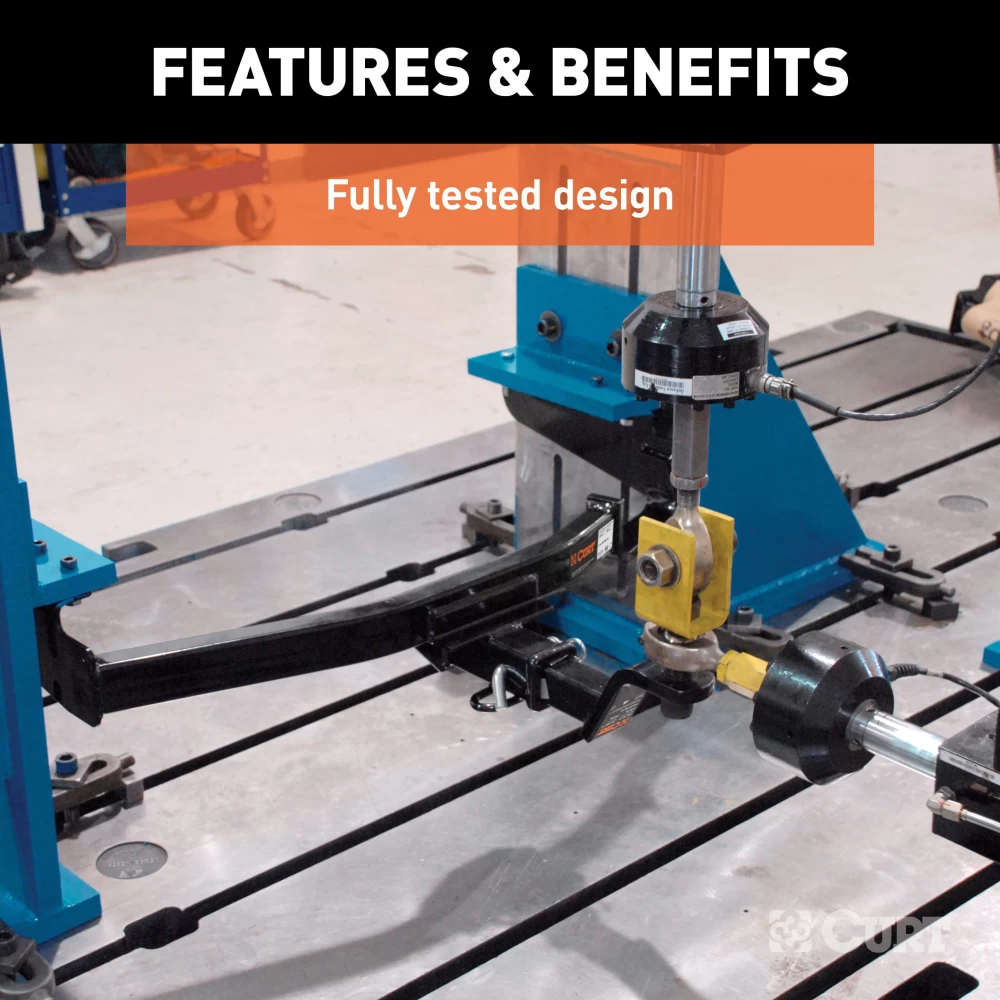

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

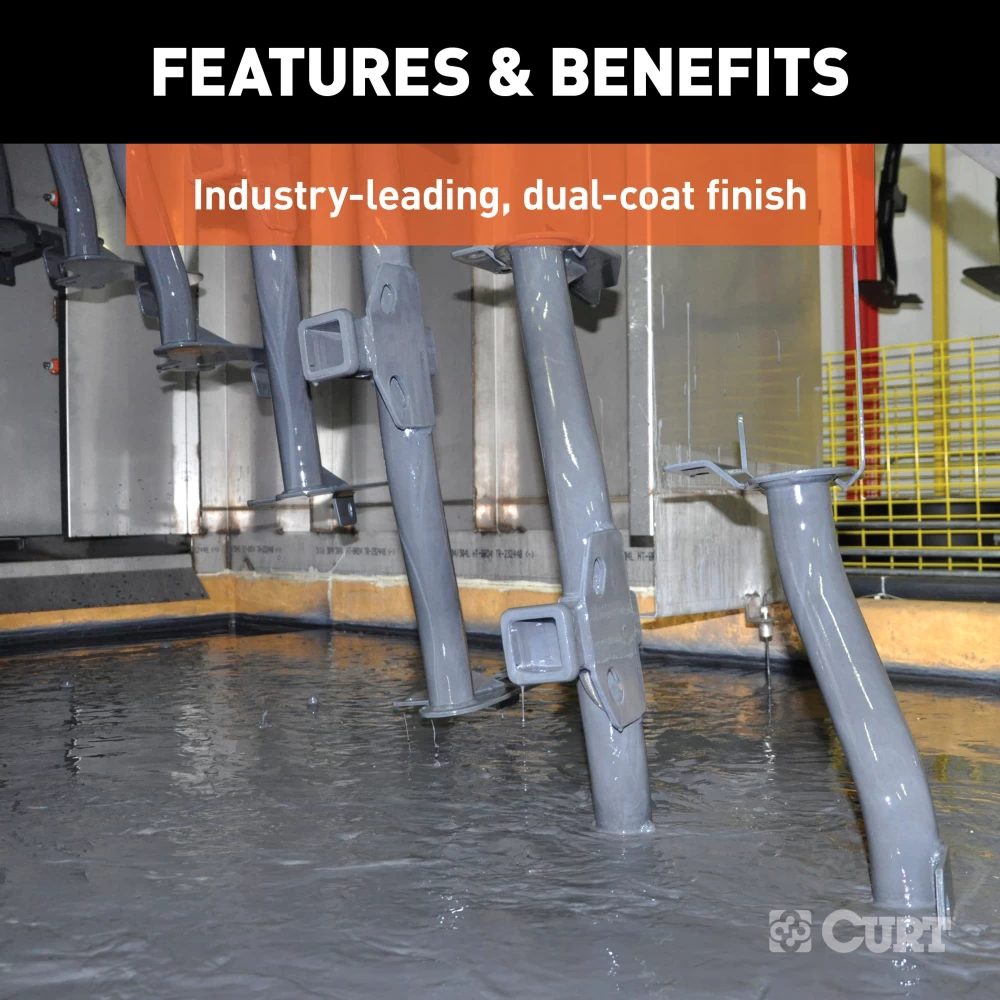

- Co-cured in a rust-resistant liquid A-coat, inside and out

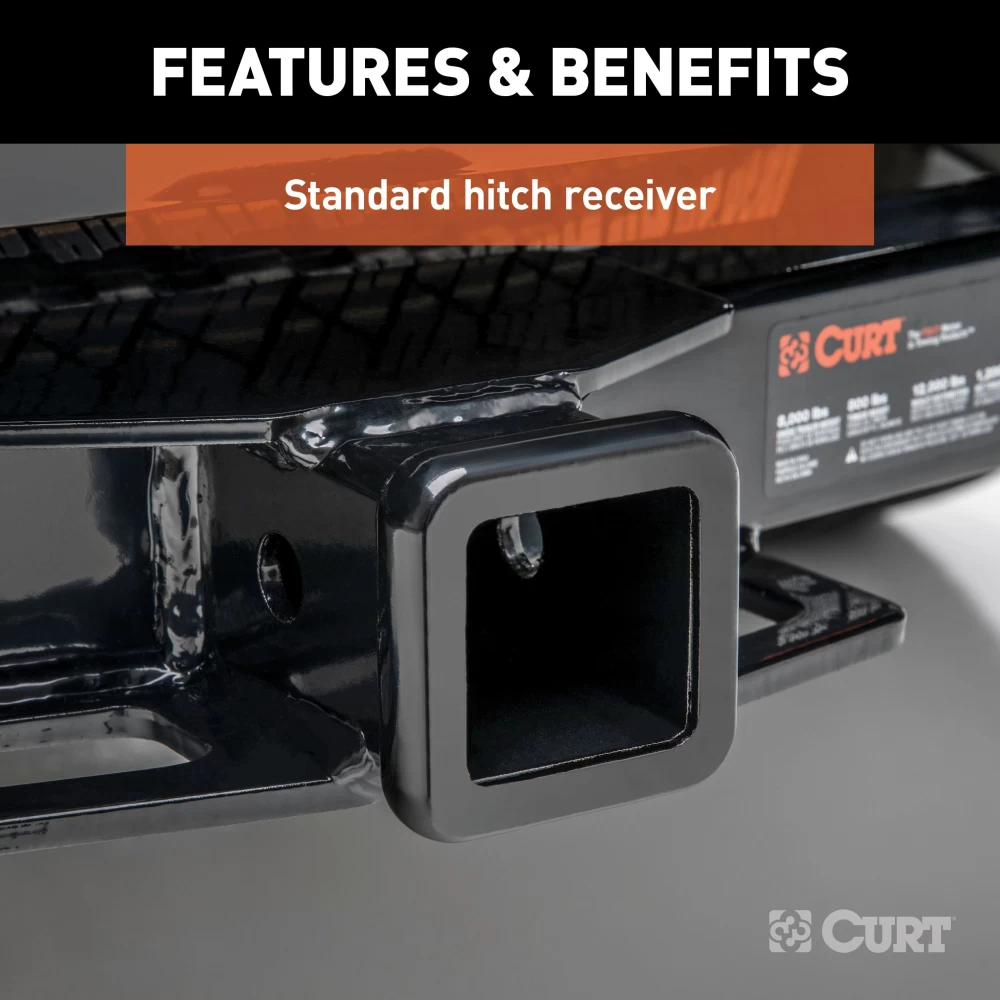

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$249 52 $390.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$390.95 $249 52
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13304-CH3120
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2017-2024 Nissan TITAN Trailer Hitch Fits All Models Curt 13304 2 inch Tow Receiver Install Notes
Installation Instructions for Nissan Titan (2017-Present)
Part Numbers:
- 13304
Tools Required:
- Ratchet
- Torque Wrench
- 17mm Socket
- 19mm Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Tow Hooks (If Equipped)
- If tow hooks are present, remove them from the vehicle and return the hooks and hardware to the vehicle owner.
Step 2: Position and Secure the Hitch
- Raise the hitch into position, aligning it with the existing weld nuts on the frame rails.
- Thread (10) M12 x 40mm bolts with conical washers into the existing weld nuts, ensuring all fasteners are properly aligned.
Step 3: Torque Fasteners
- Use a torque wrench to tighten all 12mm fasteners to 86 ft-lbs.
Installation Complete
Hardware List:
- (10) M12 x 1.25 x 40mm Hex Head Cap Screws
- (10) 1/2" Conical Washers
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and all structural components are sound.
- This product complies with safety specifications and requirements for connecting devices and towing systems under VESC Regulation V-5 and SAE J684.
Specifications:
- Weight Carrying Capacity: 8,000 lbs Trailer Weight, 800 lbs Tongue Weight
- Weight Distribution Capacity: 12,000 lbs Trailer Weight, 1,200 lbs Tongue Weight
Need Assistance? Contact CURT Technical Support at 1-877-287-8634.
Installation Instructions for Nissan Titan (2017-Present)
Part Numbers:
- 13304
Tools Required:
- Ratchet
- Torque Wrench
- 17mm Socket
- 19mm Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Tow Hooks (If Equipped)
- If tow hooks are present, remove them from the vehicle and return the hooks and hardware to the vehicle owner.
Step 2: Position and Secure the Hitch
- Raise the hitch into position, aligning it with the existing weld nuts on the frame rails.
- Thread (10) M12 x 40mm bolts with conical washers into the existing weld nuts, ensuring all fasteners are properly aligned.
Step 3: Torque Fasteners
- Use a torque wrench to tighten all 12mm fasteners to 86 ft-lbs.
Installation Complete
Hardware List:
- (10) M12 x 1.25 x 40mm Hex Head Cap Screws
- (10) 1/2" Conical Washers
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and all structural components are sound.
- This product complies with safety specifications and requirements for connecting devices and towing systems under VESC Regulation V-5 and SAE J684.
Specifications:
- Weight Carrying Capacity: 8,000 lbs Trailer Weight, 800 lbs Tongue Weight
- Weight Distribution Capacity: 12,000 lbs Trailer Weight, 1,200 lbs Tongue Weight
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
Warranty covers defects in material and workmanship for the duration specified by the manufacturer. For complete warranty instructions, please download the full installation PDF.
