For 2017‑2019 Ford Fusion Trailer Hitch Fits Sport Curt 12164 1‑1/4 Tow Receiver
Model: 12164-CH1786This Trailer Tow Hitch Fits The Following Vehicles:
2017 - 2019 Ford Fusion Sport
This Trailer Tow Hitch Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2017, 2018, 2019

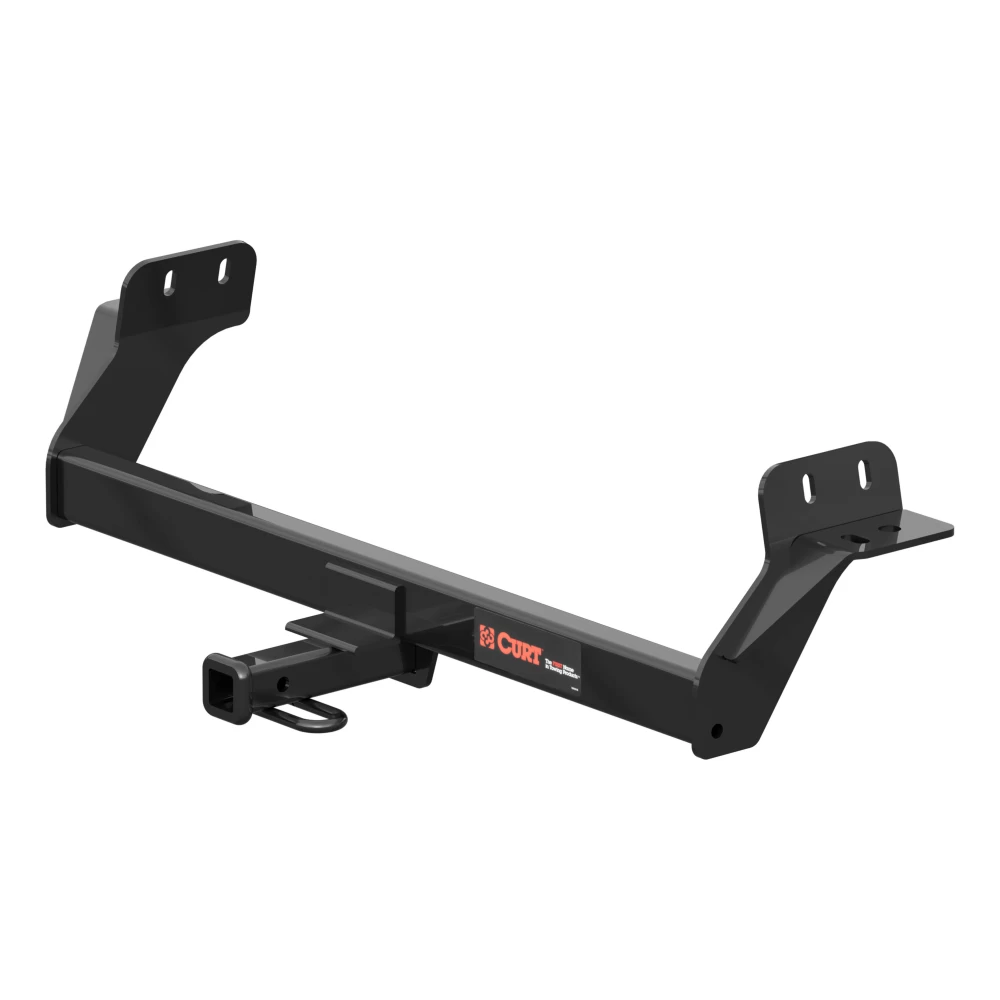

CURT 12164 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.
This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Fusion and Lincoln MKZ (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 350 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.

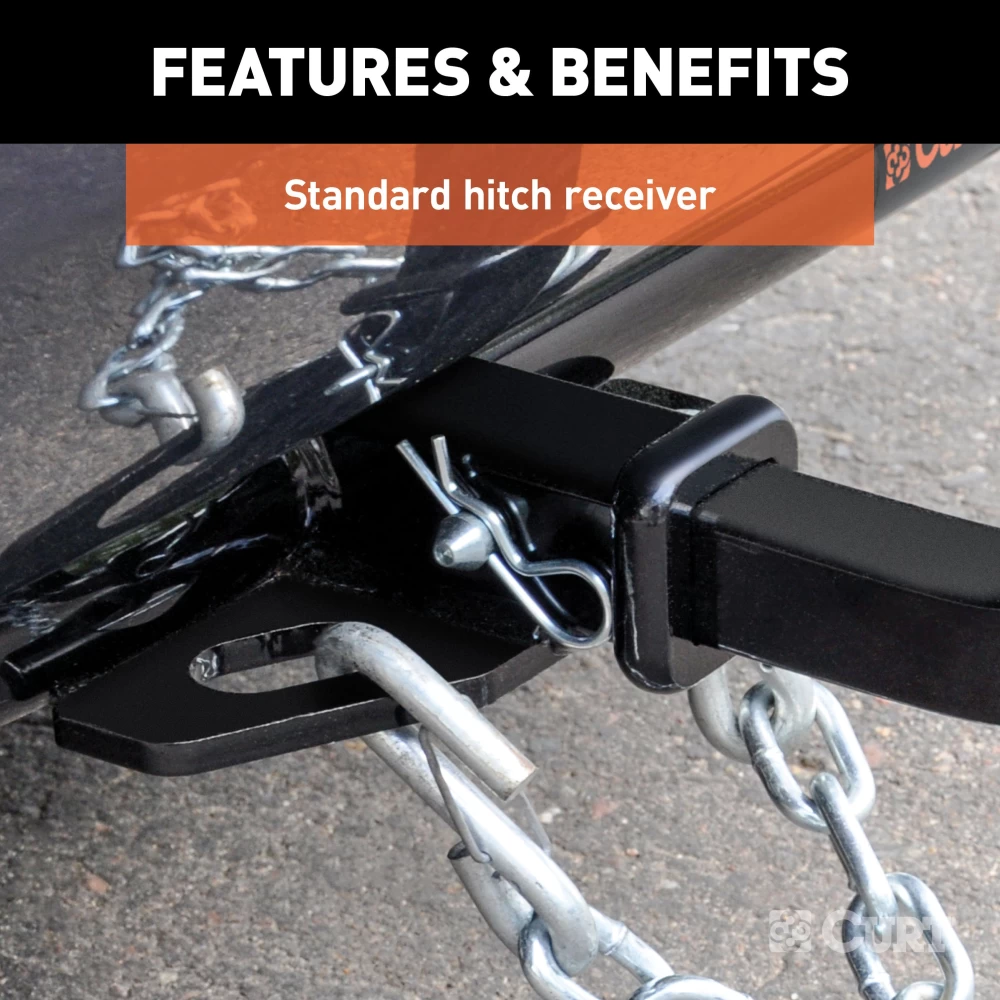

This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.

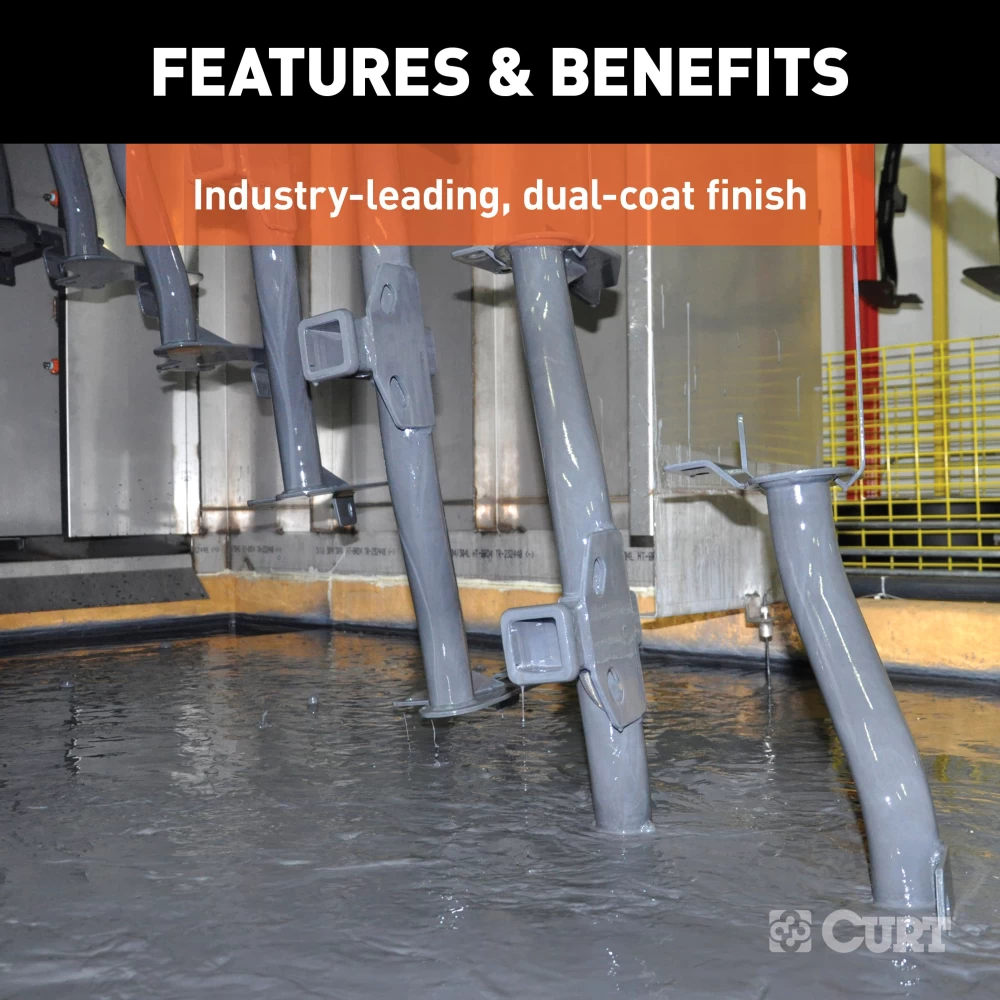

We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..

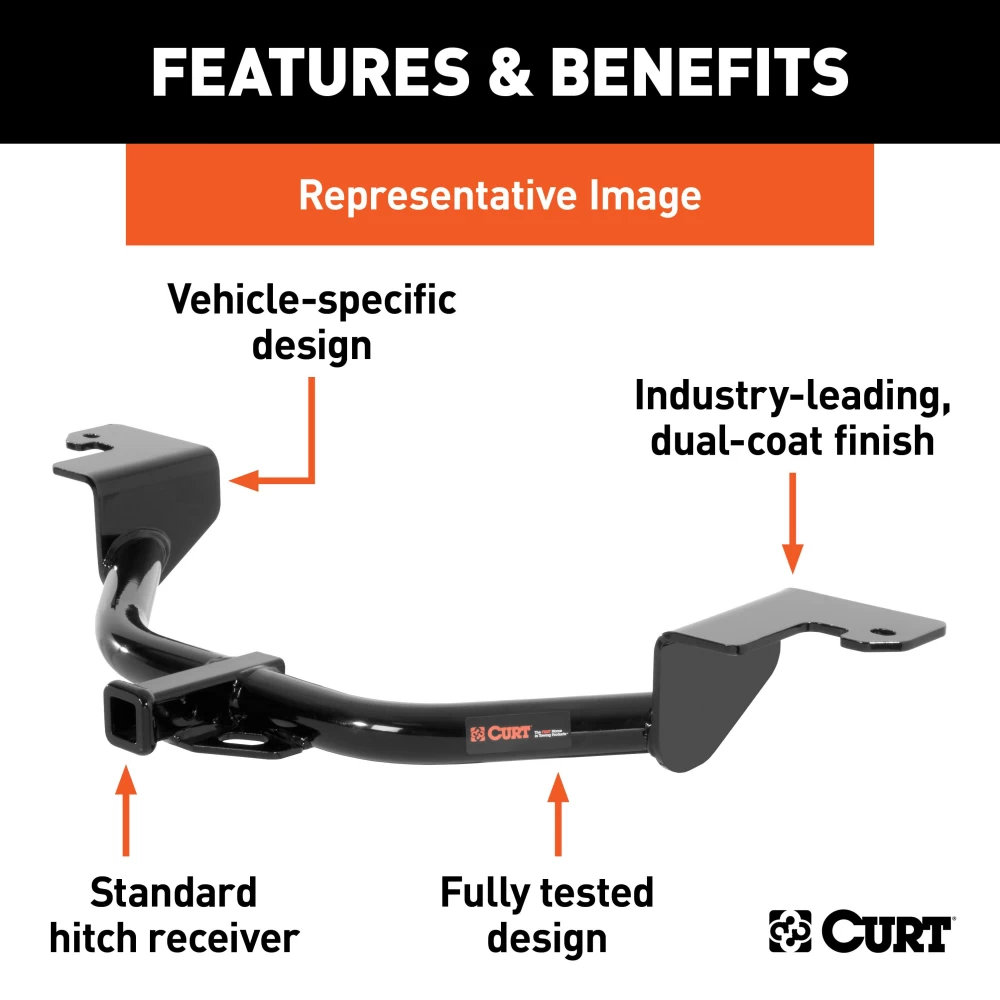

Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

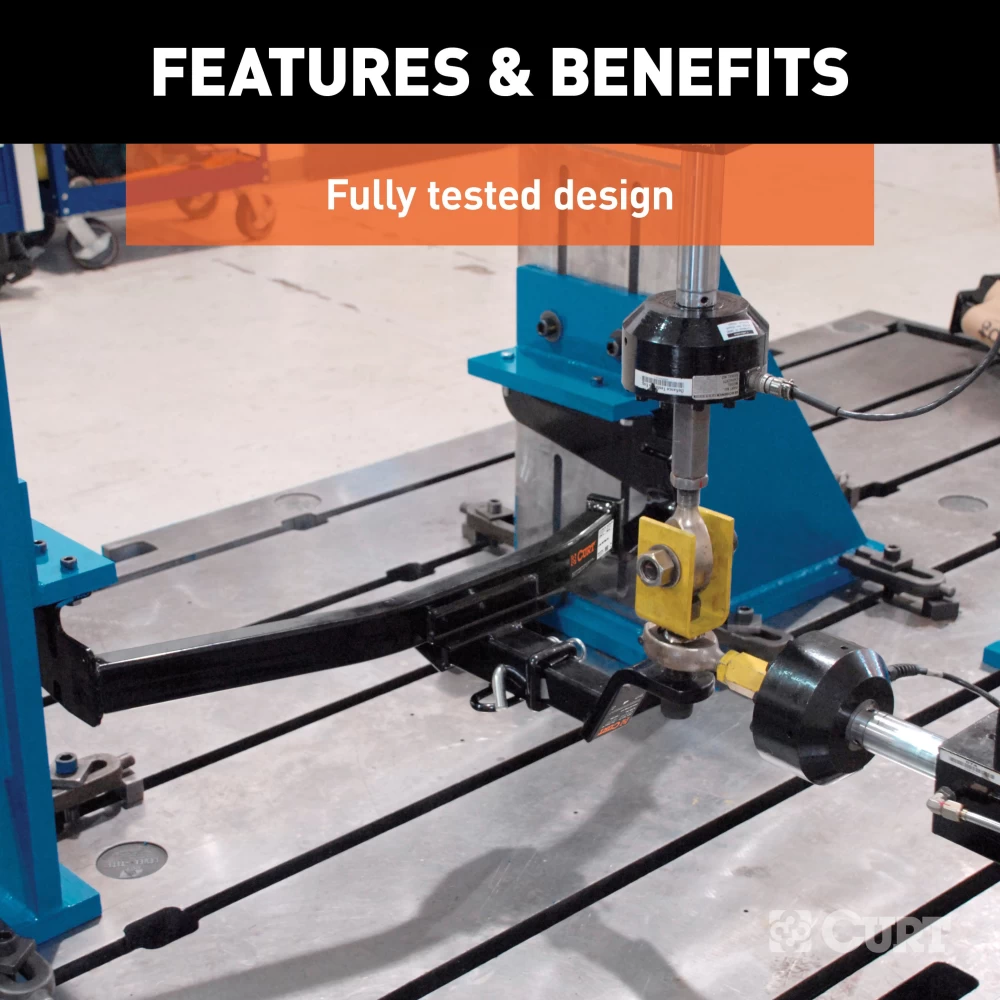

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$243 99 $367.95 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$367.95 $243 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12164-CH1786
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2017-2019 Ford Fusion Trailer Hitch Fits Sport Curt 12164 1-1/4 Tow Receiver Install Notes
Installation Instructions for Ford Fusion Sport / Lincoln MKZ 3.0T Sedan (2017-Present)
Part Numbers:
- 12164
Tools Required:
- 7mm Socket
- 10mm Socket
- 11/16" Socket
- 3/4" Socket
- Ratchet
- Torque Wrench
- Pry Bar
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the Lower Rear Air Deflector
- Remove three formed nuts and one plastic nut using a 10mm socket.
- Remove six screw-and-washer fasteners from the bumper fascia using a 7mm socket.
- Return the fascia piece and hardware to the vehicle owner.
Step 2: Lower the Muffler and Remove the Heat Shield
- Remove three exhaust hangers: one on each side and one in front of the muffler.
- Temporarily remove the heat shield by removing nine formed nuts using a 10mm socket.
Step 3: Fishwire the Hardware
- Fishwire the 1/2" bolts and spacer blocks through the access holes in both frame rails for the bottom frame holes.
- Fishwire the 7/16" bolts and spacer blocks through the same holes and into the side mounting holes.
- Leave the fishwires on all fasteners and keep the 7/16" bolts in the frame until the hitch is in position.
Step 4: Mount the Hitch
- Raise the hitch into position.
- Secure it using 1/2" flange nuts and 7/16" flange nuts with 3/4" and 11/16" sockets, respectively.
Step 5: Torque the Hardware
- Torque all 7/16" fasteners to 59 lb-ft.
- Torque all 1/2" fasteners to 110 lb-ft.
- Reinstall the heat shield and exhaust removed in Step 2.
Hardware List:
- (2) 1/2-13 UNC Carriage Bolts, 1-1/2"
- (2) 1/2-13 UNC Flange Nuts
- (2) .250 x 1.00 x 2.50" Square Hole Spacers
- (2) 1/2" Fishwire
- (4) 7/16-14 UNC Carriage Bolts, 1-1/4"
- (4) 7/16-14 UNC Flange Nuts
- (4) .250 x 1.00 x 2.50" Square Hole Spacers
- (4) 7/16" Fishwire
Safety Notes:
- Wear safety glasses during the installation process.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads must be supported by stabilizing straps to avoid damage and voiding of the warranty.
Specifications:
- Gross Trailer Weight: 3,500 lbs
- Tongue Weight: 350 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
