For 2018‑2024 Alfa Romeo Stelvio Trailer Hitch Except Quadrifoglio Curt 13391 2 inch Tow Receiver
Model: 13391-CH29This Trailer Tow Hitch Fits The Following Vehicles:
2018 - 2024 Alfa Romeo Stelvio Except Quadrifoglio
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2018, 2019, 2020, 2021, 2022, 2023, 2024
CURT 13391 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Alfa Romeo Stelvio (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 600 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

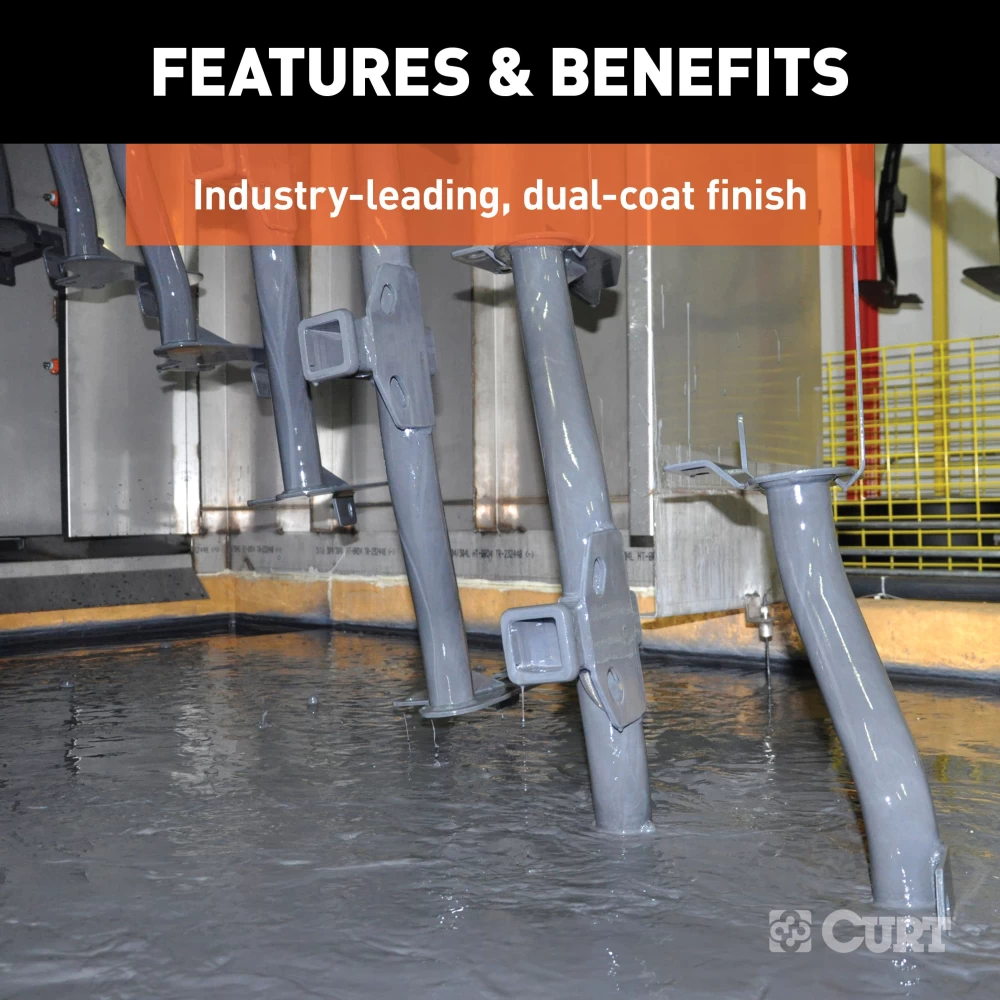

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

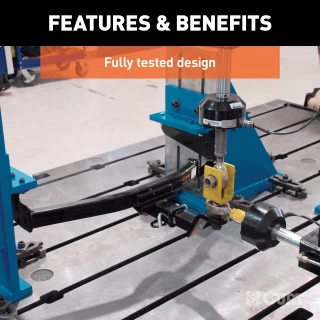

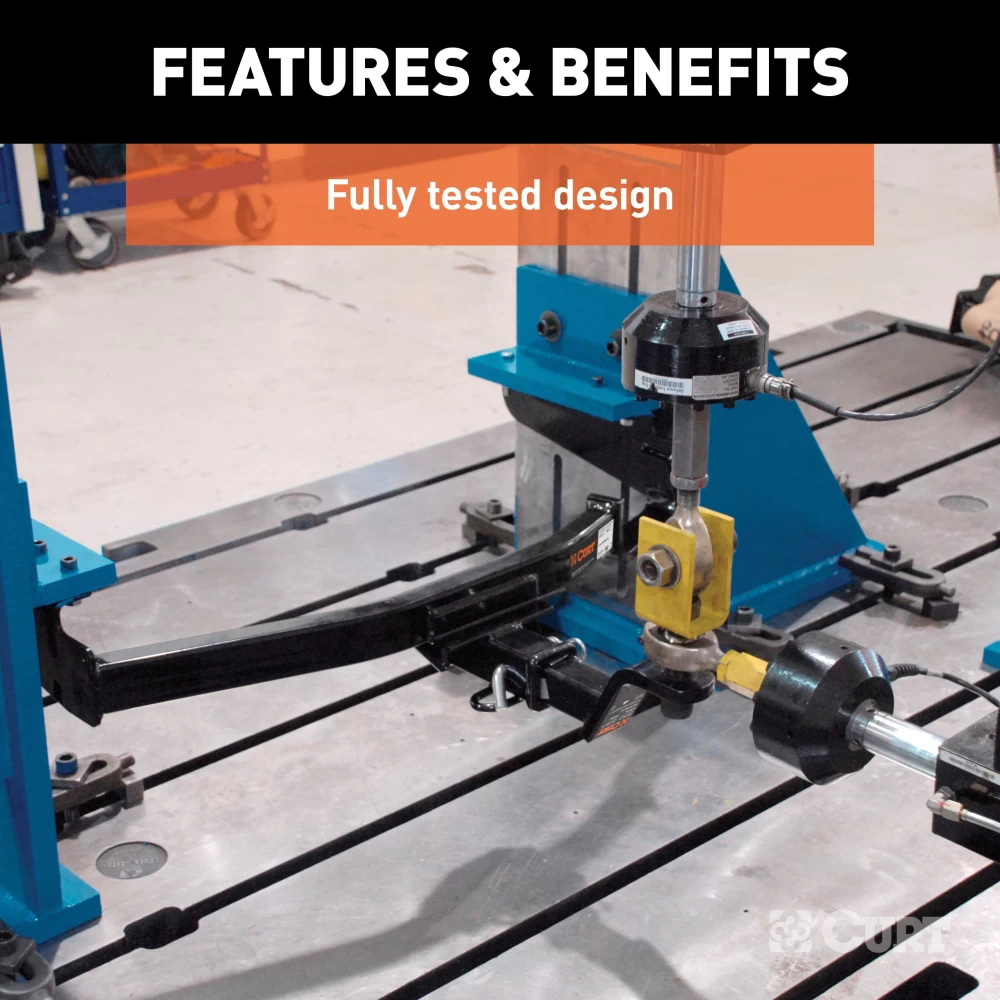

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$276 41 $434.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$434.95 $276 41
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13391-CH29
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2018-2024 Alfa Romeo Stelvio Trailer Hitch Except Quadrifoglio Curt 13391 2 inch Tow Receiver Install Notes
Installation Instructions for Alfa Romeo Stelvio (2018-Present)
Part Numbers:
- 13391
Tools Required:
- Ratchet
- T25 and T30 Torx Drivers
- 10mm and 3/4" Sockets
- 6" Socket Extension
- Rotary Tool
- Torque Wrench
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the underbody panels.
- Remove the underbody panels from both sides of the vehicle.
- Set the panels and fasteners aside for reinstallation in Step 5.
Step 2: Fishwire the rear-most hardware.
- Fishwire one 1/2" carriage bolt and one square-hole spacer through the enlarged access hole and out the rear-most hole on both frame rails.
- Reverse fishwire the remaining hardware into the other mounting holes in the bottom of the frame rails.
- Leave the fishwires attached for alignment during hitch installation.
Step 3: Position and secure the hitch.
- Raise the hitch into position, guiding the fishwires through the mounting holes on the hitch.
- Carefully remove the fishwires, ensuring the bolts stay in place.
- Loosely secure the hitch using the provided 1/2" hex flange nuts.
Step 4: Torque the hardware.
- Using a torque wrench, tighten all 1/2" hardware to 110 ft-lbs.
Step 5: Trim and reinstall the underbody panels.
- Trim the underbody panels following the provided trim diagram:
- Trim dimensions: 11" wide x 5" deep.
- Reinstall the trimmed underbody panels using the original fasteners.
Hardware List:
- (4) 1/2"-13 x 1-1/2" Carriage Bolts
- (4) 0.250" x 1.00" x 3.00" Square-Hole Spacers
- (4) 1/2"-13 Hex Flange Nuts
- (4) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are secure.
- Warning: Never exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Trailer Weight (GTW): 4,000 lbs
- Tongue Weight (TW): 600 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
