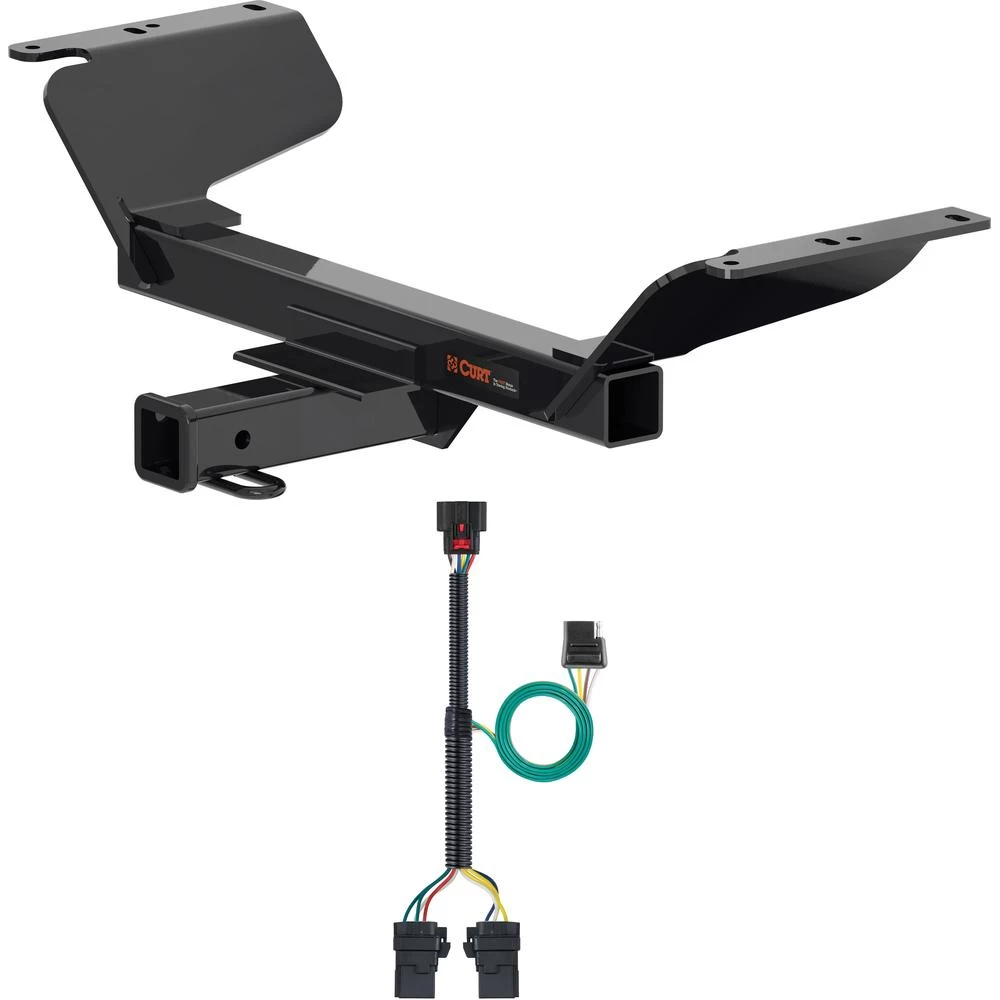

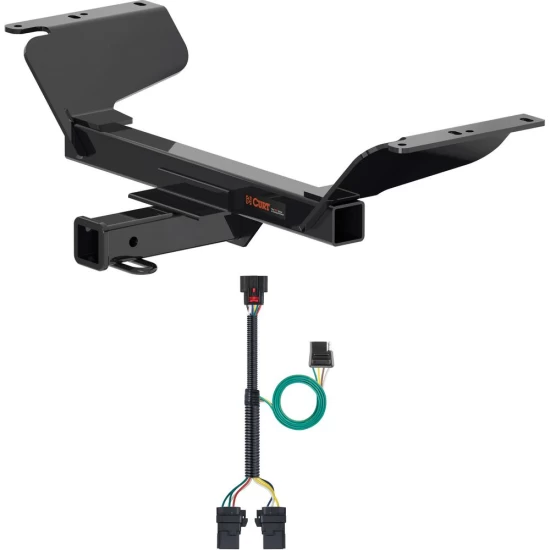

For 2018‑2024 Chevy Equinox Trailer Hitch + Wiring 4 Pin Except Diesel & Premier Curt 13439 56429 2 inch Tow Receiver
Model: 13439 56429-CH354This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2018 - 2024 Chevrolet Equinox Except Diesel & Premier
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2018, 2019, 2020, 2021, 2022, 2023, 2024
CURT 13439 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Chevy Equinox (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,500 lbs GTW and 675 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 4,500 lbs WD and 675 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,500 lbs. gross trailer weight and 675 lbs. tongue weight
- Compatible with weight distribution hitch (4,500 lbs. WD / 675 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

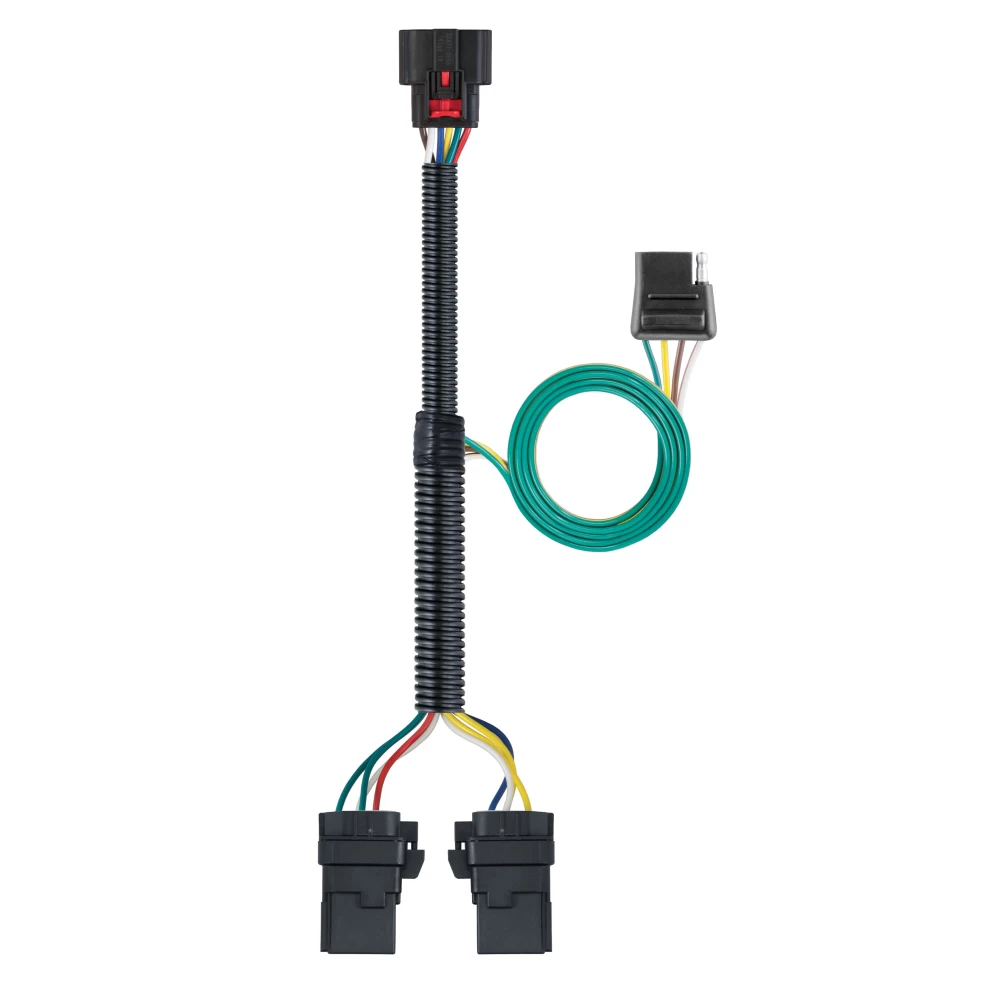

CURT 56429 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevrolet Equinox and GMC Terrain (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$208 80 $343.90 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$343.90 $208 80
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13439 56429-CH354
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Get Expert Help
For 2018-2024 Chevy Equinox Trailer Hitch + Wiring 4 Pin Except Diesel & Premier Curt 13439 56429 2 inch Tow Receiver Install Notes
Installation Instructions for Chevrolet Equinox / GMC Terrain (2018-Present)
Part Numbers:
- 13439
Tools Required:
- Ratchet
- 15mm and 3/4" Sockets
- 6" Socket Extension
- T15 Torx Bit
- Torque Wrench
- Rotary Tool
- Pry Bar
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the rear fascia screws.
- Locate and remove the two Torx screws securing the rear fascia using a T15 Torx bit.
- Set the screws aside for reinstallation.
Step 2: Lower the exhaust system.
- Use a 15mm socket to remove the four bolts (two per side) securing the rear exhaust hanger brackets.
- Support the exhaust system before proceeding to prevent damage.
Step 3: Enlarge the access holes.
- Remove the exhaust rubber isolator in front of the muffler to lower the exhaust further.
- Slightly enlarge the access holes on both the driver and passenger side frame rails using a rotary tool to fit the hardware.
Step 4: Fishwire the hardware.
- Using the provided fishwire tools:
- Guide one 1/2" carriage bolt and one square-hole spacer through the enlarged access hole to each of the three mounting holes on both frame rails.
- Leave the fishwires attached for alignment during hitch installation.
Step 5: Position and secure the hitch.
- Raise the hitch into position, aligning it with the mounted hardware.
- Secure the hitch using six 1/2" hex flange nuts.
- Remove the fishwires carefully to avoid dislodging the bolts.
Step 6: Torque the hardware.
- Tighten all 1/2" hardware to 110 ft-lbs using a torque wrench.
Step 7: Reinstall components.
- Raise the exhaust back into position and reattach the exhaust hanger brackets.
- Reinstall the Torx screws removed in Step 1.
Hardware List:
- (6) 1/2"-13 x 1-1/2" Carriage Bolts
- (6) 0.250 x 1.00 x 3.00" Square-Hole Spacers
- (6) 1/2"-13 Hex Flange Nuts
- (6) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain secure.
- Warning: Never exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 4,500 lbs
- Tongue Weight (TW): 675 lbs
- Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 4,500 lbs
- Tongue Weight (TW): 675 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Chevrolet Equinox and GMC Terrain
Part Numbers:
- 56429
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Flat blade screwdriver
- Cutting tool
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle's battery using the owner’s manual if necessary.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Locate the Vehicle Wiring Connector:
- Find the wiring connector along the rear bumper.
- Separate the vehicle connector from the weather seal connector, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Connector:
- Insert the custom wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted and the locking tabs are engaged.
-
Secure the Harness:
- Use zip ties to secure the harness in place.
- Mount the 4-flat near the hitch for easy access.
-
Reinstall and Test:
- Reinstall all items removed during installation.
- If the battery was disconnected, reconnect the negative terminal.
- Install the provided 4-flat dust cover to prevent corrosion.
- Test the harness for functionality using a test light, 4-flat tester, or functioning trailer.
Safety Notes:
- Warning: Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
- Verify that the harness is functioning before finalizing the installation.
Specifications:
- Signal circuits: 7.5 amps per side
- Tail/Running circuits: 7.5 amps total
Maintenance:
- Perform periodic inspections of all wires and connections to ensure there is no visible damage or loose connections.
Manufacturer Notes:
- Proper tools will improve installation quality and reduce the time required.
Installation Instructions for Vehicle
Part Numbers:
- 56429
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Flat blade screwdriver
- Cutting tool
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle's battery using the owner’s manual if necessary.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Locate the Vehicle Wiring Connector:
- Find the wiring connector along the rear bumper.
- Separate the vehicle connector from the weather seal connector, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Connector:
- Insert the custom wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted and the locking tabs are engaged.
-
Secure the Harness:
- Use zip ties to secure the harness in place.
- Mount the 4-flat near the hitch for easy access.
-
Reinstall and Test:
- Reinstall all items removed during installation.
- If the battery was disconnected, reconnect the negative terminal.
- Install the provided 4-flat dust cover to prevent corrosion.
- Test the harness for functionality using a test light, 4-flat tester, or functioning trailer.
Safety Notes:
- Warning: Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
- Verify that the harness is functioning before finalizing the installation.
Specifications:
- Signal circuits: 7.5 amps per side
- Tail/Running circuits: 7.5 amps total
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered by a limited warranty for a period of 1 year from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For complete warranty instructions, please download the full installation PDF.
