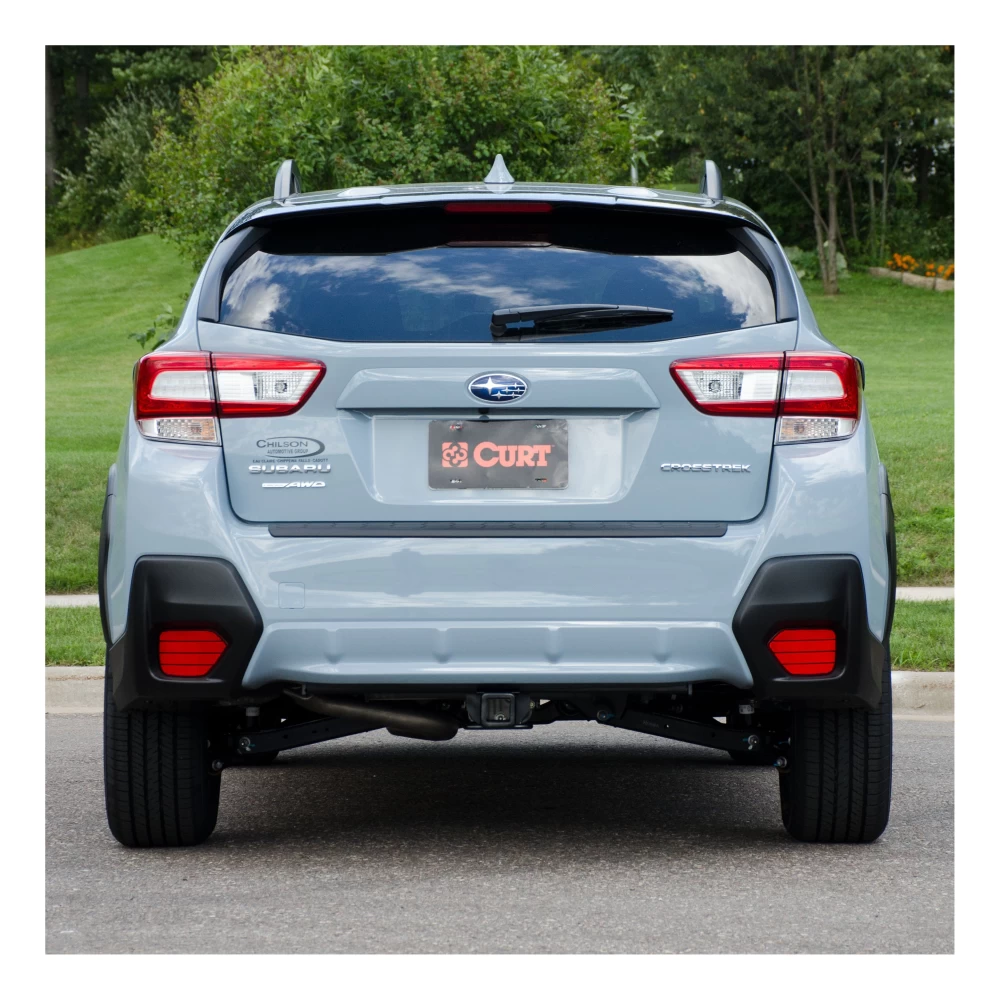

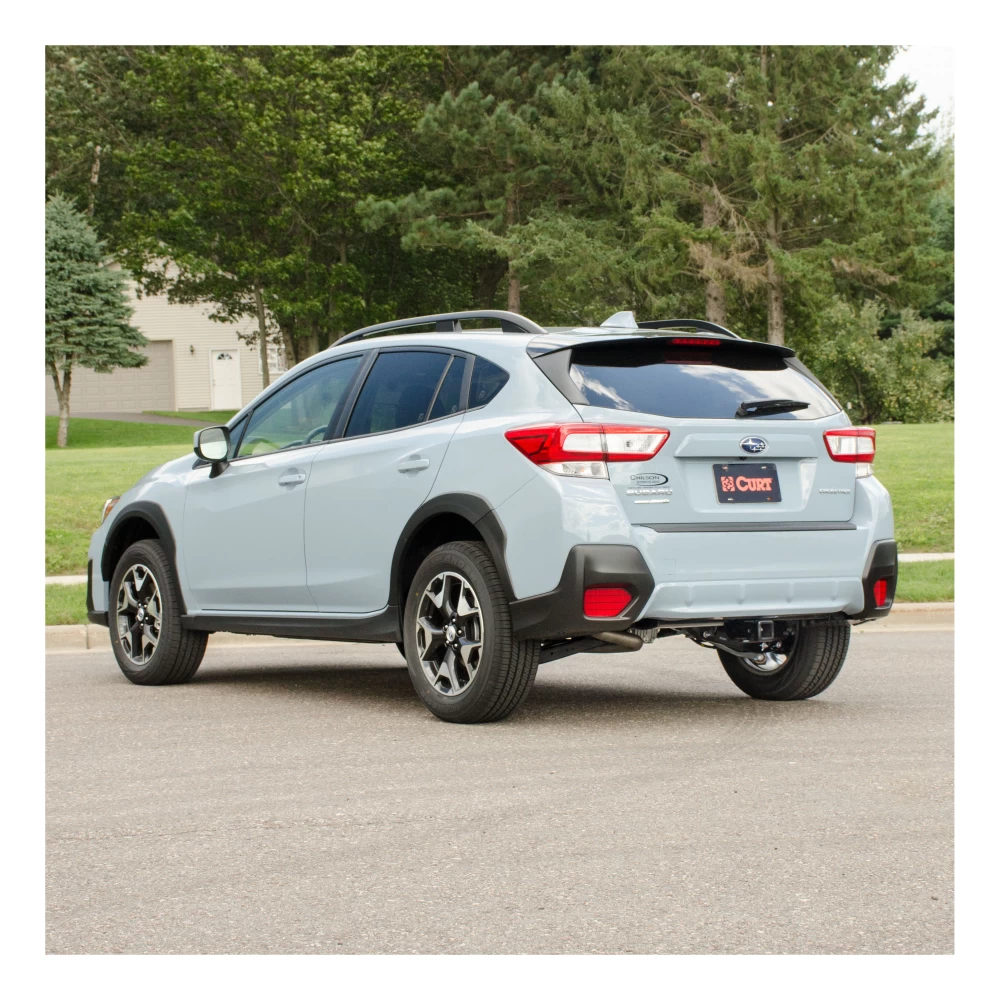

For 2018‑2024 Subaru Crosstrek Trailer Hitch Except Hybrid Curt 13382 2 inch Tow Receiver
Model: 13382-CH3437This Trailer Tow Hitch Fits The Following Vehicles:
2018 - 2024 Subaru Crosstrek Except Hybrid
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2018, 2019, 2020, 2021, 2022, 2023, 2024

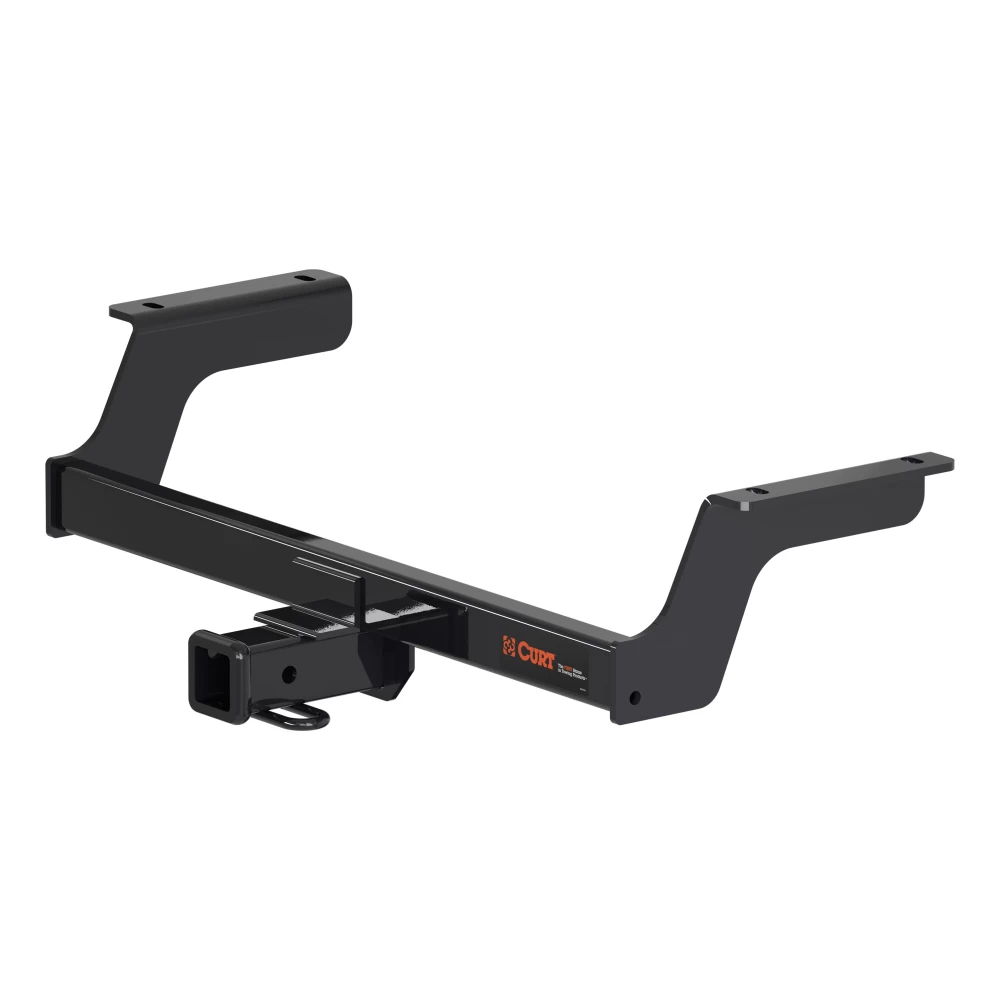

CURT 13382 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Subaru Crosstrek (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 525 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 525 lbs. tongue weight

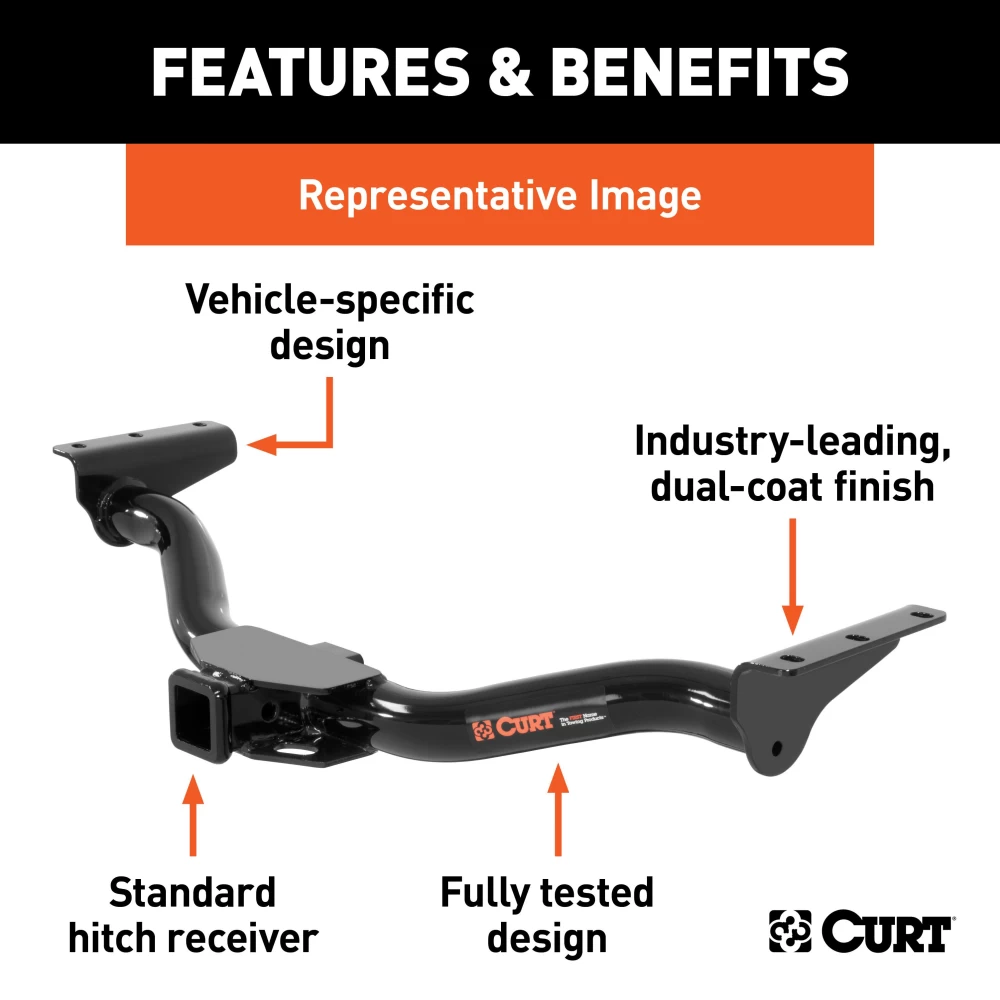

- Engineered with a vehicle-specific design for a custom fit

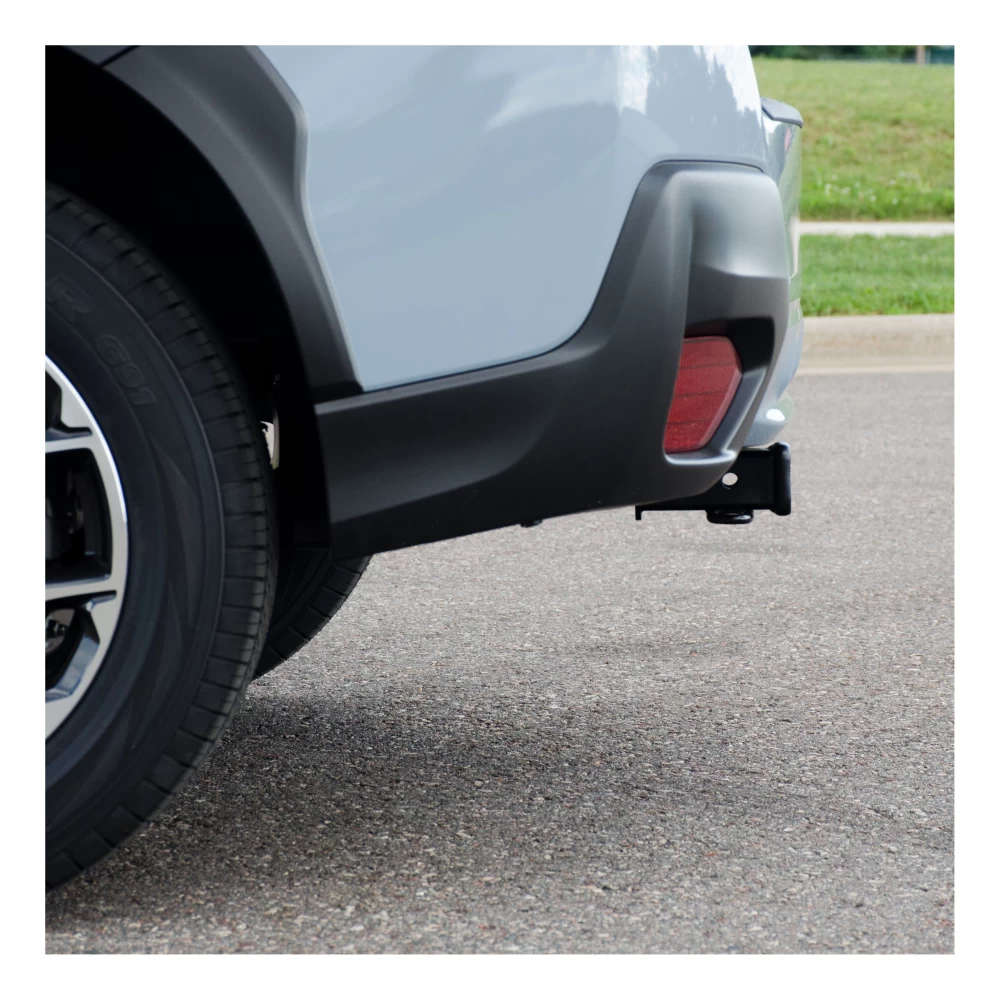

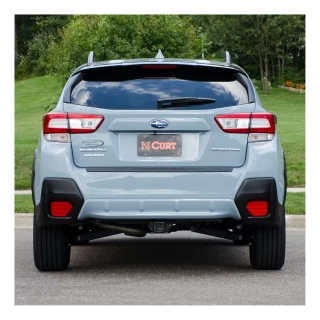

- Concealed main body for OE look and seamless integration with the vehicle

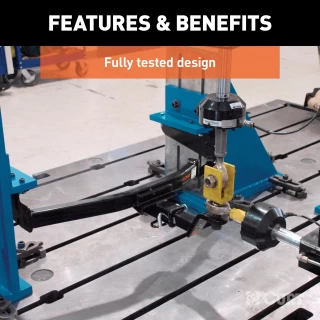

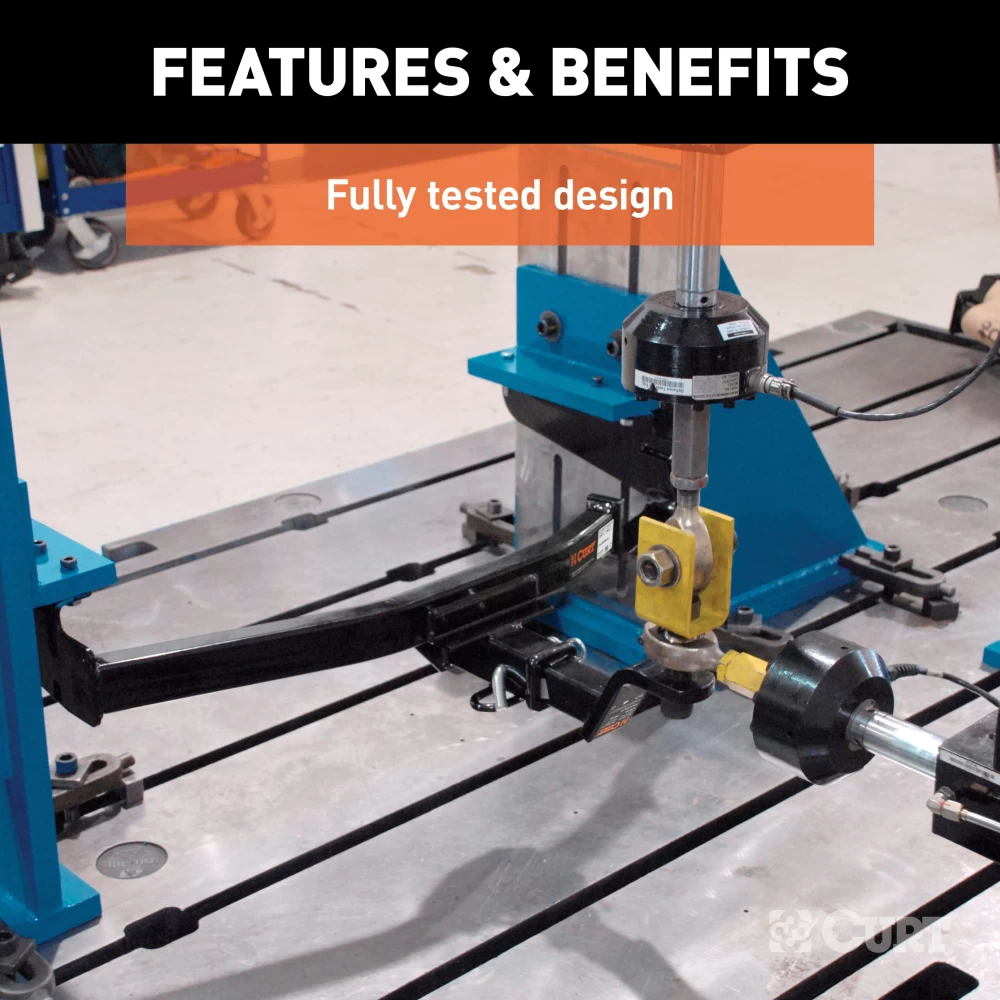

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

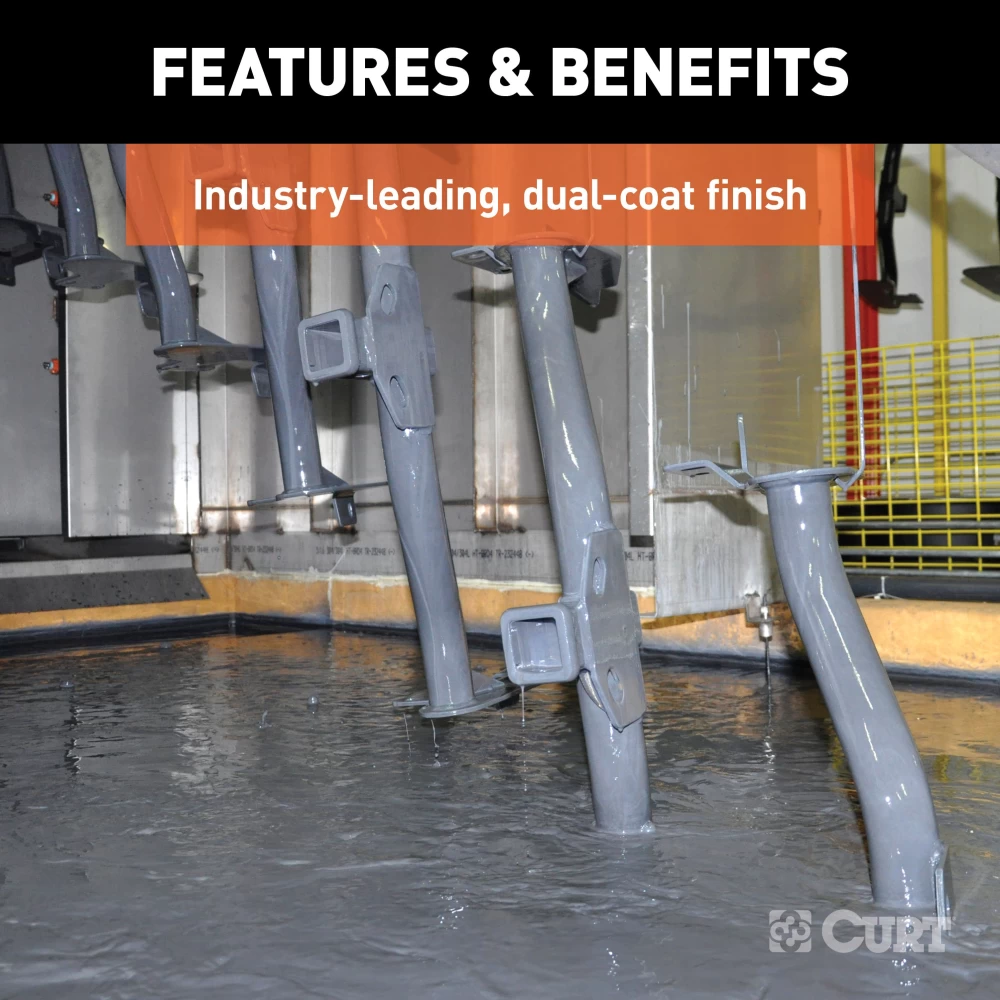

- Co-cured in a rust-resistant liquid A-coat, inside and out

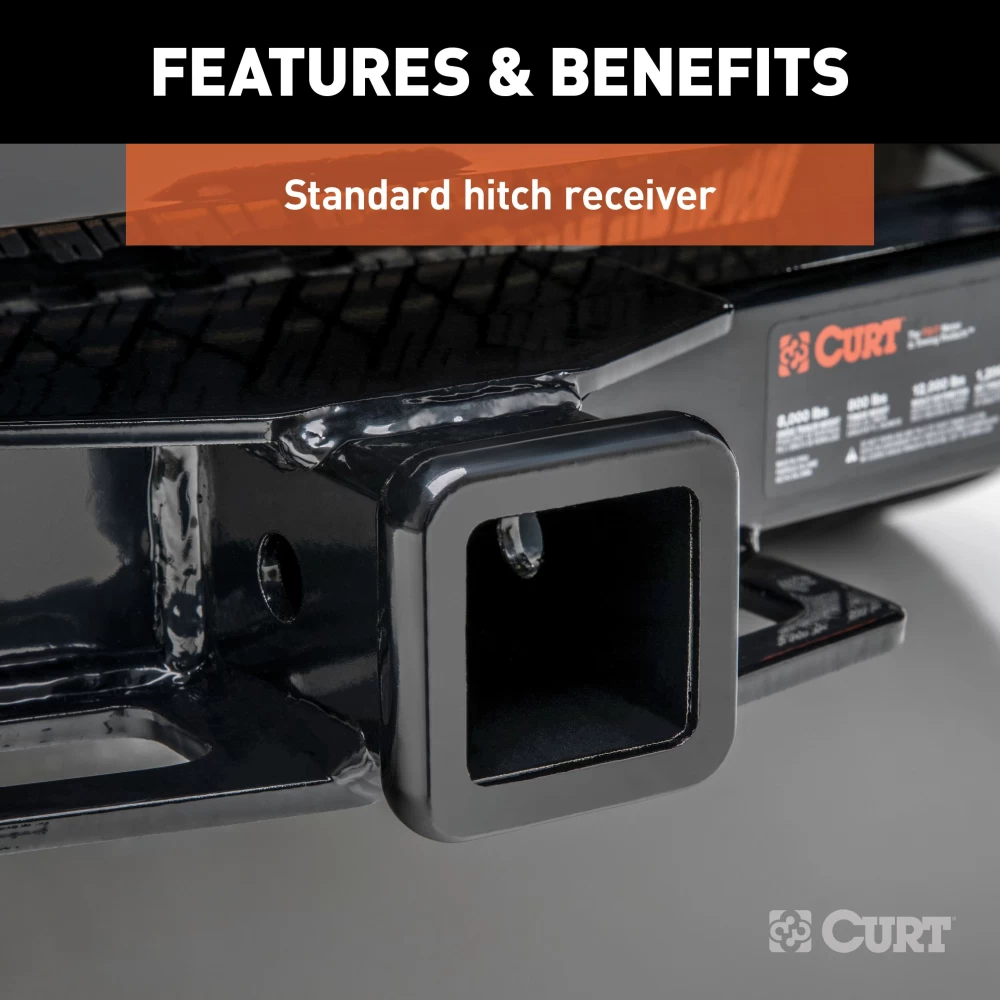

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$188 25 $291.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$291.95 $188 25
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $47.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13382-CH3437
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2018-2024 Subaru Crosstrek Trailer Hitch Except Hybrid Curt 13382 2 inch Tow Receiver Install Notes
Installation Instructions for Subaru Crosstrek (2018-Present)
Part Numbers:
- 13382
Tools Required:
- Ratchet
- 3/4" Socket
- Torque Wrench
- Die Grinder
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove rubber plugs from the frame rails.
- Remove two rubber plugs from each frame rail using a flat tool or your hands.
- Leave the center plugs in place.
- Return the removed plugs to the vehicle owner.
Step 2: Enlarge access holes and fishwire the hardware.
- Use a die grinder to enlarge the access holes on each frame rail to fit the 1/2" carriage bolts and spacers.
- Fishwire one 1/2" carriage bolt and one square-hole spacer into position through the access hole to the rear mounting hole on both frame rails.
- Reverse fishwire the remaining 1/2" carriage bolts and square-hole spacers into the access hole for proper alignment.
- Leave the fishwires attached to all hardware.
Step 3: Position and secure the hitch.
- Raise the hitch into position, aligning it with the mounting hardware.
- Use CM-SP16 round-hole spacers as needed to level the hitch.
- Carefully remove the fishwires and loosely secure the hitch using the provided 1/2" hex flange nuts.
- Avoid pushing the bolts back into the frame.
Step 4: Torque the hardware.
- Using a torque wrench, tighten all 1/2" hardware to 110 ft-lbs.
- Double-check that all hardware is secure.
Hardware List:
- (4) 1/2"-13 x 1-1/2" Carriage Bolts
- (4) 0.250 x 1.00 x 3.00" Square-Hole Spacers
- (4) 0.250 x 1.50 x 2.00" Round-Hole Spacers (for leveling as needed)
- (4) 1/2"-13 Hex Flange Nuts
- (4) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain sound.
- Warning: Never exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs
- Tongue Weight (TW): 525 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
