For 2018‑2023 Chevy Traverse Trailer Hitch + Wiring 5 Pin Fits Models w/ Existing USCAR 7‑way Curt 13433 2 inch Tow Receiver
Model: 13433 55384 57187 58303-CH656This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:
2018 - 2023 Chevrolet Traverse w/ Existing USCAR 7-way

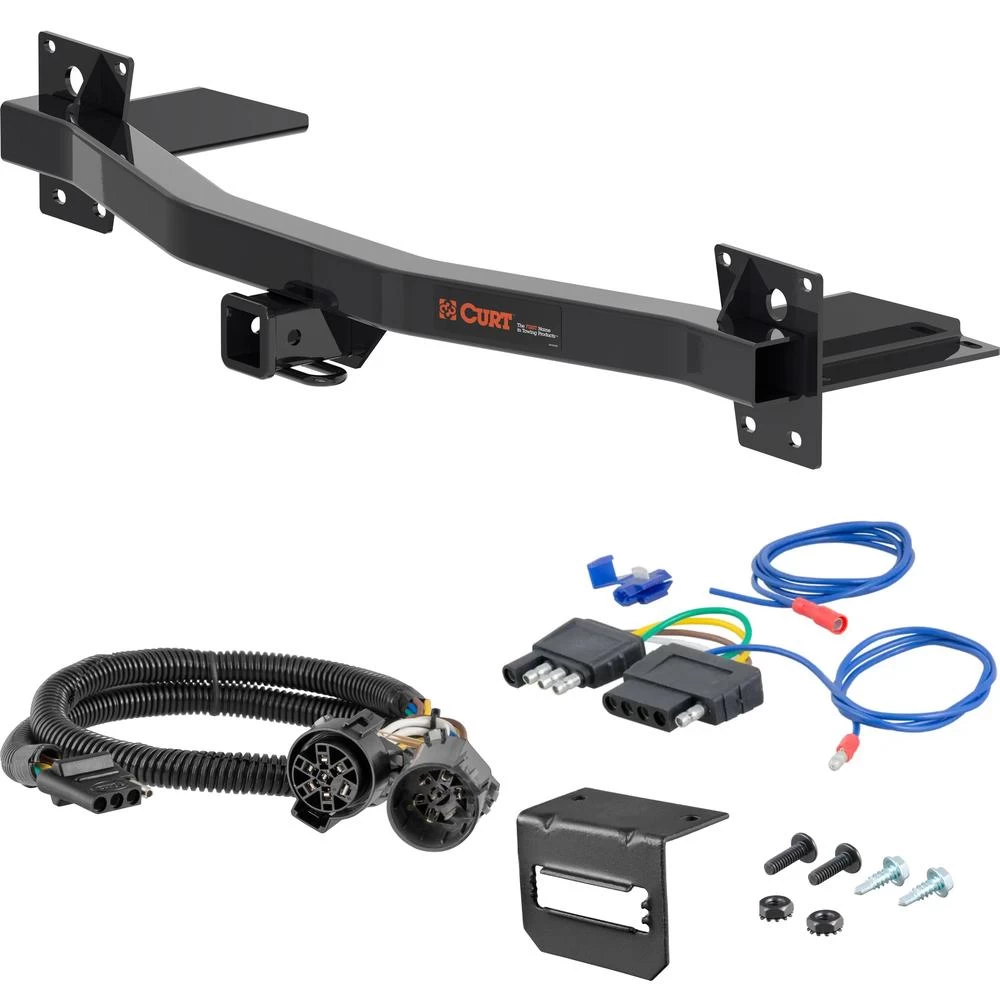

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Replacement OE 4-Way Flat Socket (T's into USCAR)
- 4-Way to 5-Way Flat Install Kit for Boat Trailer Surge and Connector Mounting Bracket for 5-Way Flat
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2018, 2019, 2020, 2021, 2022, 2023

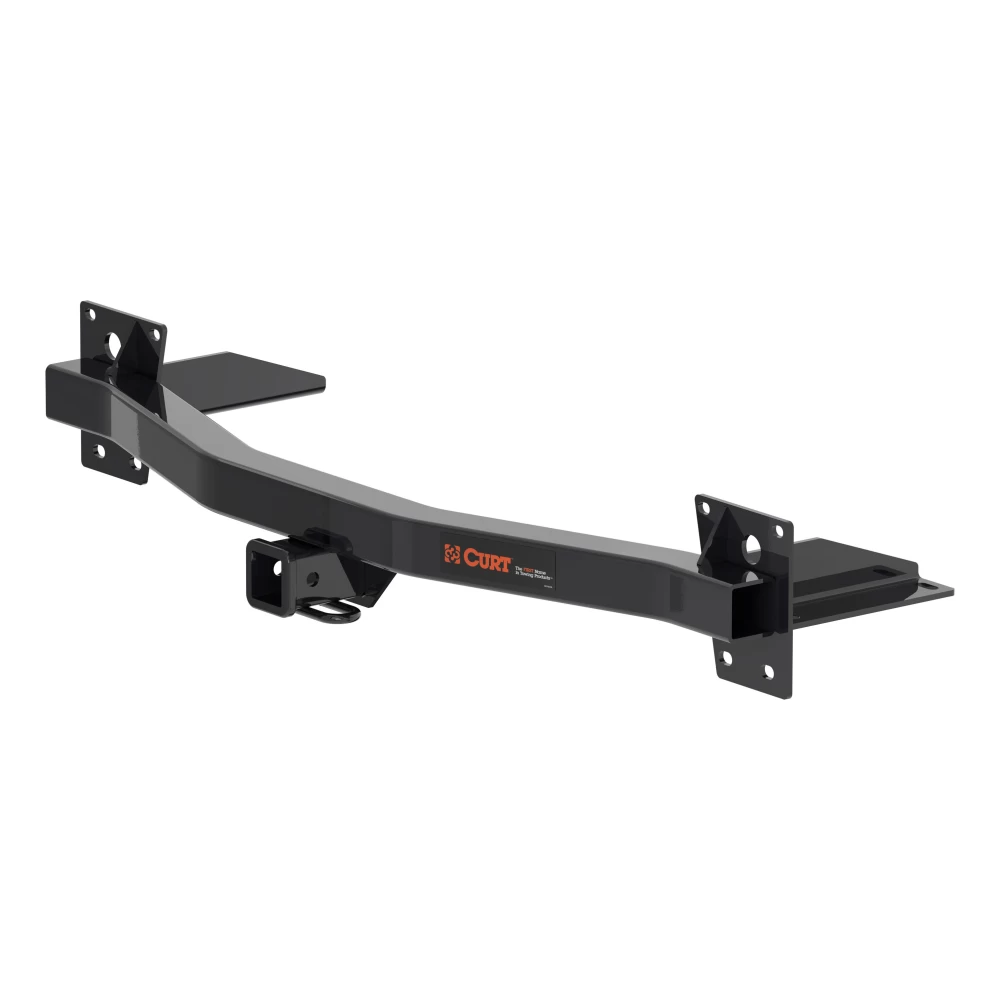

CURT 13433 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Chevy Traverse and Buick Enclave (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 5,000 lbs GTW and 750 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 750 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 5,000 lbs. gross trailer weight and 750 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 750 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55384 Replacement Vehicle-Side Custom USCAR 4-Pin Trailer Wiring Harness
Manufactured by: Curt
Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection.
They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring Though this special socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation.
Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket.
It is designed to be a custom wiring option for a variety of vehicles (see application info to verify fitment with your vehicle) It comes with a dust cover to keep the connector socket clean when not in use..
Features:
- Replacement OE 4-Way Flat Socket (T's into USCAR)
- Plugs into USCAR connection to add 4-way flat and retain use of existing socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
CURT 57187 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes and CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around; they can get tangled up with cargo and even damaged An electrical connector left to hang off the back end of your vehicle is an even greater hazard.
Secure, protect, and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch using the included hardware.
This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 5-way flat trailer plug It is specifically intended for boat trailers with surge brakes, adding in a fifth wire for the reverse lights and allowing your vehicle's 4-way flat to easily plug into your boat trailer 5-way flat This boat trailer wiring adapter features durable molded plastic construction and requires some splicing.
All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..
Features:
- Adapts vehicle 4-way flat to plug into boat trailer 5-way flat
- Intended for boat trailers with surge brakes
- Fifth wire splices in to connect reverse lights
- Adapts 4-way flat vehicle socket to fit 5-way flat trailer plugs
- Durable molded plastic housing resists corrosion
- Securely mounts a 5-way flat connector socket
- Allows for attachment to the vehicle or trailer hitch
- Constructed from high-strength steel
- Protected by a durable black powder coat finish
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$282 89 $397.80 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$397.80 $282 89
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13433 55384 57187 58303-CH656
- Includes: Class 3 Trailer Tow Hitch, Replacement OE 4-Way Flat Socket T's into USCAR), 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help
For 2018-2023 Chevy Traverse Trailer Hitch + Wiring 5 Pin Fits Models w/ Existing USCAR 7-way Curt 13433 2 inch Tow Receiver Install Notes
Installation Instructions for Chevrolet Traverse / Buick Enclave (2018-Present)
Part Numbers:
- 13433
Tools Required:
- Ratchet
- 7mm, 15mm, and 3/4" Sockets
- 6" Socket Extension
- T15 and T20 Torx Bits
- Torque Wrench
- Screwdriver
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the rear fascia.
- Open the tailgate and pry open the four plastic covers below the taillights.
- Remove four screws (two on each side) using a 7mm socket.
- Remove two screws connecting the bottom edge of the fascia to the metal support tabs using a T20 socket.
- Remove eight screws securing the wheel well liner to the fascia using a T15 socket (four on each side).
- Gently pull back the wheel well trim and remove two screws (one on each side) connecting the fascia to the vehicle body with a 7mm socket.
- Starting from the wheel well, gently pull off the fascia and unplug any attached wiring.
Step 2: Remove the bumper beam.
- Use a 15mm socket to remove four M10 nuts (two on each side) from the top bumper attachments. Set the nuts aside for reinstallation.
- Remove four M10 bolts (two on each side) from the bottom bumper attachments. These bolts also secure the exhaust hangers, so ensure the exhaust is supported before removal.
- Return the bumper beam and bolts to the vehicle owner.
Step 3: Install the hitch.
- Raise the hitch into position over the bumper studs.
- Secure the hitch using the nuts removed earlier.
- Reattach the exhaust hangers using the M10 bolts and conical-toothed washers (teeth side facing the hitch).
- Fishwire the carriage bolts and spacers into the vehicle frame through the access hole in the hitch.
- Secure the bolts with serrated flange nuts.
Step 4: Torque the hardware.
- Tighten all 1/2" hardware to 110 ft-lbs using a torque wrench.
- Tighten all M10 hardware to 45 ft-lbs.
Step 5: Reinstall the fascia.
- Reverse the process used in Step 1 to reinstall the fascia.
- Reconnect any wiring that was unplugged.
- Note: The vehicle fascia has a removable panel for hitch usage. The panel can be replaced when the hitch is not in use.
Hardware List:
- (4) 1/2"-13 x 1-1/2" Carriage Bolts
- (4) 0.250" x 1.00" x 2.00" Square-Hole Spacers
- (4) 1/2"-13 Serrated Flange Nuts
- (4) M10 x 1.5 x 45mm Hex Bolts
- (4) 3/8" Conical-Toothed Washers
- (4) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
- Warning: Never exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
- Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Various Vehicle Models
Part Number:
- 55384
Applicable Models:
- Buick Enclave
- Buick Rainier
- Cadillac Escalade (including ESV, EXT, Hybrid)
- Chevrolet Avalanche
- Chevrolet Colorado
- Chevrolet Express
- Chevrolet Silverado (including Hybrid)
- Chevrolet Suburban
- Chevrolet Tahoe (including Hybrid)
- Chevrolet Trailblazer
- Chevrolet Traverse
- Chrysler Aspen
- Dodge RAM (1500, 2500, 3500)
- GMC Acadia
- GMC Canyon
- GMC Envoy
- GMC Sierra
- GMC Yukon (including Denali, XL, XL Denali)
- Hummer H2, H3, H3T
- Infiniti QX56
- Isuzu Ascender
- Kia Borrego
- Nissan Pathfinder Armada
- Nissan Titan
- Oldsmobile Bravada
- Saab 9-7X
- Saturn Outlook
Wiring Access Locations:
- Pickup Trucks (T):
- T3: Behind driver's side rear bumper
- T4: Behind center of rear bumper fascia
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver's side rear access panel
- S4: Behind passenger's side rear access panel
- S5: Behind driver's side rear bumper
- S6: Behind center of rear bumper
- S7: Behind passenger's side rear bumper
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Access the Vehicle's Wiring Harness Connectors:
- Locate the connectors behind the driver's side rear bumper at position T3 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Prepare the Connector Housing:
- Remove and retain the protective cap from the housing.
- Ensure the mating surface is clean and free of rust or dirt.
-
Insert the T-Connector:
- Connect the T-connector housing into the vehicle's housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Secure the Protective Cap:
- Place the previously removed protective cap onto the remaining plug end.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way Connector:
- Find the factory 7-way attached to the hitch, behind the center of the rear bumper at position T4 as shown in the 'Wiring Location Guide'.
-
Disconnect the Negative Battery Terminal:
- Refer to the vehicle's owner's manual to locate the battery.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Separate the Factory Socket:
- Disconnect the factory socket from the 7-way connector.
-
Insert the T-Connector:
- Connect the T-connector between the factory housing and the 7-way housing.
- Ensure connectors are fully inserted with locking tabs in place.
-
Reconnect the Battery:
- Reconnect the negative battery terminal.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can lead to loss of warranty, overheating, and potential fire hazards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Note: After installation, test the function by connecting a test light or properly wired trailer. Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
People Also Bought
