Product Details
- Brand: Curt
- Model: 13400 56040-CH3429

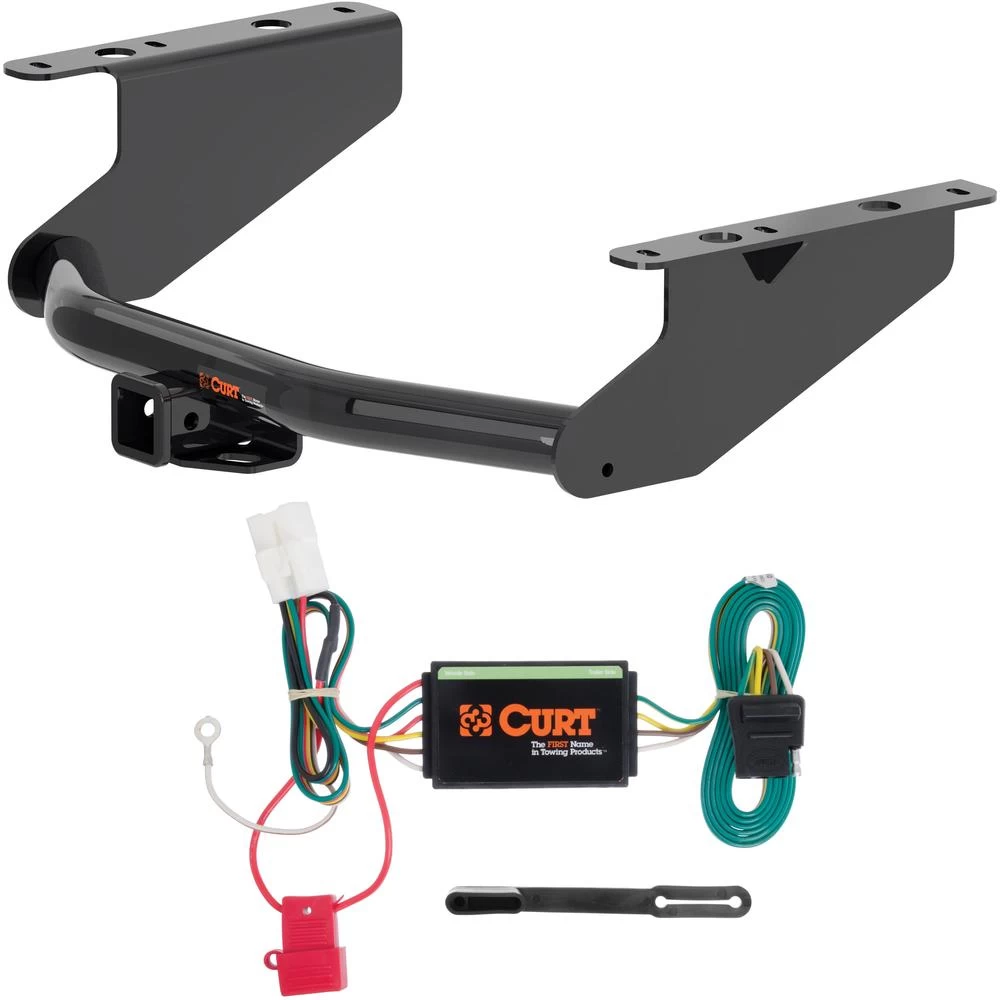

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 2019-2024 Subaru Ascent Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13400 56040 2 inch Tow Receiver Install Notes

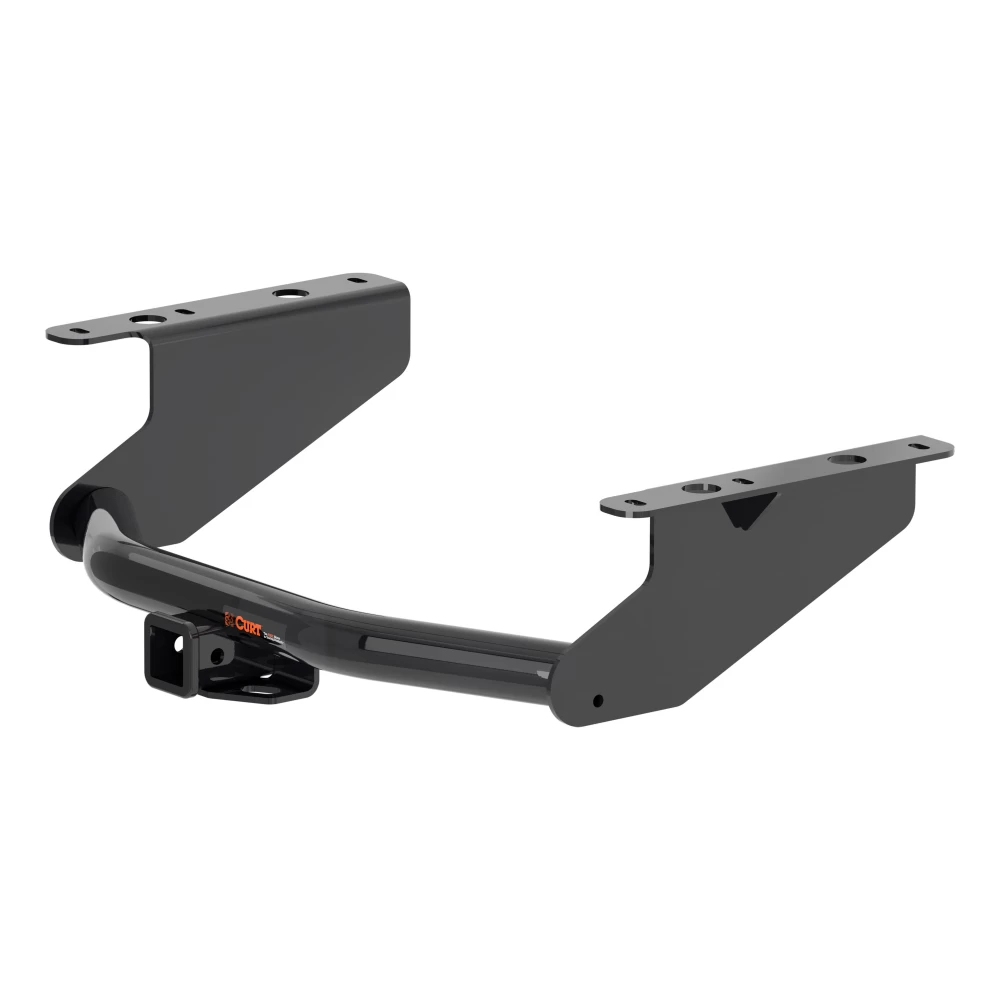

Installation Instructions for Subaru Ascent (2019-Present)
Part Numbers:
- 13400
Tools Required:
- Ratchet
- 10mm, 12mm, 3/4" Sockets
- 6" Extension
- Torque Wrench
- Die Grinder
- Safety Glasses
- Tape Measure
- Aviation Shears
- Pry Bar
Step-by-Step Instructions:
Step 1: Remove the spare tire.
- Following your vehicle owner’s manual, lower and remove the spare tire.
Step 2: Detach the heat shield.
- Remove the two heat shield mounting bolts at the rear of the vehicle using a 10mm socket. Set the heat shield aside temporarily.
Step 3: Remove the spare tire shield.
- Locate and remove the center front attachment point on the spare tire shield using a 12mm socket. Remove the shield and return it to the customer.
Step 4: Prepare the mounting points.
- Remove two frame hole plugs and the orange tab from both sides of the vehicle. Trim the heat shield to allow access to the front-center mounting holes.
Step 5: Enlarge access holes and fishwire hardware.
- Using a die grinder, enlarge the forward-most mounting hole on each frame rail to fit a 1/2" carriage bolt.
- Fishwire a 1/2" carriage bolt and spacer through the forward-most frame hole into the center and rear frame holes.
- Perform reverse fishwiring to secure the bolts in the forward-most holes on both sides.
Step 6: Reinstall the heat shield and mount the hitch.
- Reinstall the heat shield.
- Raise the hitch into place and align it with the mounting points.
- Secure it to the frame using the provided 1/2" hardware.
- Torque all hardware to 110 ft-lbs. Reinstall the spare tire.
Hardware List:
- (4) 1/2"-13 x 1-3/4" Carriage Bolts, Grade 8
- (4) 0.250 x 1.00 x 3.00" Square Hole Spacers
- (4) 1/2"-13 Flange Nuts
- (4) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 675 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.

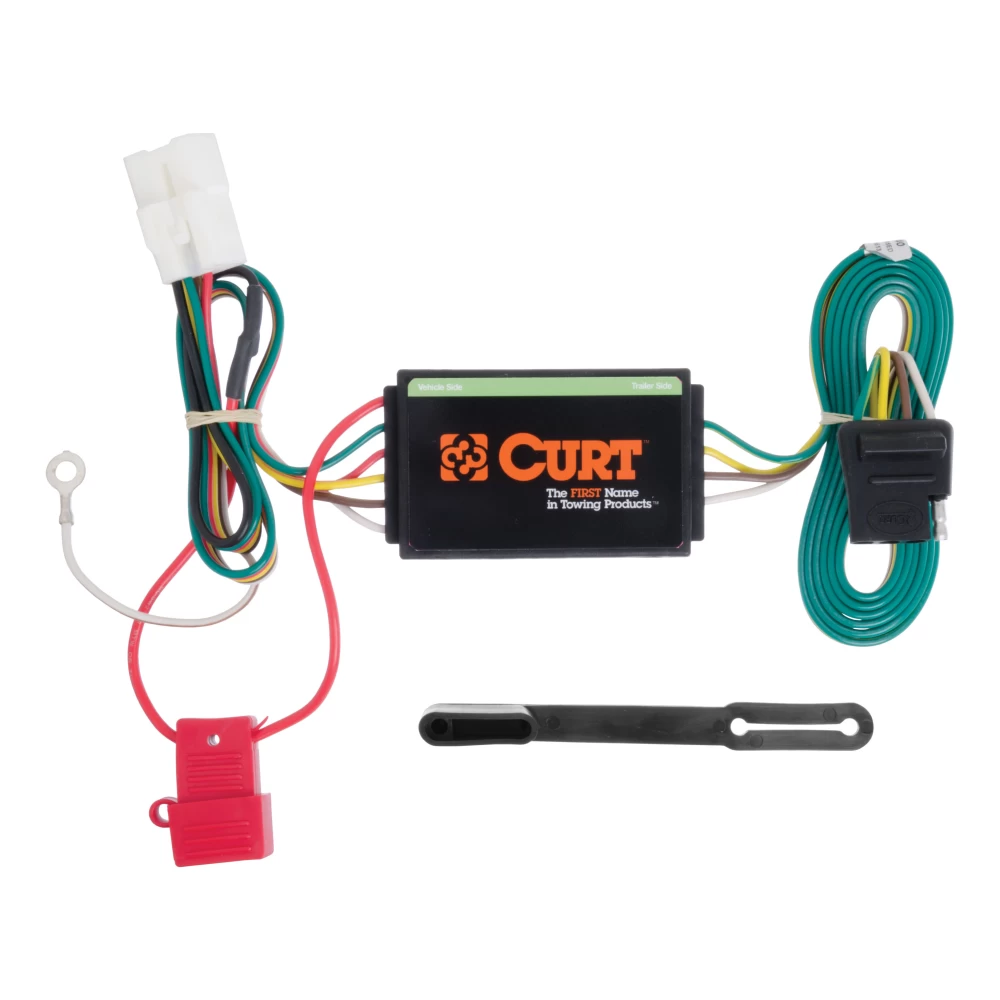

Installation Instructions for Subaru Ascent, Subaru Forester, Subaru Outback, Subaru Crosstrek (excluding Hybrid), and Subaru XV Crosstrek (excluding Hybrid)
Part Numbers:
- 56040
Tools Required:
- 10 mm Socket
- Ratchet
- Panel Trim Removal Tool
Step-by-Step Instructions:
-
Disconnect the Battery
Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. -
Prepare the Vehicle Interior
Open the vehicle tailgate. Remove all trunk floor coverings.- Remove the plastic fasteners securing the trays in the center and on the driver side.
- Remove the trays.
-
Locate the Vehicle Wiring Harness Connectors
- 2009-2013 Forester: Under the trays on the driver side.
- Outback: Behind the driver side inner fender trim, visible near the rubber grommet in the floor and the cargo anchor.
- XV Crosstrek / 2014+ Forester: Pull back on the rear trim panel to find the taillight wiring harness connectors on the driver side.
-
Connect the Custom Connector
Insert the custom connector end into the vehicle connector. Ensure the connectors are fully inserted and the locking tabs are engaged. -
Ground the White Wire
Locate a suitable grounding point near the connector (e.g., an existing screw with nut in the vehicle frame). If necessary, drill a 3/32" pilot hole for the provided screw.- The grounding area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for items hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. -
Install the Fuse
Install the red 10-amp fuse into the in-line fuse holder. -
Route the 4-Flat Connector
When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store it in a convenient, out-of-the-way location.- Secure any loose wires with the provided cable ties.
-
Reinstall Components
Reinstall all items removed during installation.
Reconnect the negative battery terminal.
Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max). Exceeding the product rating can void the warranty, cause overheating, and result in a fire hazard.
- Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Installation Instructions for Vehicle Models
Part Numbers:
- 56040
Tools Required:
- 10 mm Socket
- Ratchet
- Panel Trim Removal Tool
Step-by-Step Instructions:
-
Disconnect the Battery
Locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. -
Prepare the Vehicle Interior
Open the vehicle tailgate. Remove all trunk floor coverings.- Remove the plastic fasteners securing the trays in the center and on the driver side.
- Remove the trays.
-
Locate the Vehicle Wiring Harness Connectors
- For Certain Models: Under the trays on the driver side.
- For Other Models: Behind the driver side inner fender trim, visible near the rubber grommet in the floor and the cargo anchor.
- For Specific Model Years: Pull back on the rear trim panel to find the taillight wiring harness connectors on the driver side.
-
Connect the Custom Connector
Insert the custom connector end into the vehicle connector. Ensure the connectors are fully inserted and the locking tabs are engaged. -
Ground the White Wire
Locate a suitable grounding point near the connector (e.g., an existing screw with nut in the vehicle frame). If necessary, drill a 3/32" pilot hole for the provided screw.- The grounding area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for items hidden behind or under surfaces before drilling to avoid damage or personal injury.
-
Mount the Converter Box
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. -
Install the Fuse
Install the red 10-amp fuse into the in-line fuse holder. -
Route the 4-Flat Connector
When in use, route the 4-flat connector to the center of the vehicle. When not in use, roll it up and store it in a convenient, out-of-the-way location.- Secure any loose wires with the provided cable ties.
-
Reinstall Components
Reinstall all items removed during installation.
Reconnect the negative battery terminal.
Attach the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max). Exceeding the product rating can void the warranty, cause overheating, and result in a fire hazard.
- Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
