For 2019‑2021 Hyundai Tucson Trailer Hitch + Wiring 4 Pin Except Night Edition Curt 13240 56442 2 inch Tow Receiver
Model: 13240 56442-CH2392This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2019 - 2021 Hyundai Tucson Except Night Edition

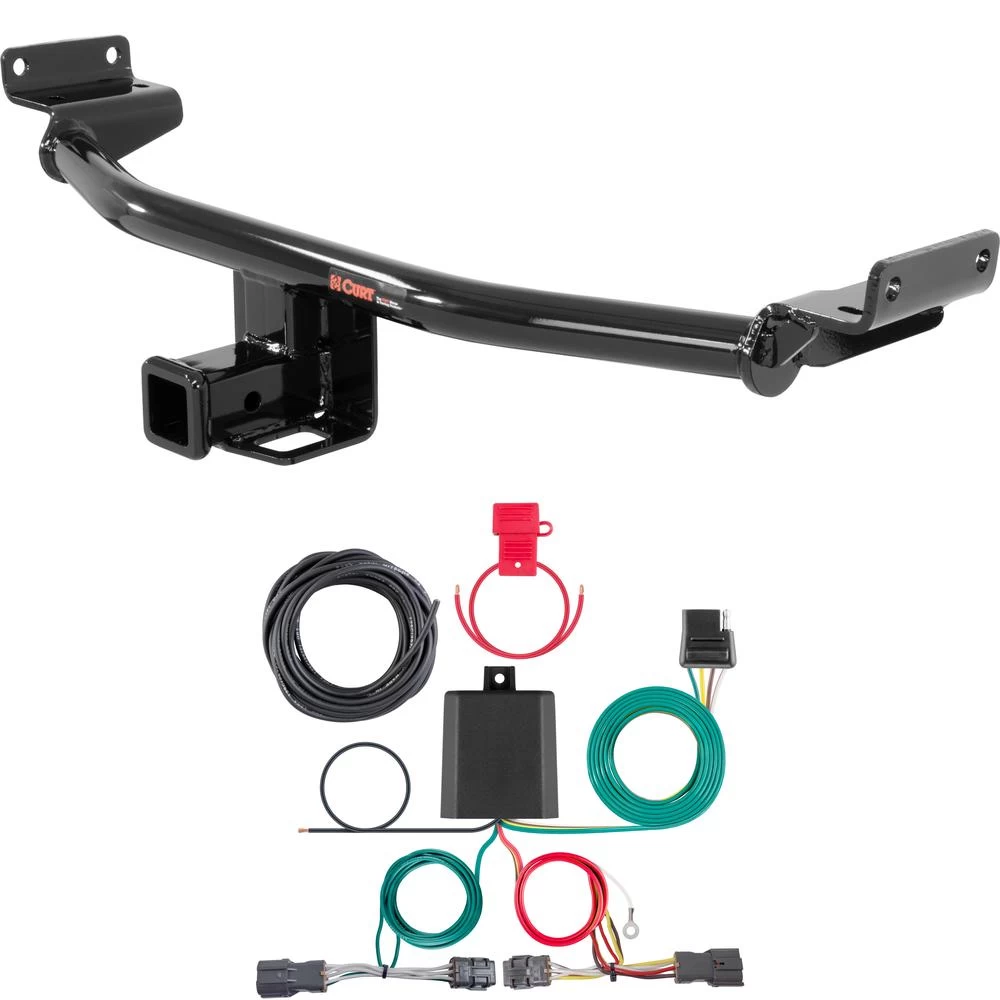

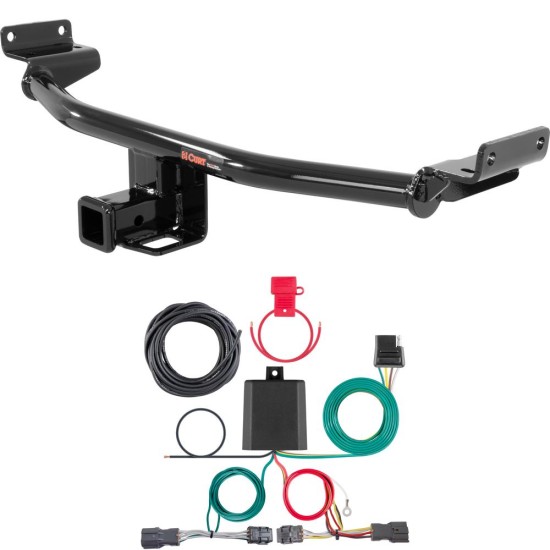

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2019, 2020, 2021

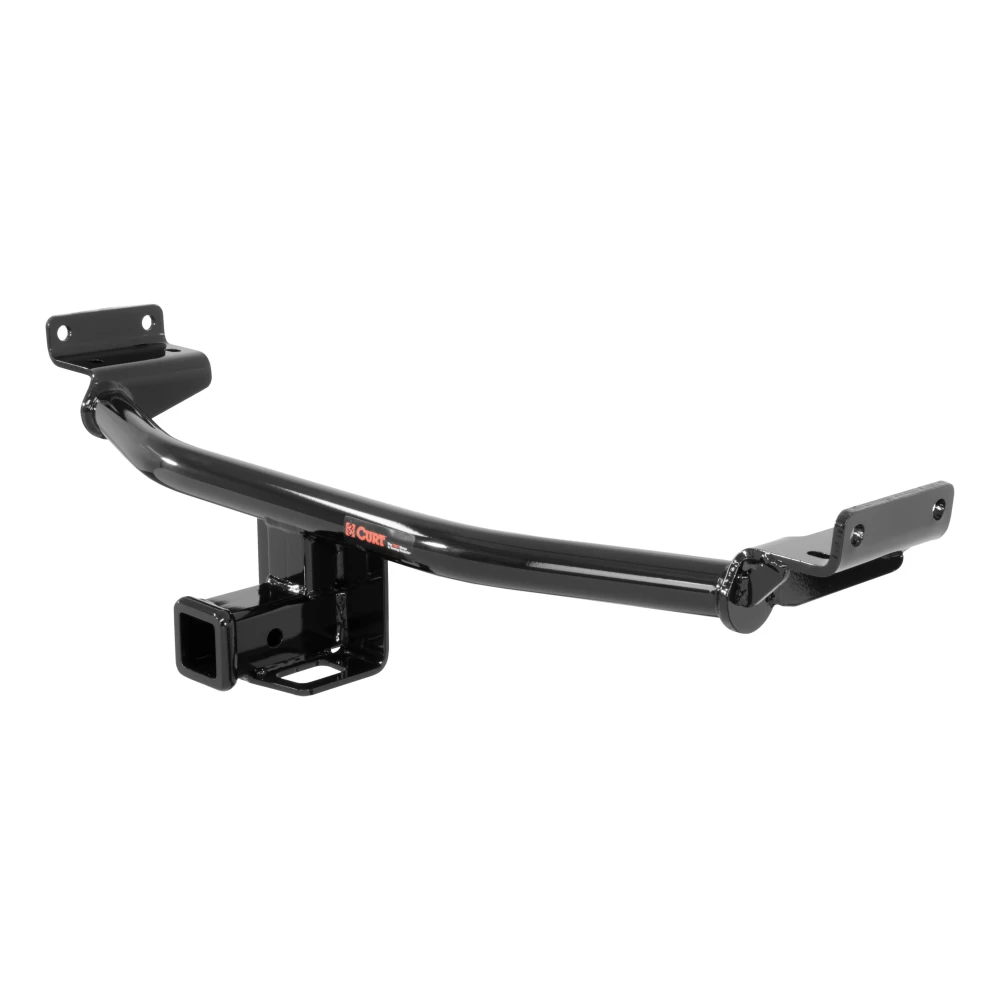

CURT 13240 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Hyundai Tucson (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 525 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 525 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

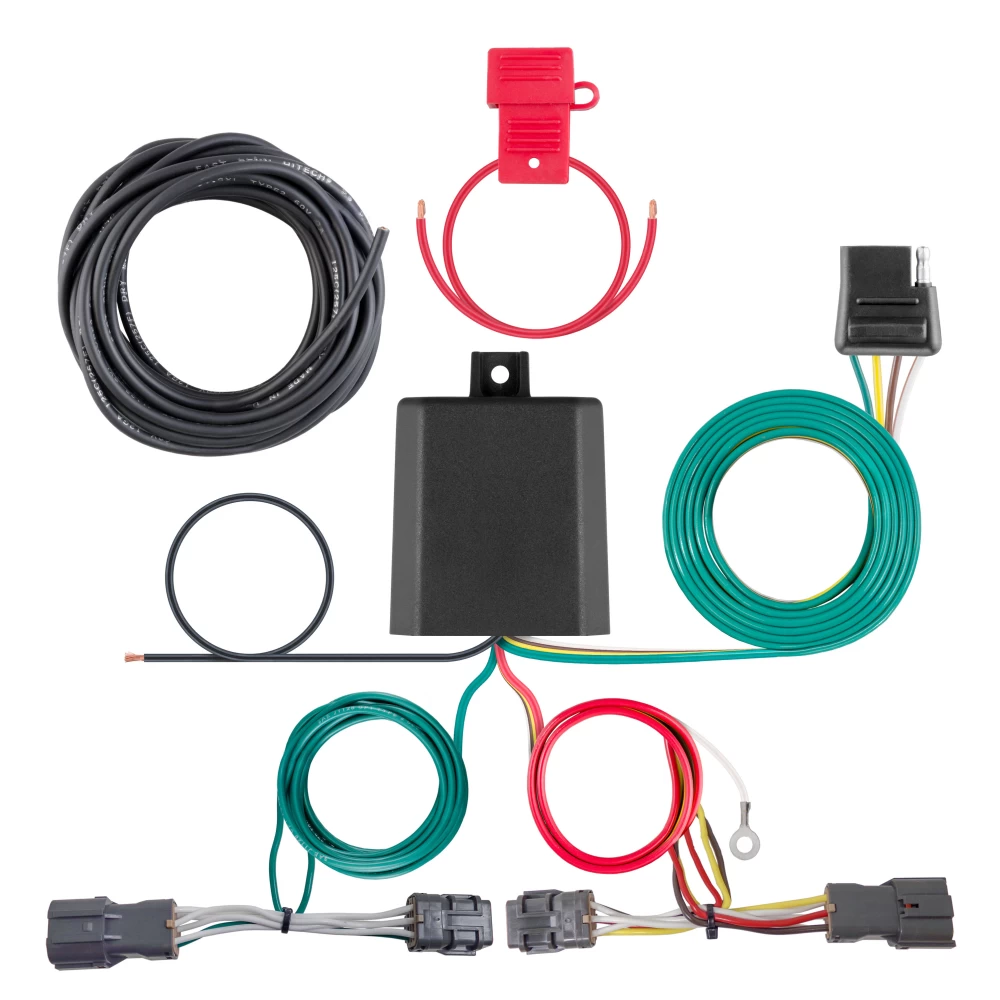

CURT 56442 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Entourage, Kia Sedona and Kia Seltos (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$286 99 $431.90 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$431.90 $286 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13240 56442-CH2392
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring
Compatibility Chart
Get Expert Help
For 2019-2021 Hyundai Tucson Trailer Hitch + Wiring 4 Pin Except Night Edition Curt 13240 56442 2 inch Tow Receiver Install Notes
Installation Instructions for 2016-Present Hyundai Tucson
Part Number:
- 13240
Tools Required:
- Safety glasses
- Ratchet
- 17mm socket
- Torque wrench
- Short #2 Phillips screwdriver
Hardware List:
- 8 × M10 x 1.25 x 30mm hex head cap screws
- 8 × 3/8" conical-toothed washers
Step-by-Step Instructions:
-
Remove Plastic Panels (if equipped):
- Locate the two plastic panels under the bumper behind the rear tires.
- Using a Phillips screwdriver, remove the three plastic clips securing each panel.
- Gently pull down to dislodge the panels and set them aside for reinstallation later.
-
Position the Hitch:
- Insert the hitch over the exhaust on the passenger side.
- Rotate the hitch and raise it into position, aligning it with the existing weld nuts on the vehicle's frame.
- Install four M10-1.25 x 30mm hex head cap screws with four 3/8" conical-toothed washers per side. Ensure the toothed side of each washer faces the hitch.
- Note: Pulling down on the exhaust can ease the installation process.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 fasteners to 40 ft-lbs (54 Nm).
-
Reinstall Plastic Panels:
- Reattach the two plastic panels removed in Step 1, securing them with the original plastic clips.
Safety Notes:
- Load Capacities:
- Weight Carrying: 3,500 lbs. (1,588 kg) trailer weight, 525 lbs. (238 kg) tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Non-Trailer Loads:
- All non-trailer (wheel-less) loads applied to this product must be supported by CURT 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
- Warranty:
- CURT Manufacturing LLC. warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser.
- Alteration, misuse, or improper installation voids the warranty.
- Liability is limited to repair or replacement of defective products and excludes incidental or consequential damages.
For installation questions, contact Technical Support at 1-877-287-8634.
Installation Instructions for 2016-Present Hyundai Tucson
Part Number:
- 13240
Tools Required:
- Safety glasses
- Ratchet
- 17mm socket
- Torque wrench
- Short #2 Phillips screwdriver
Hardware List:
- 8 × M10 x 1.25 x 30mm hex head cap screws
- 8 × 3/8" conical-toothed washers
Step-by-Step Instructions:
-
Remove Plastic Panels (if equipped):
- Locate the two plastic panels under the bumper behind the rear tires.
- Using a Phillips screwdriver, remove the three plastic clips securing each panel.
- Gently pull down to dislodge the panels and set them aside for reinstallation later.
-
Position the Hitch:
- Insert the hitch over the exhaust on the passenger side.
- Rotate the hitch and raise it into position, aligning it with the existing weld nuts on the vehicle's frame.
- Install four M10-1.25 x 30mm hex head cap screws with four 3/8" conical-toothed washers per side. Ensure the toothed side of each washer faces the hitch.
- Note: Pulling down on the exhaust can ease the installation process.
-
Torque Fasteners:
- Using a torque wrench, tighten all M10 fasteners to 40 ft-lbs (54 Nm).
-
Reinstall Plastic Panels:
- Reattach the two plastic panels removed in Step 1, securing them with the original plastic clips.
Safety Notes:
- Load Capacities:
- Weight Carrying: 3,500 lbs. (1,588 kg) trailer weight, 525 lbs. (238 kg) tongue weight.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
- Non-Trailer Loads:
- All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps.
- Failure to properly support non-trailer loads may void the product warranty.
- Maintenance:
- Periodically check this receiver hitch to ensure all fasteners are tight and all structural components are sound.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Hyundai Entourage, Kia Sedona, Hyundai Tucson, Hyundai Veloster, and Kia Seltos
Part Number:
- 56442
Wiring Access Locations:
- SUVs and Vans (S):
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
- Passenger Cars (P):
- P1: Behind driver-side taillight housing (outside of trunk)
- P2: Behind passenger-side taillight housing (outside of trunk)
Tools Required:
- Ratchet
- Flathead screwdriver
- 10mm socket
- Utility knife
- Socket extension
- Wire crimper
- Electrical tape
- Wire stripper
- Phillips screwdriver
- Panel removal tool
Step-by-Step Instructions:
For Hyundai Entourage & Kia Sedona:
-
Disconnect Battery:
- Locate the battery and disconnect the negative terminal. Secure the wire away from the battery.
Warning: Do not place tools on the positive battery terminal to avoid shorts or sparks.
- Locate the battery and disconnect the negative terminal. Secure the wire away from the battery.
-
Remove Taillights:
- Open the hatch. Remove three screws securing the taillight on the driver and passenger sides using a Phillips screwdriver.
- Pull the taillights straight back and disconnect the connectors.
-
Install T-Connector:
- Insert the yellow wire connector between the separated connectors on the driver side.
- Route the green wire and 4-flat connector down between the body and bumper cover.
-
Route Wiring:
- Route the 4-flat connector to the vehicle center near the hitch.
- Use a fishwire to route the green wire along the bumper to the passenger side.
-
Connect Passenger Side:
- Insert the green wire connector between the separated connectors on the passenger side.
-
Mount Converter Box:
- Adhere the box to a clean, flat surface protected from debris using double-sided tape.
Warning: Failure to mount the box properly may void warranty and cause overheating or fire.
- Adhere the box to a clean, flat surface protected from debris using double-sided tape.
-
Reassemble and Test:
- Reinstall the taillights, reconnect the negative battery terminal, and install the 4-flat dust cover.
For Hyundai Tucson:
-
Disconnect Battery:
- Follow the same steps as for Entourage/Sedona.
-
Remove Taillights:
- Open the hatch and use a trim removal tool to release the taillight trim cover. Remove the fasteners with a 10mm socket.
- Pull the taillights straight back and disconnect the connectors.
-
Install T-Connector:
- Insert the yellow wire connector between the separated connectors on the driver side.
-
Route Wiring:
- Route the 4-flat connector to the center near the hitch and secure the green wire to the passenger side.
-
Grounding:
- Use the provided screw to secure the white ground wire to a rust-free, clean surface.
-
Reassemble and Test:
- Reinstall taillights, reconnect the battery, and install the 4-flat dust cover.
For Hyundai Veloster:
-
Disconnect Battery:
- Follow standard steps.
-
Remove Taillights:
- Open the trunk and remove the mounting screws with a Phillips screwdriver. Pull the taillights straight back.
-
Install T-Connector:
- Follow the same steps as above.
-
Route Wiring:
- Attach the green wire to the fishwire and pull through the bumper. Secure to the passenger side.
-
Reassemble and Test:
- Reinstall all components and verify the function with a test light or trailer.
For Kia Seltos:
-
Disconnect Battery:
- Follow the same steps as above.
-
Remove Taillights:
- Open the hatch and remove two screws securing each taillight.
-
Install T-Connector:
- Route the fishwire down between the body and bumper cover. Attach the yellow wire connector.
-
Mount Converter Box:
- Secure the box using the provided double-sided tape.
-
Reassemble and Test:
- Follow the same steps as for other vehicles.
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed product or lamp load ratings.
- Ensure all connections are secure and inspect regularly.
Final Steps:
- Route the power wire to the battery following the "Powered Converter Lead" instructions. Use a 10-amp fuse.
- Verify functionality with a test light or trailer.
Installation Instructions
Part Number:
- 56442
Wiring Access Locations:
- SUVs and Vans (S):
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
- Passenger Cars (P):
- P1: Behind driver-side taillight housing (outside of trunk)
- P2: Behind passenger-side taillight housing (outside of trunk)
Tools Required:
- Ratchet
- Flathead screwdriver
- 10mm socket
- Utility knife
- Socket extension
- Wire crimper
- Electrical tape
- Wire stripper
- Phillips screwdriver
- Panel removal tool
Step-by-Step Instructions:
For Hyundai Entourage & Kia Sedona:
-
Disconnect Battery:
- Locate the battery and disconnect the negative terminal. Secure the wire away from the battery.
Warning: Do not place tools on the positive battery terminal to avoid shorts or sparks.
- Locate the battery and disconnect the negative terminal. Secure the wire away from the battery.
-
Remove Taillights:
- Open the hatch. Remove three screws securing the taillight on the driver and passenger sides using a Phillips screwdriver.
- Pull the taillights straight back and disconnect the connectors.
-
Install T-Connector:
- Insert the yellow wire connector between the separated connectors on the driver side.
- Route the green wire and 4-flat connector down between the body and bumper cover.
-
Route Wiring:
- Route the 4-flat connector to the vehicle center near the hitch.
- Use a fishwire to route the green wire along the bumper to the passenger side.
-
Connect Passenger Side:
- Insert the green wire connector between the separated connectors on the passenger side.
-
Mount Converter Box:
- Adhere the box to a clean, flat surface protected from debris using double-sided tape.
Warning: Failure to mount the box properly may void warranty and cause overheating or fire.
- Adhere the box to a clean, flat surface protected from debris using double-sided tape.
-
Reassemble and Test:
- Reinstall the taillights, reconnect the negative battery terminal, and install the 4-flat dust cover.
For Hyundai Tucson:
-
Disconnect Battery:
- Follow the same steps as for Entourage/Sedona.
-
Remove Taillights:
- Open the hatch and use a trim removal tool to release the taillight trim cover. Remove the fasteners with a 10mm socket.
- Pull the taillights straight back and disconnect the connectors.
-
Install T-Connector:
- Insert the yellow wire connector between the separated connectors on the driver side.
-
Route Wiring:
- Route the 4-flat connector to the center near the hitch and secure the green wire to the passenger side.
-
Grounding:
- Use the provided screw to secure the white ground wire to a rust-free, clean surface.
-
Reassemble and Test:
- Reinstall taillights, reconnect the battery, and install the 4-flat dust cover.
For Hyundai Veloster:
-
Disconnect Battery:
- Follow standard steps.
-
Remove Taillights:
- Open the trunk and remove the mounting screws with a Phillips screwdriver. Pull the taillights straight back.
-
Install T-Connector:
- Follow the same steps as above.
-
Route Wiring:
- Attach the green wire to the fishwire and pull through the bumper. Secure to the passenger side.
-
Reassemble and Test:
- Reinstall all components and verify the function with a test light or trailer.
For Kia Seltos:
-
Disconnect Battery:
- Follow the same steps as above.
-
Remove Taillights:
- Open the hatch and remove two screws securing each taillight.
-
Install T-Connector:
- Route the fishwire down between the body and bumper cover. Attach the yellow wire connector.
-
Mount Converter Box:
- Secure the box using the provided double-sided tape.
-
Reassemble and Test:
- Follow the same steps as for other vehicles.
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail / Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed product or lamp load ratings.
- Ensure all connections are secure and inspect regularly.
Final Steps:
- Route the power wire to the battery following the "Powered Converter Lead" instructions. Use a 10-amp fuse.
- Verify functionality with a test light or trailer.
Product Registration and Warranty:
- This product is backed by a comprehensive warranty. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
People Also Bought
