For 2020‑2022 Hyundai Palisade Trailer Wiring 4 Way Fits All Models Curt 56332
Model: 56332-CW2354This Wiring 4-Flat Fits The Following Vehicles:
2020 - 2022 Hyundai Palisade All Models
This Wiring 4-Flat Includes the Following Parts:
- Custom 4-Flat

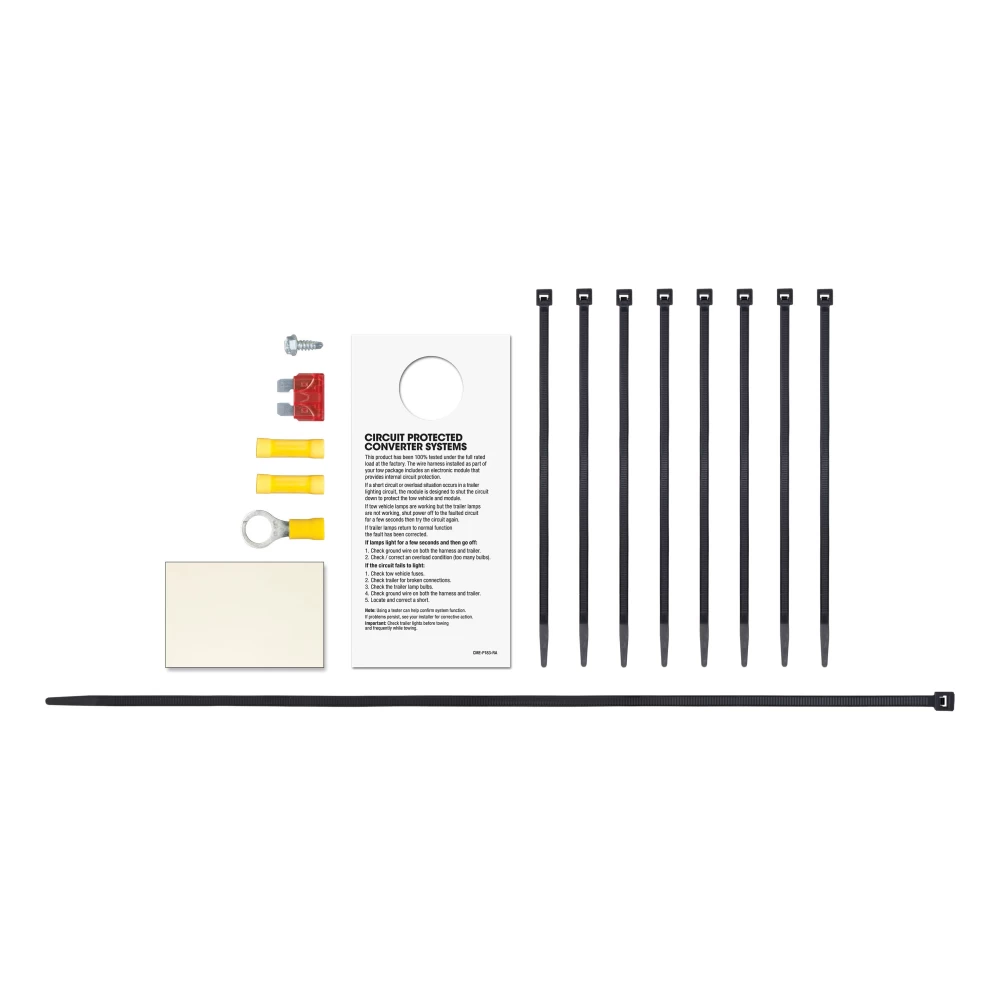

- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022

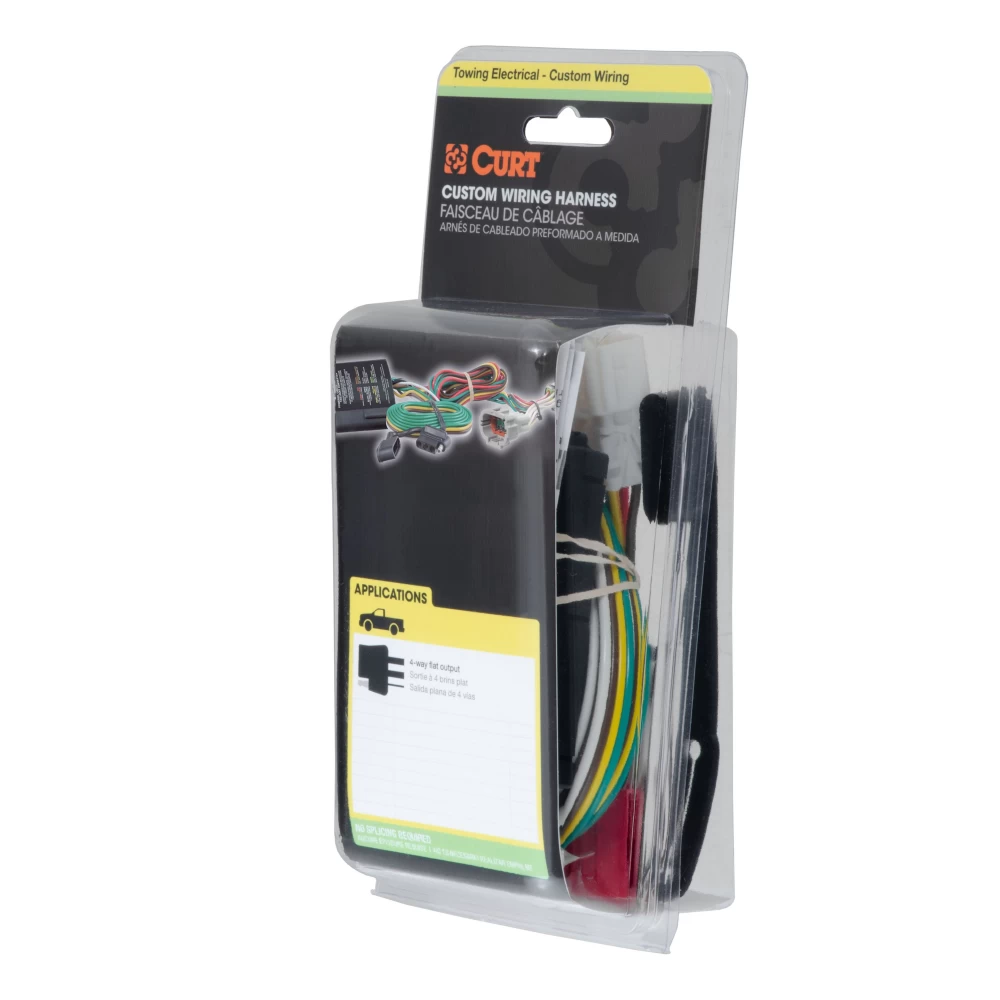

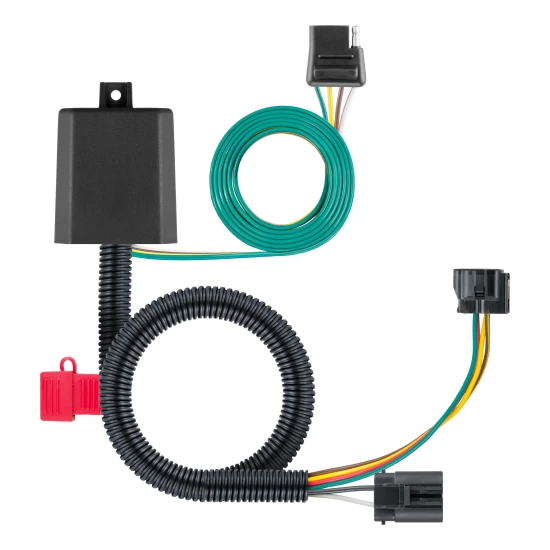

CURT 56332 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..

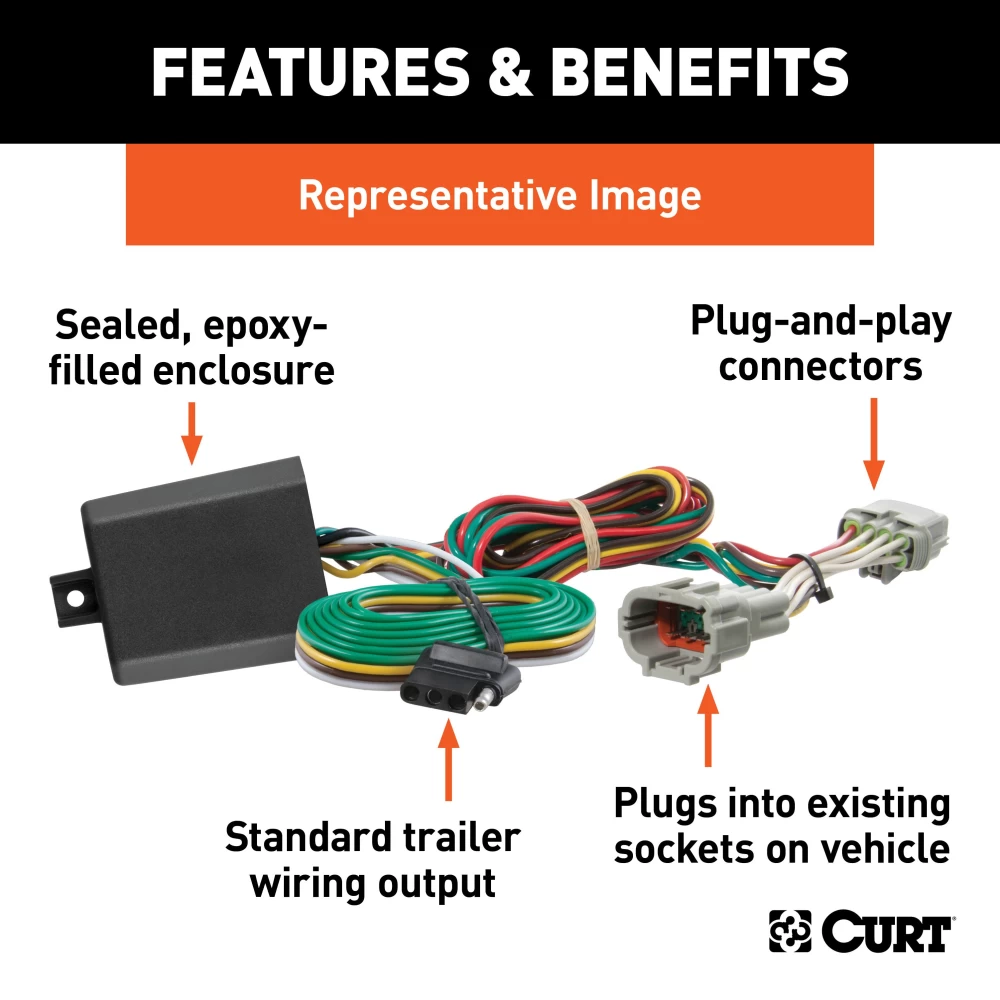

Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing

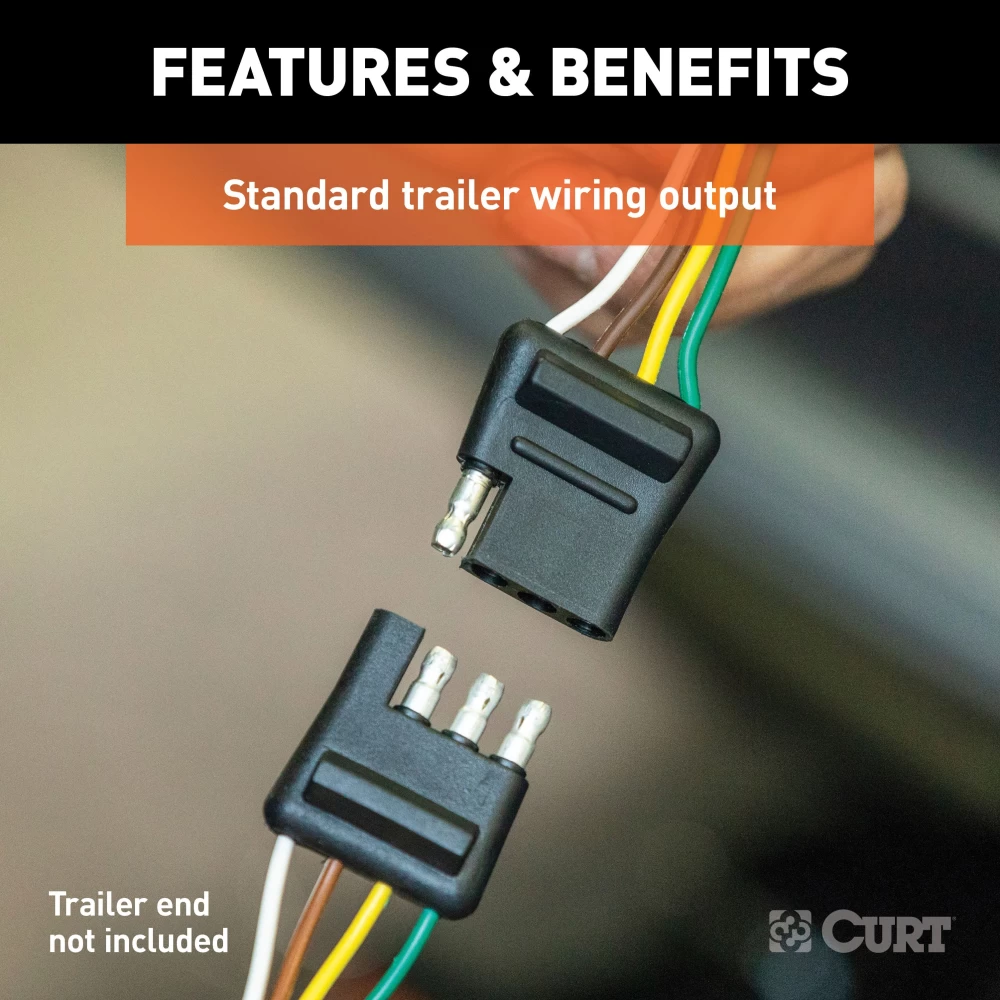

- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability

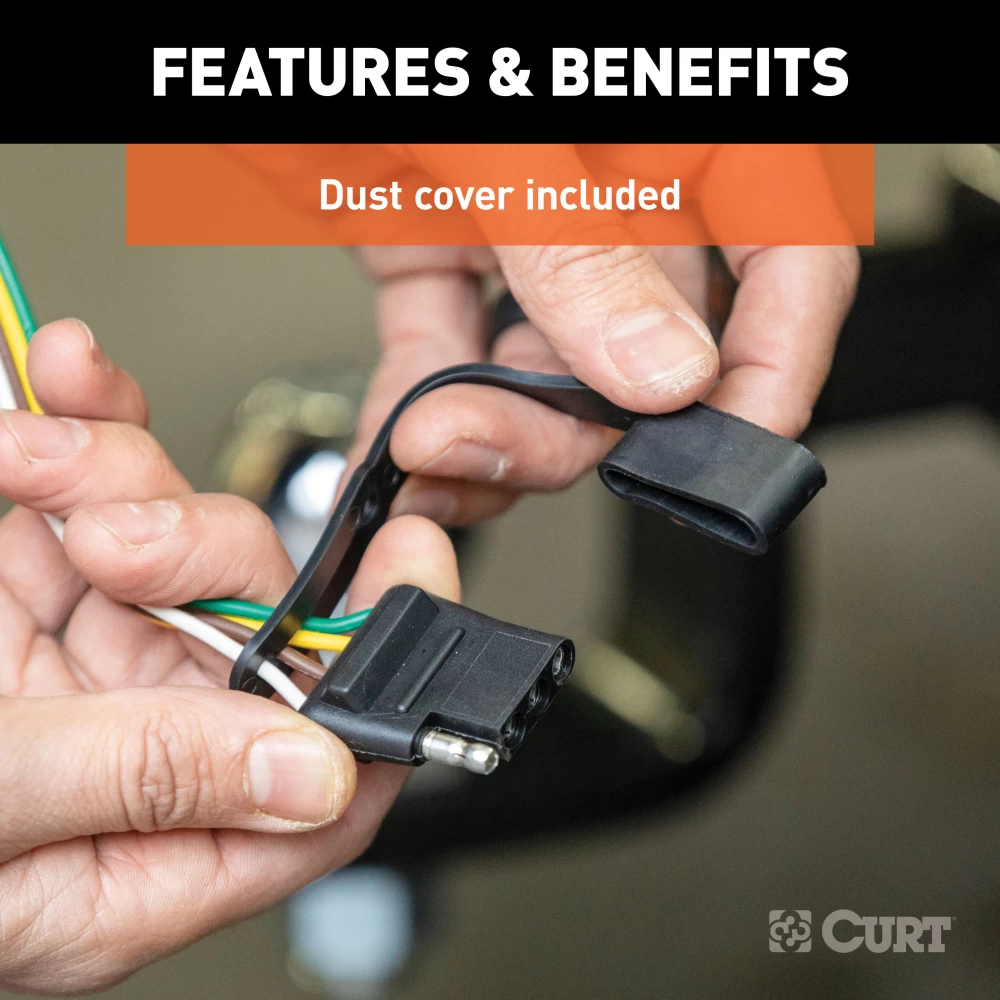

- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$61 16 $82.95 26% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$82.95 $61 16
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $15.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56332-CW2354
- Includes: Custom 4-Flat
Compatibility Chart
Description
Get Expert Help
For 2020-2022 Hyundai Palisade Trailer Wiring 4 Way Fits All Models Curt 56332 Install Notes
Installation Instructions for Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Installation Instructions for Vehicles
Part Numbers:
- 56332
Wiring Access Location:
- S5: Behind driver side rear bumper
- S7: Behind passenger side rear bumper
Tools Required:
- Flat blade screwdriver
- Side cutter
Step-by-Step Instructions:
For Vehicles with Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring harness connector near the rear tire on the passenger side, along the frame. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For Vehicles without Factory Tow Package:
-
Locate the Connector:
- Find the vehicle taillight wiring connector behind the rear tire on the driver side, on the outside frame rail. The connector will resemble the one on the custom wiring harness.
-
Connect the Wiring Harness:
- Remove the protective cap from the vehicle's connector.
- Insert the custom wiring harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place.
For All Vehicles:
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle by going over the exhaust along the bumper.
- Avoid areas that may cut, pinch, or melt the wire.
- Secure any loose wires with the provided cable ties.
-
Mount the Converter Box:
- Locate a flat, clean surface that is out of the path of spray and debris from the rear wheels and road.
- Adhere the black converter box using the provided double-sided tape.
- Secure any loose wires with the provided cable ties.
Warning: Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
-
Insert the Fuse:
- To complete the installation, insert the provided 10 AMP fuse into the in-line fuse holder.
Safety Notes:
- The battery connection must be fuse protected, 10 amp max.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Do not exceed product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Note: Check the vehicle owner's manual or contact the vehicle manufacturer for more information.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
