For 2021‑2024 Toyota Sienna Trailer Hitch Fits All Models Curt 13470 2 inch Tow Receiver
Model: 13470-CH3628This Trailer Tow Hitch Fits The Following Vehicles:
2021 - 2024 Toyota Sienna All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2021, 2022, 2023, 2024

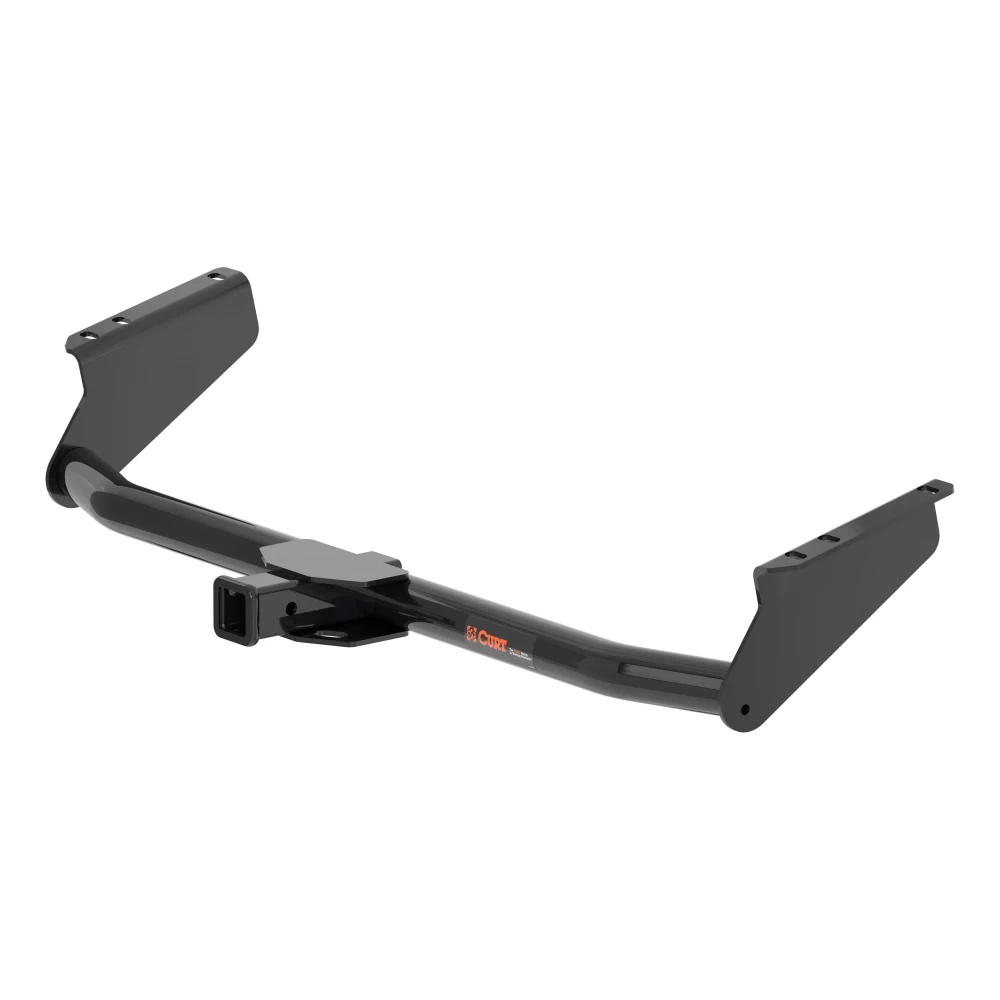

CURT 13470 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Toyota Sienna (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$190 99 $284.95 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$284.95 $190 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $47.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 13470-CH3628
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2021-2024 Toyota Sienna Trailer Hitch Fits All Models Curt 13470 2 inch Tow Receiver Install Notes
Installation Instructions for Toyota Sienna
Part Numbers:
- 13470
Tools Required:
- Ratchet
- Torque wrench
- Socket, 10mm
- Socket, 19mm
- Socket extension, 6"
- Flathead screwdriver
- Aviation shears
Step-by-Step Instructions:
Step 1: Remove Underbody Panel
- Remove the underbody panel from the passenger side of the vehicle by removing:
- Three push fasteners.
- Three screws using a 10mm socket.
Step 2: Clean Weldnuts
- Remove the three hole plugs from each frame rail.
- Clean the weldnuts in the frame rails using lubricant or compressed air. For heavy debris, use a wire brush while avoiding thread damage.
Step 3: Install Hitch
- Raise the trailer hitch into position.
- Secure the hitch using three M12 hex bolts (#1) and conical-toothed washers (#2) on each side.
Step 4: Torque Fasteners
- Torque all M12 bolts to 86 lb-ft.
Step 5: Trim and Reinstall Underbody Panel
- Trim the underbody panel using the grooves on the panel as guides. A trim diagram is provided for reference.
- Reinstall the panel using the factory hardware.
Hardware List:
- (6) Hex bolt, M12-1.25 x 40mm, CL 10.9
- (6) Conical-toothed washer, 1/2"
Safety Notes:
- Safety glasses should be worn at all times during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and secure.
Specifications:
- Gross trailer weight (GTW): 3,500 lbs.
- Tongue weight (TW): 350 lbs.
- Weight distribution (WD): 5,000 lbs.
- WD tongue weight (WDTW): 500 lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13470
Tools Required:
- Ratchet
- Torque wrench
- Socket, 10mm
- Socket, 19mm
- Socket extension, 6"
- Flathead screwdriver
- Aviation shears
Step-by-Step Instructions:
Step 1: Remove Underbody Panel
- Remove the underbody panel from the passenger side of the vehicle by removing:
- Three push fasteners.
- Three screws using a 10mm socket.
Step 2: Clean Weldnuts
- Remove the three hole plugs from each frame rail.
- Clean the weldnuts in the frame rails using lubricant or compressed air. For heavy debris, use a wire brush while avoiding thread damage.
Step 3: Install Hitch
- Raise the trailer hitch into position.
- Secure the hitch using three M12 hex bolts (#1) and conical-toothed washers (#2) on each side.
Step 4: Torque Fasteners
- Torque all M12 bolts to 86 lb-ft.
Step 5: Trim and Reinstall Underbody Panel
- Trim the underbody panel using the grooves on the panel as guides. A trim diagram is provided for reference.
- Reinstall the panel using the factory hardware.
Hardware List:
- (6) Hex bolt, M12-1.25 x 40mm, CL 10.9
- (6) Conical-toothed washer, 1/2"
Safety Notes:
- Safety glasses should be worn at all times during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and secure.
Specifications:
- Gross trailer weight (GTW): 3,500 lbs.
- Tongue weight (TW): 350 lbs.
- Weight distribution (WD): 5,000 lbs.
- WD tongue weight (WDTW): 500 lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
