For 2022‑2024 Hyundai Tucson Trailer Hitch + Wiring 4 Pin Fits w/ factory Tow Package Curt 13485 56420 2 inch Tow Receiver
Model: 13485 56420-CH2393This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2022 - 2024 Hyundai Tucson w/ factory Tow Package

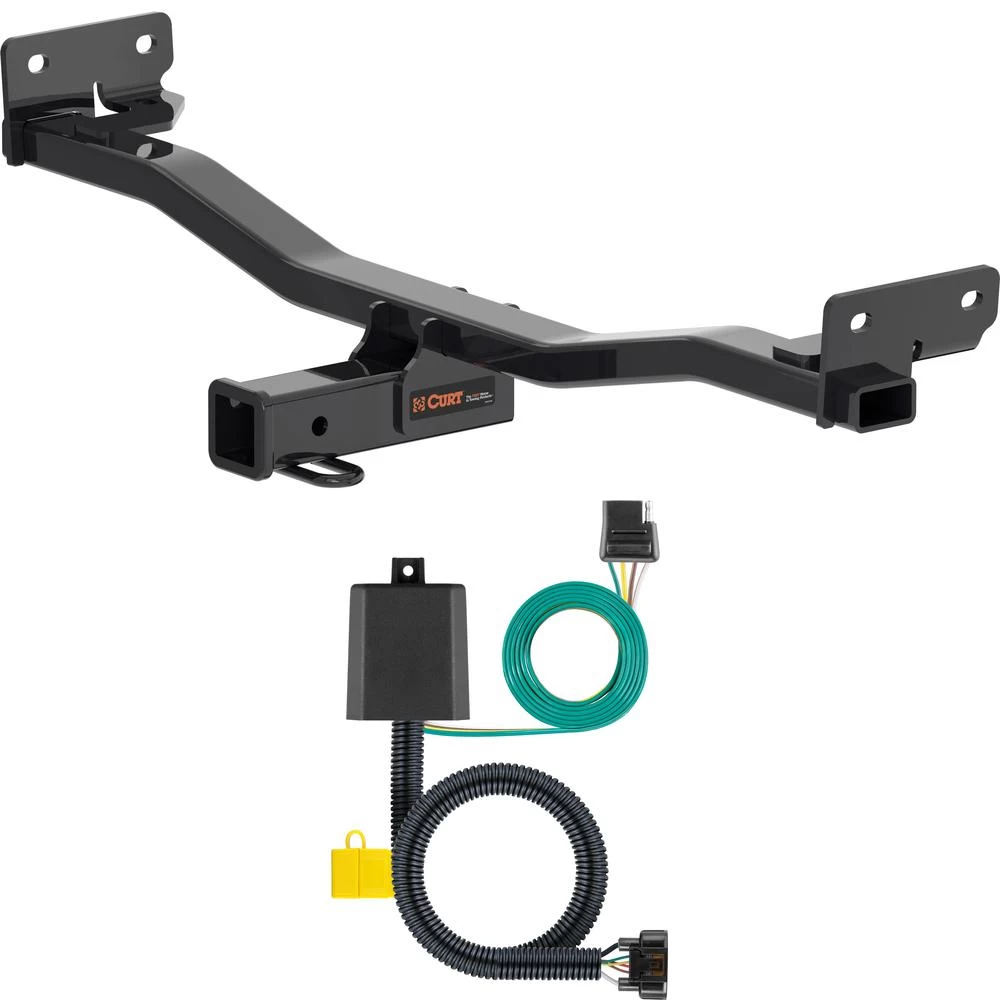

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2022, 2023, 2024

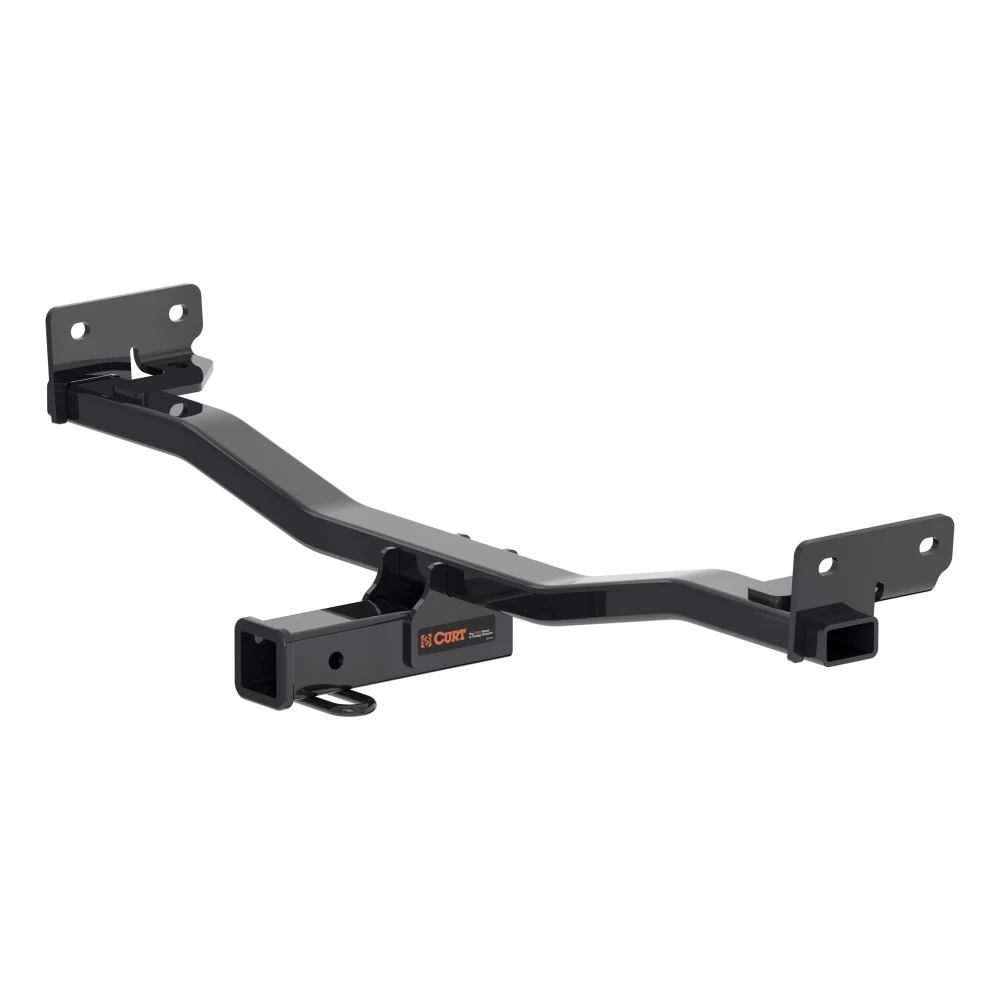

CURT 13485 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Hyundai Tucson and Kia Sportage (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 525 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 525 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

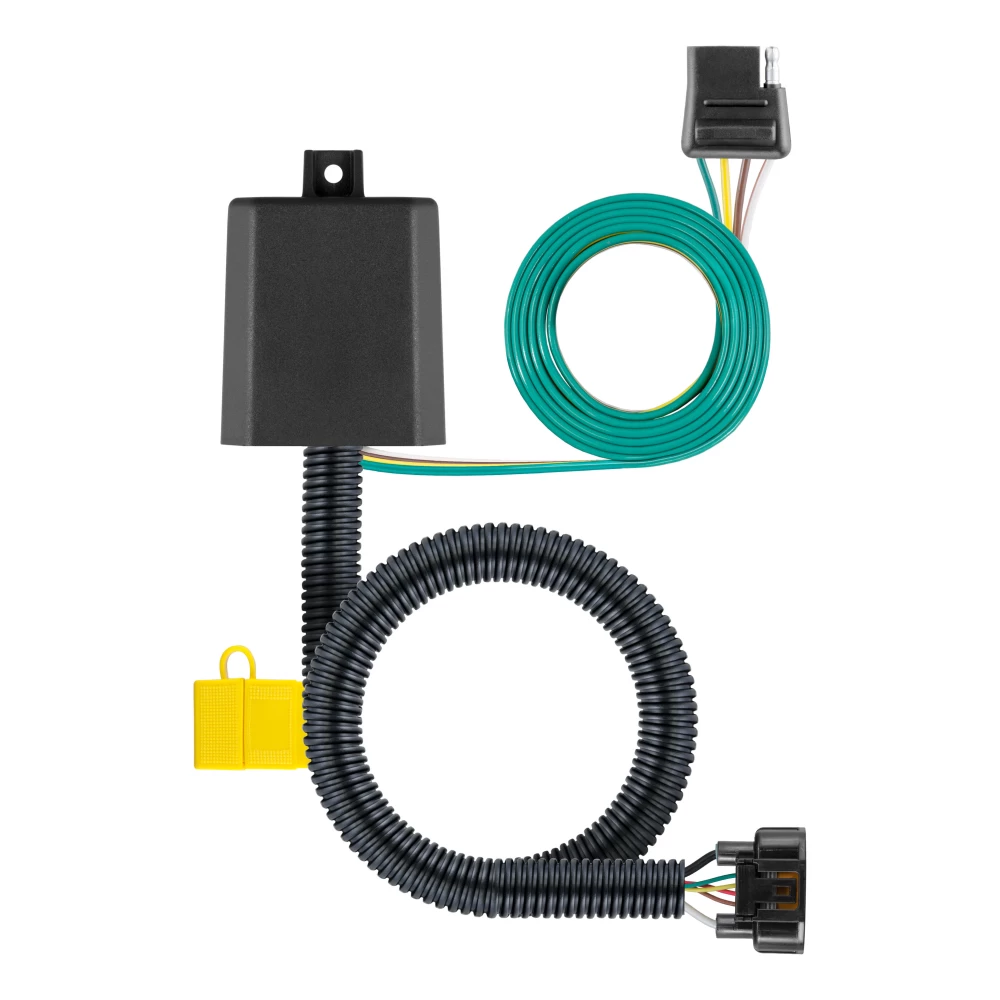

CURT 56420 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Palisade, Hyundai Santa Fe, Hyundai Tucson, Kia Telluride and Kia Carnival (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:
- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$262 34 $435.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$435.90 $262 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13485 56420-CH2393
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Description
Get Expert Help
For 2022-2024 Hyundai Tucson Trailer Hitch + Wiring 4 Pin Fits w/ factory Tow Package Curt 13485 56420 2 inch Tow Receiver Install Notes
Installation Instructions for Hyundai Tucson, Kia Sportage
Part Numbers:
- 13485
Tools Required:
- Ratchet
- Torque wrench
- Socket (14mm, 17mm)
- Flathead screwdriver
- Wire brush
Step 1: Remove the underbody panel
- Use a flathead screwdriver to remove four (4) push fasteners.
- Use a 14mm socket to loosen three (3) nuts securing the underbody panel.
- Return the panel and fasteners to the vehicle owner.
Step 2: Install the hitch
- Raise the hitch into position.
- Loosely secure it using six (6) M10 bolts (#1) and six (6) conical-toothed washers (#2).
- Note: Lower the exhaust if needed to ease installation.
Step 3: Tighten hardware
- Torque all M10 bolts to 48 ft-lbs.
Hardware List:
- (6) Hex bolts, M10 x 1.25–35mm, CL 10.9 (#1)
- (6) Conical-toothed washers, 7/16” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 48 ft-lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13485
Tools Required:
- Ratchet
- Torque wrench
- Socket (14mm, 17mm)
- Flathead screwdriver
- Wire brush
Step-by-Step Instructions:
Step 1: Remove the underbody panel
- Use a flathead screwdriver to remove four (4) push fasteners.
- Use a 14mm socket to loosen three (3) nuts securing the underbody panel.
- Return the panel and fasteners to the vehicle owner.
Step 2: Install the hitch
- Raise the hitch into position.
- Loosely secure it using six (6) M10 bolts (#1) and six (6) conical-toothed washers (#2).
- Note: Lower the exhaust if needed to ease installation.
Step 3: Tighten hardware
- Torque all M10 bolts to 48 ft-lbs.
Hardware List:
- (6) Hex bolts, M10 x 1.25–35mm, CL 10.9 (#1)
- (6) Conical-toothed washers, 7/16” (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
- Torque Specification: 48 ft-lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Select Hyundai and Kia Vehicles
Part Numbers:
- 56420
Wiring Access Locations:
- S5: Behind driver side rear bumper
Tools Required:
- Ratchet
- 14mm socket
- Socket extension
- Panel trim removal tool
- Cutting tool
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side in the engine compartment.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Remove the Plastic Shroud:
- Locate the plastic shroud below the driver-side rear bumper cover.
- Remove the three push fasteners and the two 14mm bolts attached to the shroud.
-
Connect the Custom Wiring Harness:
- Remove the dust cover from the factory harness, taking care not to damage the locking tabs.
- Insert the custom wiring harness into the OEM harness.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
-
Install the Fuse:
- Locate the fuse in the bag kit and insert it into the fuse holder of the custom wiring harness.
-
Mount the Converter Box:
- Find a flat, clean spot near the factory harness area.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- Route the 4-flat wiring along the back of the vehicle to the hitch.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components and Test:
- Reinstall all items removed during the installation, including the plastic shroud.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to prevent corrosion.
- Test the system using a test light, 4-flat tester, or functioning trailer.
Safety Notes:
- Warning: Do not exceed the product rating or tow vehicle lamp load rating.
- Ensure the battery connection is fuse-protected (15-amp max).
- Avoid laying tools across the battery’s positive terminal to prevent electrical shocks or sparks.
Specifications:
- Signal circuits: 5.0 amps per side
- Tail/Running circuits: 7.5 amps total
- Use only with 12-volt negative ground systems.
Maintenance:
- Periodically inspect all wires and connections for visible damage or loose fittings.
Manufacturer Notes:
- Follow all steps carefully to ensure proper functionality.
- Tighten the 14mm nuts on the shroud to avoid noise during vehicle operation.
- Test the wiring system before completing the installation process.
Installation Instructions for Vehicles
Part Numbers:
- 56420
Wiring Access Locations:
- S5: Behind driver side rear bumper
Tools Required:
- Ratchet
- 14mm socket
- Socket extension
- Panel trim removal tool
- Cutting tool
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side in the engine compartment.
- Disconnect the negative battery terminal and secure it away from the battery during installation.
-
Remove the Plastic Shroud:
- Locate the plastic shroud below the driver-side rear bumper cover.
- Remove the three push fasteners and the two 14mm bolts attached to the shroud.
-
Connect the Custom Wiring Harness:
- Remove the dust cover from the factory harness, taking care not to damage the locking tabs.
- Insert the custom wiring harness into the OEM harness.
- Ensure the connectors are fully inserted and the locking tabs are securely in place.
-
Install the Fuse:
- Locate the fuse in the bag kit and insert it into the fuse holder of the custom wiring harness.
-
Mount the Converter Box:
- Find a flat, clean spot near the factory harness area.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector:
- Route the 4-flat wiring along the back of the vehicle to the hitch.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components and Test:
- Reinstall all items removed during the installation, including the plastic shroud.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to prevent corrosion.
- Test the system using a test light, 4-flat tester, or functioning trailer.
Safety Notes:
- Warning: Do not exceed the product rating or tow vehicle lamp load rating.
- Ensure the battery connection is fuse-protected (15-amp max).
- Avoid laying tools across the battery’s positive terminal to prevent electrical shocks or sparks.
Specifications:
- Signal circuits: 5.0 amps per side
- Tail/Running circuits: 7.5 amps total
- Use only with 12-volt negative ground systems.
Maintenance:
- Periodically inspect all wires and connections for visible damage or loose fittings.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
