For 2022‑2024 Nissan Pathfinder Trailer Hitch Fits w/ factory Tow Package Curt 13512 2 inch Tow Receiver
Model: 13512-CH3094This Trailer Tow Hitch Fits The Following Vehicles:
2022 - 2024 Nissan Pathfinder w/ factory Tow Package
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2022, 2023, 2024

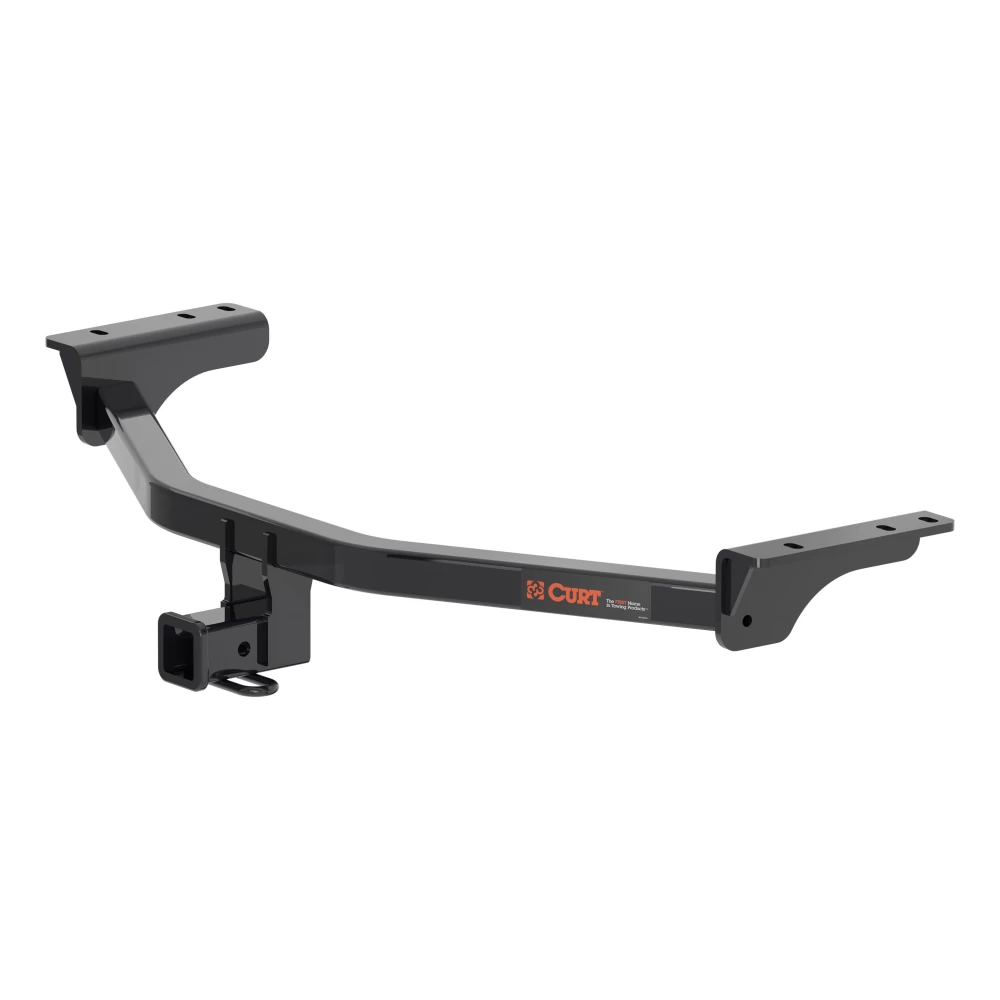

CURT 13512 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Nissan Pathfinder and Infiniti QX60 (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 6,000 lbs GTW and 900 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs WD and 900 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

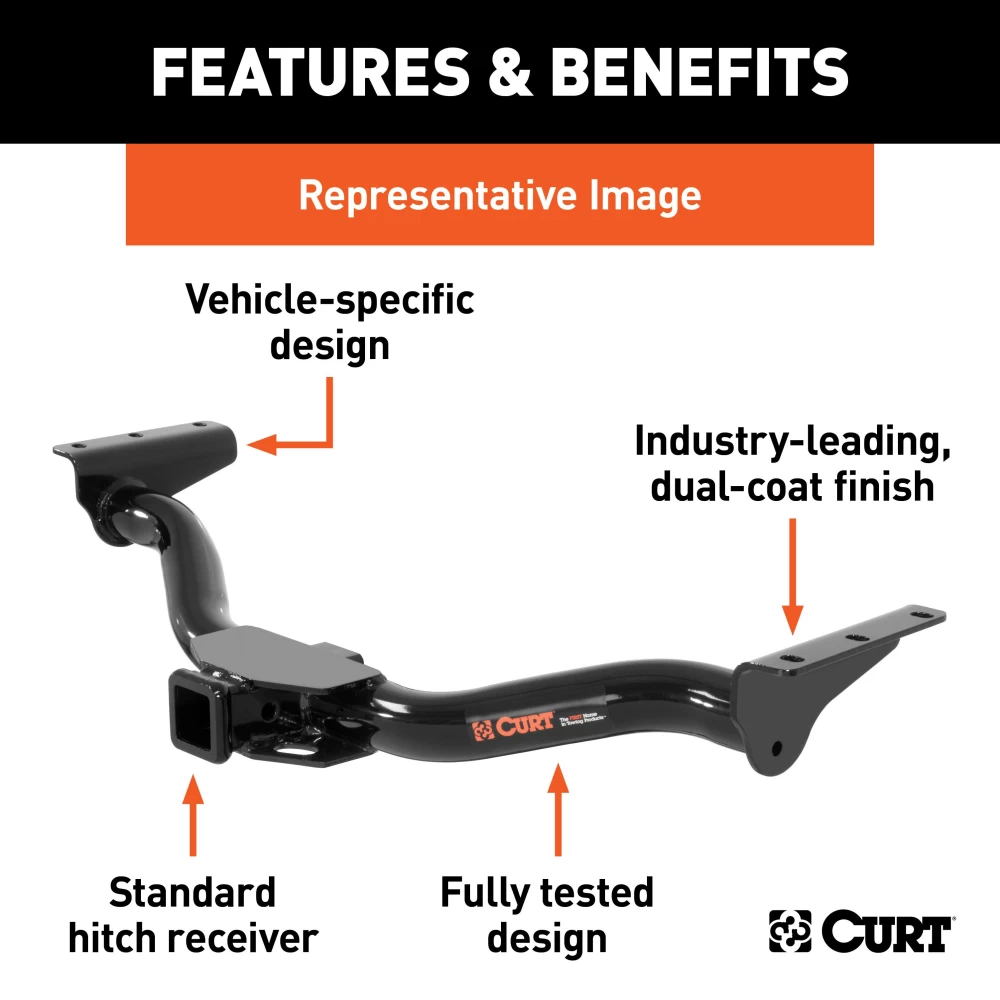

Features:
- Rated to 6,000 lbs. gross trailer weight and 900 lbs. tongue weight
- Compatible with weight distribution hitch (6,000 lbs. WD / 900 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

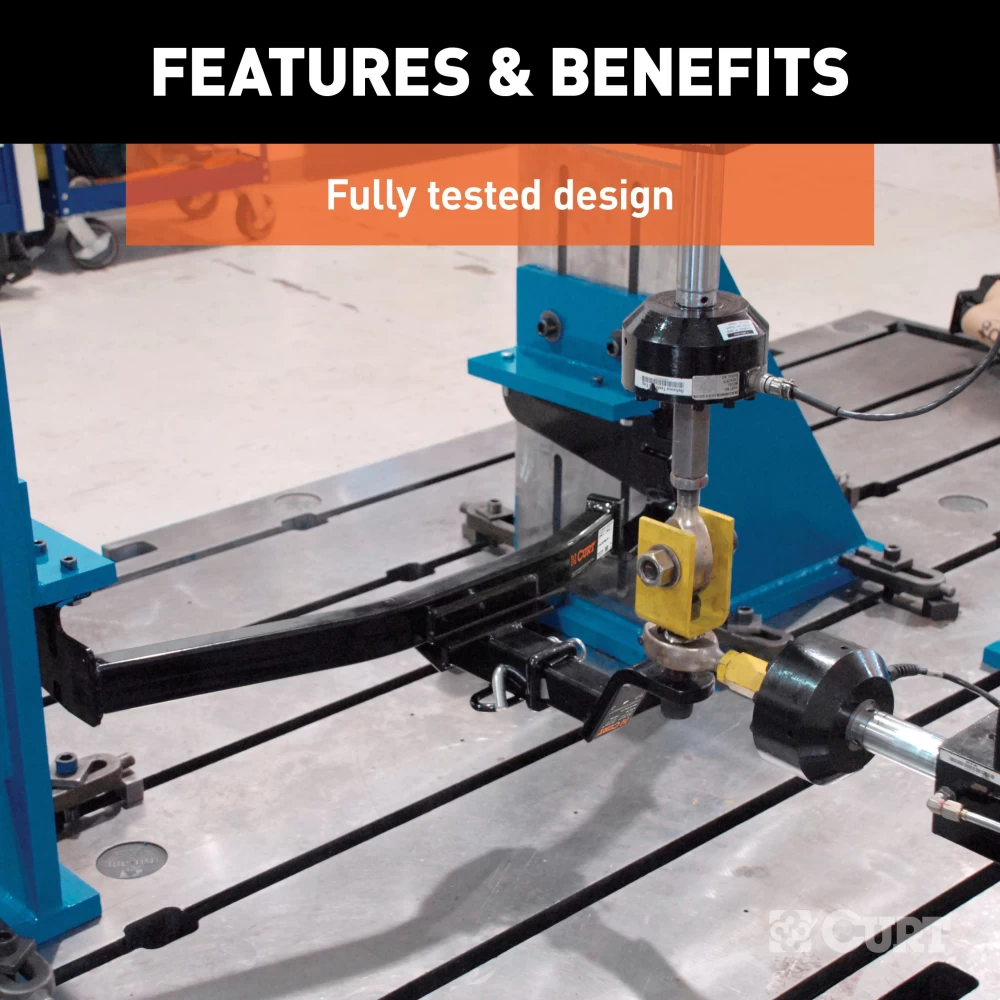

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

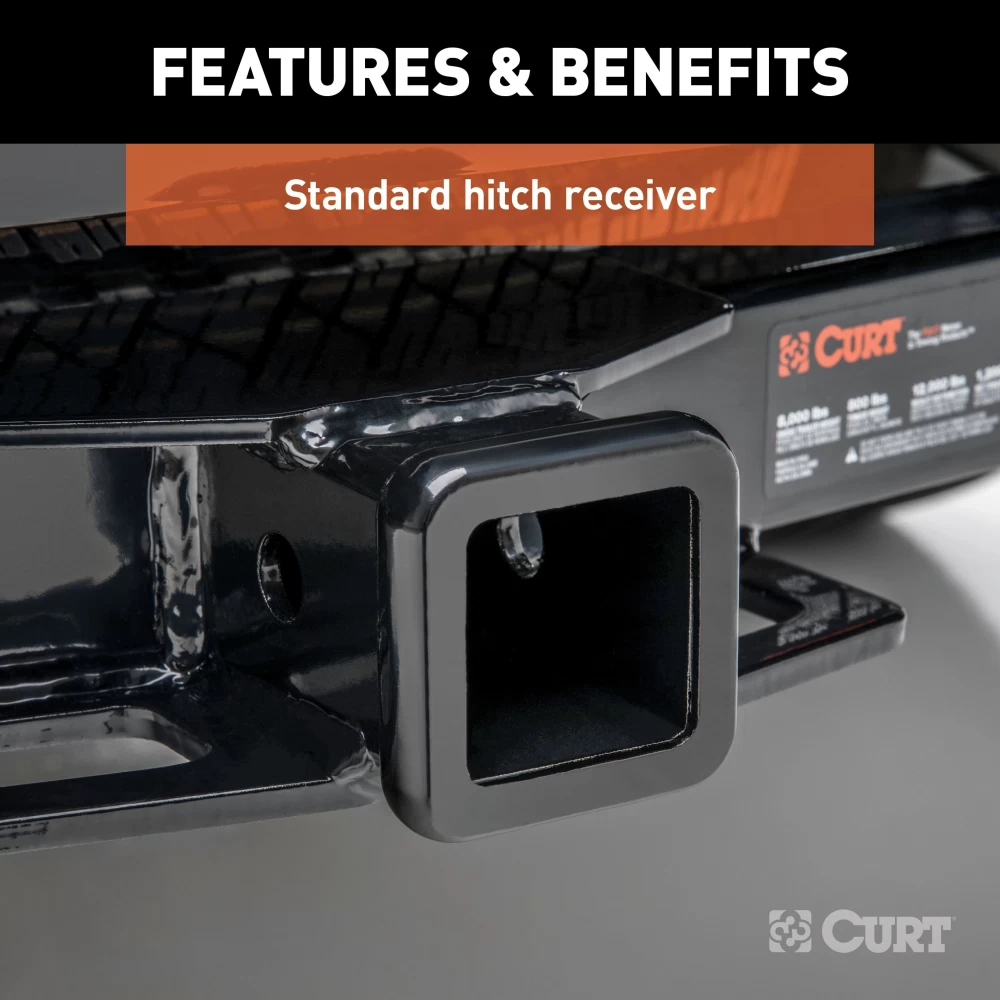

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$264 51 $415.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$415.95 $264 51
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $66.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13512-CH3094
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2022-2024 Nissan Pathfinder Trailer Hitch Fits w/ factory Tow Package Curt 13512 2 inch Tow Receiver Install Notes
Installation Instructions for Nissan Pathfinder, Infiniti QX60
Part Numbers:
- 13512
Tools Required:
- Ratchet
- Torque wrench
- Socket (3/4", 21mm)
- Socket extension (6")
- Exhaust removal tool
- Utility knife
- Tape measure
- Marker
- Safety glasses
Step 1: Remove the spare tire
- Open the rear hatch to access the spare tire lift.
- Use a 21mm socket to lower the spare tire and set it aside.
Step 2: Lower the exhaust
- Use an exhaust removal tool with soapy water to remove the three (3) exhaust hangers.
- Support the exhaust before removing the rubber hangers to prevent damage.
Step 3: Trim the bumper cover
- Measure and mark a 4.25" wide by 2.5" deep section at the center of the lowest edge of the bumper cover.
- Use a utility knife to cut the marked section.
Step 4: Install the hitch
- Raise the hitch into position and loosely install the M12 hex bolts (#1) with conical-toothed washers (#2).
- Refer to the assembly diagram to align the hitch properly with the vehicle frame.
Step 5: Torque hardware
- Torque all M12 fasteners to 60 ft-lbs.
Step 6: Reinstall components
- Reinstall the exhaust hangers and the spare tire.
- Push the spare tire slightly forward to ensure clearance from the hitch receiver.
Hardware List:
- (6) Hex head cap screws, M12 (#1)
- (6) Conical-toothed washers, M12 (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 900 lbs.
- Weight Distribution (WD): 6,000 lbs.
- Weight Distribution Tongue Weight (WDTW): 900 lbs.
- Torque Specification: 60 ft-lbs.
Installation Instructions for Vehicle
Part Numbers:
- 13512
Tools Required:
- Ratchet
- Torque wrench
- Socket (3/4", 21mm)
- Socket extension (6")
- Exhaust removal tool
- Utility knife
- Tape measure
- Marker
- Safety glasses
Step-by-Step Instructions:
Step 1: Remove the spare tire
- Open the rear hatch to access the spare tire lift.
- Use a 21mm socket to lower the spare tire and set it aside.
Step 2: Lower the exhaust
- Use an exhaust removal tool with soapy water to remove the three (3) exhaust hangers.
- Support the exhaust before removing the rubber hangers to prevent damage.
Step 3: Trim the bumper cover
- Measure and mark a 4.25" wide by 2.5" deep section at the center of the lowest edge of the bumper cover.
- Use a utility knife to cut the marked section.
Step 4: Install the hitch
- Raise the hitch into position and loosely install the M12 hex bolts (#1) with conical-toothed washers (#2).
- Refer to the assembly diagram to align the hitch properly with the vehicle frame.
Step 5: Torque hardware
- Torque all M12 fasteners to 60 ft-lbs.
Step 6: Reinstall components
- Reinstall the exhaust hangers and the spare tire.
- Push the spare tire slightly forward to ensure clearance from the hitch receiver.
Hardware List:
- (6) Hex head cap screws, M12 (#1)
- (6) Conical-toothed washers, M12 (#2)
Safety Notes:
- Always wear safety glasses during installation.
- Never exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all mounting hardware is tight and secure.
Specifications:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 900 lbs.
- Weight Distribution (WD): 6,000 lbs.
- Weight Distribution Tongue Weight (WDTW): 900 lbs.
- Torque Specification: 60 ft-lbs.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
