For 2023‑2024 Kia Niro Trailer Wiring 4 Way Except Plug‑In‑Hybrid Curt 56505
Model: 56505-CW2563This Wiring 4-Flat Fits The Following Vehicles:
2023 - 2024 Kia Niro Except Plug-In-Hybrid
This Wiring 4-Flat Includes the Following Parts:

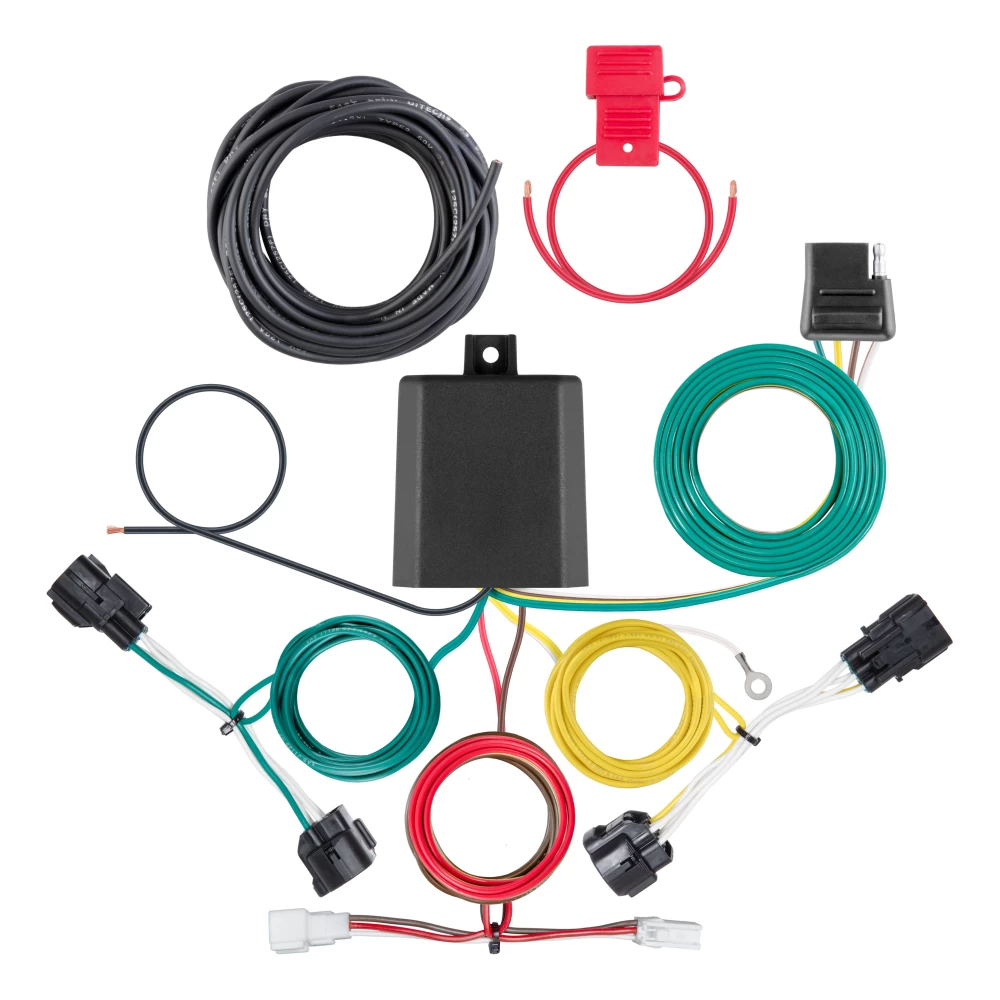

- Custom Wiring Harness, 4-Way Flat Output
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2023, 2024

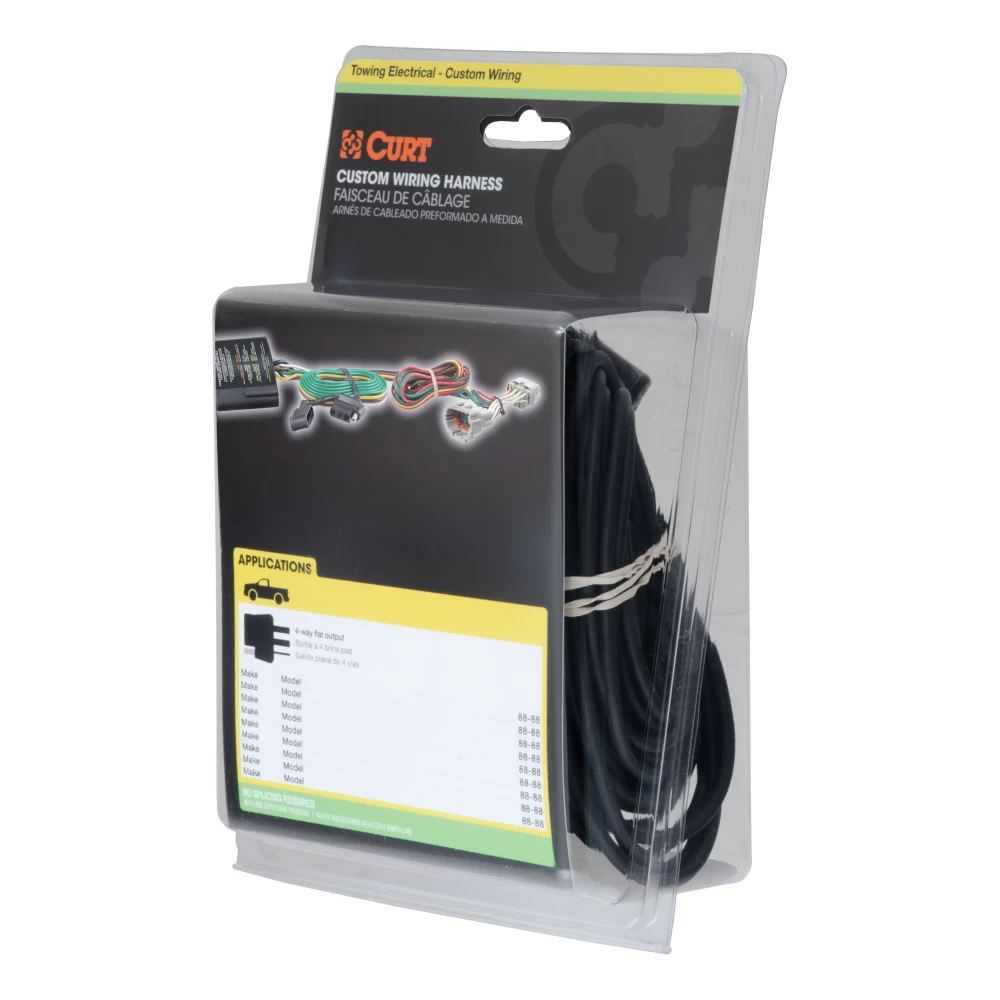

CURT 56505 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Niro (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Backed by a limited one-year warranty

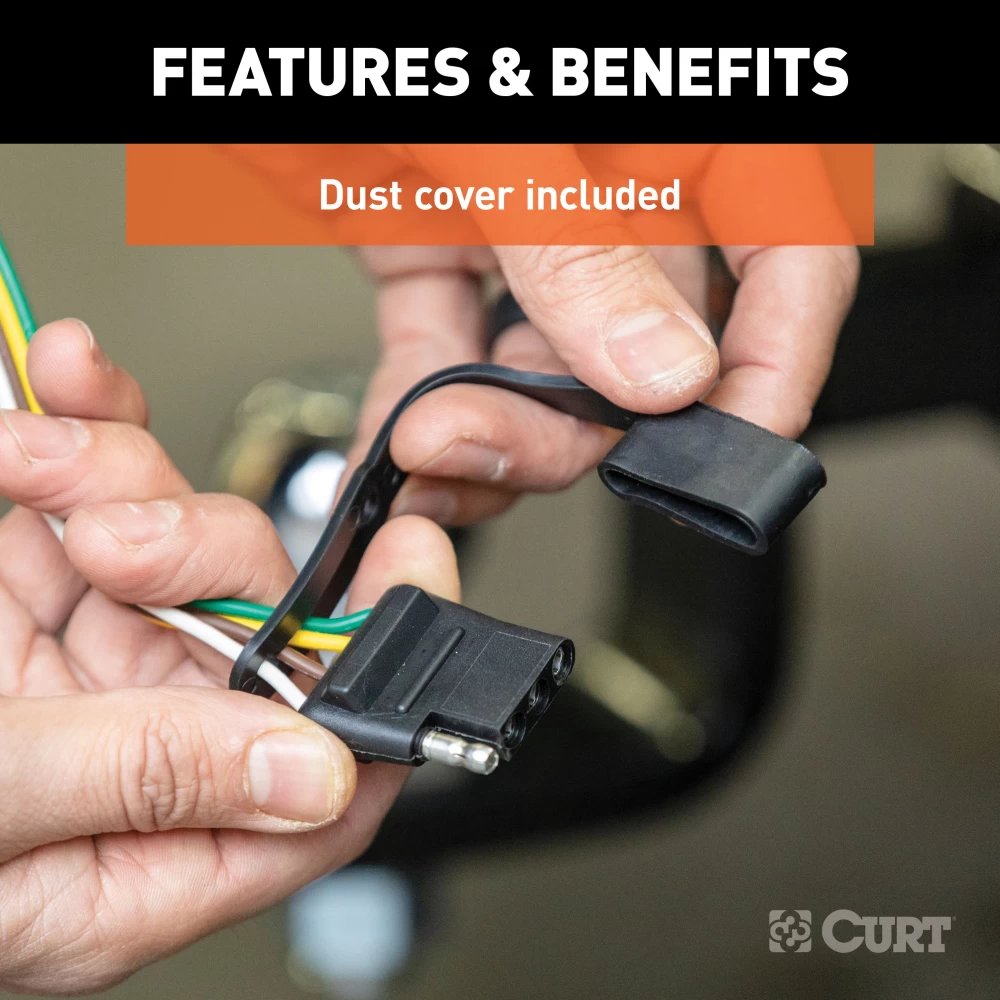

- Dust cover included to keep connector clean when not in use
- Constructed with SMT circuitry for better performance and durability
- Equipped with tail light converter for vehicle-trailer compatibility

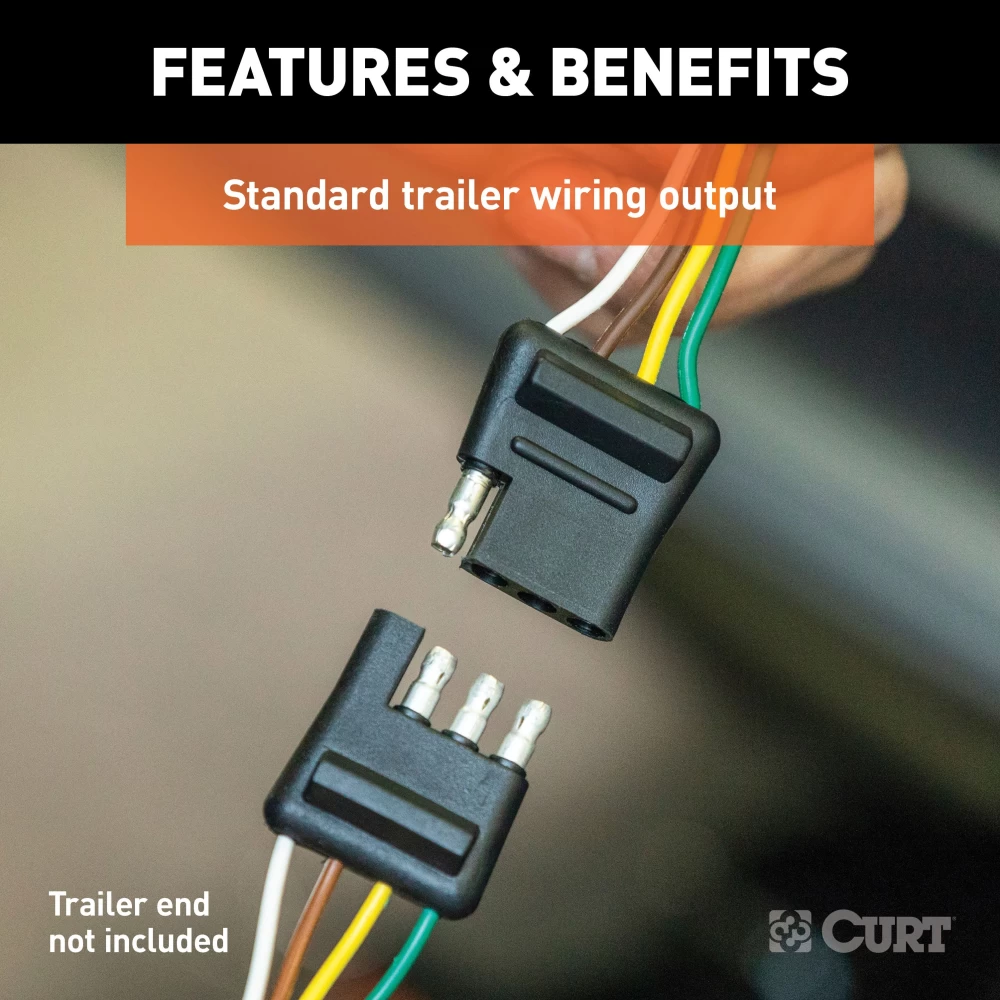

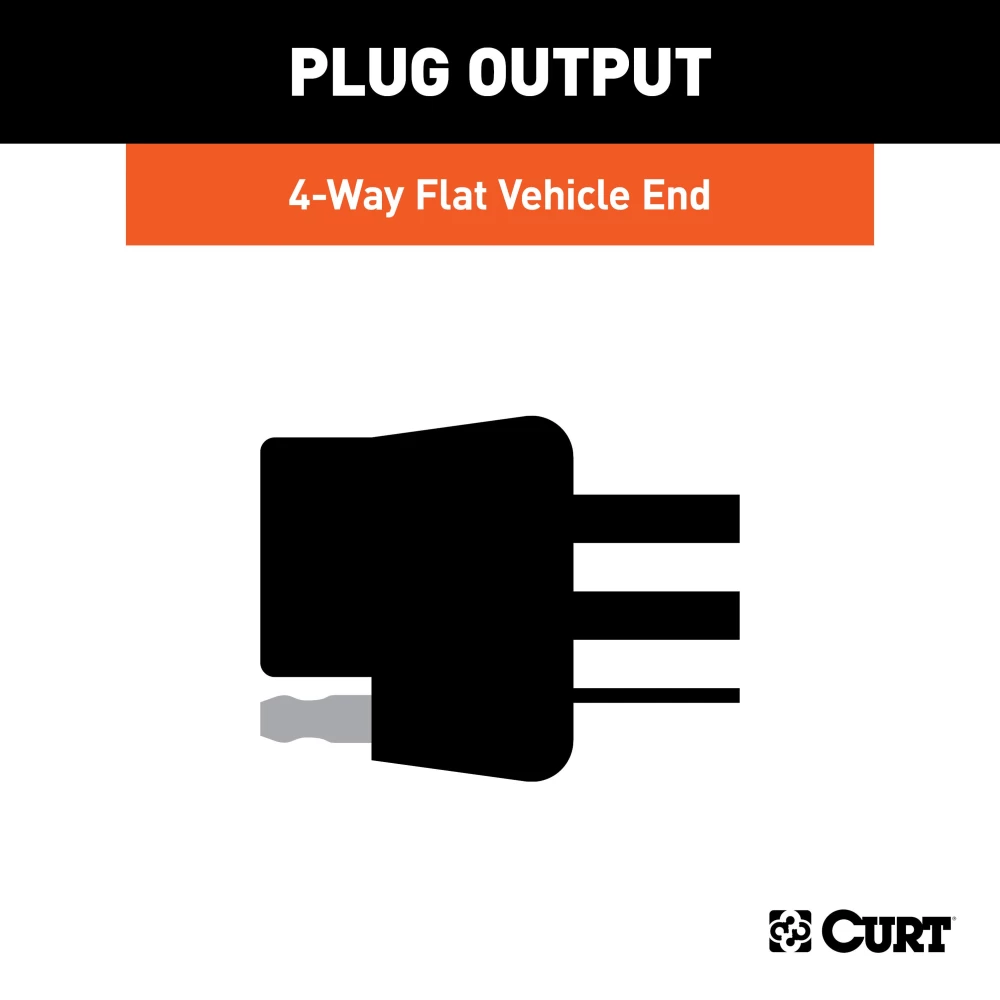

- 4-way flat output connects tail lights, brake lights and turn signals
- Simple plug-and-play design eliminates the need for cutting or splicing

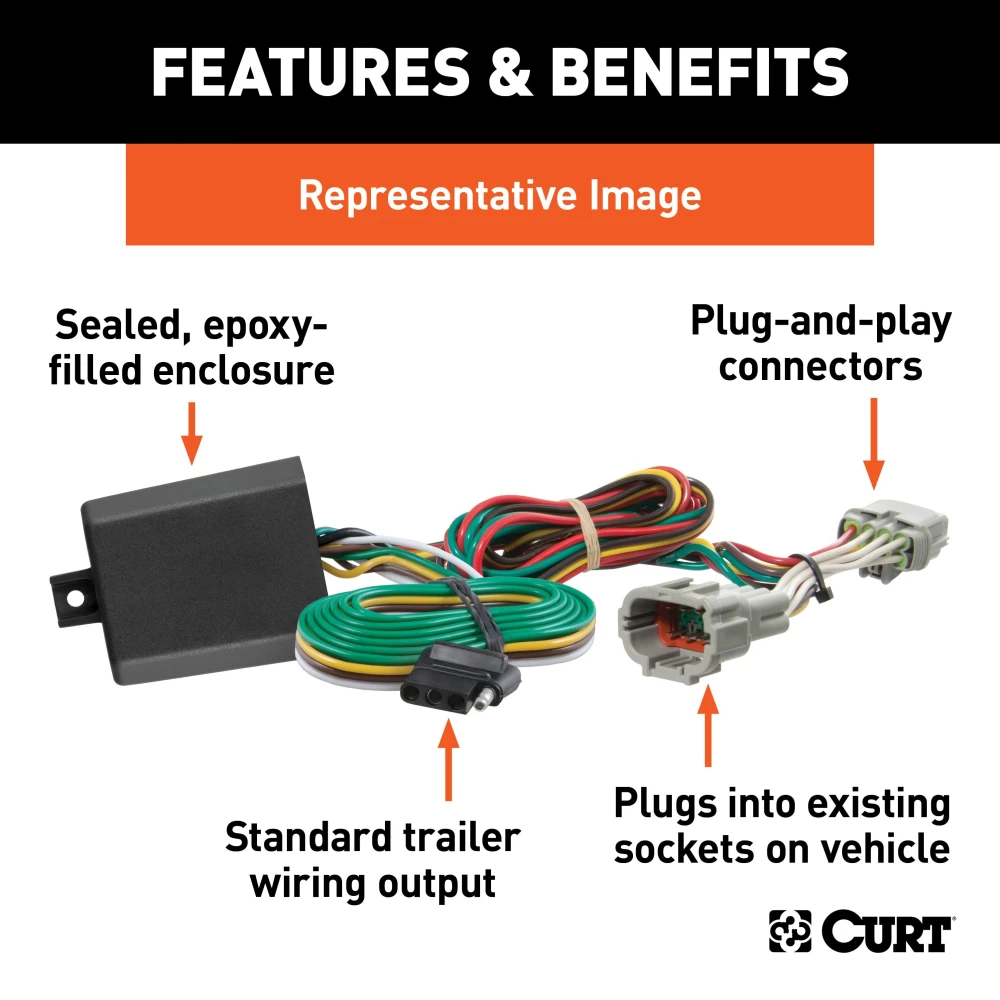

- Plugs into vehicle tail light assembly to provide a 4-way flat socket
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$83 54 $125.95 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$125.95 $83 54
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $20.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56505-CW2563
- Includes: Custom Wiring Harness
Compatibility Chart
Get Expert Help
For 2023-2024 Kia Niro Trailer Wiring 4 Way Except Plug-In-Hybrid Curt 56505 Install Notes
Installation Instructions for 4-Way Trailer Wiring Kit (Part 56505)
Wiring Access Locations:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Wire crimper
- Wire stripper
- Socket extension
- Utility knife
- Flathead screwdriver
- Drill with 3/32" Bit
- Fish wire
Step-by-Step Instructions:
Step 1: Disconnect the Negative Battery Terminal
- Locate the vehicle battery as specified in the owner's manual.
- Disconnect the negative battery terminal and secure it away from the battery to prevent accidental contact during installation.
Step 2: Remove the Driver-Side Taillight
- Open the vehicle tailgate.
- Remove any fasteners securing the driver-side taillight using a socket or flathead screwdriver.
- Carefully pull the taillight rearward to avoid damaging alignment tabs.

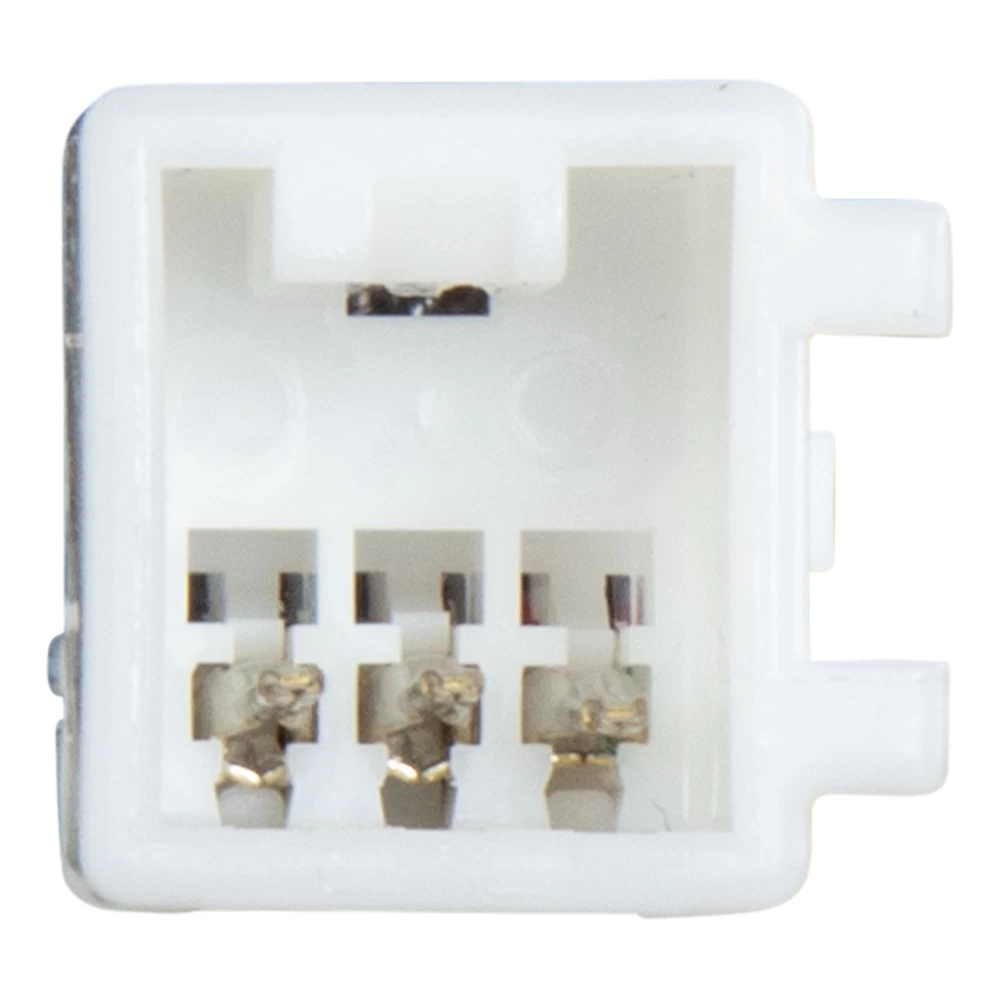

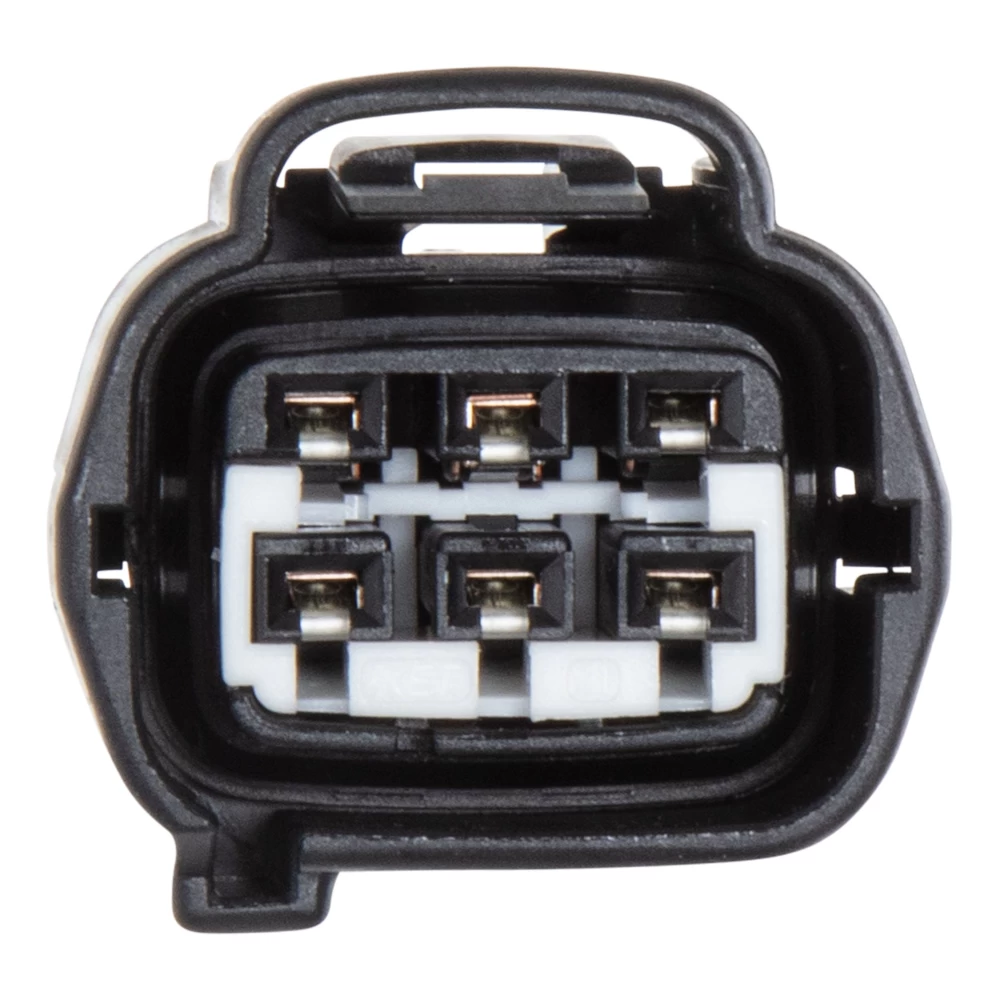

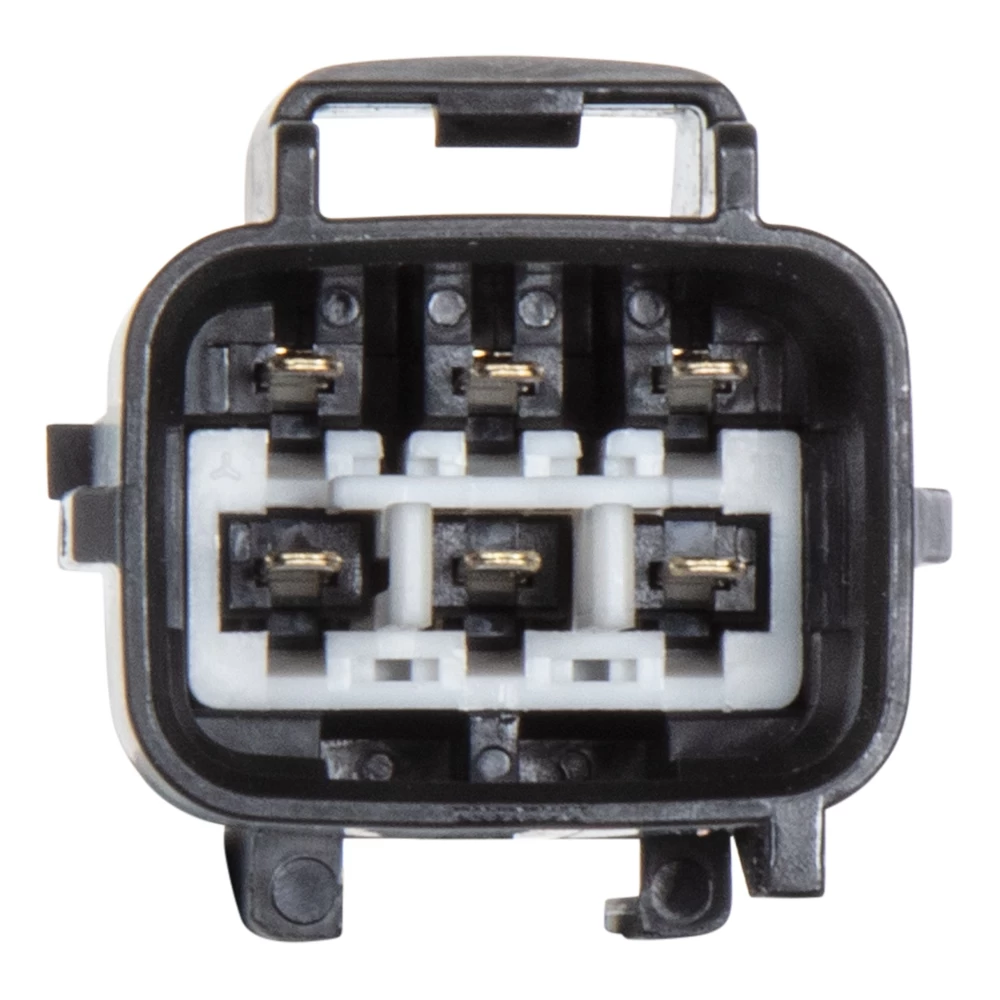

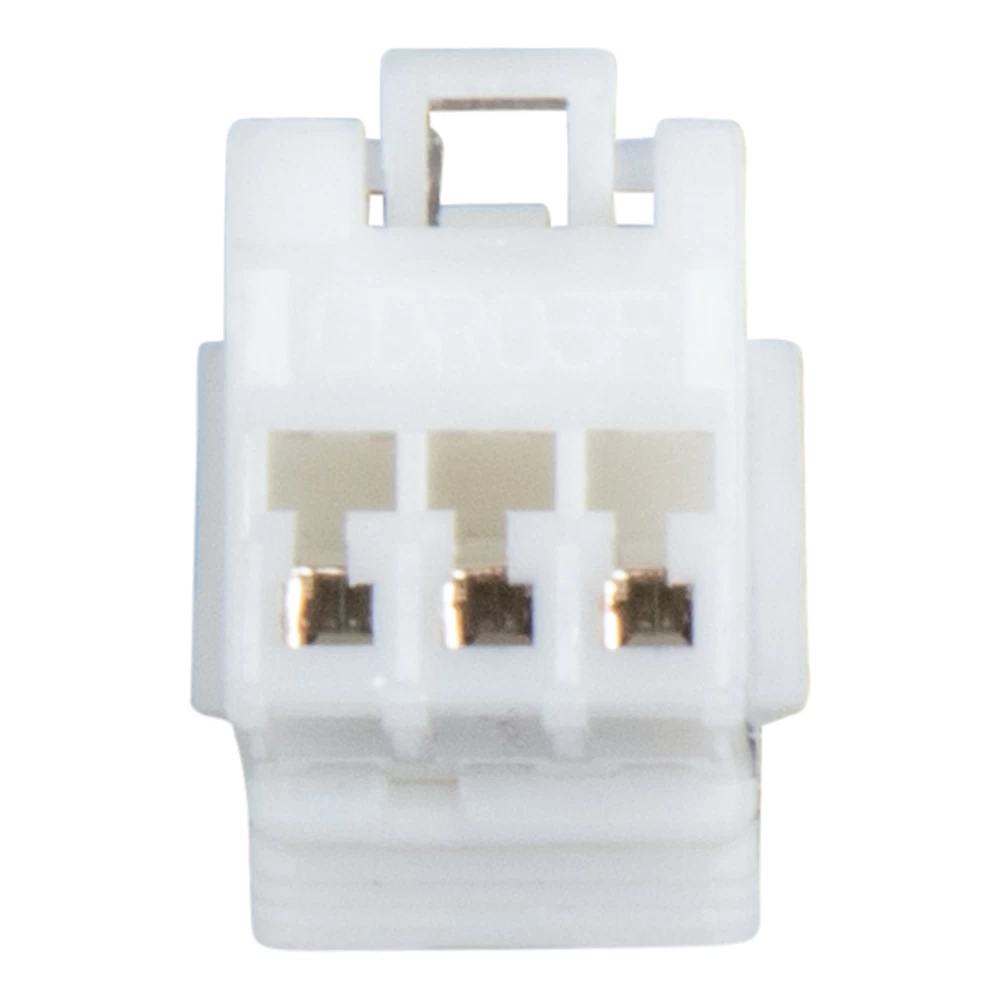

Step 3: Connect the T-Connector on the Driver Side
- Locate the vehicle's taillight wiring harness behind the removed taillight.
- Disconnect the factory wiring harness from the taillight housing.
- Plug the custom T-connector with the yellow wire in-line with the factory wiring harness and taillight assembly.
- Secure the connections, ensuring the locking tabs are engaged.
Step 4: Ground the White Wire
- Locate a solid grounding point near the driver-side wiring harness, such as a clean, rust-free bolt or a bare section of the vehicle frame.
- If no grounding point is available, drill a 3/32" pilot hole and use the provided screw to secure the white ground wire with its ring terminal.
- Caution: Check behind the surface before drilling to avoid damage or injury.
Step 5: Route the Green Wire to the Passenger Side
- Use a fish wire to route the green wire along the rear bumper to the passenger-side taillight.
- Repeat Steps 2 and 3 on the passenger side, using the green wire T-connector.
Step 6: Secure the Converter Box
- Locate a flat, clean surface near the driver-side taillight, away from road spray and debris.
- Attach the black converter box to this surface using the provided double-sided tape.
- Use cable ties to secure the box and prevent it from moving.
- Warning: Failure to mount the box in a protected area can cause product failure, overheating, and potential fire.
Step 7: Route the Black Power Wire to the Battery
- Connect the black power wire to the converter box and route it to the vehicle's battery.
- Secure the wire along the vehicle's frame, avoiding moving parts, sharp edges, and heat sources.
- Use the included fuse holder to connect the black wire to the positive battery terminal.
- Insert the provided fuse into the fuse holder.
Step 8: Finalize Installation
- Route the 4-flat trailer connector to the rear center of the vehicle.
- Secure the 4-flat connector in a convenient location, such as near the hitch receiver, using cable ties.
- Reinstall any items removed during the installation.
- Reconnect the negative battery terminal.
- Install the included dust cover onto the 4-flat connector to protect it from dirt and moisture.
Hardware List:
- Custom wiring harness with yellow and green wires
- Black converter box
- White ground wire with ring terminal
- Black power wire with fuse holder
- Double-sided tape
- Cable ties
- Dust cover for 4-flat connector
Safety Notes:
- Warning: Do not exceed the product rating or the vehicle's lamp load rating, whichever is lower.
- Warning: Ensure the battery connection is fuse-protected (15-amp max) to prevent overheating and potential fire.
- Caution: Check for hidden objects behind surfaces before drilling to avoid damage and/or injury.
Specifications:
- Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Compliance: Refer to the vehicle owner's manual or contact the manufacturer for additional information.
By following these steps, you can safely install your 4-way trailer wiring kit and ensure reliable performance for your towing needs.
Installation Instructions for 4-Way Trailer Wiring Kit (Part 56505)
Wiring Access Locations:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Wire crimper
- Wire stripper
- Socket extension
- Utility knife
- Flathead screwdriver
- Drill with 3/32" Bit
- Fish wire
Step-by-Step Instructions:
Step 1: Disconnect the Negative Battery Terminal
- Locate the vehicle battery as specified in the owner's manual.
- Disconnect the negative battery terminal and secure it away from the battery to prevent accidental contact during installation.
Step 2: Remove the Driver-Side Taillight
- Open the vehicle tailgate.
- Remove any fasteners securing the driver-side taillight using a socket or flathead screwdriver.
- Carefully pull the taillight rearward to avoid damaging alignment tabs.
Step 3: Connect the T-Connector on the Driver Side
- Locate the vehicle's taillight wiring harness behind the removed taillight.
- Disconnect the factory wiring harness from the taillight housing.
- Plug the custom T-connector with the yellow wire in-line with the factory wiring harness and taillight assembly.
- Secure the connections, ensuring the locking tabs are engaged.
Step 4: Ground the White Wire
- Locate a solid grounding point near the driver-side wiring harness, such as a clean, rust-free bolt or a bare section of the vehicle frame.
- If no grounding point is available, drill a 3/32" pilot hole and use the provided screw to secure the white ground wire with its ring terminal.
- Caution: Check behind the surface before drilling to avoid damage or injury.
Step 5: Route the Green Wire to the Passenger Side
- Use a fish wire to route the green wire along the rear bumper to the passenger-side taillight.
- Repeat Steps 2 and 3 on the passenger side, using the green wire T-connector.
Step 6: Secure the Converter Box
- Locate a flat, clean surface near the driver-side taillight, away from road spray and debris.
- Attach the black converter box to this surface using the provided double-sided tape.
- Use cable ties to secure the box and prevent it from moving.
- Warning: Failure to mount the box in a protected area can cause product failure, overheating, and potential fire.
Step 7: Route the Black Power Wire to the Battery
- Connect the black power wire to the converter box and route it to the vehicle's battery.
- Secure the wire along the vehicle's frame, avoiding moving parts, sharp edges, and heat sources.
- Use the included fuse holder to connect the black wire to the positive battery terminal.
- Insert the provided fuse into the fuse holder.
Step 8: Finalize Installation
- Route the 4-flat trailer connector to the rear center of the vehicle.
- Secure the 4-flat connector in a convenient location, such as near the hitch receiver, using cable ties.
- Reinstall any items removed during the installation.
- Reconnect the negative battery terminal.
- Install the included dust cover onto the 4-flat connector to protect it from dirt and moisture.
Hardware List:
- Custom wiring harness with yellow and green wires
- Black converter box
- White ground wire with ring terminal
- Black power wire with fuse holder
- Double-sided tape
- Cable ties
- Dust cover for 4-flat connector
Safety Notes:
- Warning: Do not exceed the product rating or the vehicle's lamp load rating, whichever is lower.
- Warning: Ensure the battery connection is fuse-protected (15-amp max) to prevent overheating and potential fire.
- Caution: Check for hidden objects behind surfaces before drilling to avoid damage and/or injury.
Specifications:
- Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Compliance: Refer to the vehicle owner's manual or contact the manufacturer for additional information.
Important Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
