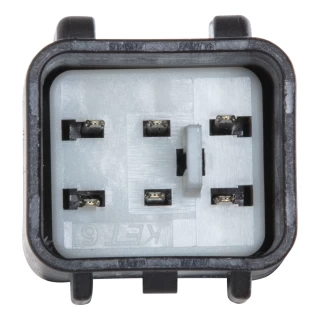

For 2023-2024 Kia Telluride Trailer Wiring 4 Way Fits Models w/ LED Taillights Curt 56501 Install Notes
Installation Instructions for Kia Telluride (Excluding LX or S)
Part Numbers:
- 56501
Wiring Access Location:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Socket, 10mm
- Socket extension
- Panel trim removal tool
- Flathead screwdriver
- Wire stripper
- Wire crimper
- Cutting tool
- Electrical tape
- Abrasive pad/paper
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle's battery in the engine compartment on the driver side.
- Disconnect the negative terminal of the battery to prevent accidental electrical contact. Secure the cable away from the battery during installation.
-
Access Taillight Trim and Fasteners:
- Open the rear hatch and locate the taillight fastener covers.
- Use a panel trim removal tool to remove the covers and expose the fasteners.
- Use a 10mm socket to remove the bolts securing each taillight.
- Carefully pull the taillights straight back to remove them, ensuring the alignment tabs are not damaged. Set the taillights aside.
-
Fishwire the Wiring Harness:
- Starting on the driver side, route a fish wire from under the bumper cover to the taillight cavity.

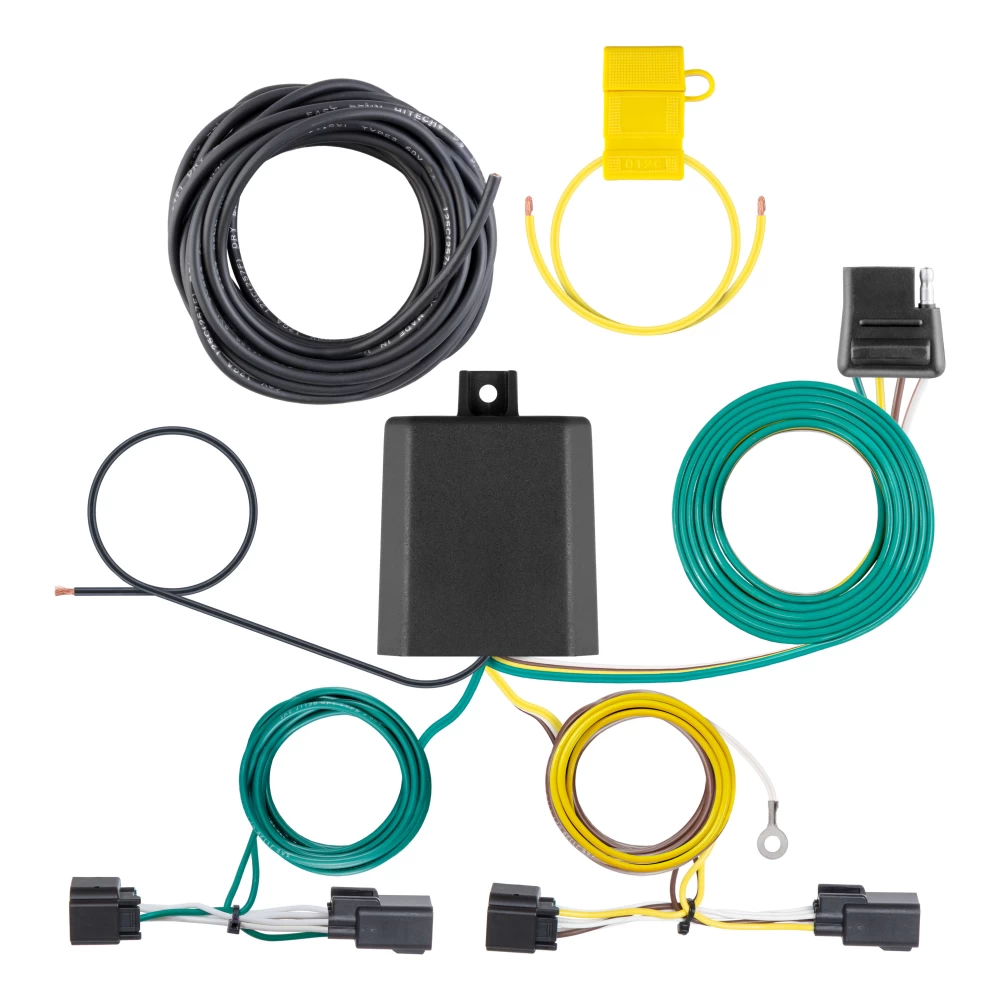

- Attach the yellow wire from the custom wiring harness to the fish wire and pull it through to the taillight cavity.
-
Install Driver-Side Wiring:

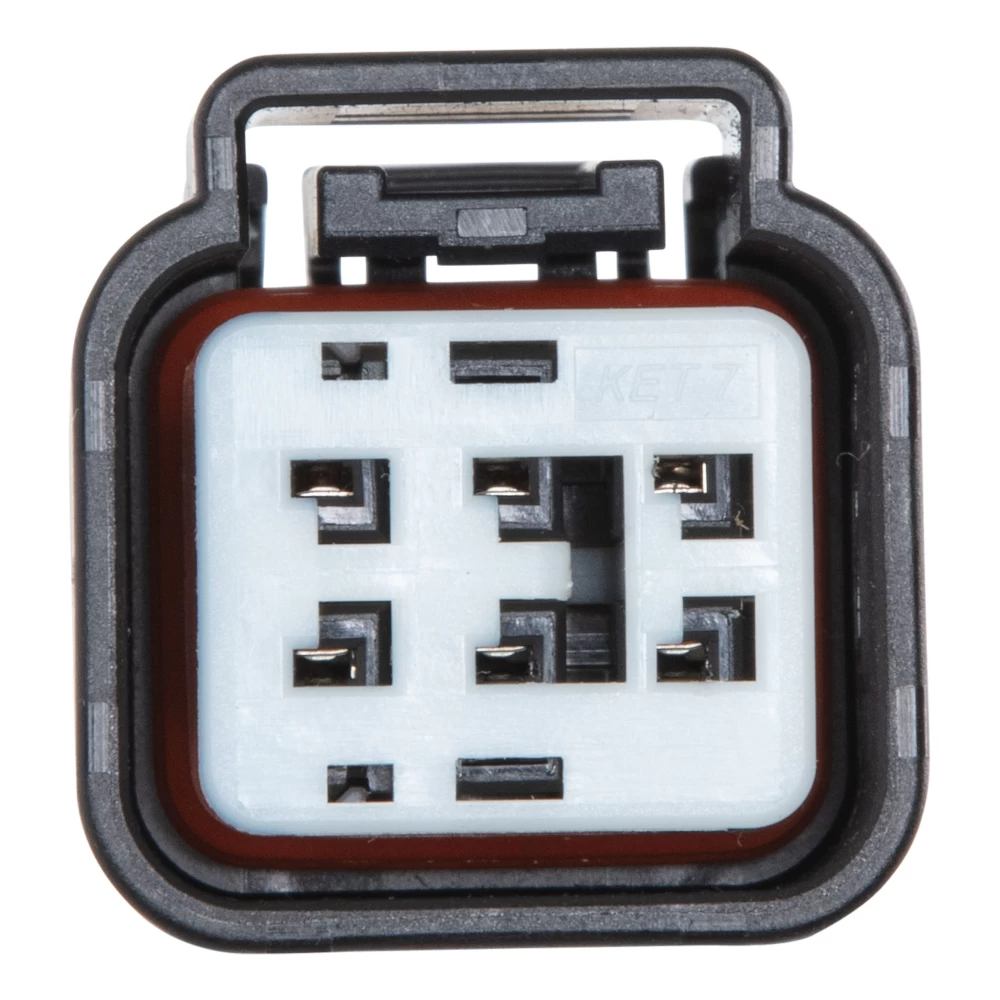

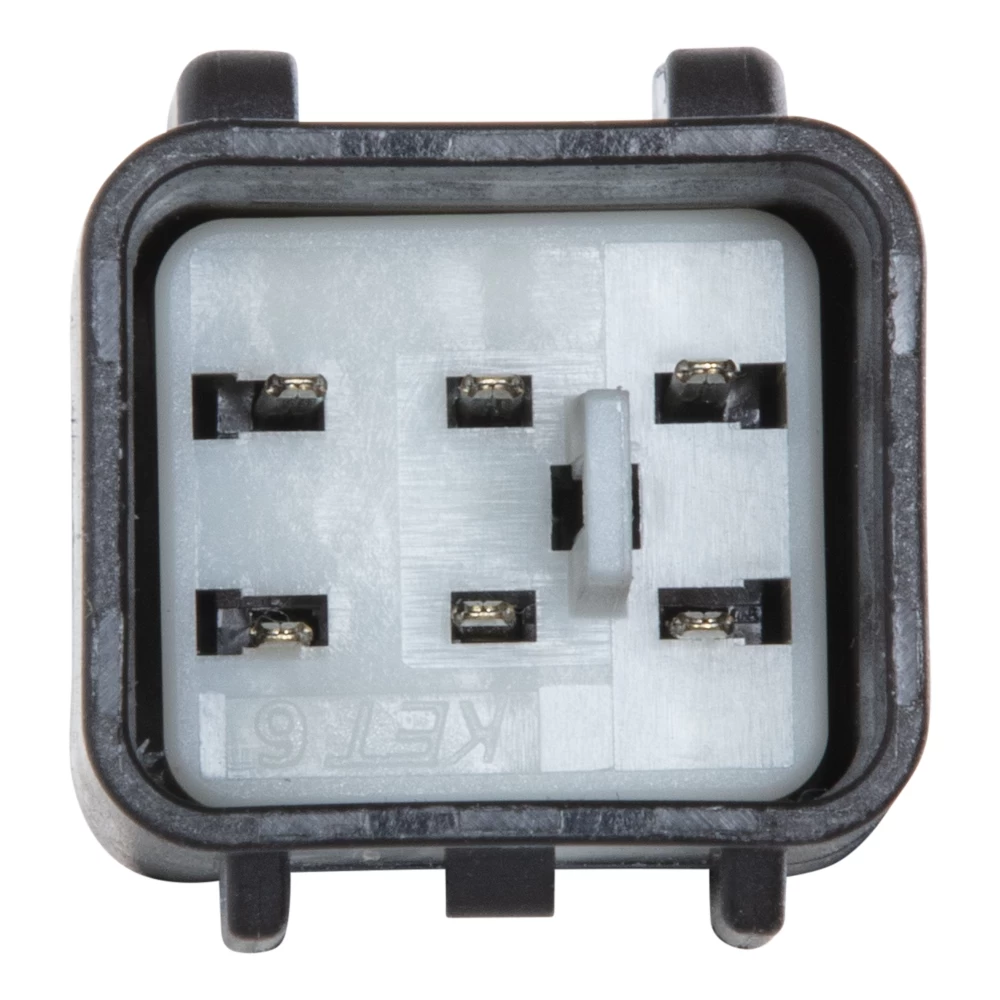

- Connect the yellow wire from the wiring harness between the factory connectors and the driver-side taillight.
- Place the taillight back into its cavity but do not secure it with hardware yet.
-
Install Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity, securing it with zip ties.
- Use the same fish wire process to pull the green wire into the passenger-side taillight cavity.
- Connect the green wire between the factory connectors and the passenger-side taillight.
-

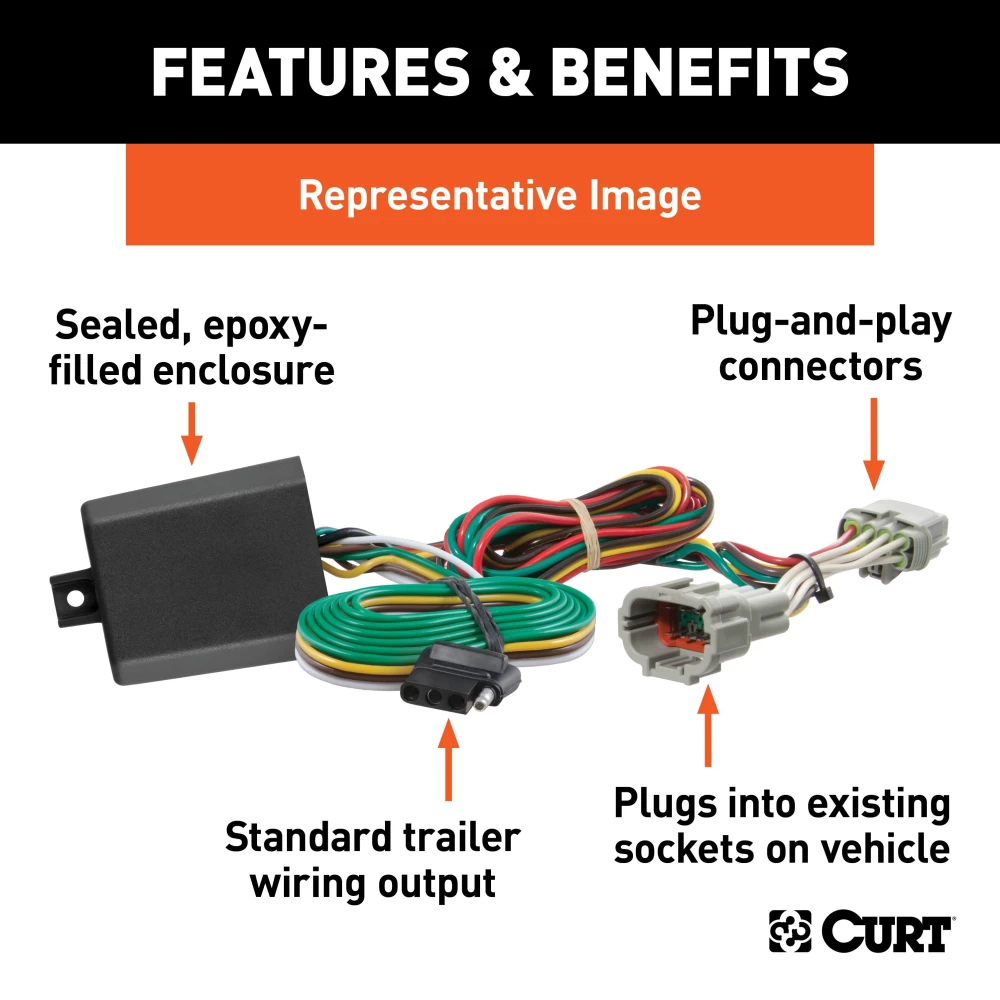

Mount the Converter Box:
- Locate a flat, clean surface near the driver-side taillight cavity. Use the provided double-sided tape to secure the black converter box.
- Ensure the box is mounted in a protected location away from road spray and debris.
-
Ground the Wiring Harness:
- Locate a grounding point, such as an existing bolt or screw in the vehicle frame. If necessary, drill a 3/32" pilot hole in a clean, rust-free area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle battery, following the Powered Converter Lead Instruction Sheet.
- Use a grommet or sealant when passing the wire through sheet metal to prevent damage.
- Attach the wire to the positive battery terminal using a fuse holder with a 15-amp fuse (install the fuse after all other steps are completed).
-

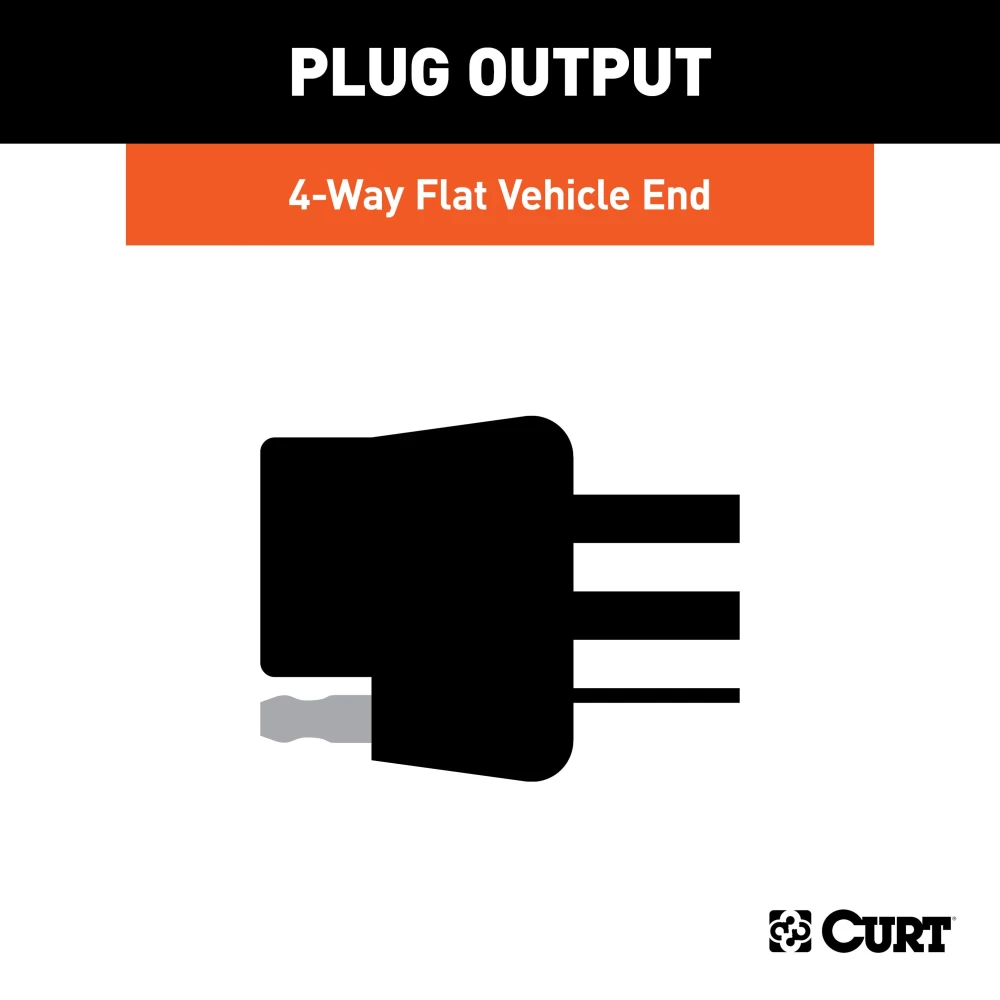

Test and Secure the 4-Flat Connector:

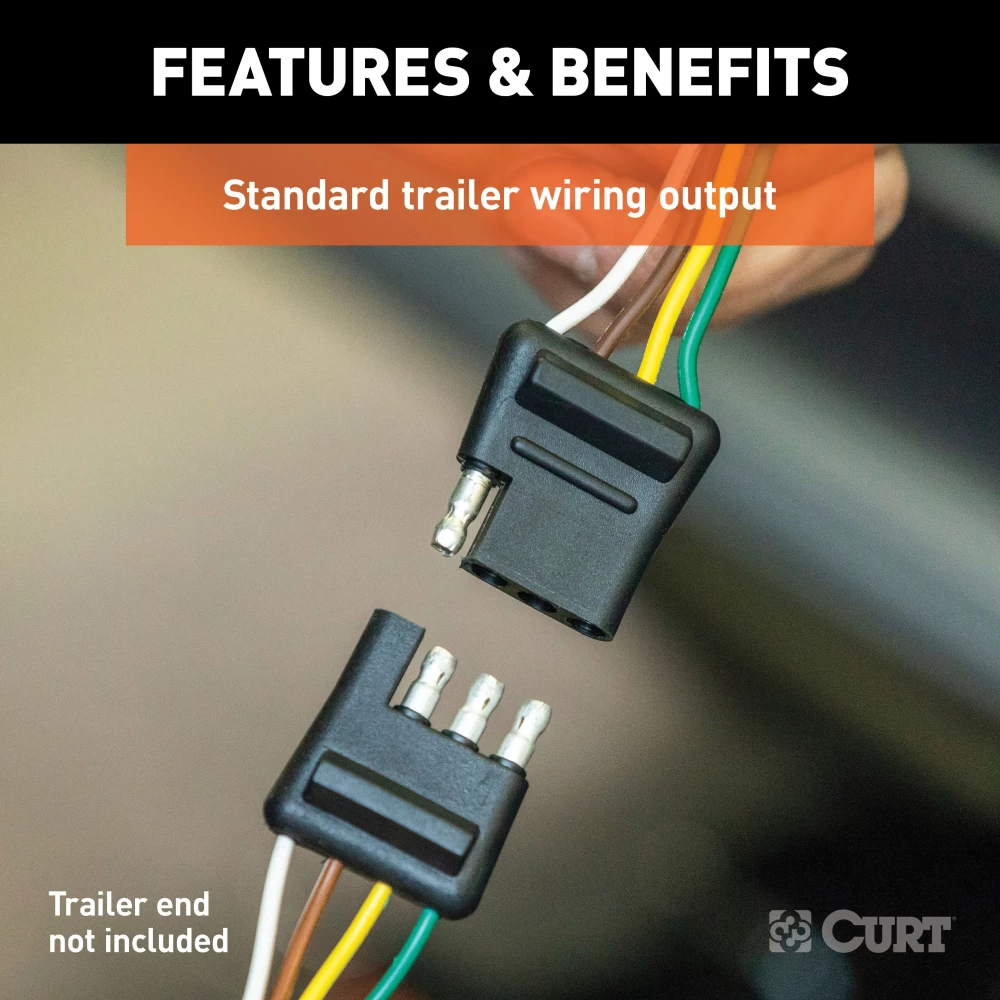

- Route the 4-flat connector to the center of the vehicle near the hitch receiver.

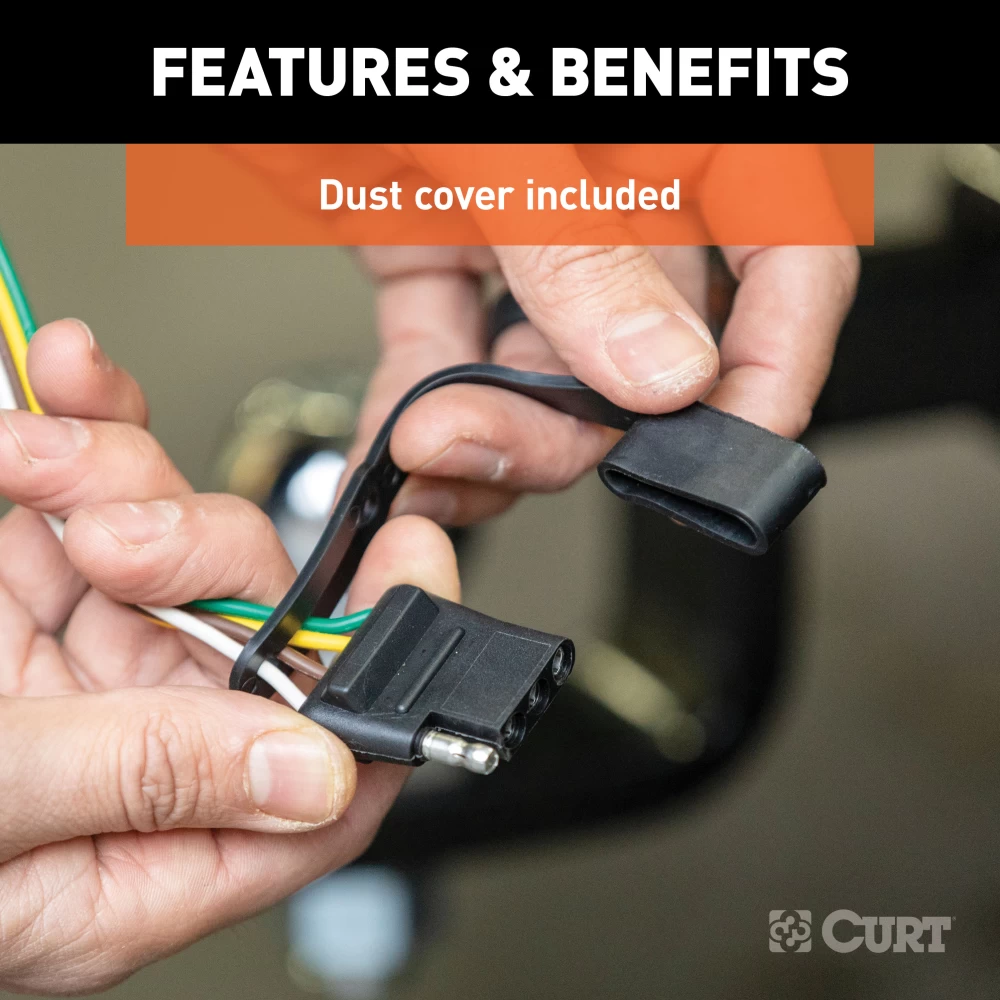

- Secure any loose wiring with cable ties and attach the provided dust cover to protect the connector.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation.
-
Reassemble and Finalize:
- Reinstall the taillights, securing them with the original fasteners.
- Reconnect the negative terminal of the battery and ensure all components are properly secured.
- Verify the installation by testing all functions of the wiring harness.
Hardware List:
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (15 amps max).
- Regularly inspect all wiring and connections for damage or wear.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Maintenance:
- Periodically inspect all wiring and connections to ensure they remain secure and functional.
Installation Instructions for Vehicles
Part Numbers:
- 56501
Wiring Access Location:
- S1: Behind driver-side taillight housing
- S2: Behind passenger-side taillight housing
Tools Required:
- Ratchet
- Socket, 10mm
- Socket extension
- Panel trim removal tool
- Flathead screwdriver
- Wire stripper
- Wire crimper
- Cutting tool
- Electrical tape
- Abrasive pad/paper
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Locate the vehicle's battery in the engine compartment on the driver side.
- Disconnect the negative terminal of the battery to prevent accidental electrical contact. Secure the cable away from the battery during installation.
-
Access Taillight Trim and Fasteners:
- Open the rear hatch and locate the taillight fastener covers.
- Use a panel trim removal tool to remove the covers and expose the fasteners.
- Use a 10mm socket to remove the bolts securing each taillight.
- Carefully pull the taillights straight back to remove them, ensuring the alignment tabs are not damaged. Set the taillights aside.
-
Fishwire the Wiring Harness:
- Starting on the driver side, route a fish wire from under the bumper cover to the taillight cavity.
- Attach the yellow wire from the custom wiring harness to the fish wire and pull it through to the taillight cavity.
-
Install Driver-Side Wiring:
- Connect the yellow wire from the wiring harness between the factory connectors and the driver-side taillight.
- Place the taillight back into its cavity but do not secure it with hardware yet.
-
Install Passenger-Side Wiring:
- Route the green wire along the rear bumper to the passenger-side taillight cavity, securing it with zip ties.
- Use the same fish wire process to pull the green wire into the passenger-side taillight cavity.
- Connect the green wire between the factory connectors and the passenger-side taillight.
-
Mount the Converter Box:
- Locate a flat, clean surface near the driver-side taillight cavity. Use the provided double-sided tape to secure the black converter box.
- Ensure the box is mounted in a protected location away from road spray and debris.
-
Ground the Wiring Harness:
- Locate a grounding point, such as an existing bolt or screw in the vehicle frame. If necessary, drill a 3/32" pilot hole in a clean, rust-free area.
- Secure the white ground wire using the provided ring terminal and ground screw.
-
Connect the Power Wire:
- Route the black power wire from the converter box to the vehicle battery, following the Powered Converter Lead Instruction Sheet.
- Use a grommet or sealant when passing the wire through sheet metal to prevent damage.
- Attach the wire to the positive battery terminal using a fuse holder with a 15-amp fuse (install the fuse after all other steps are completed).
-
Test and Secure the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle near the hitch receiver.
- Secure any loose wiring with cable ties and attach the provided dust cover to protect the connector.
- Test the wiring harness using a test light, 4-flat tester, or a functioning trailer to confirm proper operation.
-
Reassemble and Finalize:
- Reinstall the taillights, securing them with the original fasteners.
- Reconnect the negative terminal of the battery and ensure all components are properly secured.
- Verify the installation by testing all functions of the wiring harness.
Hardware List:
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Safety Notes:
- Do not exceed the product or vehicle load ratings.
- Ensure the power wire is fuse-protected (15 amps max).
- Regularly inspect all wiring and connections for damage or wear.
Specifications:
- Powered converter designed for 12-volt negative ground systems.
- Compliance: SAE J684 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
