Product Details
- Brand: Draw-Tite
- Model: 24852 118500

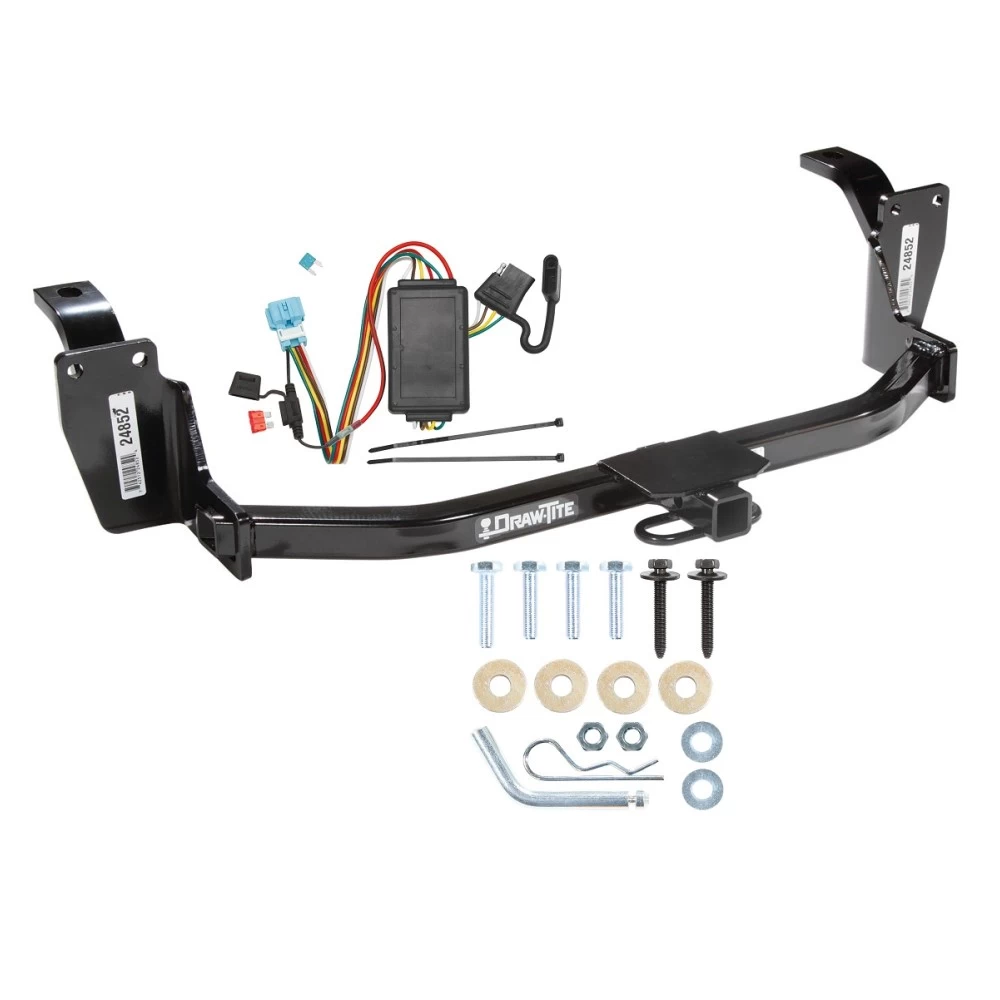

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 10-12 Honda Accord Crosstour Trailer Hitch Tow Receiver w/ Wiring Harness Kit Install Notes
Installation Instructions for Honda Accord Crosstour (All Models, Including EX-2WD, EXL-2WD, and EXL-AWD)
Part Numbers:
- 24852
- 60268
- 77224
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 13mm, 17mm
- Spray Lubricant
- Metal Shears
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the rubber isolator hangers from the metal pegs behind and in front of the mufflers on both sides of the vehicle.
- Also, lower the rubber isolator hangers supporting the exhaust near the rear axle.
- Spray lubricant on the rubber isolators for easier removal.
-
Remove Existing Bolts:
- Remove the 8mm bolts from the frame end panels on both sides of the vehicle and return them to the owner, as they will be replaced.
-
Remove Plastic Push Rivets:
- Detach the plastic push rivets securing the plastic bumper cover on both sides of the bumper bottom. Save them for reinstallation.
-
Remove and Trim Heat Shields:
- Detach both muffler heat shields (secured with three bolts each) from the frame bottom.
- Trim approximately a 4-1/4” x 4-1/4” corner from both heat shields. See the diagram for specific details.
- Reinstall the trimmed heat shields before installing the hitch.
-
Position and Secure Hitch:
- Raise the hitch into place.
- Use the supplied M8-1.25 bolts and washers to attach the hitch to the weldnuts where the 8mm bolts were removed in Step 2.
-
Install Additional Bolts:
- Insert the supplied M10-1.25 bolts with flat washers through the hitch and existing holes in the frame end panels. Secure with conical toothed washers and M10 hex nuts.
- Install the supplied M10-1.25 bolts and conical toothed washers through the hitch side arms into the existing frame weldnuts.
-
Tighten Fasteners:
- Torque all 8mm-1.25 Gr. 9.8 bolts to 25 Lb.-Ft. (34 N*M).
- Torque all 10mm-1.25 Gr. 8.8 bolts to 42 Lb.-Ft. (57 N*M).
-
Reattach Exhaust System:
- Reinstall all rubber exhaust hangers, including those near the axle.
Hardware List:
- (2) M8-1.25 x 55mm Gr. 9.8 Bolts
- (4) M10-1.25 x 40mm Gr. 8.8 Hex Bolts
- (4) Conical Toothed Washers (7/16”)
- (2) Hex Nuts (M10-1.25)
- (2) Flat Washers (3/8”)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, exhaust and other vehicle components may not be shown in the diagrams.
Installation Instructions
Part Numbers:
- 24852
- 60268
- 77224
Wiring Access Location:
- SUV3
Tools Required:
- Wrenches: 10mm, 13mm, 17mm
- Spray Lubricant
- Metal Shears
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust System:
- Remove the rubber isolator hangers from the metal pegs behind and in front of the mufflers on both sides of the vehicle.
- Also, lower the rubber isolator hangers supporting the exhaust near the rear axle.
- Spray lubricant on the rubber isolators for easier removal.
-
Remove Existing Bolts:
- Remove the 8mm bolts from the frame end panels on both sides of the vehicle and return them to the owner, as they will be replaced.
-
Remove Plastic Push Rivets:
- Detach the plastic push rivets securing the plastic bumper cover on both sides of the bumper bottom. Save them for reinstallation.
-
Remove and Trim Heat Shields:
- Detach both muffler heat shields (secured with three bolts each) from the frame bottom.
- Trim approximately a 4-1/4” x 4-1/4” corner from both heat shields. See the diagram for specific details.
- Reinstall the trimmed heat shields before installing the hitch.
-
Position and Secure Hitch:
- Raise the hitch into place.
- Use the supplied M8-1.25 bolts and washers to attach the hitch to the weldnuts where the 8mm bolts were removed in Step 2.
-
Install Additional Bolts:
- Insert the supplied M10-1.25 bolts with flat washers through the hitch and existing holes in the frame end panels. Secure with conical toothed washers and M10 hex nuts.
- Install the supplied M10-1.25 bolts and conical toothed washers through the hitch side arms into the existing frame weldnuts.
-
Tighten Fasteners:
- Torque all 8mm-1.25 Gr. 9.8 bolts to 25 Lb.-Ft. (34 N*M).
- Torque all 10mm-1.25 Gr. 8.8 bolts to 42 Lb.-Ft. (57 N*M).
-
Reattach Exhaust System:
- Reinstall all rubber exhaust hangers, including those near the axle.
Hardware List:
- (2) M8-1.25 x 55mm Gr. 9.8 Bolts
- (4) M10-1.25 x 40mm Gr. 8.8 Hex Bolts
- (4) Conical Toothed Washers (7/16”)
- (2) Hex Nuts (M10-1.25)
- (2) Flat Washers (3/8”)
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3590
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, exhaust and other vehicle components may not be shown in the diagrams.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Honda Crosstour and Acura RDX
Part Numbers:
- 118500
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Test Probe
Step-by-Step Instructions:
For Honda Crosstour:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings and the center storage bin.
-
Locate the Tow Plug:
- Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Insert the Fuse:
- Open the hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse provided into the empty fuse slot.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.
-
Mount the T-Connector Black Box:
- On the driver’s side, locate a flat surface in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
For Acura RDX:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings, exposing the spare tire compartment.
- Remove the spare tire.
-
Locate the Tow Plug:
- Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Mount the T-Connector Black Box:
- Locate a flat surface under the foam cargo tray.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the spare tire compartment when not in use.
Both Honda Crosstour and Acura RDX:
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Be careful not to pinch or cut the wires.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Manufacturer Notes:
- Follow all warnings and installation instructions carefully.
- Store the 4-flat connector in the appropriate compartment when not in use.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118500
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Test Probe
Step-by-Step Instructions:
For Honda Crosstour:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings and the center storage bin.
-
Locate the Tow Plug:
- Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Insert the Fuse:
- Open the hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse provided into the empty fuse slot.
-
Route the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.
-
Mount the T-Connector Black Box:
- On the driver’s side, locate a flat surface in an out-of-the-way location.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
For Acura RDX:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove all floor coverings, exposing the spare tire compartment.
- Remove the spare tire.
-
Locate the Tow Plug:
- Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
- Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.
-
Mount the T-Connector Black Box:
- Locate a flat surface under the foam cargo tray.
- Mount the T-Connector’s black converter box using the provided double-sided tape.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the spare tire compartment when not in use.
Both Honda Crosstour and Acura RDX:
-
Test the Installation:
- Ensure all connections are complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
- Be careful not to pinch or cut the wires.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Refer to the vehicle owner’s manual and instruction sheet for additional information.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Follow all warnings and installation instructions carefully.
- Store the 4-flat connector in the appropriate compartment when not in use.
