Trailer Tow Hitch For 14‑18 Subaru Forester w/ Security Lock Pin Key

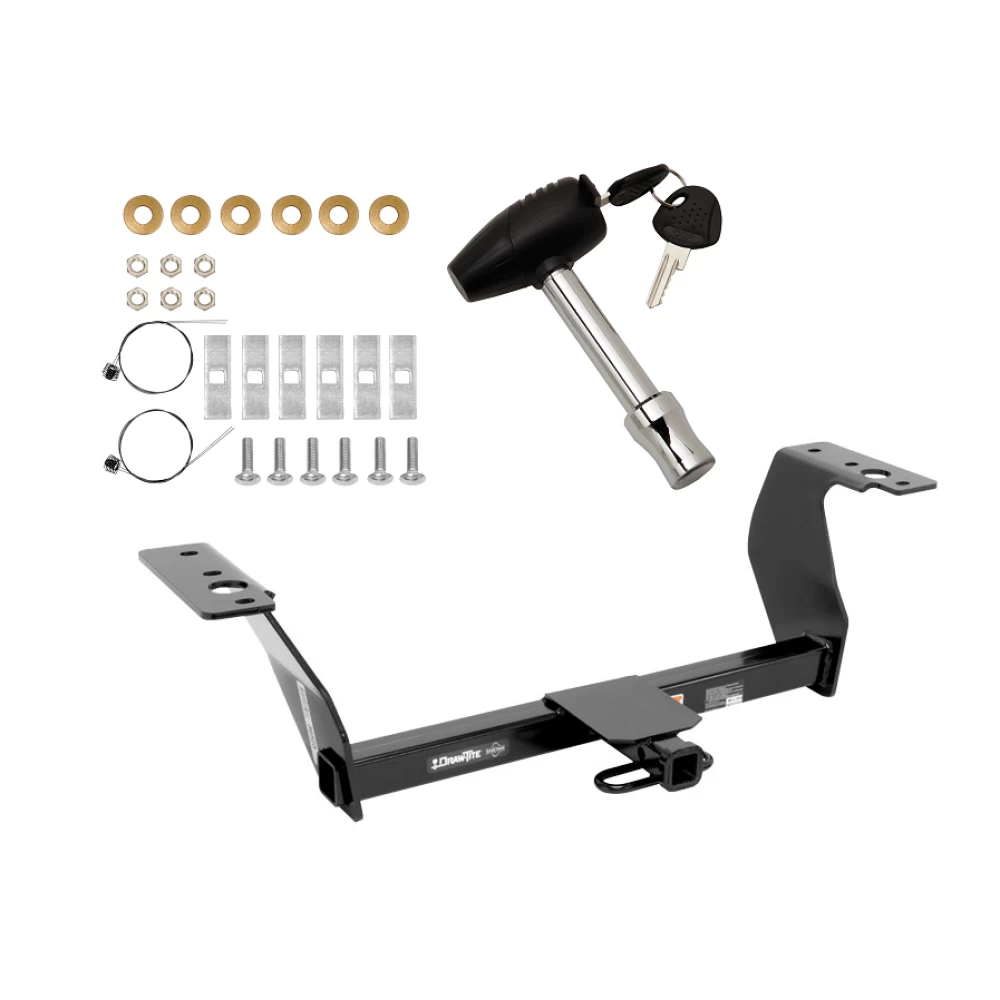

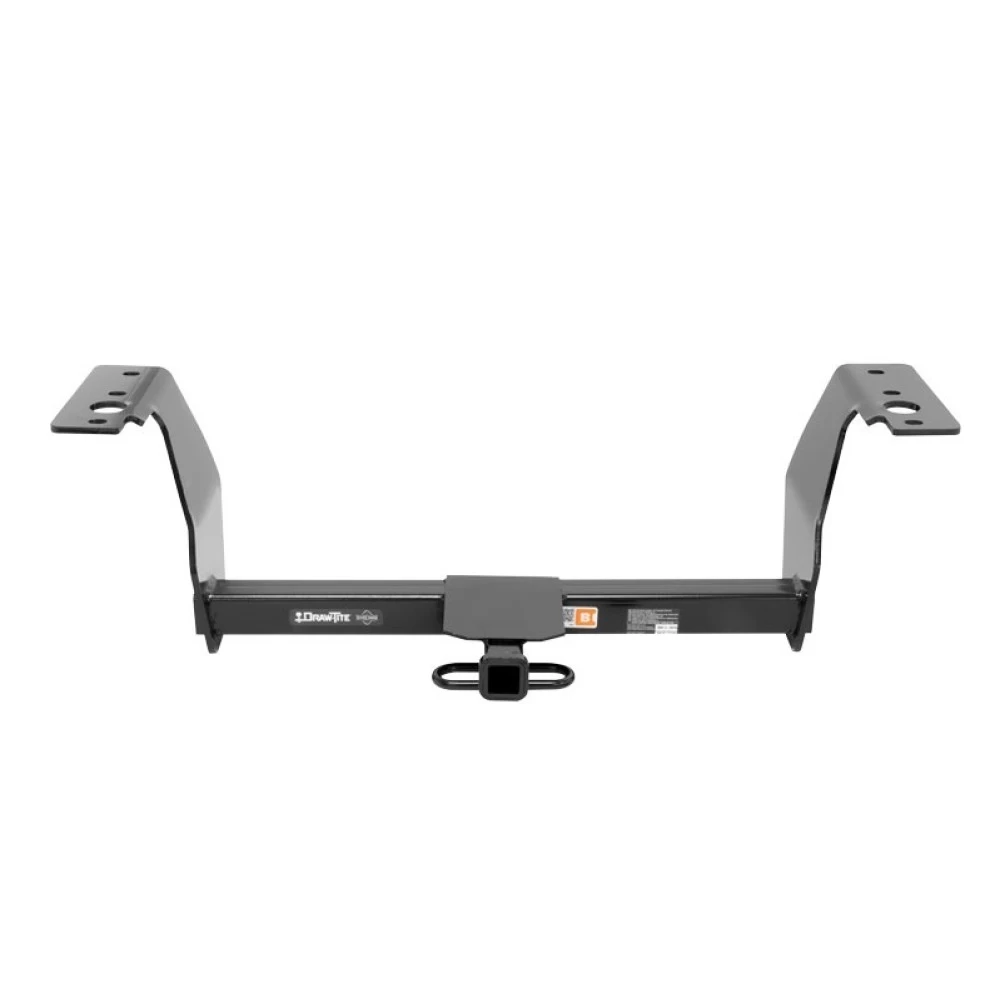

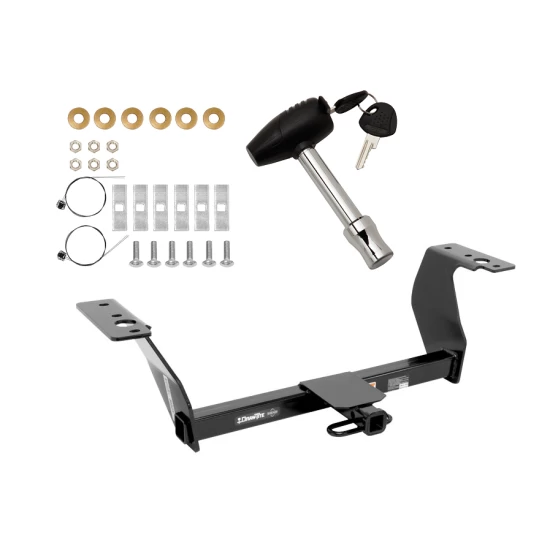

Model: 36523 580407 *Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2018 Subaru, Forester, All Styles
| Part Number | 36523 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
$187 69 $295.71 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$295.71 $187 69
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $46.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 36523 580407 *
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2018 Subaru, Forester, All Styles
| Part Number | 36523 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Easy Access Lock w/Sleeve
- Includes Dust Cap
- Fits 2" and 1-7/8" Tow Receivers
- Prevents theft
- Use in place of standard pin and clip
- Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees.
- 1 Year Limited Warranty
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Get Expert Help
Trailer Tow Hitch For 14-18 Subaru Forester w/ Security Lock Pin Key Install Notes
Installation Instructions for Subaru Forester
Part Numbers:
- 90228
- 36523
- 06155
Wiring Access Location:
- SUV8
Tools Required:
- Wrenches: 3/4", 10mm
- Drill with 3/8" Bit
- Metal File
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect the rubber exhaust hangers from the hanger brackets to lower the exhaust.
-
Remove Heat Shield:
- Remove four (4) screws securing the heat shield to the frame rail.
- Set the heat shield aside. Note: The heat shield must be discarded or trimmed to fit after the hitch is installed.
-
Remove Plastic Plugs:
- Remove three (3) plastic plugs from existing holes in each frame rail and discard them.
-
Modify Access Holes:
- Using a 3/8" drill bit and a metal file, enlarge the center hole in each frame rail to allow for fishwiring spacers and carriage bolts (see Figure 2).
-
Fishwire Fasteners:
- Using the provided fishwire, pull the 1/2" carriage bolts and spacers through the modified access hole and down through the mounting holes in the frame rail (see Figure 3).
- Ensure that blocks span both sides of the hole and are not overlapping (see Figure 4).
-
Install Hitch:
- Raise the hitch into position, being careful not to push fasteners into the frame.
- Secure the hitch using conical washers (teeth side facing the hitch) and hex nuts.
-
Reinstall Heat Shield:
- Trim the heat shield to fit around the hitch if necessary, and reinstall it with the screws removed in Step 2.
-
Reinstall Exhaust:
- Raise the exhaust back into position and reconnect the rubber hangers.
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Spacer Blocks, 1/4" x 1" x 3" (Square Hole for 1/2" Carriage Bolt)
- (6) Conical Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
- (6) Pull Wires, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36053 (sold separately)
- Fastener Kit: 36523F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Subaru Forester
Part Numbers:
- 90228
- 36523
- 06155
Wiring Access Location:
- SUV8
Tools Required:
- Wrenches: 3/4", 10mm
- Drill with 3/8" Bit
- Metal File
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect the rubber exhaust hangers from the hanger brackets to lower the exhaust.
-
Remove Heat Shield:
- Remove four (4) screws securing the heat shield to the frame rail.
- Set the heat shield aside. Note: The heat shield must be discarded or trimmed to fit after the hitch is installed.
-
Remove Plastic Plugs:
- Remove three (3) plastic plugs from existing holes in each frame rail and discard them.
-
Modify Access Holes:
- Using a 3/8" drill bit and a metal file, enlarge the center hole in each frame rail to allow for fishwiring spacers and carriage bolts (see Figure 2).
-
Fishwire Fasteners:
- Using the provided fishwire, pull the 1/2" carriage bolts and spacers through the modified access hole and down through the mounting holes in the frame rail (see Figure 3).
- Ensure that blocks span both sides of the hole and are not overlapping (see Figure 4).
-
Install Hitch:
- Raise the hitch into position, being careful not to push fasteners into the frame.
- Secure the hitch using conical washers (teeth side facing the hitch) and hex nuts.
-
Reinstall Heat Shield:
- Trim the heat shield to fit around the hitch if necessary, and reinstall it with the screws removed in Step 2.
-
Reinstall Exhaust:
- Raise the exhaust back into position and reconnect the rubber hangers.
Torque Specifications:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Spacer Blocks, 1/4" x 1" x 3" (Square Hole for 1/2" Carriage Bolt)
- (6) Conical Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
- (6) Pull Wires, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
Additional Notes:
- Drawbar Kit: 36053 (sold separately)
- Fastener Kit: 36523F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
