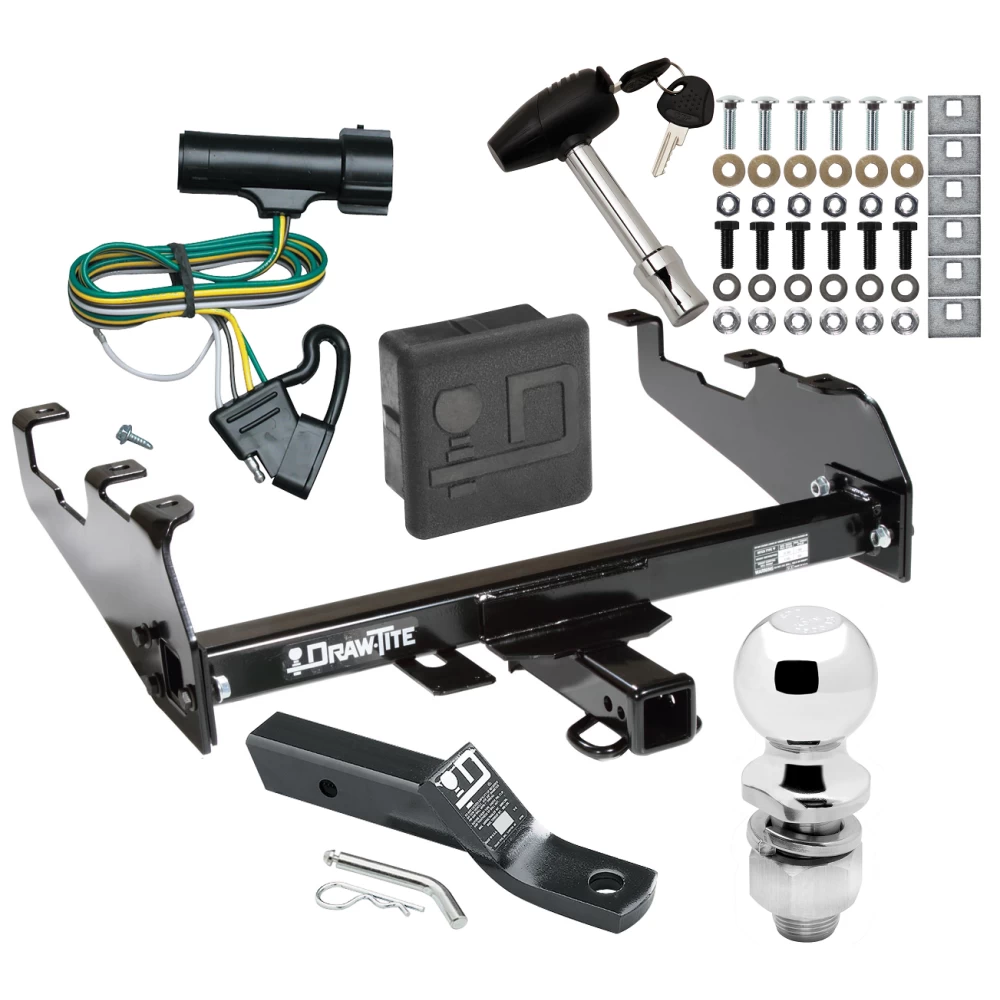

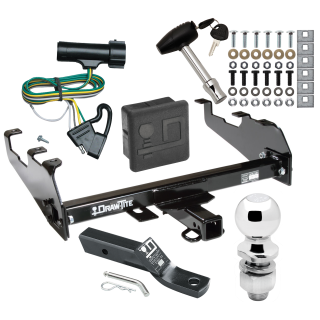

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 80-86 Ford F-100 F-150 F-250 F-350 Bronco Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet/GMC Pickup, Dodge Pickup, Dodge Ramcharger, Ford Pickup (1980 and Later), Ford Bronco, Ford F350 Super Duty Cab & Chassis, International Pickup, and Plymouth Trailduster
Part Numbers:
- 41504
- 37081
- 44143
- 87480
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill with 1/2" Drill Bit
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- Note: To retain under-box tire storage, the spare tire carrier may need to be relocated or modified.
- For Ford models with 16" spare tires, adjust the spare tire cradle to maintain proper storage after hitch installation.
-
Measure Frame Width:
- For 34" frames: Position side brackets with mounting flanges pointing inboard.
- For 38" frames: Position side brackets with mounting flanges pointing outboard.
-
Position Side Brackets:
- Lift the side bracket into position, ensuring the rearmost mounting tab aligns with the end of the vehicle frame.
- Clamp the bracket to the frame.
-
Drill Holes:
- Using the slotted holes in the bracket as a guide, drill six (6) 1/2" diameter holes in the frame.
- Note: Existing holes in the frame may be used if available.
-
Install Side Bracket Fasteners:
- Place blocks inside the frame and install the provided hardware as shown in the instructions.
- Do not tighten the fasteners at this stage.
-
Special Installation for Ford Pickups (1980 and Later):
- These models require the 1685 Fastener Kit (sold separately).
-
Repeat for Opposite Side:
- Repeat Steps 3, 4, and 5 on the opposite side of the vehicle.
-
Install Crosstube Assembly:
- Position the crosstube between the side brackets.
- Secure it using the provided bolts, flat washers, and flanged locknuts.
- Torque to 95 lb-ft (129 N*m).
-
Tighten All Side Bracket Fasteners:
- Torque the side bracket fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- Crosstube Fasteners: 95 lb-ft (129 N*m)
- Side Bracket Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75"
- (6) Carriage Bolts, 1/2"-13 x 2.25" (*)
- (6) Hex Bolts, 1/2"-20 x 1.50"
- (6) Conical Washers, 1/2"
- (6) Flat Washers
- (6) Flange Locknuts, 1/2"-20
- (6) Hex Nuts, 1/2"-13
- (2) Blocks, 1/4" x 1-1/2" x 2" (*)
- (2) Bevel Washers (*)
- (2) Blocks, 5/8" x 1" x 2" (*)
(* Included in the 1685 Fastener Kit, sold separately for Ford models)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- For vehicles equipped with "Deep Drop" step bumpers, 1981 and later Chevrolet/GMC models require the removal of support brackets from the frame.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks and SUVs
Part Numbers:
- 41504
- 37081
- 44143
- 87480
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill with 1/2" Drill Bit
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- Note: To retain under-box tire storage, the spare tire carrier may need to be relocated or modified.
- For Ford models with 16" spare tires, adjust the spare tire cradle to maintain proper storage after hitch installation.
-
Measure Frame Width:
- For 34" frames: Position side brackets with mounting flanges pointing inboard.
- For 38" frames: Position side brackets with mounting flanges pointing outboard.
-
Position Side Brackets:
- Lift the side bracket into position, ensuring the rearmost mounting tab aligns with the end of the vehicle frame.
- Clamp the bracket to the frame.
-
Drill Holes:
- Using the slotted holes in the bracket as a guide, drill six (6) 1/2" diameter holes in the frame.
- Note: Existing holes in the frame may be used if available.
-
Install Side Bracket Fasteners:
- Place blocks inside the frame and install the provided hardware as shown in the instructions.
- Do not tighten the fasteners at this stage.
-
Special Installation for 1980 and Later Ford Pickups:
- These models require the 1685 Fastener Kit (sold separately).
-
Repeat for Opposite Side:
- Repeat Steps 3, 4, and 5 on the opposite side of the vehicle.
-
Install Crosstube Assembly:
- Position the crosstube between the side brackets.
- Secure it using the provided bolts, flat washers, and flanged locknuts.
- Torque to 95 lb-ft (129 N*m).
-
Tighten All Side Bracket Fasteners:
- Torque the side bracket fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- Crosstube Fasteners: 95 lb-ft (129 N*m)
- Side Bracket Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75"
- (6) Carriage Bolts, 1/2"-13 x 2.25" (*)
- (6) Hex Bolts, 1/2"-20 x 1.50"
- (6) Conical Washers, 1/2"
- (6) Flat Washers
- (6) Flange Locknuts, 1/2"-20
- (6) Hex Nuts, 1/2"-13
- (2) Blocks, 1/4" x 1-1/2" x 2" (*)
- (2) Bevel Washers (*)
- (2) Blocks, 5/8" x 1" x 2" (*)
(* Included in the 1685 Fastener Kit, sold separately for Ford models)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- For vehicles equipped with "Deep Drop" step bumpers, 1981 and later Chevrolet/GMC models require the removal of support brackets from the frame.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118313
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt and clean if necessary.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle cross member or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118313
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt and clean if necessary.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember. Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
