Trailer Wiring and Bracket and Light Tester For 86-93 Dodge D/W 150 250 350 Ramcharger Dakota 94-02 Ram 3500 1994 Ram 1500 2500 4-Flat Harness Plug Play

Trailer Wiring and Bracket and Light Tester For 86‑93 Dodge D/W 150 250 350 Ramcharger Dakota 94‑02 Ram 3500 1994 Ram 1500 2500 4‑Flat Harness Plug Play

Model: 118317 118144 20114

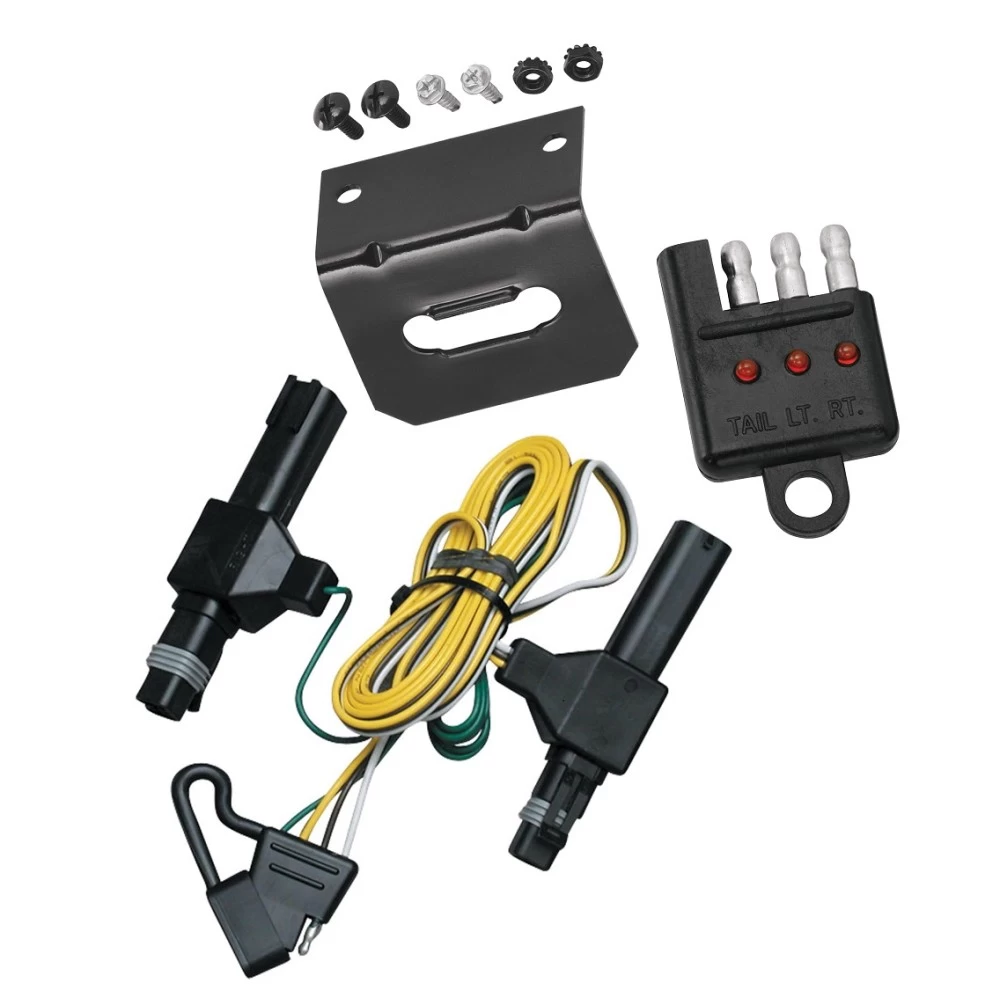

Includes Everything Pictured:
Plug and Play T-One Wiring Harness Connector
4-Flat Mounting Bracket
4-Flat Car End Tester w/ LED Display

This Hitch Fits The Following Vehicles:

1986 - 1993    Dodge, D/W 150, All Styles
1986 - 1993    Dodge, D/W 250, All Styles
1986 - 1993    Dodge, D/W 350, All Styles
1987 - 1993    Dodge, D/W 350, Cab & Chassis
1987 - 1994    Dodge, Dakota, All Styles
1994    Dodge, Ram 1500, All Styles
1994    Dodge, Ram 2500, All Styles
1994    Dodge, Ram 3500, All Styles
1994 - 2002    Dodge, Ram 3500, Cab & Chassis, All Styles
1986 - 1993    Dodge, Ramcharger, All Styles

Direct Plug & Play Wiring Kit

Wiring Specs

Part Number	118317
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

4-Flat Mounting Bracket

Part Number	118144
Fits	4 Flat Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

4-Flat Car End Tester

Part Number	20114
Fits	4 Flat Connectors
Brand	Tow Ready
4-Flat Car End Tester w/LED Display Plug these testers into any car connector and you will have an instant test of running light circuits.
Warranty	1 Year

Questions or Comments? Call 702-374-8999
