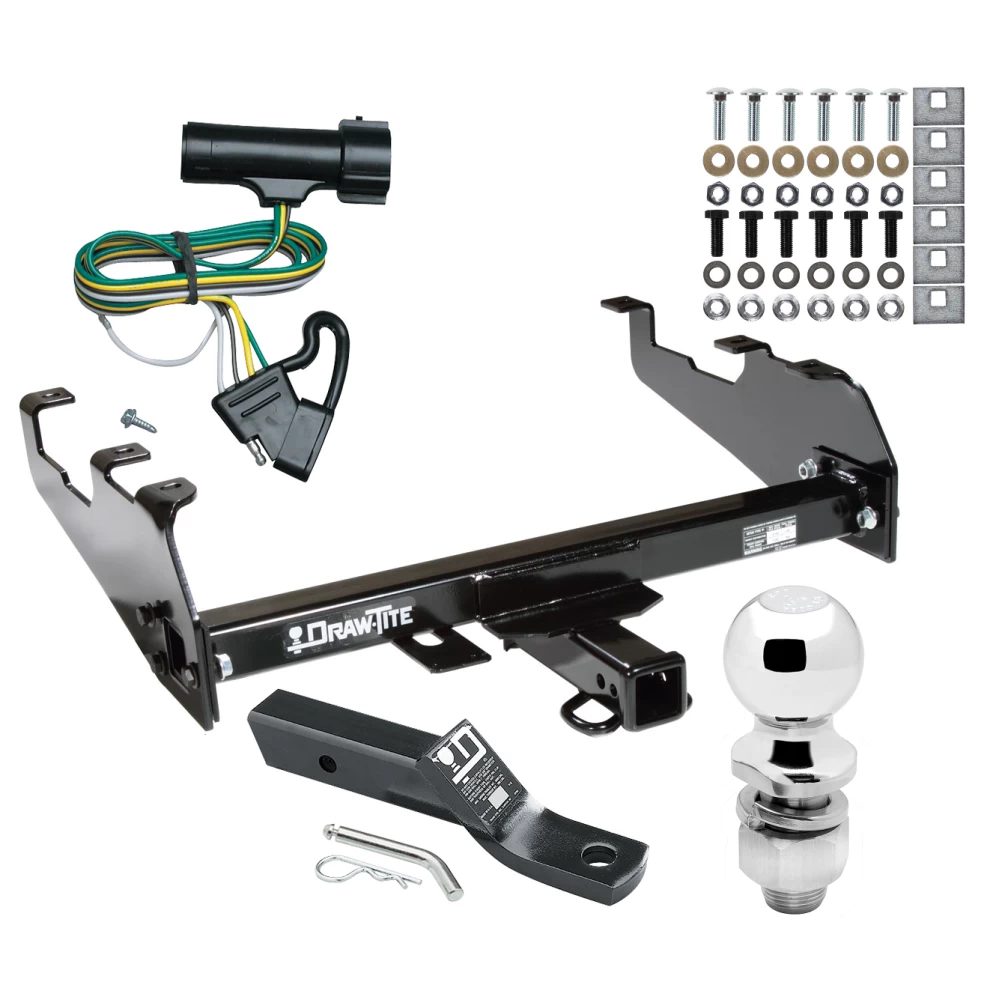

Trailer Tow Hitch For 80-86 Ford F-100 F-150 F-250 F-350 Bronco Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Chevrolet/GMC Pickup, Dodge Pickup, Dodge Ramcharger, Ford Pickup (1980 and Later), Ford Bronco, Ford F350 Super Duty Cab & Chassis, International Pickup, and Plymouth Trailduster
Part Numbers:
- 41504
- 37081
- 44143
- 87480
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill with 1/2" Drill Bit
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- Note: To retain under-box tire storage, the spare tire carrier may need to be relocated or modified.
- For Ford models with 16" spare tires, adjust the spare tire cradle to maintain proper storage after hitch installation.
-
Measure Frame Width:
- For 34" frames: Position side brackets with mounting flanges pointing inboard.
- For 38" frames: Position side brackets with mounting flanges pointing outboard.
-
Position Side Brackets:
- Lift the side bracket into position, ensuring the rearmost mounting tab aligns with the end of the vehicle frame.
- Clamp the bracket to the frame.
-
Drill Holes:
- Using the slotted holes in the bracket as a guide, drill six (6) 1/2" diameter holes in the frame.
- Note: Existing holes in the frame may be used if available.
-
Install Side Bracket Fasteners:
- Place blocks inside the frame and install the provided hardware as shown in the instructions.
- Do not tighten the fasteners at this stage.
-
Special Installation for Ford Pickups (1980 and Later):
- These models require the 1685 Fastener Kit (sold separately).
-
Repeat for Opposite Side:
- Repeat Steps 3, 4, and 5 on the opposite side of the vehicle.
-
Install Crosstube Assembly:
- Position the crosstube between the side brackets.
- Secure it using the provided bolts, flat washers, and flanged locknuts.
- Torque to 95 lb-ft (129 N*m).
-
Tighten All Side Bracket Fasteners:
- Torque the side bracket fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- Crosstube Fasteners: 95 lb-ft (129 N*m)
- Side Bracket Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75"
- (6) Carriage Bolts, 1/2"-13 x 2.25" (*)
- (6) Hex Bolts, 1/2"-20 x 1.50"
- (6) Conical Washers, 1/2"
- (6) Flat Washers
- (6) Flange Locknuts, 1/2"-20
- (6) Hex Nuts, 1/2"-13
- (2) Blocks, 1/4" x 1-1/2" x 2" (*)
- (2) Bevel Washers (*)
- (2) Blocks, 5/8" x 1" x 2" (*)
(* Included in the 1685 Fastener Kit, sold separately for Ford models)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- For vehicles equipped with "Deep Drop" step bumpers, 1981 and later Chevrolet/GMC models require the removal of support brackets from the frame.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks and SUVs
Part Numbers:
- 41504
- 37081
- 44143
- 87480
Wiring Access Location:
- PU1, PU2
Tools Required:
- Wrenches: 3/4", 13/16", 7/8"
- Drill with 1/2" Drill Bit
Installation Time:
- Estimated: Not specified
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- Note: To retain under-box tire storage, the spare tire carrier may need to be relocated or modified.
- For Ford models with 16" spare tires, adjust the spare tire cradle to maintain proper storage after hitch installation.
-
Measure Frame Width:
- For 34" frames: Position side brackets with mounting flanges pointing inboard.
- For 38" frames: Position side brackets with mounting flanges pointing outboard.
-
Position Side Brackets:
- Lift the side bracket into position, ensuring the rearmost mounting tab aligns with the end of the vehicle frame.
- Clamp the bracket to the frame.
-
Drill Holes:
- Using the slotted holes in the bracket as a guide, drill six (6) 1/2" diameter holes in the frame.
- Note: Existing holes in the frame may be used if available.
-
Install Side Bracket Fasteners:
- Place blocks inside the frame and install the provided hardware as shown in the instructions.
- Do not tighten the fasteners at this stage.
-
Special Installation for 1980 and Later Ford Pickups:
- These models require the 1685 Fastener Kit (sold separately).
-
Repeat for Opposite Side:
- Repeat Steps 3, 4, and 5 on the opposite side of the vehicle.
-
Install Crosstube Assembly:
- Position the crosstube between the side brackets.
- Secure it using the provided bolts, flat washers, and flanged locknuts.
- Torque to 95 lb-ft (129 N*m).
-
Tighten All Side Bracket Fasteners:
- Torque the side bracket fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- Crosstube Fasteners: 95 lb-ft (129 N*m)
- Side Bracket Fasteners: 75 lb-ft (102 N*m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75"
- (6) Carriage Bolts, 1/2"-13 x 2.25" (*)
- (6) Hex Bolts, 1/2"-20 x 1.50"
- (6) Conical Washers, 1/2"
- (6) Flat Washers
- (6) Flange Locknuts, 1/2"-20
- (6) Hex Nuts, 1/2"-13
- (2) Blocks, 1/4" x 1-1/2" x 2" (*)
- (2) Bevel Washers (*)
- (2) Blocks, 5/8" x 1" x 2" (*)
(* Included in the 1685 Fastener Kit, sold separately for Ford models)
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,540 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Additional Notes:
- For vehicles equipped with "Deep Drop" step bumpers, 1981 and later Chevrolet/GMC models require the removal of support brackets from the frame.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118313
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt and clean if necessary.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member. Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle cross member or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118313
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Ensure the mating surfaces of the connectors are free of dirt and clean if necessary.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember. Do not drill into the vehicle floor or bed.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
