Trailer Tow Hitch For 94‑98 Dodge Van B150 B1500 B250 B2500 B350 B3500 Complete Package w/ Wiring and 1‑7/8" Ball

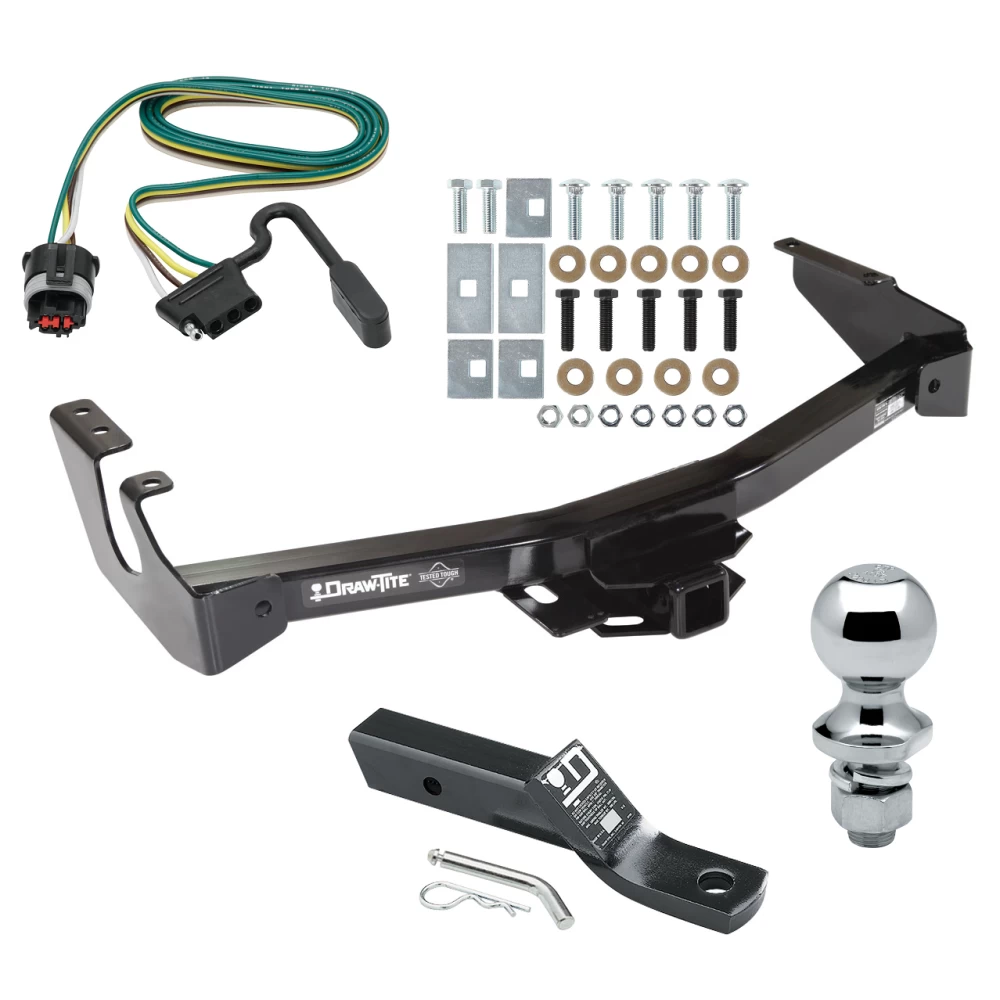

Model: 41533 118328 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1994 Dodge, Van, B150, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B1500, Except w/Factory Step Bumper
1998 Dodge, Van, B1500, Except w/Factory Step Bumper
1994 Dodge, Van, B250, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B2500, Except w/Factory Step Bumper
1998 Dodge, Van, B2500, Except w/Factory Step Bumper
1994 Dodge, Van, B350, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B3500, Except w/Factory Step Bumper
1998 Dodge, Van, B3500, Except w/Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118328 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$270 11 $412.76 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$412.76 $270 11
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $67.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41533 118328 23 63816
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1994 Dodge, Van, B150, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B1500, Except w/Factory Step Bumper
1998 Dodge, Van, B1500, Except w/Factory Step Bumper
1994 Dodge, Van, B250, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B2500, Except w/Factory Step Bumper
1998 Dodge, Van, B2500, Except w/Factory Step Bumper
1994 Dodge, Van, B350, Except w/Factory Step Bumper
1995 - 1997 Dodge, Van, B3500, Except w/Factory Step Bumper
1998 Dodge, Van, B3500, Except w/Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118328 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 94-98 Dodge Van B150 B1500 B250 B2500 B350 B3500 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge Van
Part Numbers:
- 41533
- 37070
Wiring Access Location:
- SUV5
Tools Required:
- Drill with 1/2" Drill Bit (if required)
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
-
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
-
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
-
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
- (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (2) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This hitch does not fit vehicles equipped with a factory step bumper.
- Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Van
Part Numbers:
- 41533
- 37070
Wiring Access Location:
- SUV5
Tools Required:
- Drill with 1/2" Drill Bit (if required)
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
-
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
-
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
-
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
- (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (2) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This hitch does not fit vehicles equipped with a factory step bumper.
- Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118328
- Application: Trailer wiring harness for compatible tow vehicles
Tools Required:
- None
Step-by-Step Instructions:
-
Locate the Trailer Harness Connector:
- The trailer harness connector is located under the vehicle, behind the rear bumper on the passenger side.
-
Remove Protective Cap:
- Carefully remove the protective cap (B) from the vehicle’s connector (A).
- Save the cap for future use.
- Ensure the mating surfaces of the connectors are clean and free of dirt or debris.
-
Connect the T-Connector Adapter:
- Attach the T-Connector adapter end (C) to the vehicle’s connector (A).
- Push firmly until the connector locks in place and the locking tabs engage securely.
-
Test the Installation:
- Use a test light or connect a trailer to verify the proper operation of the wiring harness.
- Confirm that all trailer lights (running, turn signals, and brake lights) function correctly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Notes:
- Ensure the T-Connector is fully seated and the locking tabs are securely in place to avoid intermittent connections.
- Regularly inspect the wiring connections for dirt, debris, or damage.
Troubleshooting:
- No Trailer Lights:
- Verify the T-Connector is fully connected to the vehicle harness.
- Test vehicle tail lights to confirm proper operation.
- Dim or Flickering Trailer Lights:
- Check for corrosion or loose connections at the trailer plug.
- Ensure the trailer ground wire is properly secured to the frame.
Technical Support:
For further assistance, contact the manufacturer’s technical support line.
Warning: Do not exceed the 7.5-amp maximum rating per circuit to prevent damage to the vehicle wiring or T-Connector harness.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118328
- Application: Trailer wiring harness for compatible tow vehicles
Tools Required:
- None
Step-by-Step Instructions:
-
Locate the Trailer Harness Connector:
- The trailer harness connector is located under the vehicle, behind the rear bumper on the passenger side.
-
Remove Protective Cap:
- Carefully remove the protective cap (B) from the vehicle’s connector (A).
- Save the cap for future use.
- Ensure the mating surfaces of the connectors are clean and free of dirt or debris.
-
Connect the T-Connector Adapter:
- Attach the T-Connector adapter end (C) to the vehicle’s connector (A).
- Push firmly until the connector locks in place and the locking tabs engage securely.
-
Test the Installation:
- Use a test light or connect a trailer to verify the proper operation of the wiring harness.
- Confirm that all trailer lights (running, turn signals, and brake lights) function correctly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Notes:
- Ensure the T-Connector is fully seated and the locking tabs are securely in place to avoid intermittent connections.
- Regularly inspect the wiring connections for dirt, debris, or damage.
Troubleshooting:
- No Trailer Lights:
- Verify the T-Connector is fully connected to the vehicle harness.
- Test vehicle tail lights to confirm proper operation.
- Dim or Flickering Trailer Lights:
- Check for corrosion or loose connections at the trailer plug.
- Ensure the trailer ground wire is properly secured to the frame.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Warning: Do not exceed the 7.5-amp maximum rating per circuit to prevent damage to the vehicle wiring or T-Connector harness.
Related Products
