Installation Instructions for T-Connector Adapter

Part Numbers:

• 118381

Wiring Access Location:

• Underneath the vehicle, behind the bumper, on the driver’s side.

Tools Required:

• None specified.

Step-by-Step Instructions:

For Full-Size Dodge Vans Without Factory 7-Way:

1. Locate the vehicle’s trailer harness connector (A), found under the vehicle, behind the bumper, on the driver’s side (Fig. 1).

2. Remove the protective cap (B) from the connector (A) and save it.

   • Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.

3. Connect the T-Connector adapter end (C) to the vehicle’s connector (A).

   • Ensure the T-Connector is fully inserted and the locking tabs are in place.

4. Place the protective cap (B) on the remaining plug end (Fig. 1).

5. Skip to step 7 for final installation instructions.

For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):

1. Remove the screws holding the 7-way trailer tow bracket in place (Fig. 2).

2. Pull out the 7-way connector to access the plug on its back.

   • Slide the red locking tab to the unlocked position and separate the connector (A) (Fig. 3).

3. Connect the T-Connector adapter in between the separated halves (B).

   • Slide the red locking tab back to the locked position.

4. Route the 4-flat connector away from the 7-way bracket.

5. Push the 7-way connector back into the bracket and reinstall the screws.

Final Steps for All Installations:

6. Test the installation with a test light or trailer.

   • Specifications:
     • This unit is rated for 7.5 amps per circuit.

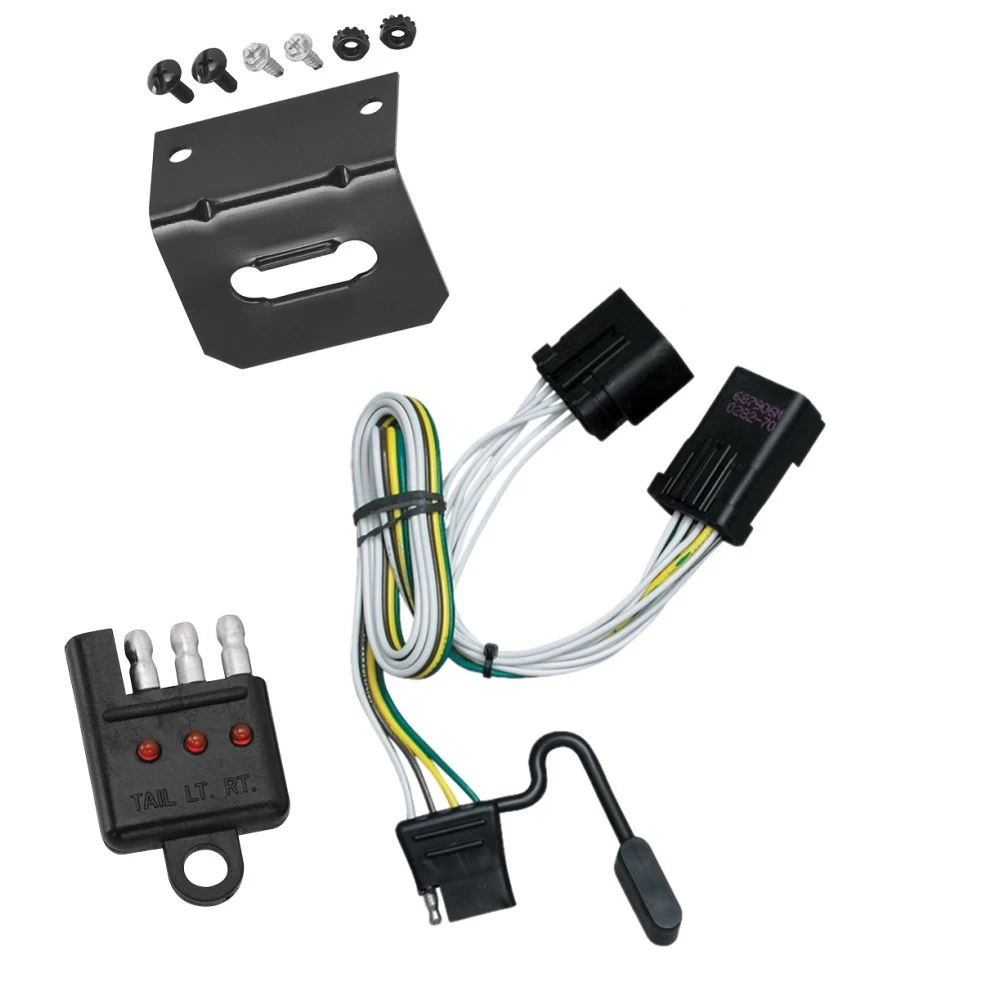

Hardware List:

• T-Connector adapter.
• Protective cap.

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.
• Do not exceed the specified amperage rating to prevent damage or fire.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118381

Wiring Access Location:

• Underneath the vehicle, behind the bumper, on the driver’s side.

Tools Required:

• None specified

Step-by-Step Instructions:

For Full-Size Dodge Vans Without Factory 7-Way:

1. Locate the Vehicle’s Trailer Harness Connector:

   • Find the vehicle’s trailer harness connector underneath the vehicle, behind the bumper, on the driver’s side (Fig. 1).

2. Remove the Protective Cap:

   • Remove the protective cap from the connector and save it.
   • Ensure the mating surfaces of the connectors are clean. Clean if necessary.

3. Connect the T-Connector Adapter:

   • Attach the T-Connector adapter to the vehicle’s trailer harness connector.
   • Ensure the connection is fully inserted and the locking tabs are secure.

4. Place the Protective Cap:

   • Place the protective cap on the remaining plug end (Fig. 1).

5. Proceed to Final Steps:

   • Continue to the final steps below.

For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):

1. Remove the 7-Way Trailer Tow Bracket:

   • Unscrew the 7-way trailer tow bracket to access the connector (Fig. 2).

2. Disconnect the 7-Way Connector:

   • Pull out the 7-way connector to access the rear plug.
   • Slide the red locking tab to the unlocked position and disconnect the connector (Fig. 3).

3. Install the T-Connector Adapter:

   • Connect the T-Connector adapter between the separated halves of the 7-way connector.
   • Slide the red locking tab back to the locked position.

4. Route the 4-Flat Connector:

   • Route the 4-flat connector away from the 7-way bracket.

5. Reinstall the 7-Way Connector:

   • Push the 7-way connector back into the bracket and secure it using the screws removed earlier.

Final Steps for All Installations:

6. Test the Installation:
   • Use a test light or trailer to verify proper functionality of all circuits.

Specifications:

• Max Current: 7.5 amps per circuit

Hardware List:

• T-Connector adapter
• Protective cap

Safety Notes:

• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.
• Do not exceed the specified amperage rating to prevent damage or fire.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
