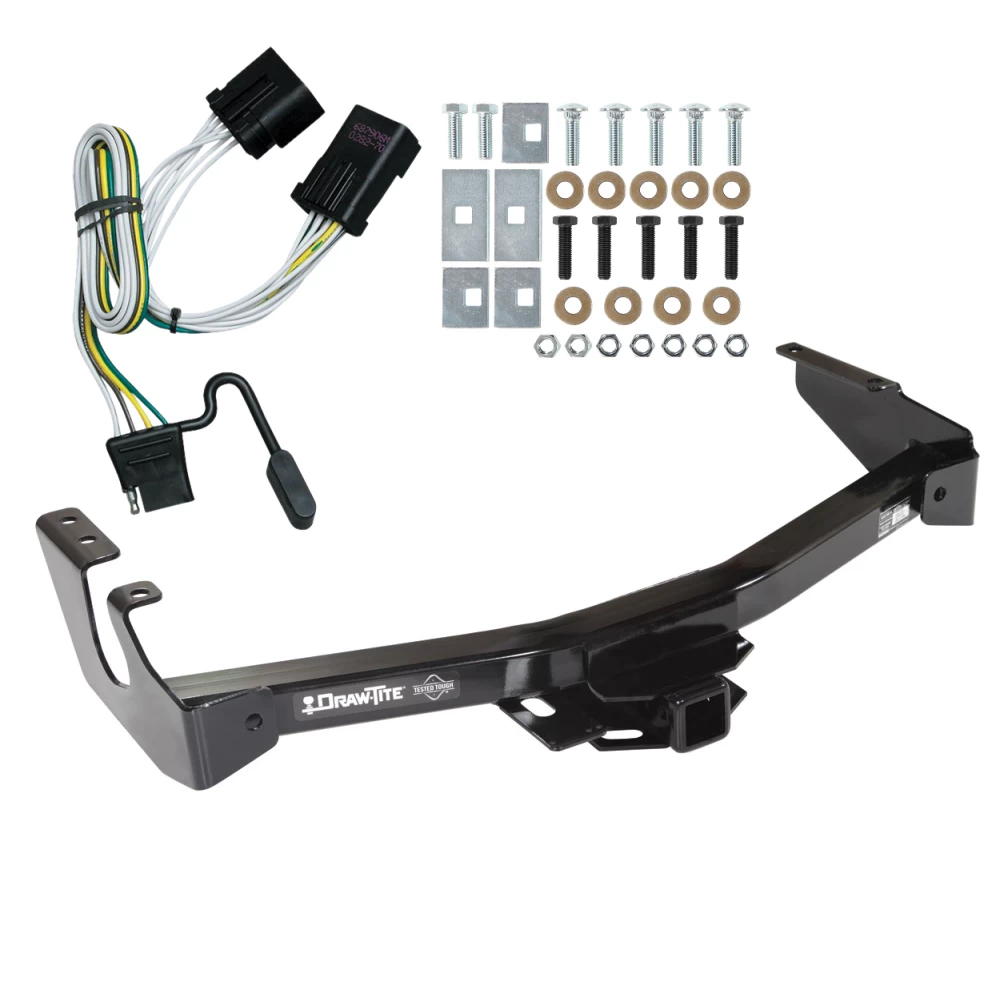

Trailer Tow Hitch For 01‑03 Dodge Van Ram 1500 2500 3500 w/ Wiring Harness Kit
Model: 41533 118381Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2003 Dodge, Van, Ram 1500, Except w/Factory Step Bumper
2001 - 2003 Dodge, Van, Ram 2500, Except w/Factory Step Bumper
2001 - 2003 Dodge, Van, Ram 3500, Except w/Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118381 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$243 48 $405.41 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$405.41 $243 48
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41533 118381
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2003 Dodge, Van, Ram 1500, Except w/Factory Step Bumper
2001 - 2003 Dodge, Van, Ram 2500, Except w/Factory Step Bumper
2001 - 2003 Dodge, Van, Ram 3500, Except w/Factory Step Bumper
Trailer Hitch Specs:
| Part Number | 41533 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118381 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 01-03 Dodge Van Ram 1500 2500 3500 w/ Wiring Harness Kit Install Notes
Installation Instructions for Dodge Van
Part Numbers:
- 41533
- 37070
Wiring Access Location:
- SUV5
Tools Required:
- Drill with 1/2" Drill Bit (if required)
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
-
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
-
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
-
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
- (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (2) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This hitch does not fit vehicles equipped with a factory step bumper.
- Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Van
Part Numbers:
- 41533
- 37070
Wiring Access Location:
- SUV5
Tools Required:
- Drill with 1/2" Drill Bit (if required)
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Prepare Frame Rail:
- If the vehicle has a heat shield, remove one (1) screw from the bottom of the frame rail so the bracket will sit flat on the frame. Return the screw to the vehicle owner.
-
Fishwire Fasteners (if required):
- For vehicles without existing weldnuts, fishwire 1/2"-13 GR5 carriage bolts and spacer blocks through the access holes in the frame as shown in the diagram.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rails.
-
Install Fasteners:
- For vehicles with weldnuts, install the provided M12 x 1.75 CL10.9 bolts with conical toothed washers into the existing weldnuts.
- For vehicles without weldnuts, secure the hitch using carriage bolts, spacer blocks, and hex nuts as shown in the diagram.
-
Tighten All Fasteners:
- Tighten 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
- Tighten M12 x 1.75 CL10.9 bolts to 92 lb-ft (125 N*m).
-
Ensure Proper Clearance:
- Ensure the hitch is positioned correctly and that the wiring harness located inside the passenger's side frame rail is not pinched or sandwiched between the frame rail and fasteners.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
- M12 x 1.75 CL10.9 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (2) Blocks, 1/4" x 1-1/2" x 2" (1277)
- (2) Blocks, 1/4" x 1-1/2" x 3" (1711)
- (4) Hex Nuts, 1/2"-13
- (4) Conical Toothed Washers, 1/2"
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (2) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This hitch does not fit vehicles equipped with a factory step bumper.
- Wiring harness is located inside the passenger's side frame rail. Take care to avoid damage.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118381
Wiring Access Location:
- Underneath the vehicle, behind the bumper, on the driver’s side.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Full-Size Dodge Vans Without Factory 7-Way:
-
Locate the vehicle’s trailer harness connector (A), found under the vehicle, behind the bumper, on the driver’s side (Fig. 1).
-
Remove the protective cap (B) from the connector (A) and save it.
- Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.
-
Connect the T-Connector adapter end (C) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted and the locking tabs are in place.
-
Place the protective cap (B) on the remaining plug end (Fig. 1).
-
Skip to step 7 for final installation instructions.
For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):
-
Remove the screws holding the 7-way trailer tow bracket in place (Fig. 2).
-
Pull out the 7-way connector to access the plug on its back.
- Slide the red locking tab to the unlocked position and separate the connector (A) (Fig. 3).
-
Connect the T-Connector adapter in between the separated halves (B).
- Slide the red locking tab back to the locked position.
-
Route the 4-flat connector away from the 7-way bracket.
-
Push the 7-way connector back into the bracket and reinstall the screws.
Final Steps for All Installations:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118381
Wiring Access Location:
- Underneath the vehicle, behind the bumper, on the driver’s side.
Tools Required:
- None specified
Step-by-Step Instructions:
For Full-Size Dodge Vans Without Factory 7-Way:
-
Locate the Vehicle’s Trailer Harness Connector:
- Find the vehicle’s trailer harness connector underneath the vehicle, behind the bumper, on the driver’s side (Fig. 1).
-
Remove the Protective Cap:
- Remove the protective cap from the connector and save it.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector Adapter:
- Attach the T-Connector adapter to the vehicle’s trailer harness connector.
- Ensure the connection is fully inserted and the locking tabs are secure.
-
Place the Protective Cap:
- Place the protective cap on the remaining plug end (Fig. 1).
-
Proceed to Final Steps:
- Continue to the final steps below.
For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):
-
Remove the 7-Way Trailer Tow Bracket:
- Unscrew the 7-way trailer tow bracket to access the connector (Fig. 2).
-
Disconnect the 7-Way Connector:
- Pull out the 7-way connector to access the rear plug.
- Slide the red locking tab to the unlocked position and disconnect the connector (Fig. 3).
-
Install the T-Connector Adapter:
- Connect the T-Connector adapter between the separated halves of the 7-way connector.
- Slide the red locking tab back to the locked position.
-
Route the 4-Flat Connector:
- Route the 4-flat connector away from the 7-way bracket.
-
Reinstall the 7-Way Connector:
- Push the 7-way connector back into the bracket and secure it using the screws removed earlier.
Final Steps for All Installations:
- Test the Installation:
- Use a test light or trailer to verify proper functionality of all circuits.
Specifications:
- Max Current: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Related Products
