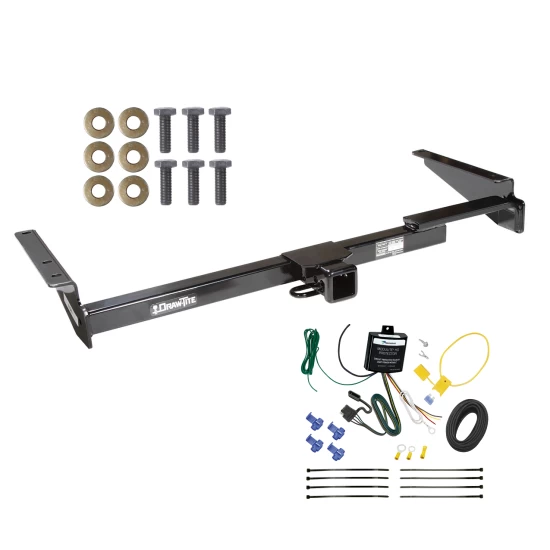

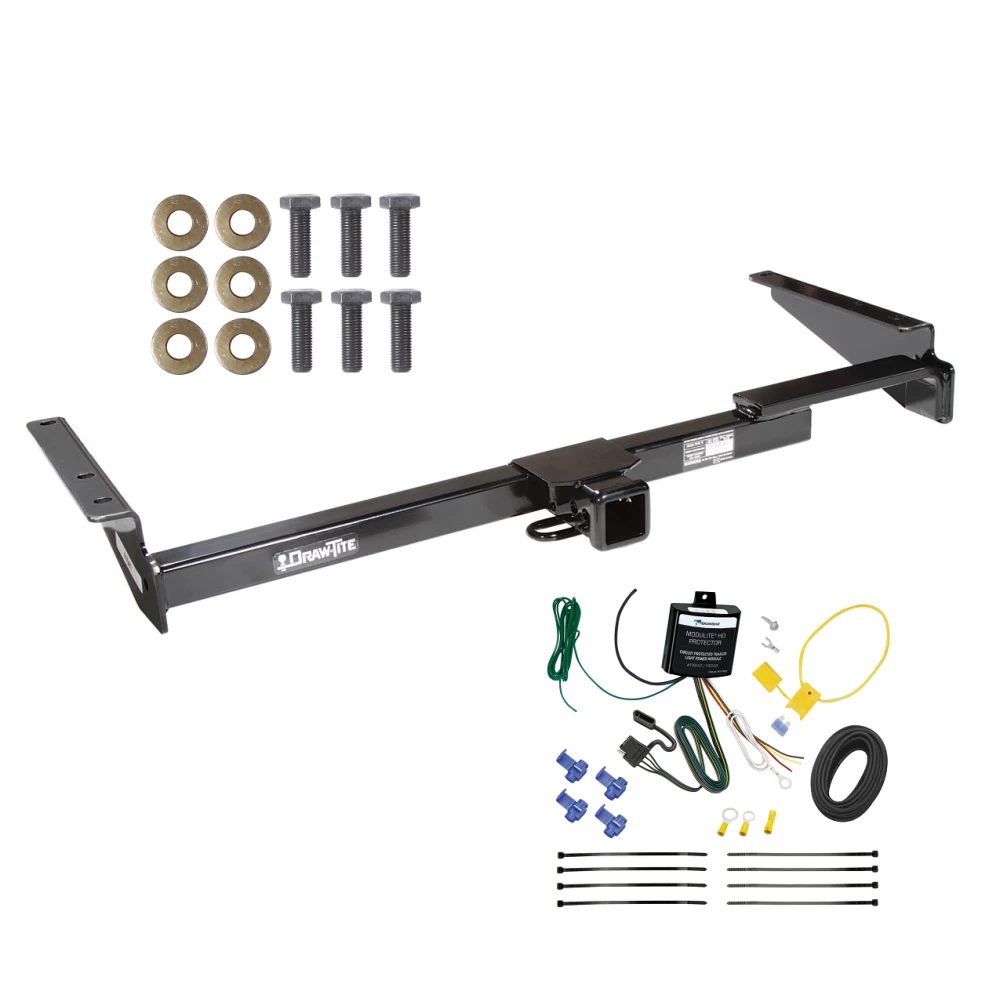

Trailer Tow Hitch For 99-03 Lexus RX300 w/ Wiring Harness Kit Install Notes
Installation Instructions for Lexus RX300 and Toyota Highlander
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Installation Instructions for SUVs
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Modulite® HD Protector Vehicle Wiring
Part Number:
- 119148
Tools Required:
- Phillips Head #2 Screwdriver
- Wire Cutters
- Wire Strippers/Wire Crimpers
- Tester or Volt Meter
- Socket & Ratchet Set
- Drill with 3/32” Drill Bit
- Double-Sided Tape
Step-by-Step Instructions:
Tow Vehicle Inputs - Determination:
- Disconnect and isolate the vehicle's negative battery terminal.
- Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
- Splice the tow harness input wires to the vehicle as determined.
- Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.
Harness Installation:
- Determine the mounting location of the module and secure it using the double-sided tape provided.
- Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
- Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
- Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15 amp fuse yet.
- Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.
Completion:
- Secure the harness with cable ties provided to prevent damage or rattling.
- Reconnect the vehicle's negative battery cable.
- Insert the 15 amp fuse into the fuse holder and close the cap.
- Test the installation using a test light or trailer. Check each function independently and in combination.
Hardware List:
- 8 × Cable Ties, 8.5”
- 1 × 15 AMP Fuse
- 2 × Ring Terminals
- 1 × Fuse Holder
- 2 × Yellow Butt Connectors
- 1 × Self-Tapping Screw
- 4 × Blue Taps
- 1 × Spade Terminal
Wiring Outputs:
- White Wire: Ground
- Brown Wire: Tail
- Yellow Wire: Left Turn/Brake
- Green Wire: Right Turn/Brake
- Red Wire: Stop (for 3-wire systems only)
Safety Notes:
- Always read and follow all warnings and instructions included with the product and the vehicle's manual.
- Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
- Wear safety glasses and use all necessary safety precautions during installation.
Troubleshooting Guide:
- 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
- No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.
Specifications:
- Installation Time: Approximately 45 minutes
- Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For warranty information, please download the full installation PDF.
