Product Details
- Brand: Draw-Tite
- Model: 75038 118323 23 63845 580407 7010

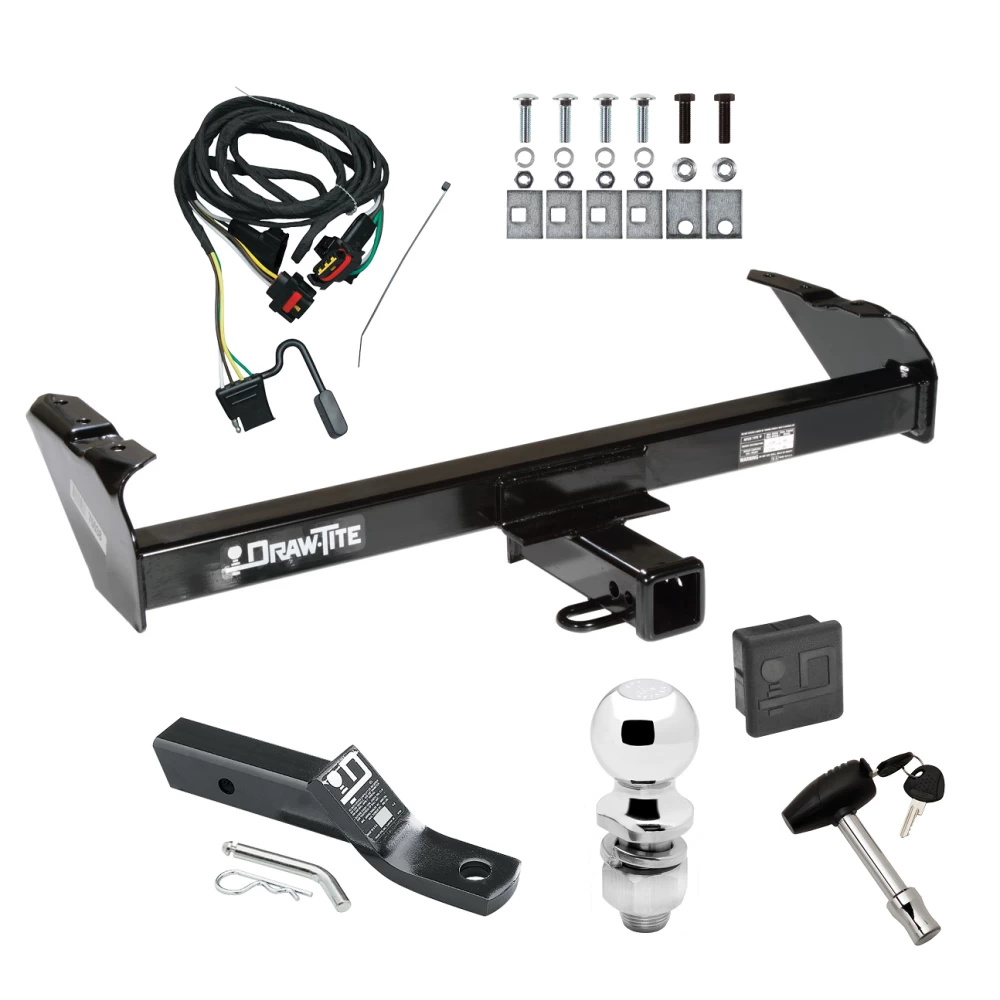

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 2004 Dodge Dakota Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail:
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes:
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners:
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable):
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier. Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications:
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster:
- Drill out the rear frame rivet for receiver attachment. If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.
Hardware List:
- (4) Carriage Bolt 1/2"-13 x 1-3/4" GR5
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washer
- (4) Hex Nut
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Additional Notes:
- Installation time for professional installers is approximately 1 hour.
- Follow all torque specifications and ensure proper alignment during installation.
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable)
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier.
- Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster
- Drill out the rear frame rivet for receiver attachment.
- If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.
Hardware List:
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washers
- (4) Hex Nuts
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions

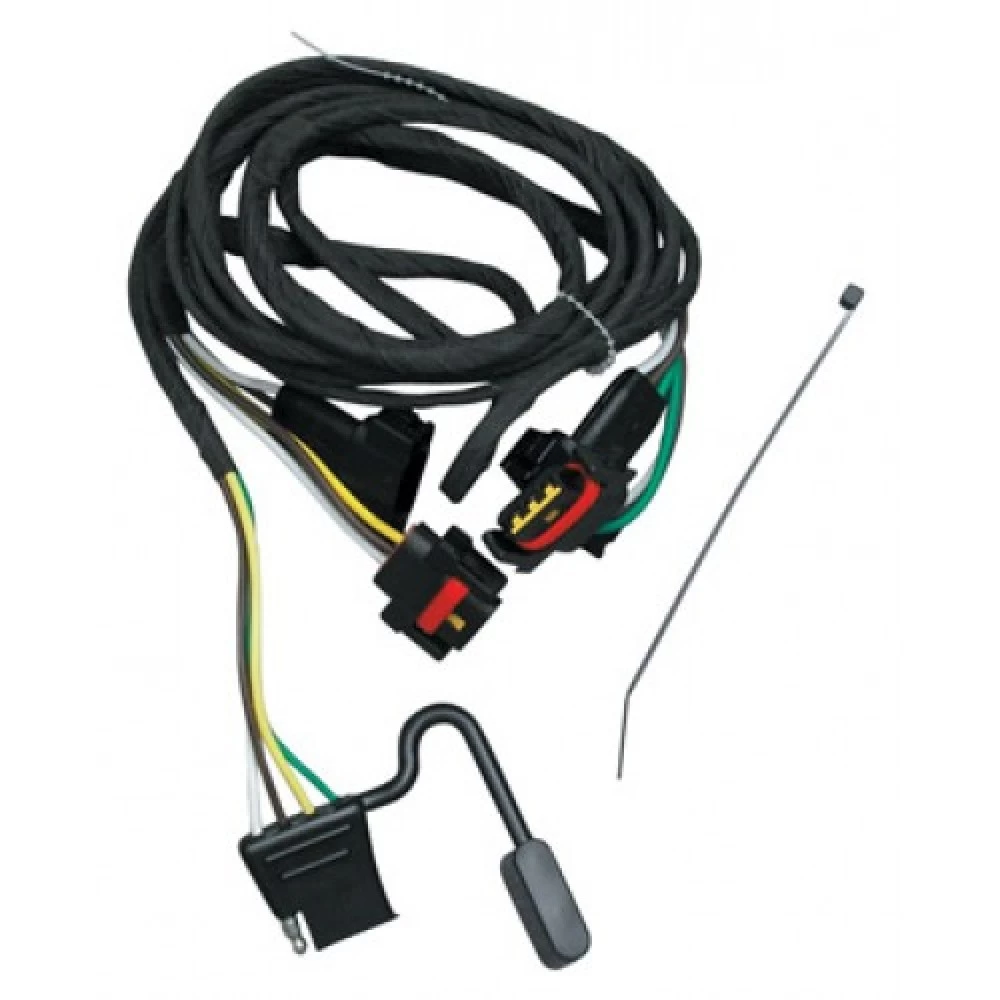

Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified.
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
- Remove the right taillight assembly from the vehicle.
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
- Repeat this procedure for the left side of the vehicle.
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove both taillight assemblies to access the taillight connectors.
- Beginning on the left (driver’s) side, route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening. Repeat step 2 using the connector containing the green wire.
-
Reinstall the taillight assemblies removed in step 1.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
-
Remove the Right Taillight Assembly:
- Remove the right taillight assembly from the vehicle.
-
Disconnect the Wire Harness:
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
-
Lay the T-Connector Harness:
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
-
Plug the T-Connector Harness:
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Repeat for the Left Side:
- Repeat this procedure for the left side of the vehicle.
-
Route the 4-Flat Plug:
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
-
Test the Installation:
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove Both Taillight Assemblies:
- Remove both taillight assemblies to access the taillight connectors.
- Begin on the left (driver’s) side and route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the Vehicle’s Wiring Harness:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the Connector with the Green Wire:
- Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening.
- Repeat step 2 using the connector containing the green wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies removed in step 1.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
